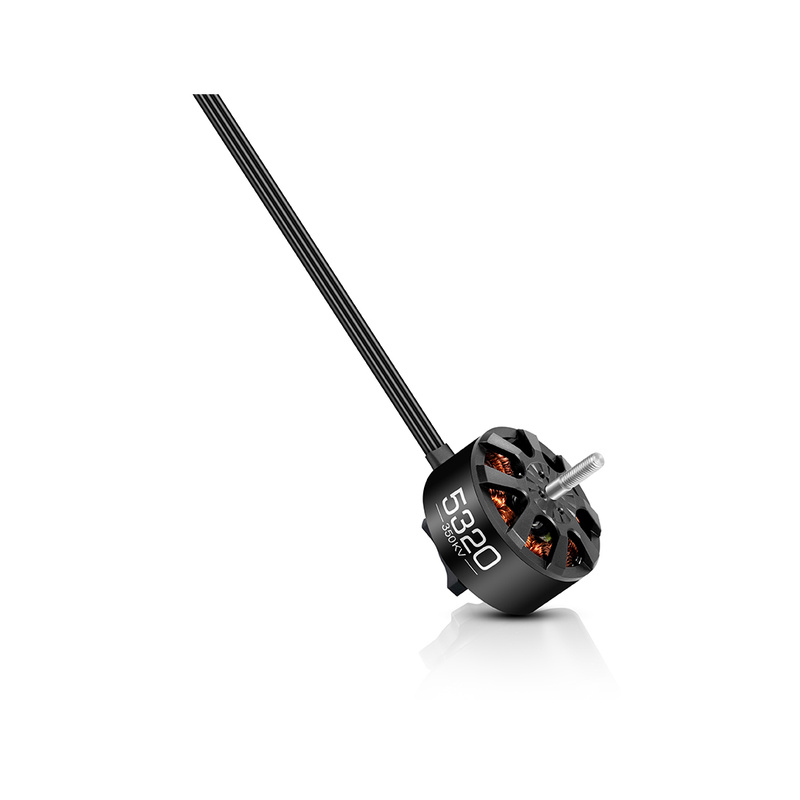

HOBBYWING RTF 5320-350KV BRUSHLESS MOTOR
The Hobbywing RTF 5320-350KV is a brushless motor for 8S LiPo propulsion systems. Its 52.9 mm stator, 620 mm motor leads and 30 mm mounting pattern suit builds using the manufacturer-recommended 16–18 inch three-blade propellers.
This is the 350KV version. Hobbywing specifies 1520 W rated output and up to 11.2 kg thrust under its test conditions. Maximum current and power ratings are time-limited; see the specifications and propeller-specific test data below.
FEATURES:
- Integrated propeller-mount cooling structure and anti-slip contact teeth.
- 0.2 mm stator laminations.
- Rotor retention using copper washers, retaining clips and screws.

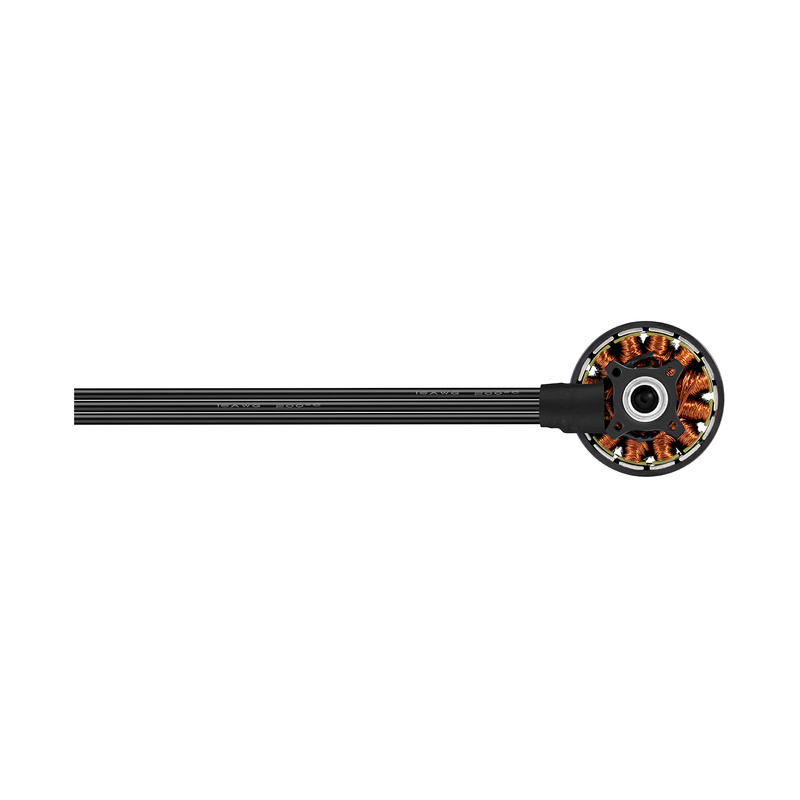

- 14 AWG motor leads, 620 mm long.
- Supports the recommended HQ 16 × 8 × 3, HQ 17 × 8 × 3 and GF 18 × 10 × 3 propeller combinations.
SPECIFICATIONS:
- Manufacturer: Hobbywing
- Model: RTF 5320-350KV-BLACK-V1
- KV rating: 350KV
- Battery: 8S LiPo
- Configuration: 12N14P
- Motor dimensions: Ø62.1 × 71.1 mm
- Stator dimensions: Ø52.9 × 20 mm
- Shaft diameter: 6 mm
- Bearings: 688ZZ and 698ZZ
- Motor mounting: Ø30 mm, 4 × M4
- Propeller mounting: Ø12 mm, 2 × M3; Ø15 mm, 2 × M3
- No-load current: 3.35 A
- Internal resistance: 26 mΩ
- Rated output power: 1520 W
- Maximum current: 105 A for 57 seconds
- Maximum power: 3340 W for 57 seconds
- Maximum thrust: 11.2 kg
- Net motor weight: 488 g with wires
- Shipping weight: 500 g
- Recommended ESC: Hobbywing RTF 100A 4-in-1 8S Lite AT
Maximum ratings are specified in open air at an ambient temperature of 25°C or below. They are not continuous operating ratings. Select the complete motor, propeller, ESC and battery combination using the manufacturer data.

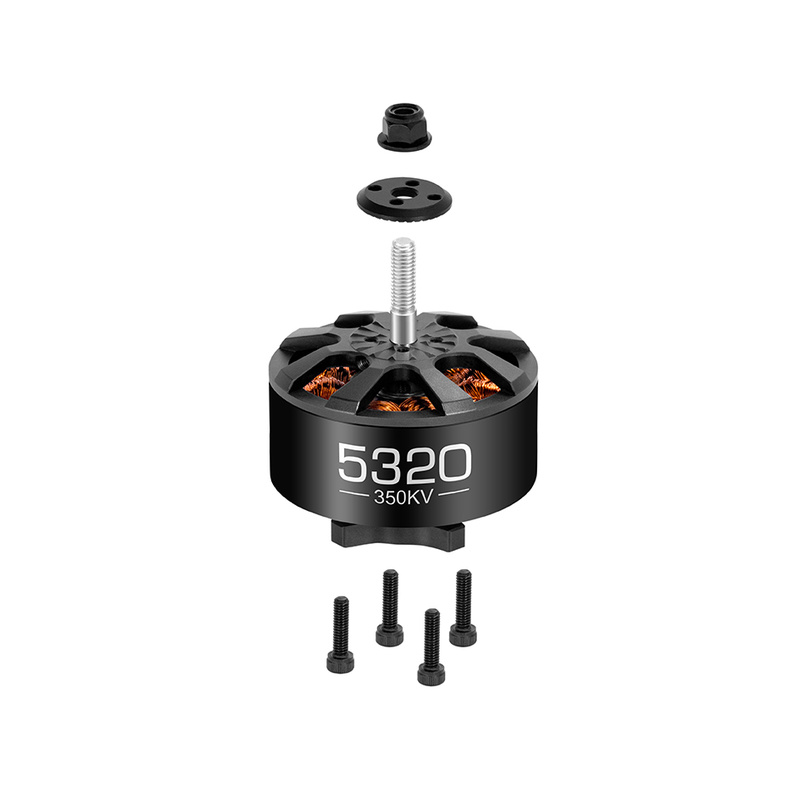

PACKAGE CONTENTS:
- 1 × Hobbywing RTF 5320-350KV brushless motor with wires
- 4 × M4 × 14 mm socket-head mounting screws
- 1 × Black propeller washer
- 1 × M6 self-locking nut
Propeller, ESC and battery are not included.
THRUST TEST DATA — 350KV:
Selected points from Hobbywing testing at 32 V (8S), 25°C and sea level. Results depend on propeller and operating conditions. Full-throttle operation is time-limited; consult the full report before selecting a setup.
| Propeller | Throttle (%) | Thrust (g) | Current (A) | Input power (W) | Speed (rpm) | Efficiency (g/W) |
|---|---|---|---|---|---|---|
| HQ 16 × 8 × 3 | 60 | 3576 | 19.0 | 607.4 | 5399 | 5.9 |
| HQ 16 × 8 × 3 | 75 | 5605 | 36.2 | 1157.6 | 6669 | 4.8 |
| HQ 16 × 8 × 3 | 100 | 9601 | 81.3 | 2599.3 | 8550 | 3.7 |
| HQ 17 × 8 × 3 | 60 | 3859 | 19.9 | 637.7 | 5379 | 6.1 |
| HQ 17 × 8 × 3 | 75 | 5988 | 37.9 | 1213.4 | 6632 | 4.9 |
| HQ 17 × 8 × 3 | 100 | 10176 | 86.2 | 2757.8 | 8471 | 3.7 |
| GF 18 × 10 × 3 | 60 | 5664 | 33.5 | 1072.6 | 5006 | 5.3 |
| GF 18 × 10 × 3 | 75 | 8519 | 63.9 | 2042.3 | 6086 | 4.2 |
| GF 18 × 10 × 3 | 100 | 11244 | 104.6 | 3344.9 | 6924 | 3.4 |
