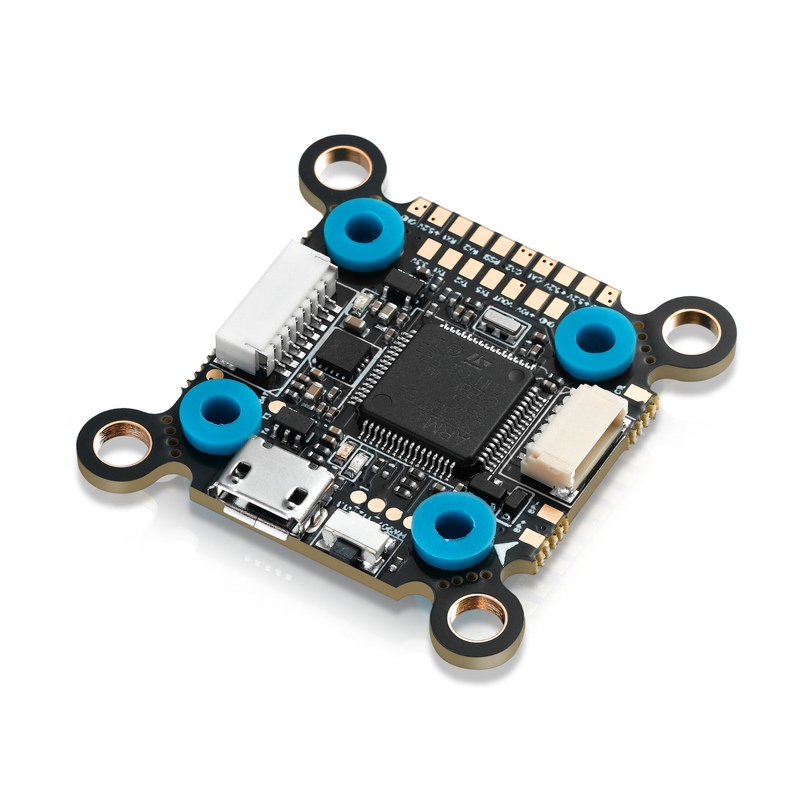

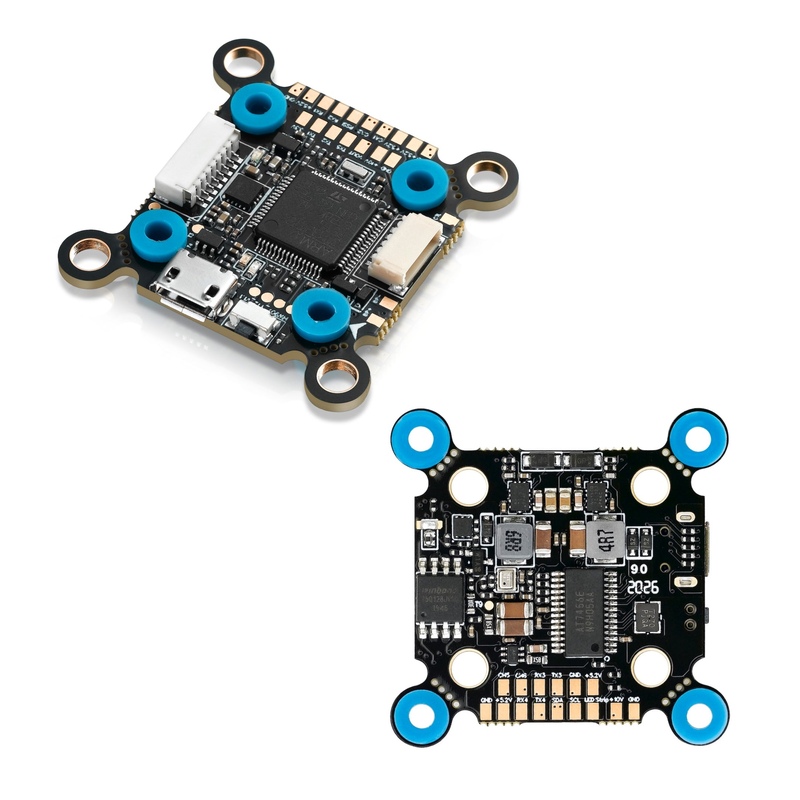

HOBBYWING XROTOR F7 CONVERTIBLE FLIGHT CONTROLLER

The Hobbywing XRotor F7 Convertible is a flight controller for FPV quadcopters, combining flexible mounting with onboard OSD, logging and power regulation. Its dedicated DJI-system interface and Hobbywing 4-in-1 ESC connections help simplify wiring; check device pinouts and voltage requirements before connection.

Flight controller only; ESC, receiver and video transmitter are not included.

FEATURES:

• STM32F722 processor with onboard flight-log memory.
• Integrated OSD and a configurable VTX Pit Switch.
• 5 V and 10 V regulated outputs for onboard equipment.
• Two mounting patterns with vibration-isolating grommets.
• Micro-USB connection for configuration and firmware updates.

SPECIFICATIONS:

• Manufacturer: Hobbywing
• Manufacturer part number: 31003002
• Processor: STM32F722
• Mounting patterns: 30.5 × 30.5 mm and 20 × 20 mm
• Firmware target: HOBBYWING_XROTORF7CONV
• BEC outputs: 5 V / 1.5 A and 10 V / 1.5 A
• ESC protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150/300/600 and Proshot1000
• Receiver protocols include: SBUS, CRSF, PPM, Spektrum and IBUS
• Voltage monitoring: Supported
• Current monitoring: Supported with an external current-sensor signal
• External buzzer and LED control: Supported
• USB connector: Micro-USB
• Shipping weight: 100 g

PACKAGE CONTENTS:

• 1 × Hobbywing XRotor F7 Convertible Flight Controller
