Description

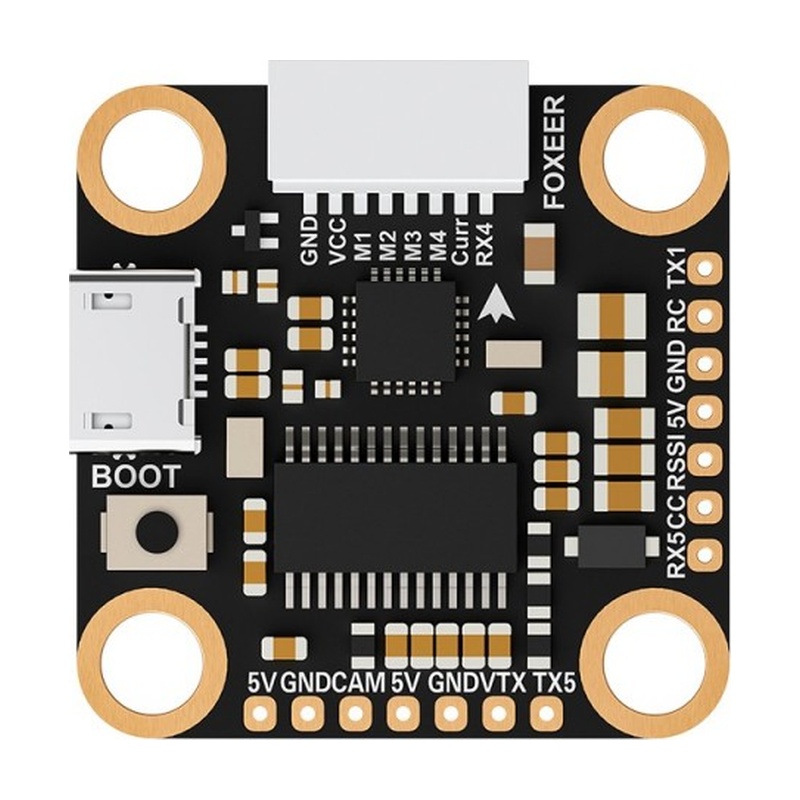

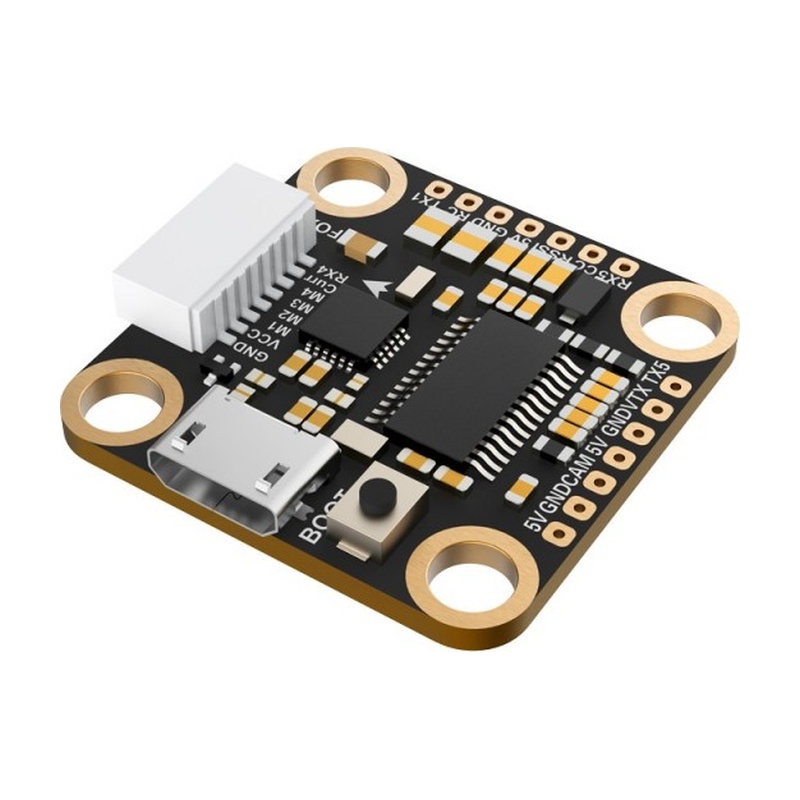

FOXEER F722 V4 MINI FLIGHT CONTROLLER MPU6000

The Foxeer F722 V4 Mini combines an STM32F722 processor and MPU6000 gyro in a compact board for FPV builds. Its 20 × 20 mm mounting pattern suits smaller stacks, with onboard OSD and flash logging.

Flight controller and listed accessories only. ESC, receiver and video system are not included. Check cable pinouts and device voltage requirements before connection.

FEATURES:

• MPU6000 gyro and Betaflight support.
• Regulated 5 V output for onboard equipment.
• SmartAudio, buzzer and WS2812 LED support.
• Four UART sets with RX4 ESC telemetry.

SPECIFICATIONS:

• Manufacturer part number: MR1701
• CPU: STM32F722RET6
• Gyro: MPU6000
• Input: 2–6S LiPo, 6.5–30 V
• BEC: 5 V / 3 A
• OSD: Betaflight OSD
• Blackbox: 16M flash memory
• USB: Micro-USB
• Firmware target: FOXEERF722V4
• Board size: 26 × 26 mm
• Mounting: 20 × 20 mm; 4 mm holes
• Net board weight: 4 g
• Shipping weight: 100 g

PACKAGE CONTENTS:

• 1 × Foxeer F722 V4 Mini MPU6000 flight controller
• 4 × Rubber mounting columns
