FOXEER F722 V4 FC MPU6000 8S DUAL BEC BAROMETER X8

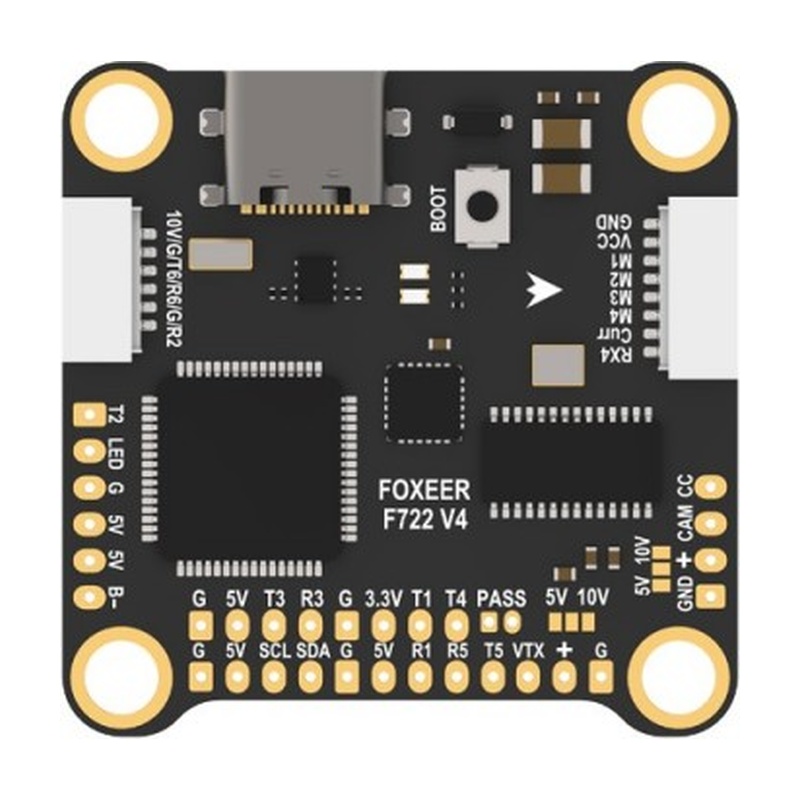

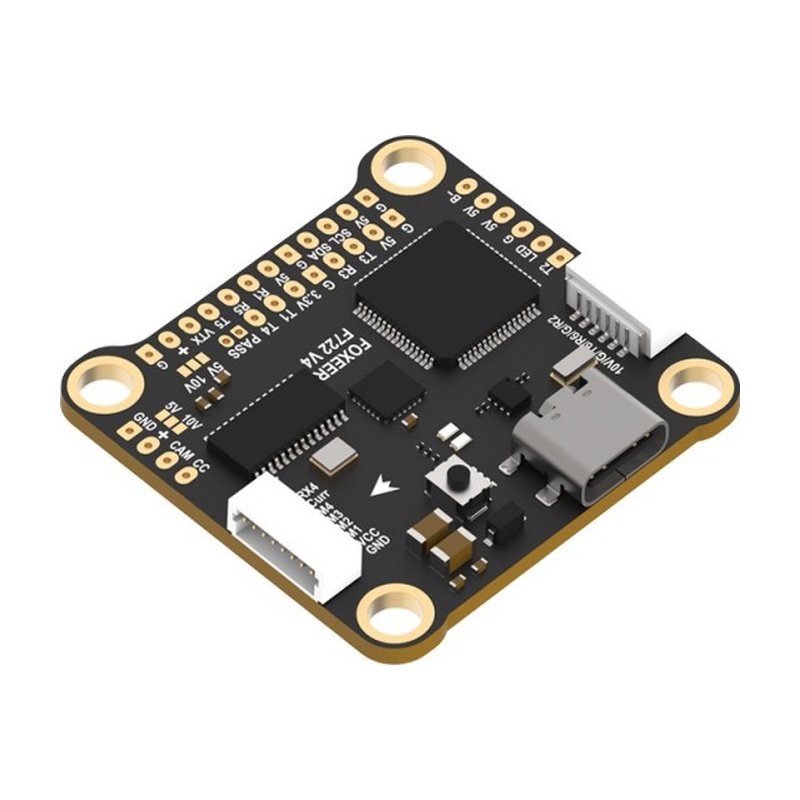

The Foxeer F722 V4 MPU6000 flight controller pairs an F722 processor with a DPS310 barometer and dual regulated power outputs. It supports 4–8S builds using a 30.5 × 30.5 mm mounting pattern.

Flight controller and listed accessories only. ESC, receiver and video system are not included. Check cable pinouts and device voltage requirements before connection.

FEATURES:

• MPU6000 gyro with onboard barometer.
• 5 V and 10 V BEC outputs.
• DJI/HDZero connector and Betaflight OSD.
• X8 support requires CLI configuration.
• SmartAudio, buzzer and WS2812 LED support.

SPECIFICATIONS:

• Manufacturer part number: MR1761
• CPU: STM32F722RET6
• Gyro: MPU6000
• Barometer: DPS310
• Input: 4–8S LiPo
• BECs: 5 V / 2 A and 10 V / 2 A
• Blackbox: 16M flash memory
• UARTs: 5 sets plus RX4; ESC telemetry on RX4
• USB: USB Type-C
• Firmware target: FOXEERF722V4 (Betaflight)
• Board size: 37 × 37 mm
• Mounting: 30.5 × 30.5 mm; 4 mm holes
• Net board weight: 7.7 g
• Shipping weight: 100 g

PACKAGE CONTENTS:

• 1 × Foxeer F722 V4 MPU6000 flight controller
• 4 × Rubber mounting columns
• 1 × Cable
