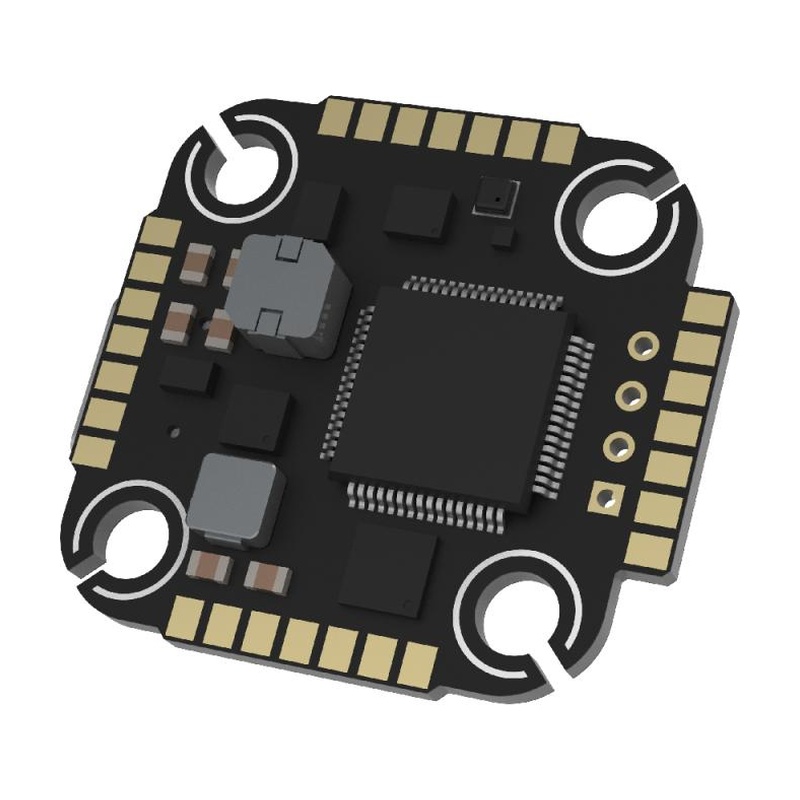

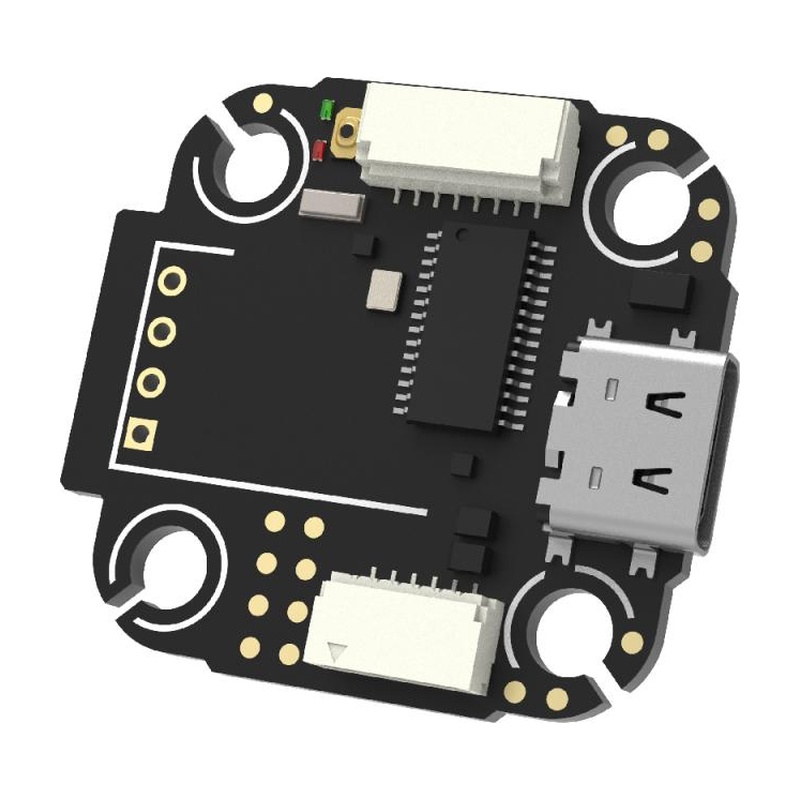

TBS LUCID FC PRO

The TBS Lucid FC Pro is a 20 × 20 mm flight controller for racing and freestyle builds. This Pro version uses the MPU6000 gyro, with an AT32F435 processor and connectors for a compatible 4-in-1 ESC and DJI O3 system.

Flight controller and listed accessories only. ESC, receiver and video system are not included. Check cable pinouts and device voltage requirements before connection.

FEATURES:

• 288 MHz AT32 processor and MPU6000 gyro.
• Six UARTs for receivers and peripherals.
• Onboard analog OSD and blackbox logging.
• Separate 5 V and 9 V regulated outputs.
• Supplied ESC and DJI O3 connection cables.

SPECIFICATIONS:

• MCU: AT32F435RMT7, 288 MHz
• Gyro: MPU6000
• Motor outputs: 4; telemetry and current-sensor support
• Input: 3–6S
• BECs: 9 V / 2.5 A and 5 V / 2 A
• OSD: AT7456E
• Blackbox: 8M
• UARTs: 6
• Board size: 31 × 29 mm
• Mounting: 20 × 20 mm
• Net board weight: 4.51 g
• Shipping weight: 100 g

PACKAGE CONTENTS:

• 1 × TBS Lucid FC Pro 20 × 20 mm flight controller
• 1 × FC-to-ESC cable
• 1 × DJI O3 cable
• 4 × M3 rubber dampers
• 4 × M3 × 8 screws
