Description

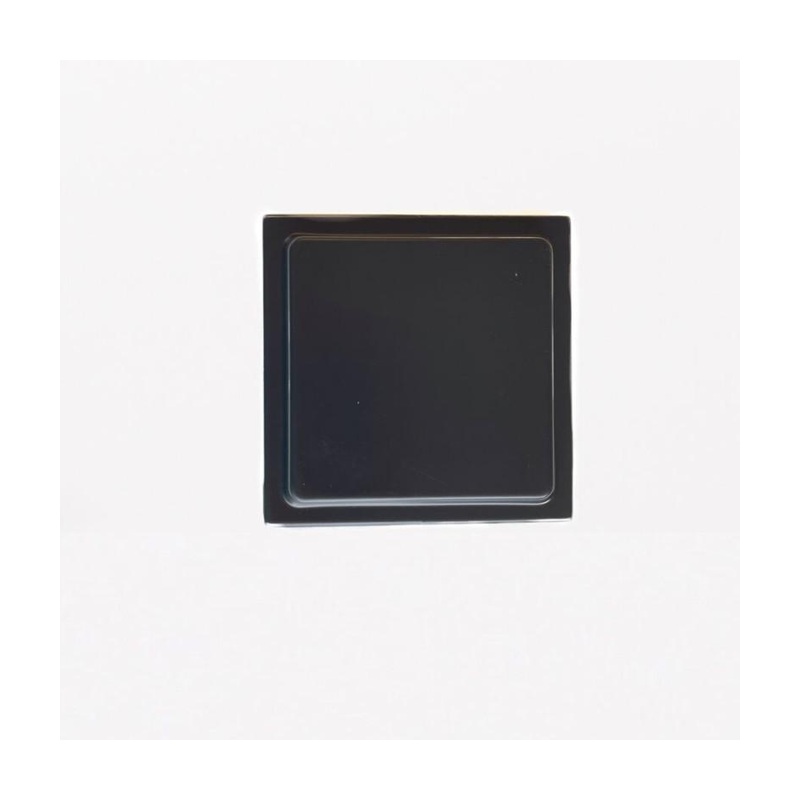

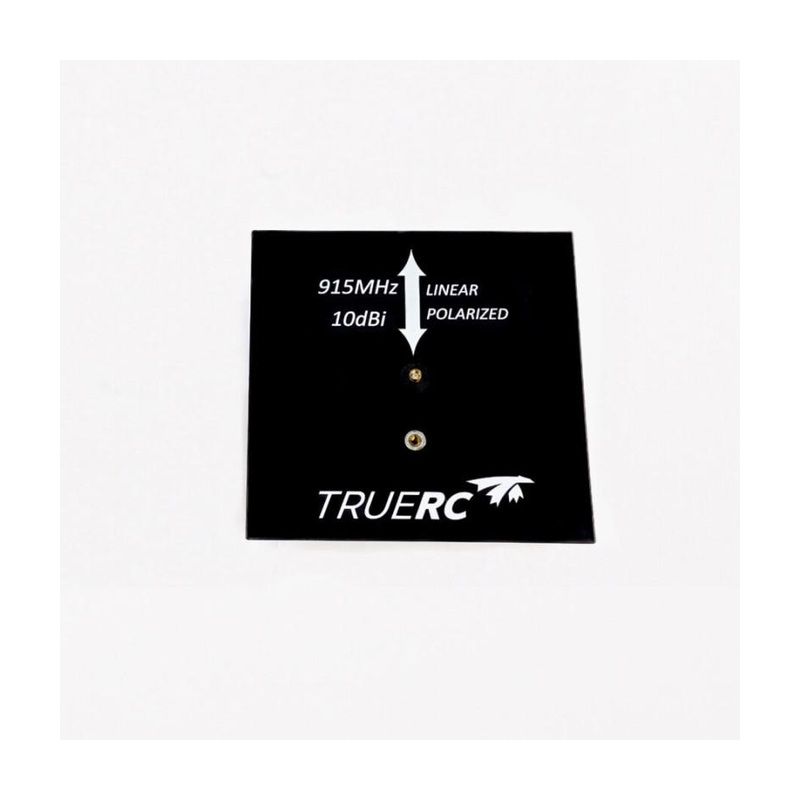

TRUERC LINE-AIR 900 LINEAR ANTENNA

The TrueRC LINE-AIR 900 is a directional, linearly polarized biquad antenna for a compatible ground station. Its rear threaded mount supports convenient installation and aiming.

FEATURES:

• Directional biquad design
• SMA male connection
• Rear 1/4-20 flush mounting thread

SPECIFICATIONS:

• Operating frequency: 900 MHz ISM band
• Gain: 10 dBi
• Polarization: Linear
• Radiation efficiency: 99%
• Beam width: 120° at equivalent omnidirectional coverage
• Half-power beam width (-3 dB): 68°
• Dimensions: 222 × 222 × 45 mm
• Net antenna weight: 224 g
• Connector: SMA male
• Mounting thread: 1/4-20

PACKAGE CONTENTS:

• 1 × TrueRC LINE-AIR 900 antenna
