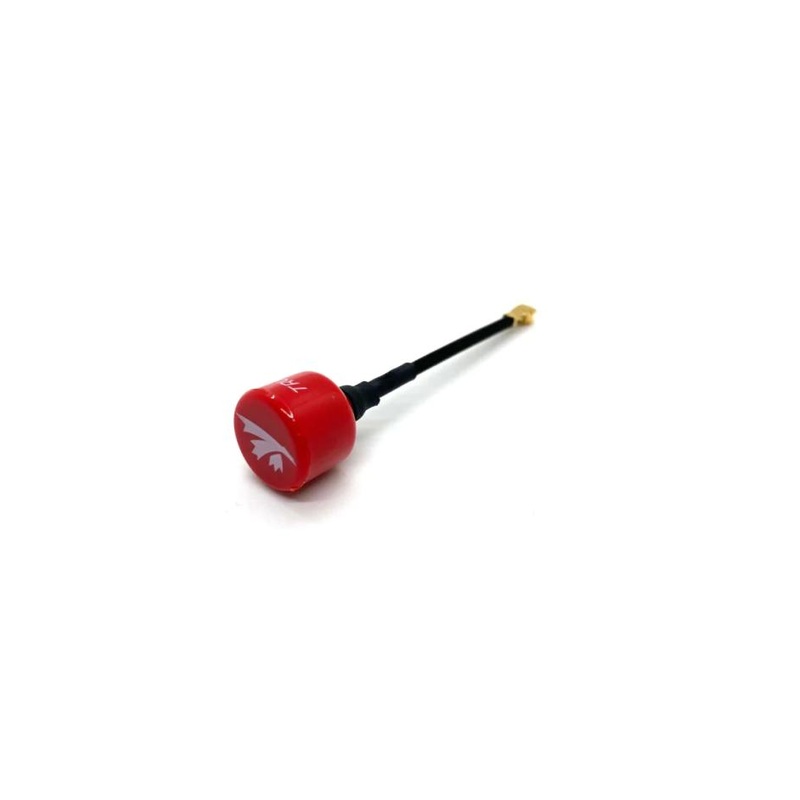

TRUERC SINGULARITY 5.8 RHCP U.FL SHORT 36MM ANTENNA

A compact TrueRC SINGULARITY 5.8 antenna with RHCP polarization, a U.FL connector and 36 mm short cable option. The small antenna head suits installations with limited space.

FEATURES:

• Compact circularly polarized antenna
• U.FL connection
• Short 36 mm configuration

SPECIFICATIONS:

• Polarization: RHCP
• Frequency range: 5.6–6.0 GHz
• Gain: 1.9 dBic
• Radiation efficiency: 99%
• SWR: ≤1.5:1
• Cross-polar rejection: -15 to -30 dB
• Antenna head: 11.8 mm diameter × 8.2 mm high

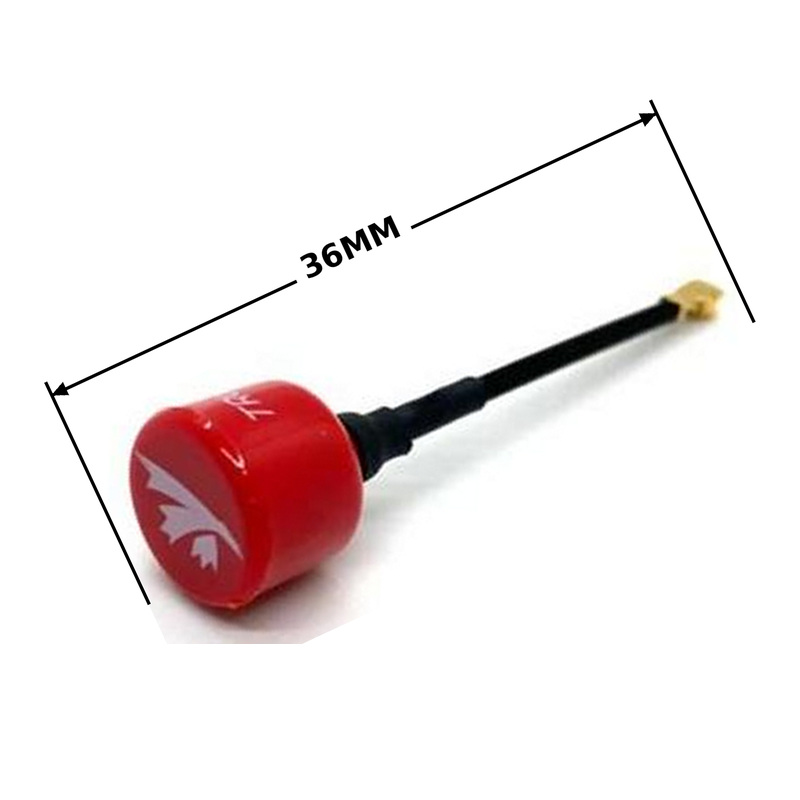

• Nominal length: 36 mm
• Connector: U.FL

PACKAGE CONTENTS:

• 1 × TrueRC SINGULARITY 5.8 RHCP U.FL Short 36 mm antenna
