Description

TRUERC SINGULARITY 5.8 LHCP U.FL LITE ANTENNA

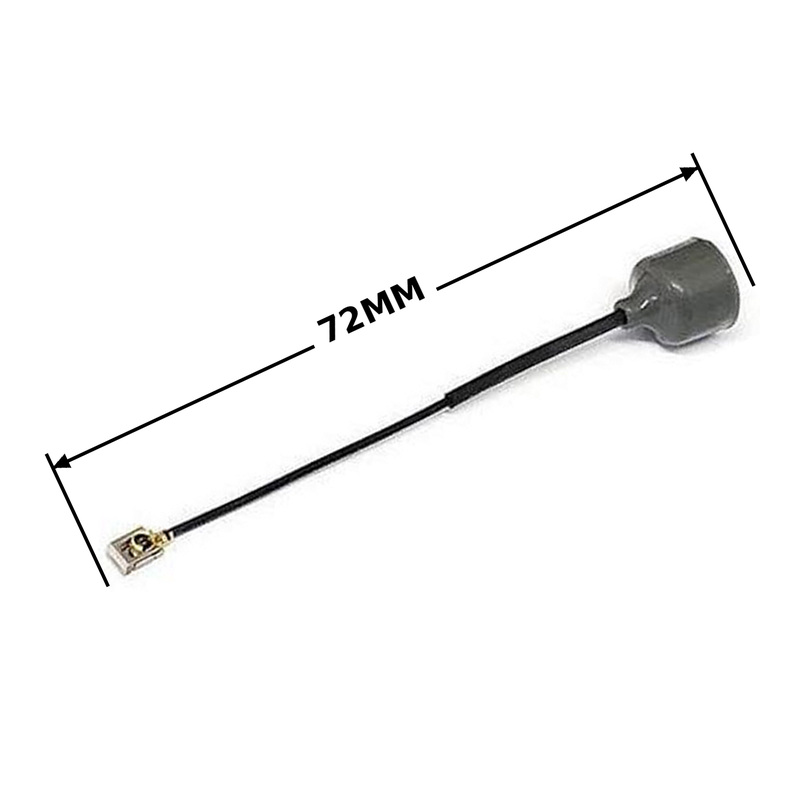

TrueRC SINGULARITY 5.8 LHCP U.FL Lite antenna with a compact head and lightweight cable. Choose the custom 45 mm version or the 72 mm version.

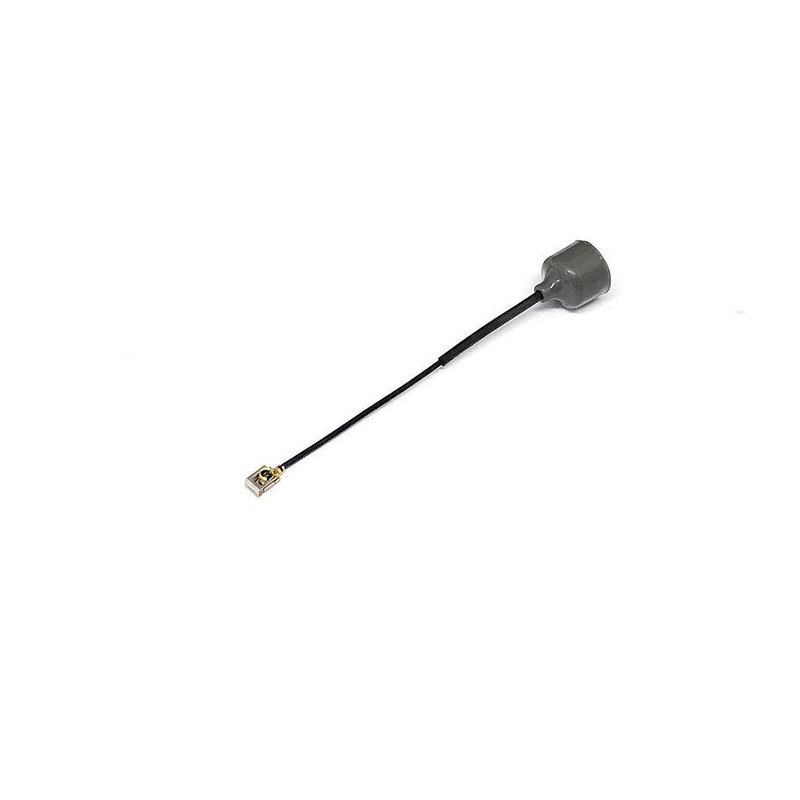

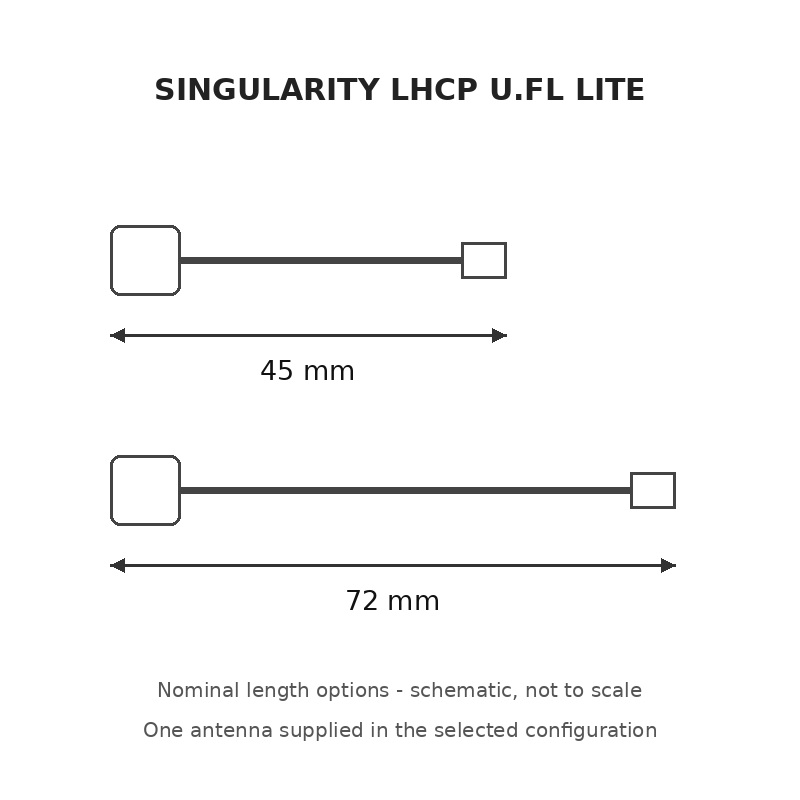

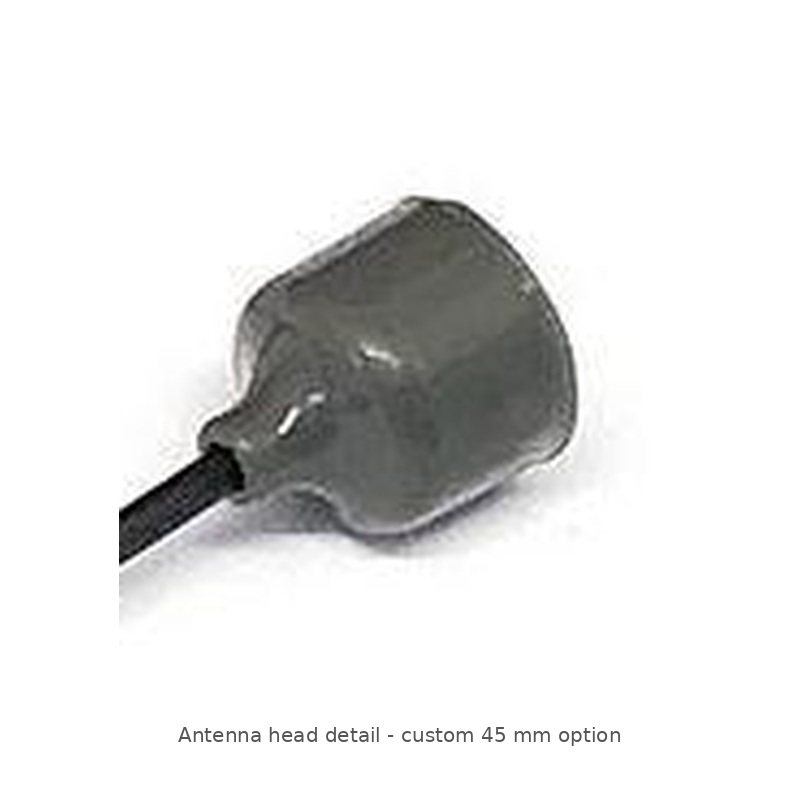

The 45 mm length is a custom order configuration. Its image shows an antenna-head detail; the full antenna photograph shows the 72 mm option. The diagram identifies both length options.

FEATURES:

• Compact circularly polarized antenna
• Lightweight U.FL Lite cable
• Choice of nominal lengths

SPECIFICATIONS:

• Frequency range: 5.6–6.0 GHz
• Gain: 1.9 dBic
• Radiation efficiency: 99%
• SWR: ≤1.5:1
• Cross-polar rejection: -15 to -30 dB
• Antenna head: 11.8 mm diameter × 8.2 mm high
• Polarization: LHCP
• Connector: U.FL
• Cable type: U.FL Lite
• Nominal lengths: 45 mm / 72 mm

PACKAGE CONTENTS:

• 1 × TrueRC SINGULARITY 5.8 LHCP U.FL Lite antenna in the selected length
