Description

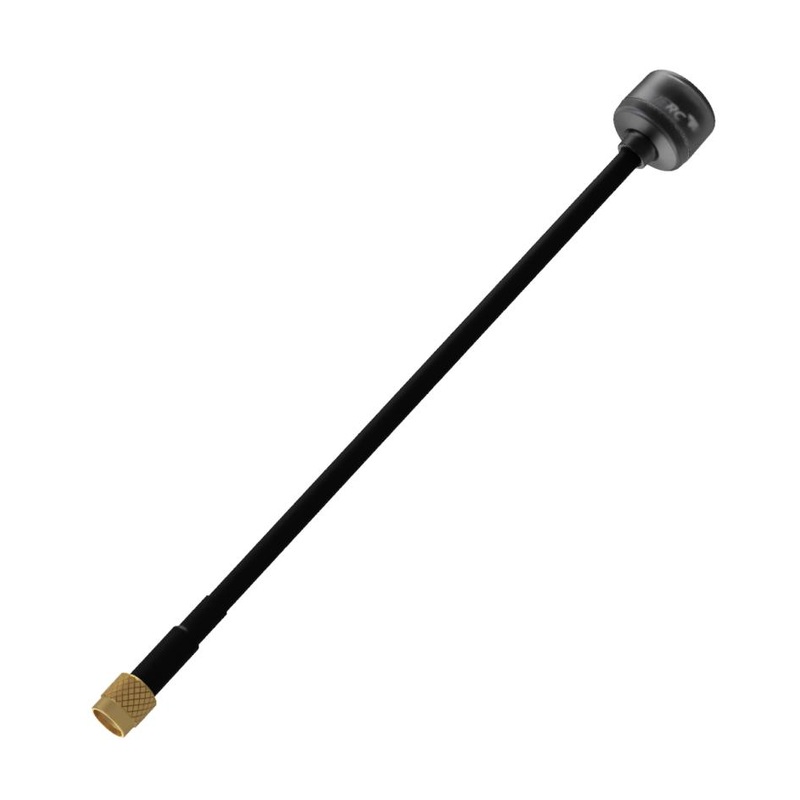

TRUERC CORE 5.8 LHCP RP-SMA 160MM ANTENNA

TrueRC CORE 5.8 LHCP antenna with a grey polycarbonate housing, 160 mm nominal length and reinforced RP-SMA connector. Its omnidirectional radiation pattern suits compatible FPV antenna installations.

FEATURES:

• Omnidirectional circular polarization
• Protective polycarbonate housing

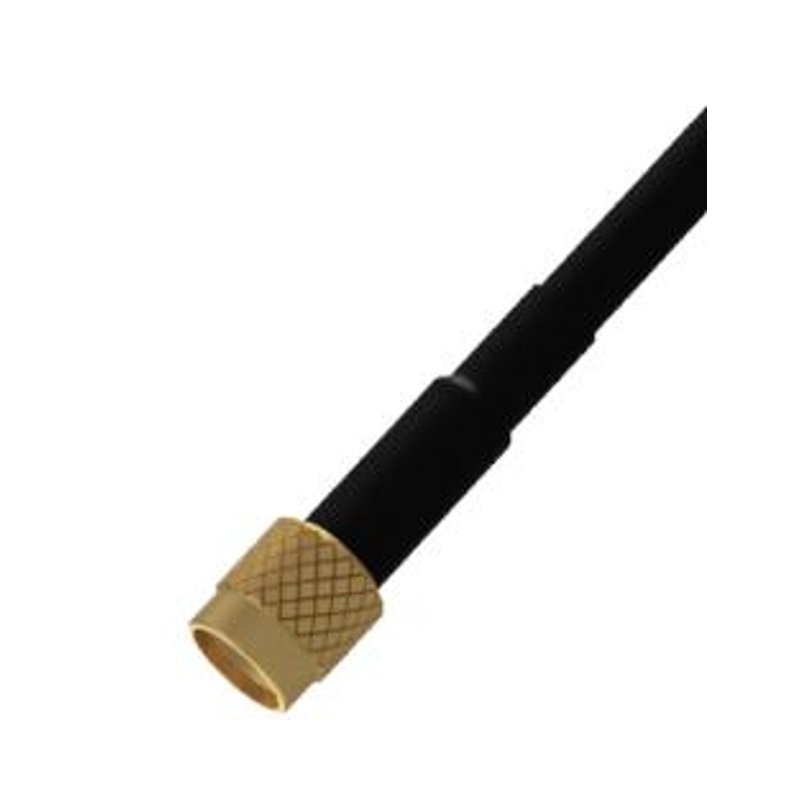

• Reinforced RP-SMA connector with knurled grip

SPECIFICATIONS:

• Polarization: LHCP
• Housing colour: Grey
• Frequency range: 5.5–6.7 GHz
• Gain: 1.9 dBic
• Radiation efficiency: 98%
• SWR: ≤1.2:1
• Cross-polar rejection: -10 to -20 dB
• Antenna head: 16.9 mm diameter × 13.1 mm high

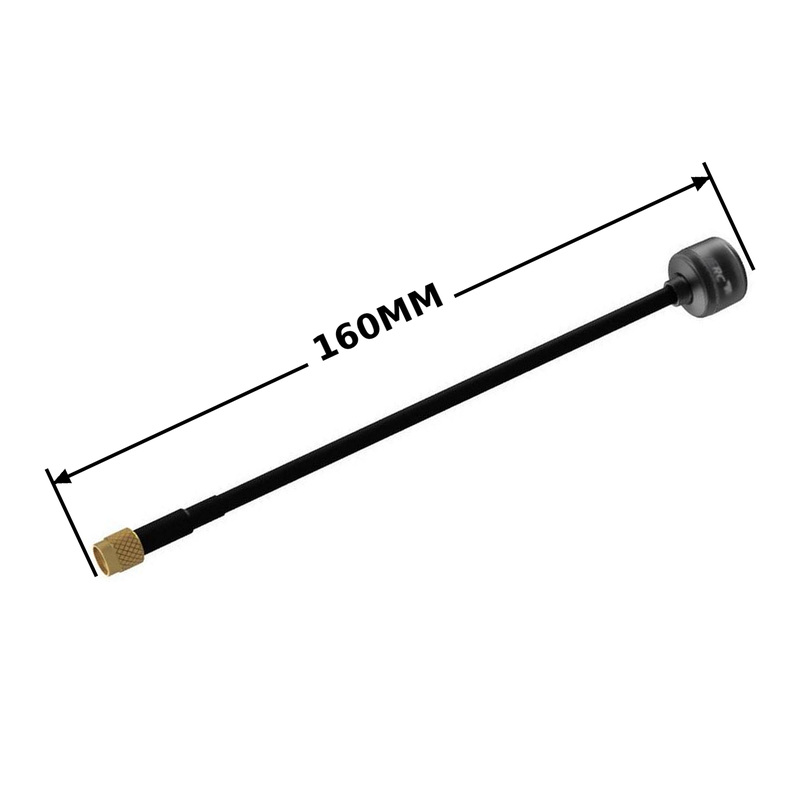

• Nominal length: 160 mm
• Connector: RP-SMA

PACKAGE CONTENTS:

• 1 × TrueRC CORE 5.8 LHCP RP-SMA 160 mm antenna
