Description

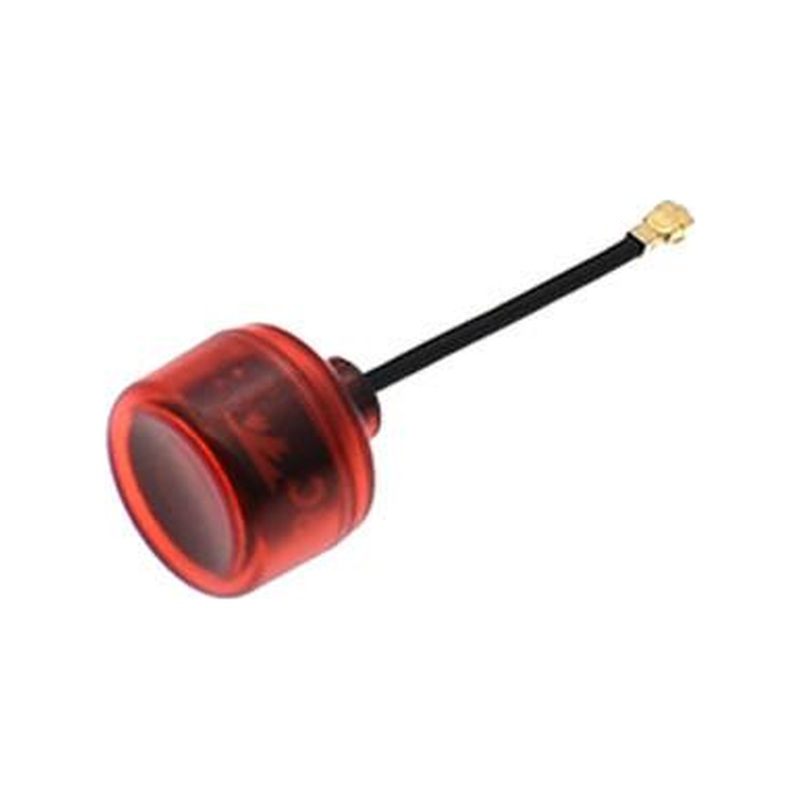

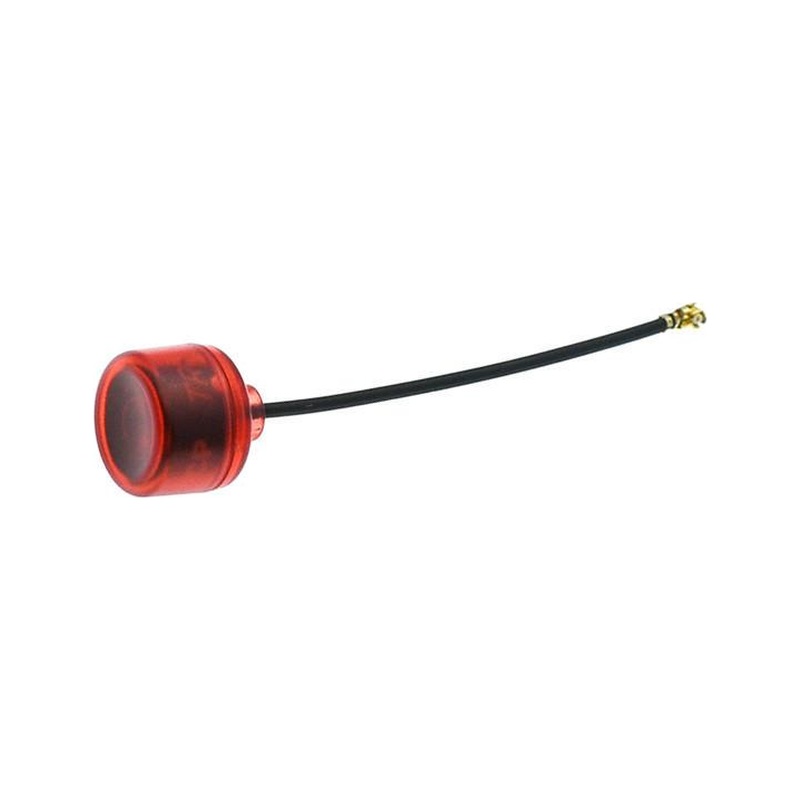

TRUERC CORE 5.8 RHCP U.FL ANTENNA

TrueRC CORE 5.8 RHCP omnidirectional antenna with a red polycarbonate housing and U.FL connector. Select the 45 mm or 85 mm length to suit your installation; each option contains one antenna.

FEATURES:

• Omnidirectional circularly polarized design
• Protective polycarbonate housing
• Choice of two nominal lengths

SPECIFICATIONS:

• Polarization: RHCP
• Housing colour: Red
• Frequency range: 5.5–6.7 GHz
• Gain: 1.9 dBic
• Radiation efficiency: 98%
• SWR: ≤1.2:1
• Cross-polar rejection: -10 to -20 dB
• Antenna head: 16.9 mm diameter × 13.1 mm high
• Connector: U.FL

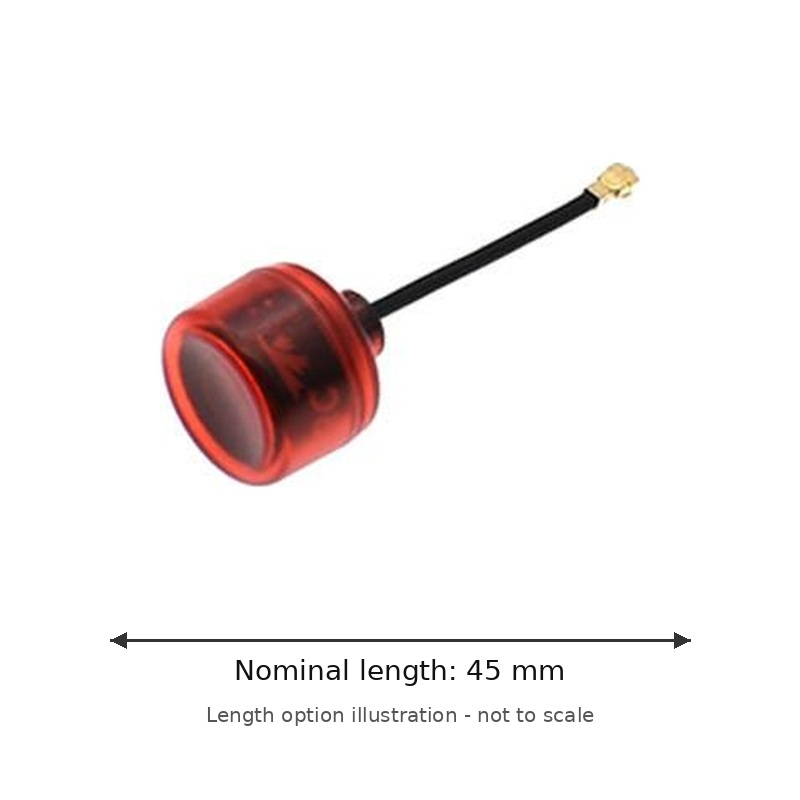

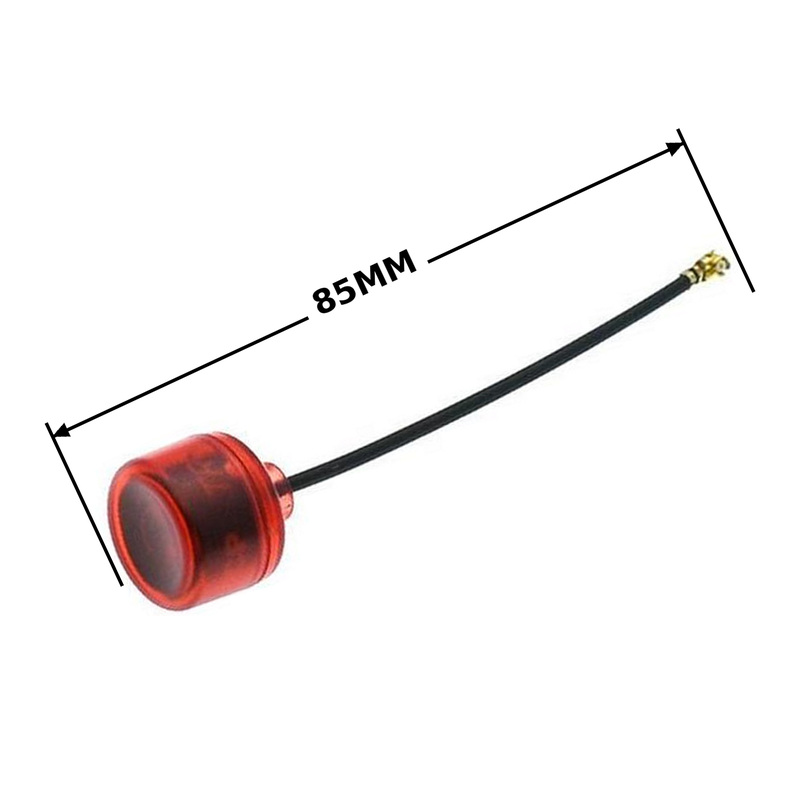

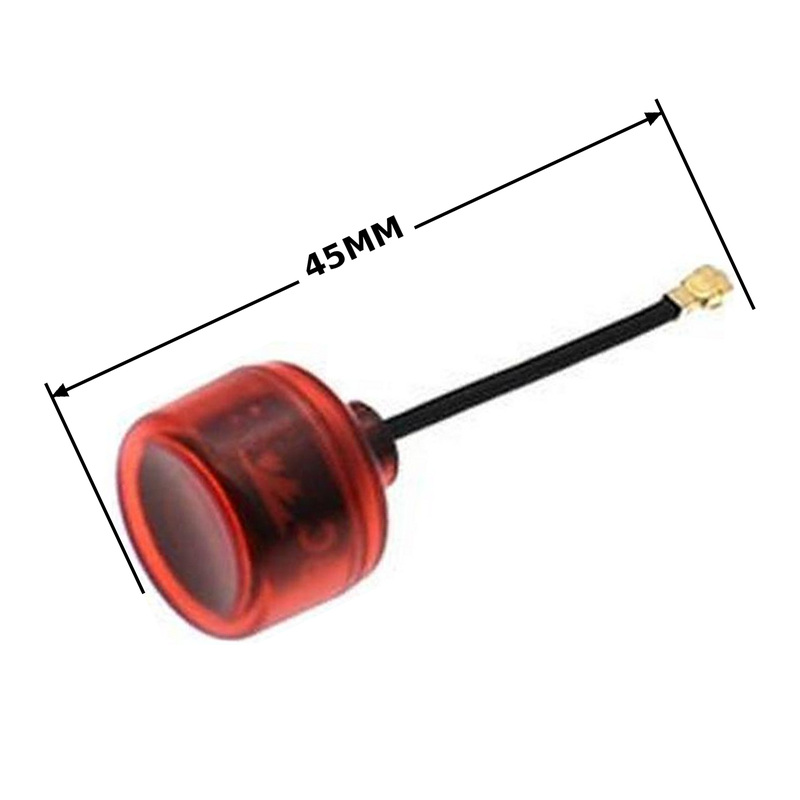

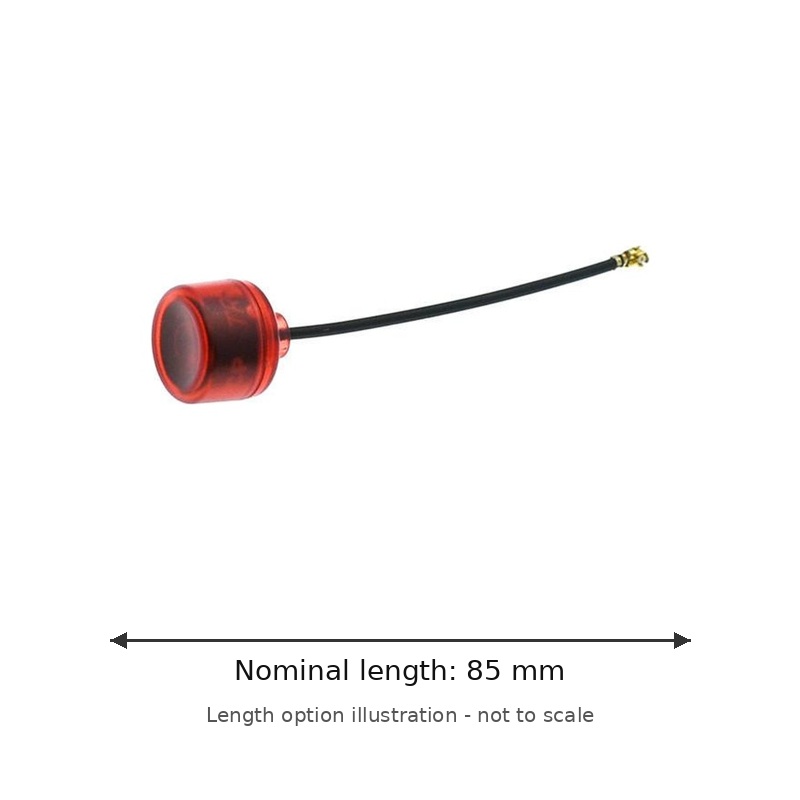

• Nominal length options: 45 mm / 85 mm

PACKAGE CONTENTS:

• 1 × TrueRC CORE 5.8 RHCP U.FL antenna in the selected length
