Description

TRUERC SINGULARITY 5.8 RHCP SMA ANTENNA

Compact TrueRC SINGULARITY 5.8 RHCP antenna with an SMA connector. Choose the 62 mm version or the custom 160 mm version; one antenna is supplied.

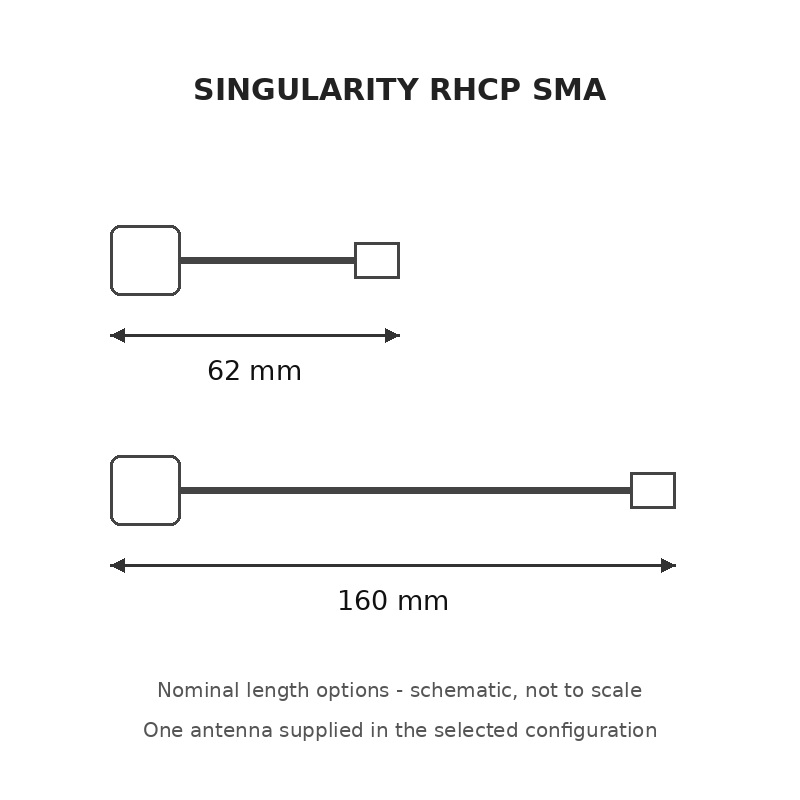

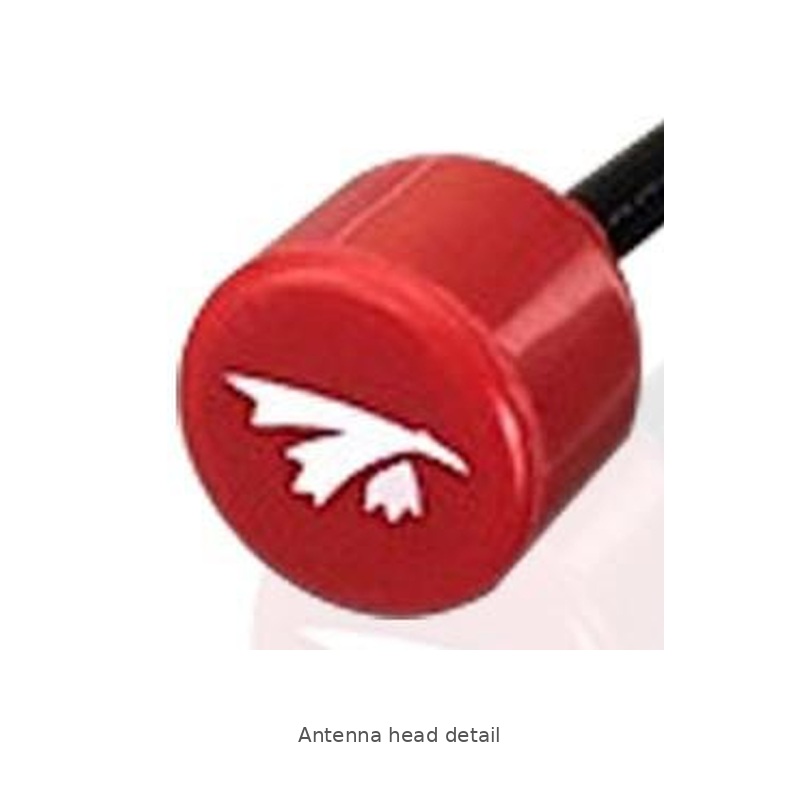

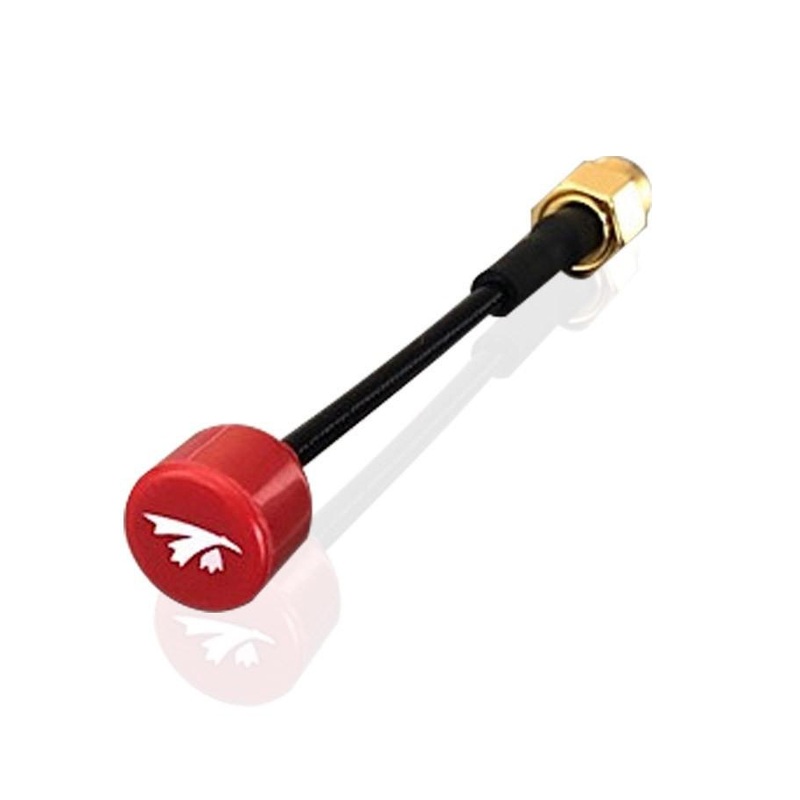

The complete-product photograph shows the 62 mm version. The custom 160 mm option is represented by the antenna-head detail and labelled length diagram.

FEATURES:

• Compact circularly polarized antenna
• SMA connection
• Two nominal length options

SPECIFICATIONS:

• Frequency range: 5.6–6.0 GHz
• Gain: 1.9 dBic
• Radiation efficiency: 99%
• SWR: ≤1.5:1
• Cross-polar rejection: -15 to -30 dB
• Antenna head: 11.8 mm diameter × 8.2 mm high
• Polarization: RHCP

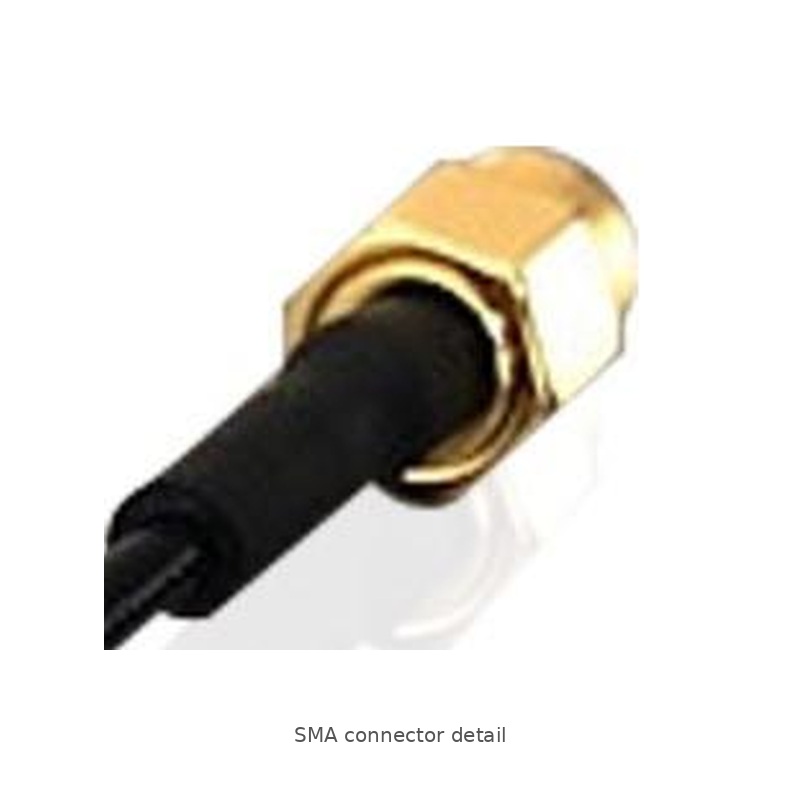

• Connector: SMA

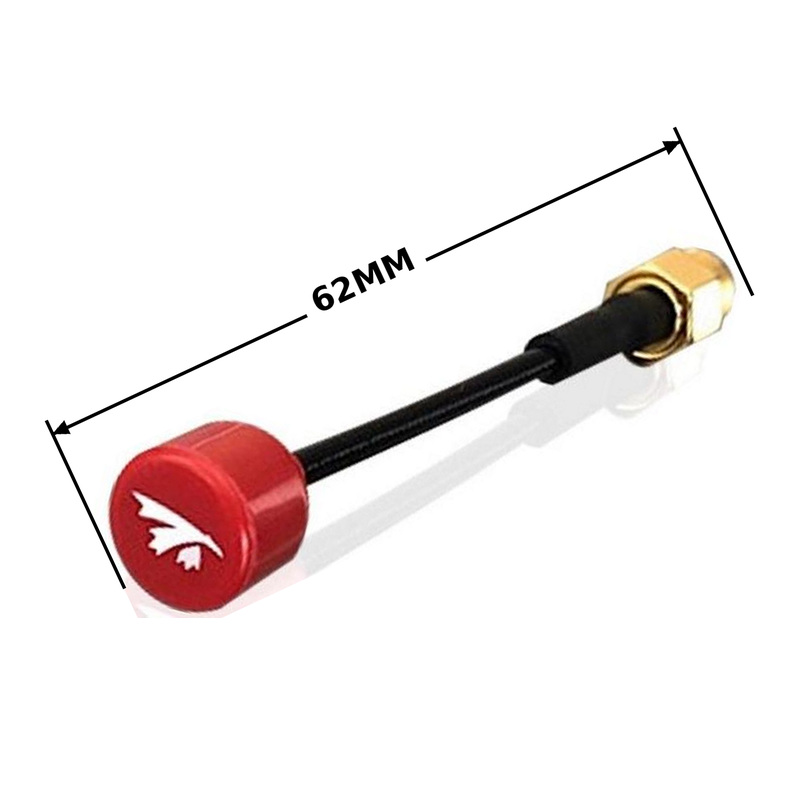

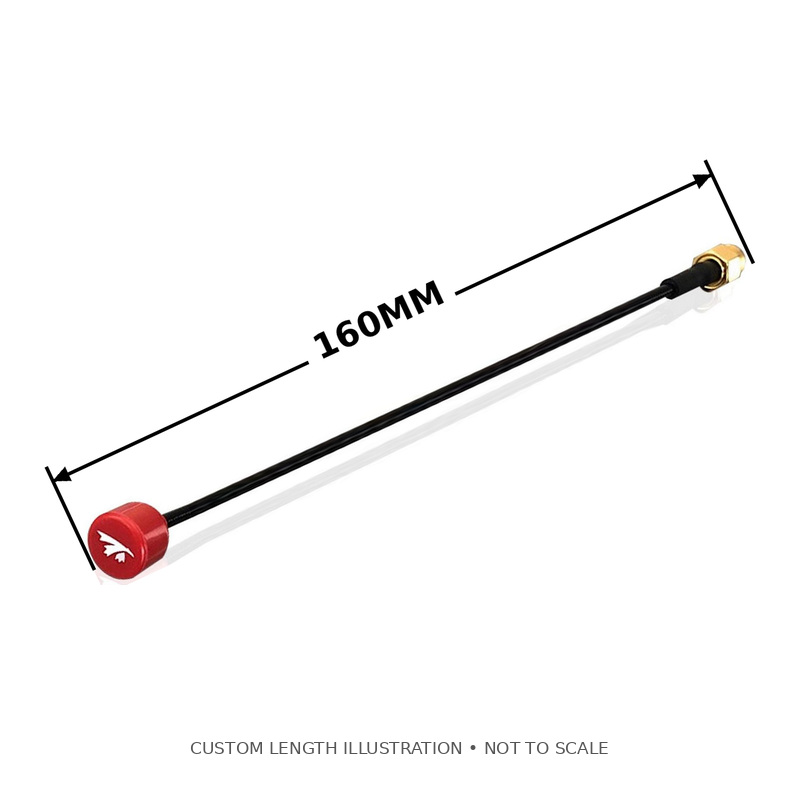

• Nominal lengths: 62 mm / 160 mm

PACKAGE CONTENTS:

• 1 × TrueRC SINGULARITY 5.8 RHCP SMA antenna in the selected length
