TRUERC CORE 5.8 RHCP SMA 160MM ANTENNA

TrueRC CORE 5.8 RHCP antenna with a red polycarbonate housing, 160 mm nominal length and reinforced SMA connector for compatible FPV installations.

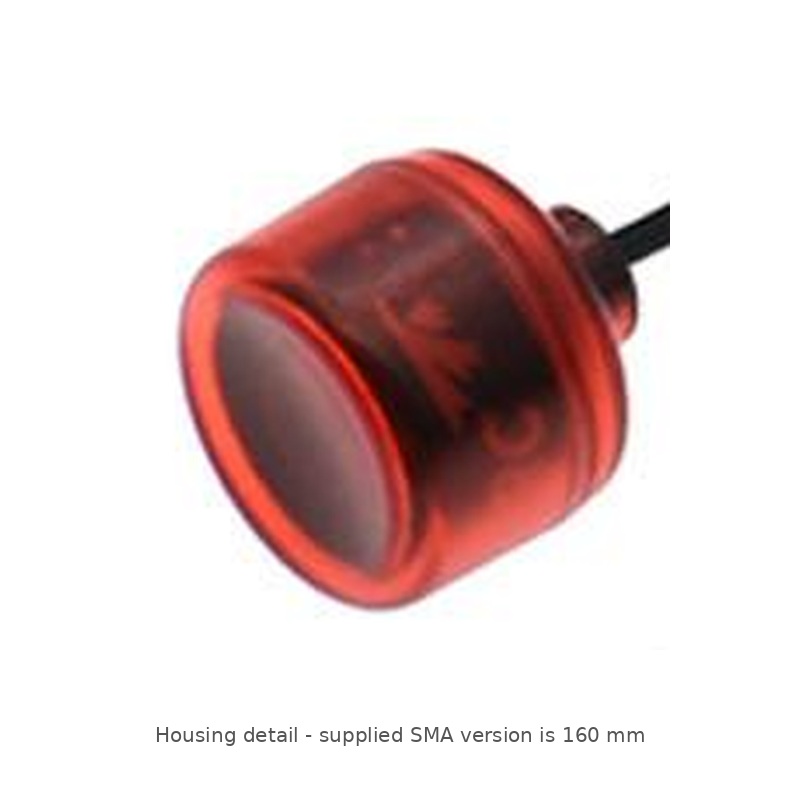

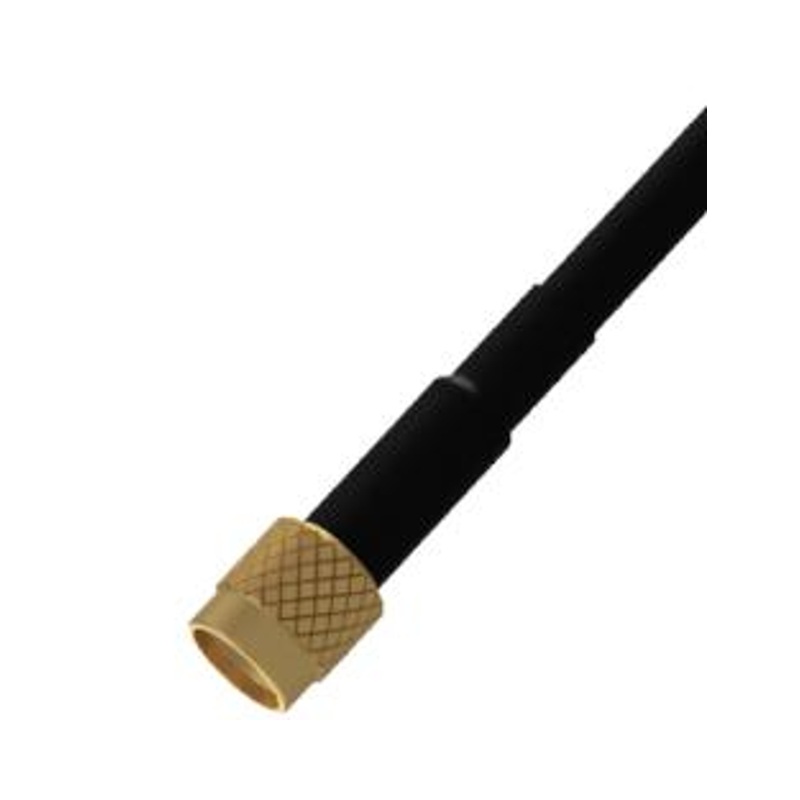

Photos show the red housing and SMA connector details. The supplied antenna is the 160 mm SMA version.

FEATURES:

• Omnidirectional circular polarization
• Protective polycarbonate housing
• Reinforced SMA connector

SPECIFICATIONS:

• Polarization: RHCP
• Housing colour: Red
• Frequency range: 5.5–6.7 GHz
• Gain: 1.9 dBic
• Radiation efficiency: 98%
• SWR: ≤1.2:1
• Cross-polar rejection: -10 to -20 dB
• Antenna head: 16.9 mm diameter × 13.1 mm high

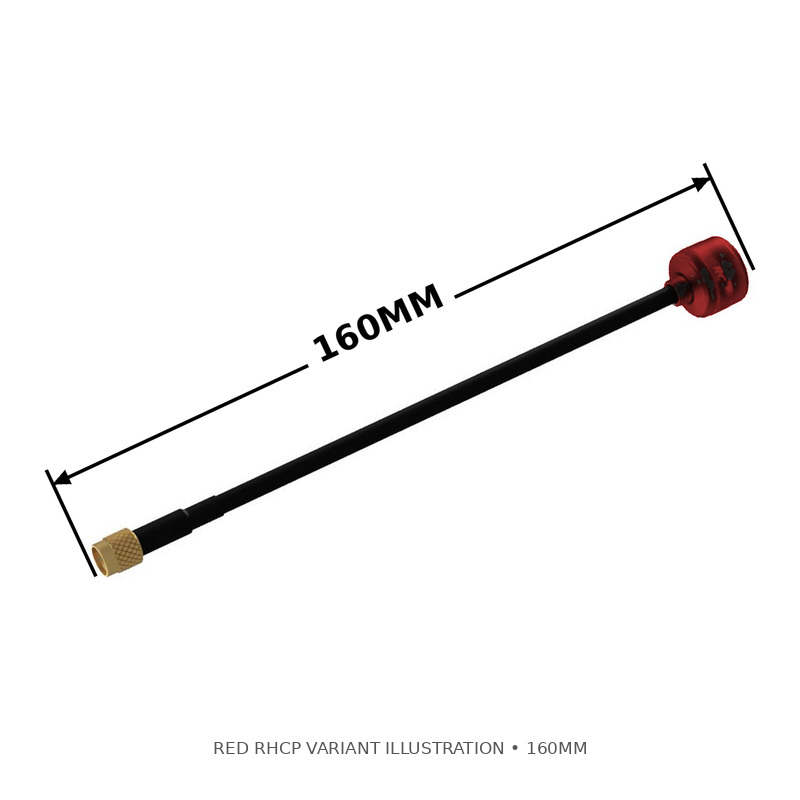

• Nominal length: 160 mm
• Connector: SMA

PACKAGE CONTENTS:

• 1 × TrueRC CORE 5.8 RHCP SMA 160 mm antenna
