Description

TRUERC X2-AIR 5 4.3-6.3GHZ LHCP RP-SMA ANTENNA FOR ASCENT VRX

TrueRC X2-AIR 5 wideband directional antenna covering 4.3–6.3 GHz, supplied in LHCP RP-SMA configuration for Ascent VRX. One antenna is included.

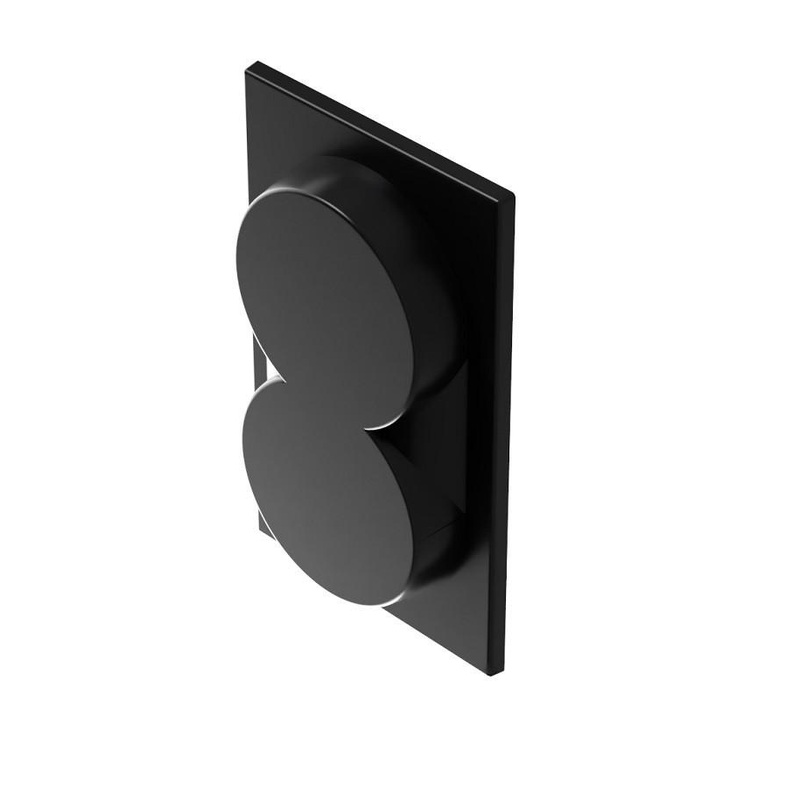

The image shows the antenna face and reflector. The supplied ANUBIS RC configuration uses an RP-SMA connector.

FEATURES:

• Wide 4.3–6.3 GHz operating range
• Directional sector beam
• Oversized reflector design

SPECIFICATIONS:

• Frequency range: 4.3–6.3 GHz
• Gain at 5.8 GHz: 14 dBic
• Gain at 5 GHz: 11.5 dBic
• Polarization: LHCP
• Horizontal half-power beam width: 70°
• Vertical half-power beam width: 30°
• Antenna body dimensions: 114.1 × 69.6 × 27.7 mm
• Supplied connector: RP-SMA
• Intended installation: Ascent VRX

PACKAGE CONTENTS:

• 1 × TrueRC X2-AIR 5 LHCP RP-SMA antenna
