TRUERC SINGULARITY 5.8 LHCP RP-SMA ANTENNA

Compact TrueRC SINGULARITY 5.8 LHCP antenna with an RP-SMA connector. Choose the 62 mm version or the custom 160 mm version; one antenna is supplied.

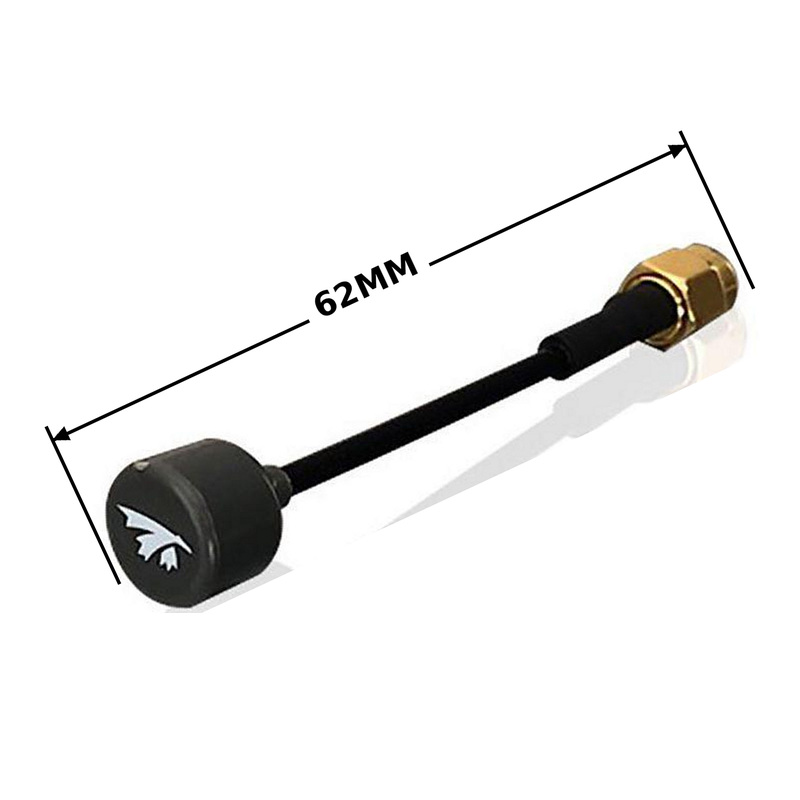

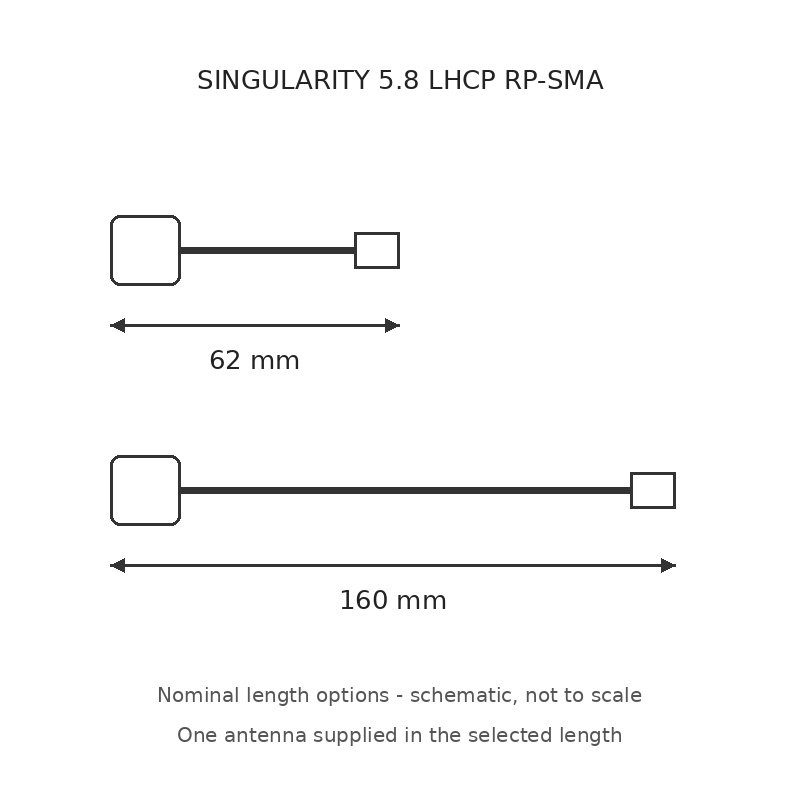

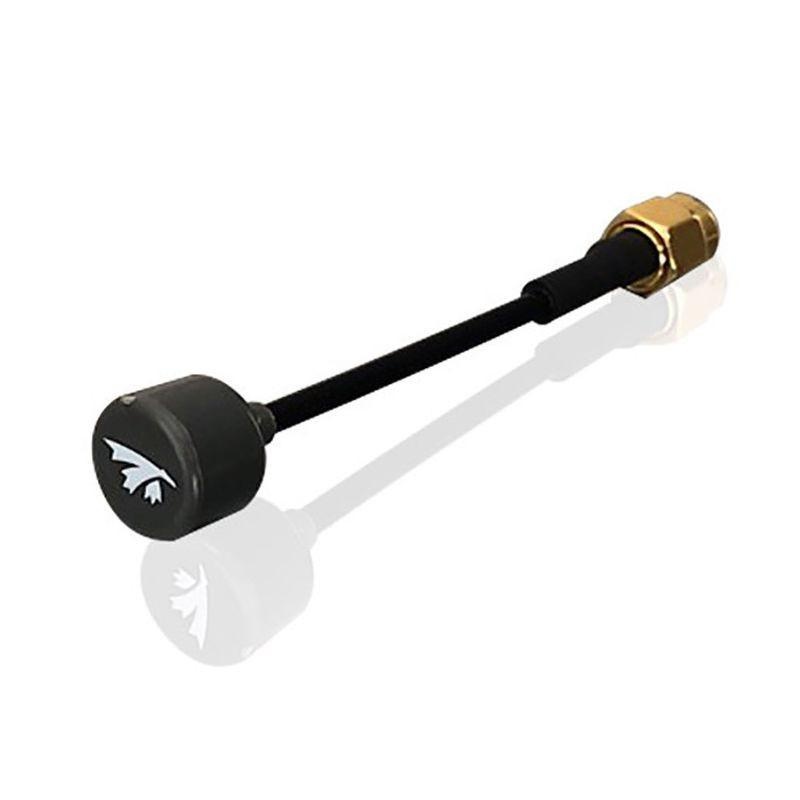

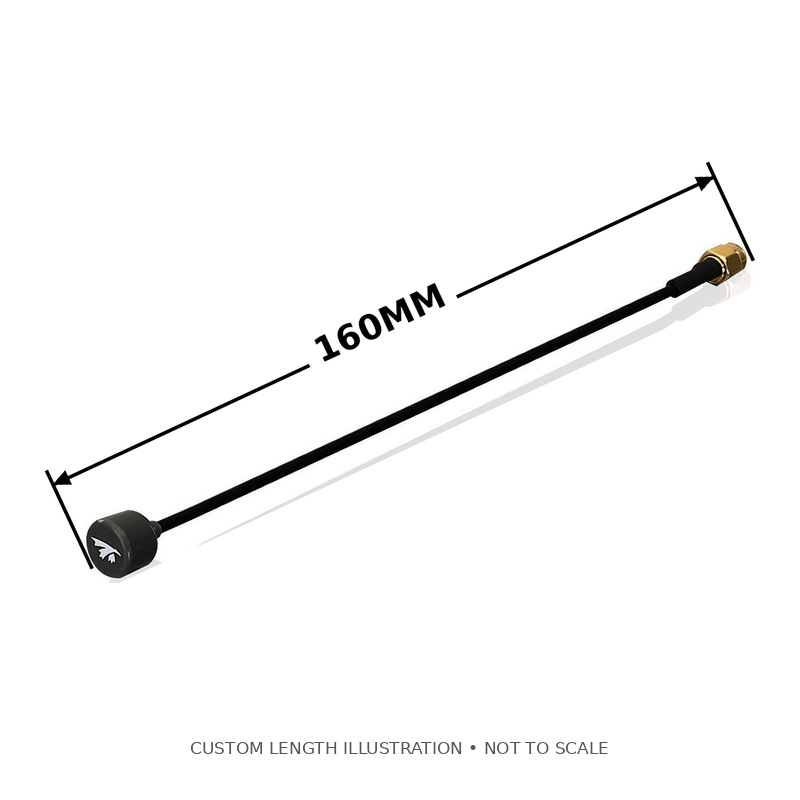

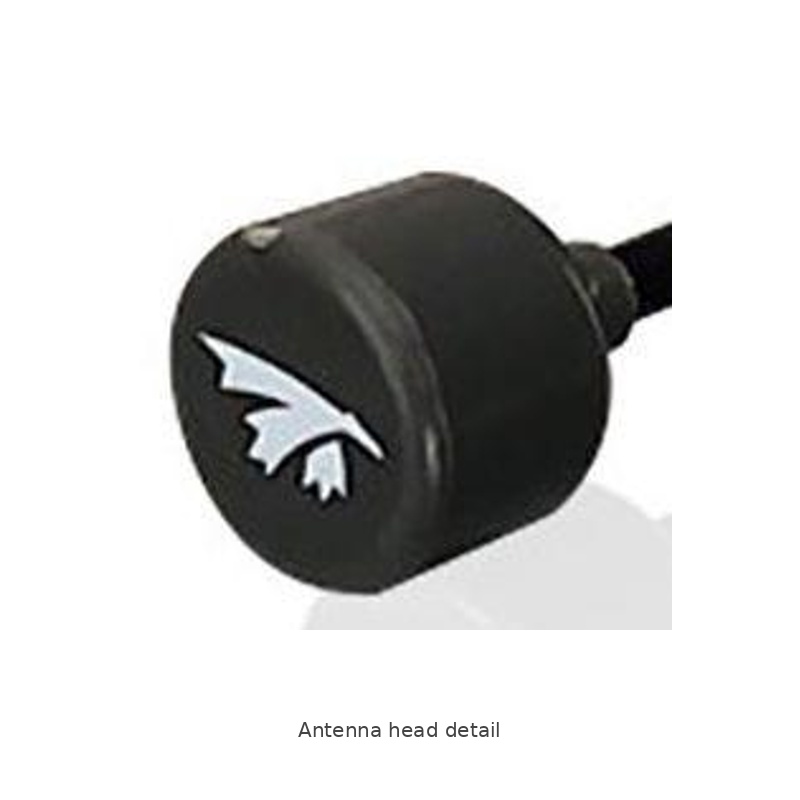

The full antenna photograph shows the 62 mm version. The custom 160 mm option is represented by a head close-up and labelled length diagram.

FEATURES:

• Compact circularly polarized antenna
• RP-SMA connection
• Two nominal length options

SPECIFICATIONS:

• Frequency range: 5.6–6.0 GHz
• Gain: 1.9 dBic
• Polarization: LHCP
• Radiation efficiency: 99%
• SWR: ≤1.5:1
• Cross-polar rejection: -15 to -30 dB
• Antenna head: 11.8 mm diameter × 8.2 mm high

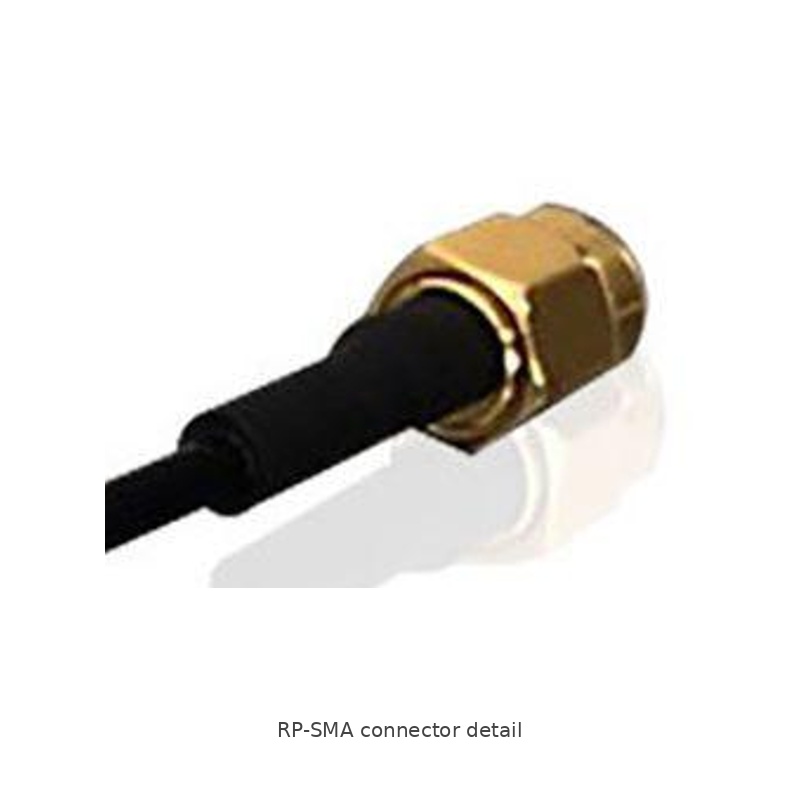

• Connector: RP-SMA
• Nominal lengths: 62 mm / 160 mm

PACKAGE CONTENTS:

• 1 × TrueRC SINGULARITY 5.8 LHCP RP-SMA antenna in the selected length
