Description

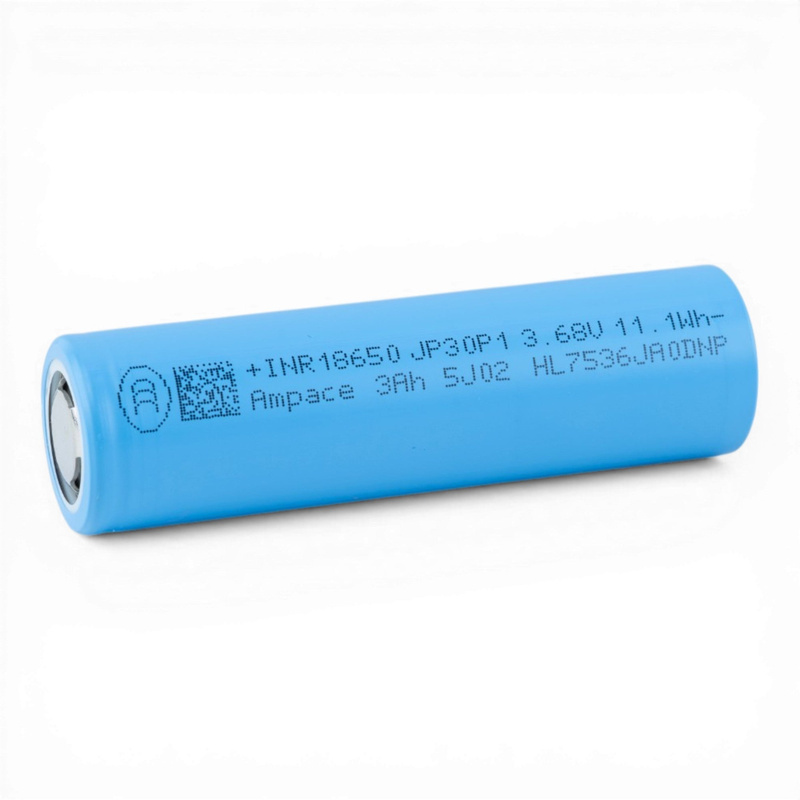

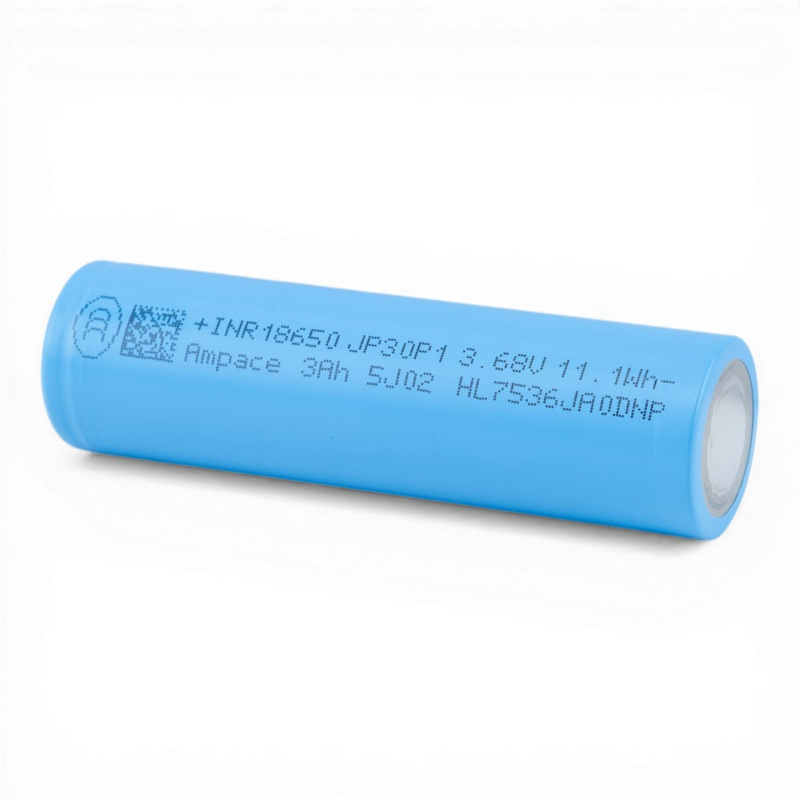

AMPACE JP30 3000MAH 18650 LITHIUM ION BATTERY

The Ampace JP30 is a rechargeable 18650 lithium-ion cell that combines 3000mAh capacity with high-current output in a compact cylindrical format. Its 3.68V nominal voltage and 11.04Wh rated energy make it a practical cell for engineered RC, UAV and power-tool battery packs where size and current delivery matter.

Sold individually as one cell. Use a compatible lithium-ion charging system and appropriate pack protection; this is not an assembled battery pack.

FEATURES:

• 3000mAh rated capacity in the compact 18650 format.
• Designed for high-power applications with a manufacturer-specified 36A maximum continuous full-discharge current.
• Full-tab cell architecture for high-current delivery.
• Rechargeable cylindrical cell for integration into suitably designed battery packs.

SPECIFICATIONS:

• Manufacturer: Ampace
• Model: JP30
• Cell type: rechargeable lithium-ion
• Cell format: 18650
• Rated capacity: 3000mAh / 3.0Ah
• Nominal voltage: 3.68V
• Rated energy: 11.04Wh
• Maximum continuous full-discharge current: 36A
• Manufacturer maximum continuous discharge current: 56A; this is a separate maximum rating, not the 36A full-discharge rating or the cycle-test current. Observe the applicable cell temperature and operating limits.
• Maximum cell weight: 50g

PACKAGE CONTENTS:

• 1 × Ampace JP30 3000mAh 18650 lithium-ion battery cell.

Specification reference: Ampace JP30 product specifications. Printed production and batch codes may vary.
