Description

FUTABA/JR MALE TO FEMALE 22AWG SILICONE SERVO EXTENSION WIRE

Extend a compatible RC servo connection with this Futaba/JR-style male-to-female lead. It uses 22 AWG silicone-insulated cable, not regular PVC-insulated wire, for flexible routing inside your model. Choose 300 mm, 500 mm or 1000 mm to suit your installation.

The lead has one 3-pin male connector and one 3-pin female connector. Its red, black and white wires are individually insulated, separate wires supplied untwisted; they are not bonded into a flat ribbon. Use it between a compatible servo lead and receiver or controller, checking connector fit and signal, positive and ground positions before connecting.

FEATURES:

• 22 AWG silicone insulation — not regular PVC cable.
• Three separate red, black and white wires; twisting to be done by user.
• Preassembled 3-pin male-to-female connection.
• Futaba/JR-style connectors for compatible RC equipment.
• Flexible wiring for installation around model components.
• Available in 300 mm, 500 mm and 1000 mm lengths.

SPECIFICATIONS:

• Product type: RC servo extension lead.
• Connector style: Futaba/JR compatible.
• Connector arrangement: 3-pin male to 3-pin female.
• Conductors: 3 separate wires; red, black and white.
• Wire arrangement: Separate and untwisted; not bonded ribbon.
• Wire gauge: 22 AWG.
• Insulation: Silicone.
• Available lengths: 300 mm (30 cm), 500 mm (50 cm), 1000 mm (1 m).
• Quantity: 1 cable of the selected length.
• Shipping weight: 100 g.

Connector gender here refers to the metal contacts: male pins at one end and female sockets at the other. Verify your equipment’s connector keying and pinout before use.

PACKAGE CONTENTS:

• 1 × Futaba/JR male-to-female 22 AWG silicone servo extension wire in the selected length.

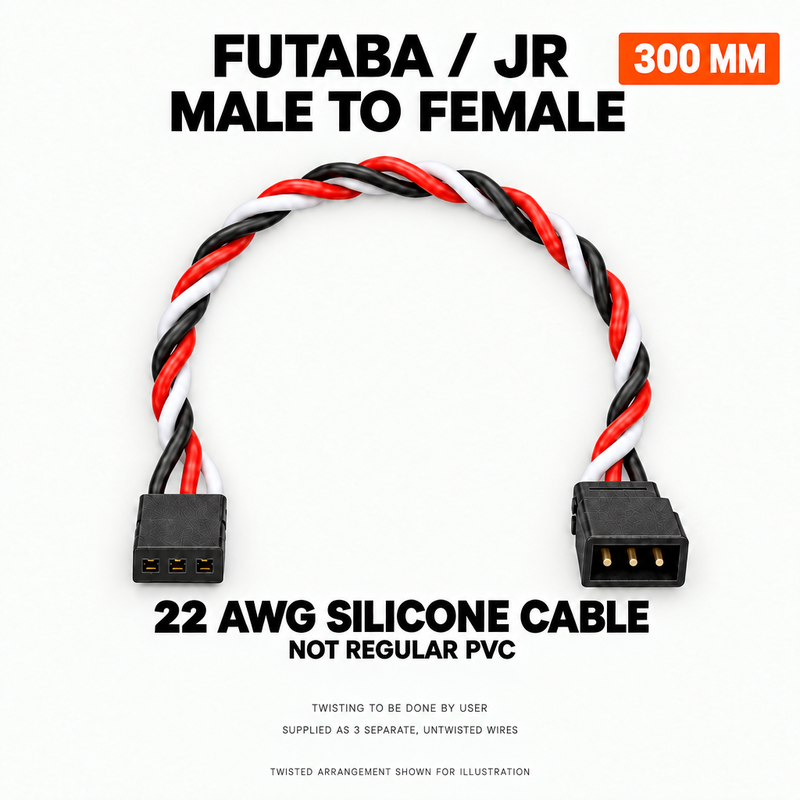

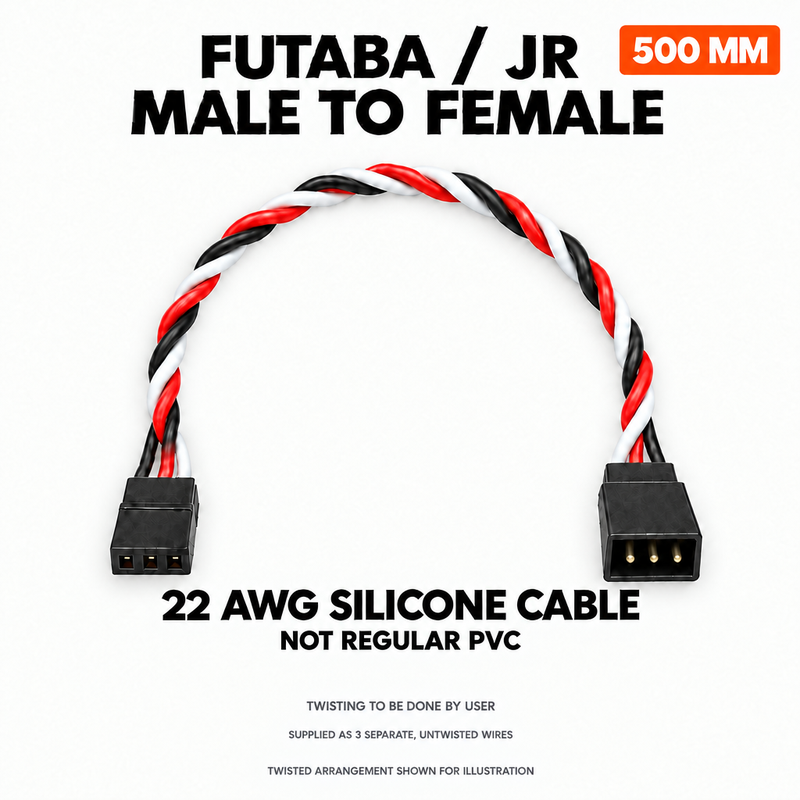

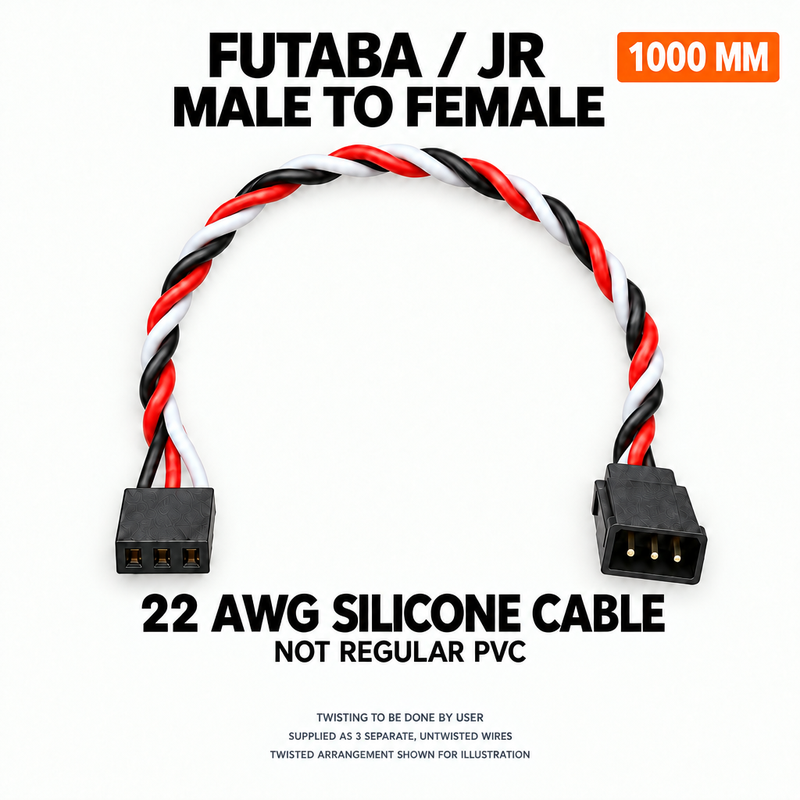

NOTE: TWISTING TO BE DONE BY USER. Supplied with three separate, untwisted red, black and white wires. The twisted arrangement in the images is for illustration only.

Product images are illustrations and are not to scale.
