Description

FUTABA/JR FEMALE TO FEMALE 22AWG SILICONE SERVO EXTENSION WIRE

Connect compatible RC electronics with this Futaba/JR-style female-to-female servo lead. It uses 22 AWG silicone-insulated cable, not regular PVC-insulated wire, for flexible routing inside your model. Choose the 300 mm, 500 mm or 1000 mm length to suit your installation.

The three-conductor lead has 3-pin female sockets at both ends for mating with compatible male headers. It is useful for receiver-to-controller connections and custom RC wiring where this connector arrangement is required. Check connector keying and the signal, positive and ground positions on both devices before connecting.

FEATURES:

• 22 AWG silicone-insulated wire — not regular PVC cable.
• Flexible cable for routing around RC components.
• Preassembled female-to-female, three-conductor connection.
• Futaba/JR-style sockets for compatible male headers.
• Three length options: 300 mm, 500 mm and 1000 mm.
• One complete cable per selected option.

SPECIFICATIONS:

• Product type: RC servo connection / extension lead.
• Connector style: Futaba/JR compatible.
• Connector arrangement: Female socket to female socket.
• Positions: 3 per connector.
• Conductors: 3 separate wires — red, black and white; individually insulated and not bonded into a ribbon.
• Wire gauge: 22 AWG.
• Insulation: Silicone.
• Available lengths: 300 mm (30 cm), 500 mm (50 cm), 1000 mm (1 m).
• Quantity: 1 cable of the selected length.

Both ends are female sockets; use with matching male connectors. Wire colour alone does not establish the connected equipment’s pinout.

PACKAGE CONTENTS:

• 1 × Futaba/JR female-to-female 22 AWG silicone servo extension wire in the selected length.

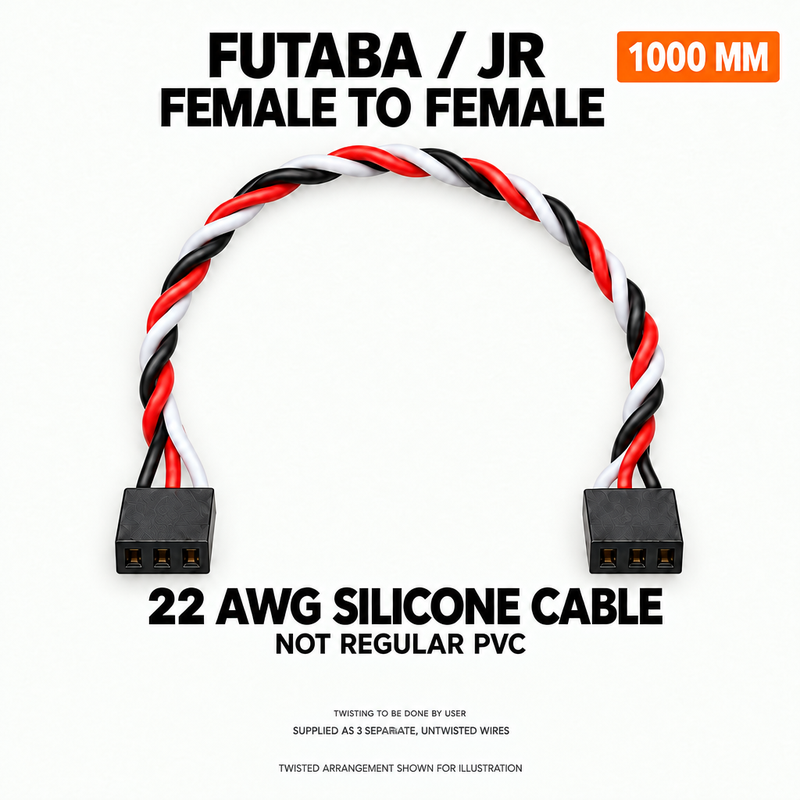

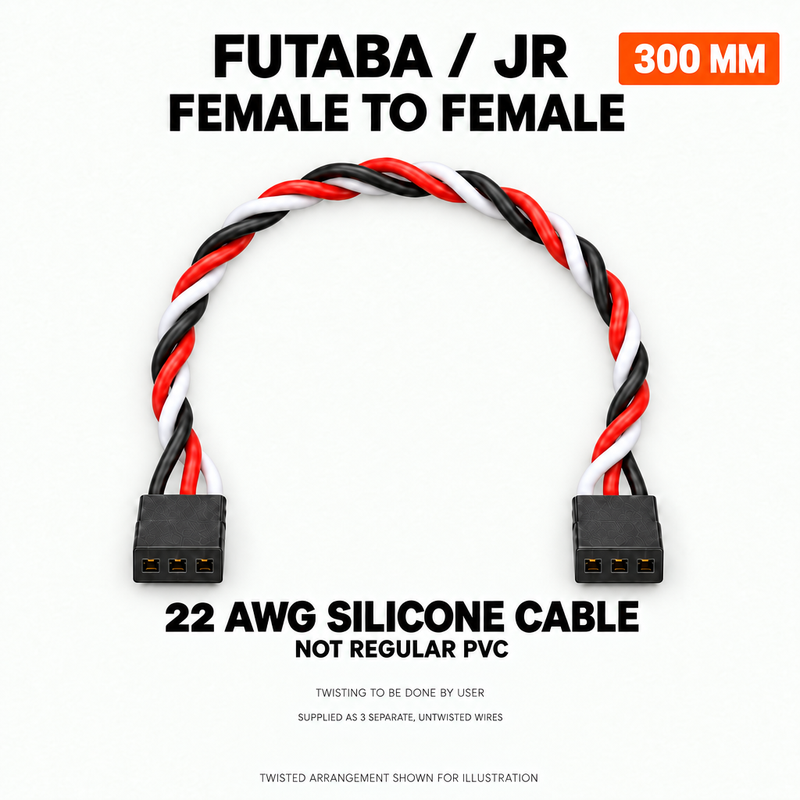

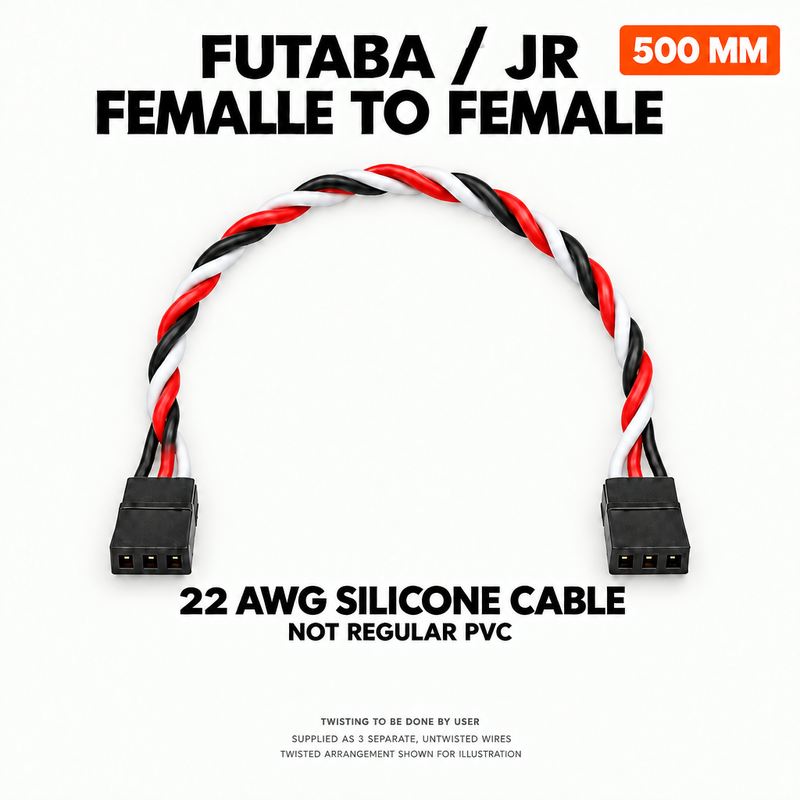

NOTE: TWISTING TO BE DONE BY USER. Supplied with three separate, untwisted red, black and white wires. The twisted arrangement in the images is for illustration only.

Product images are illustrations and are not to scale.
