Description

JST GH 1.25MM 28AWG SILICONE DOUBLE-ENDED CRIMPED CABLES (10 PER COLOR / 70PCS)

Assemble custom wiring harnesses with these JST GH 1.25 mm compatible, 28 AWG silicone cables. Each individual wire is pre-crimped at both ends for insertion into a suitable GH connector housing. Choose from 100 mm, 200 mm, 300 mm and 400 mm lengths to suit your installation.

Each pack contains 70 cables of your selected length: 10 each of red, black, white, yellow, grey, blue and green. The separate color-coded wires let you arrange the pinout required by your equipment. Suitable for assembling custom Cube Orange carrier-board harnesses, CAN connections, GPS, telemetry and other peripheral wiring where the ports use matching JST GH 1.25 mm contacts and housings. Select the correct housing and follow the pinout and wiring requirements of the specific carrier board or device. Compatibility applies to matching GH ports; Cube power-module connectors may use a different connector family. Connector housings are not included.

FEATURES:

• Pre-crimped contacts at both ends simplify custom harness assembly.
• Flexible silicone insulation helps route wires in compact builds.
• 28 AWG wire for wiring applications that specify this gauge.
• Seven colors make individual wires easier to identify.
• Four selectable lengths: 100 mm, 200 mm, 300 mm and 400 mm.
• 70 individual cables per pack, with 10 cables in every color.

SPECIFICATIONS:

• Connector compatibility: JST GH, 1.25 mm pitch.
• Wire gauge: 28 AWG.
• Insulation material: Silicone.
• Termination: Pre-crimped at both ends, supplied without connector housings.
• Cable length: 100 mm / 200 mm / 300 mm / 400 mm, as selected.
• Colors: Red, black, white, yellow, grey, blue and green.
• Pack quantity: 70 cables of one selected length.

Check the connector series, contact fit, pin count, pinout and electrical requirements before assembly. JST GH 1.25 mm, JST SH 1.00 mm and other connector families require their own matching contacts and housings; pitch alone does not establish compatibility.

PACKAGE CONTENTS:

• 10 × Red double-ended crimped cables.
• 10 × Black double-ended crimped cables.
• 10 × White double-ended crimped cables.
• 10 × Yellow double-ended crimped cables.
• 10 × Grey double-ended crimped cables.
• 10 × Blue double-ended crimped cables.
• 10 × Green double-ended crimped cables.

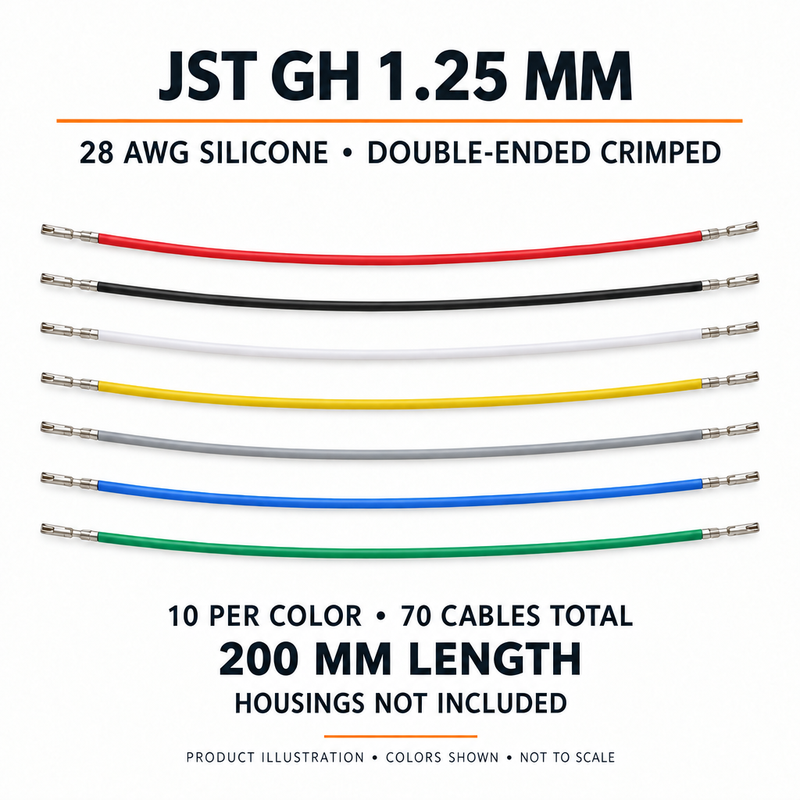

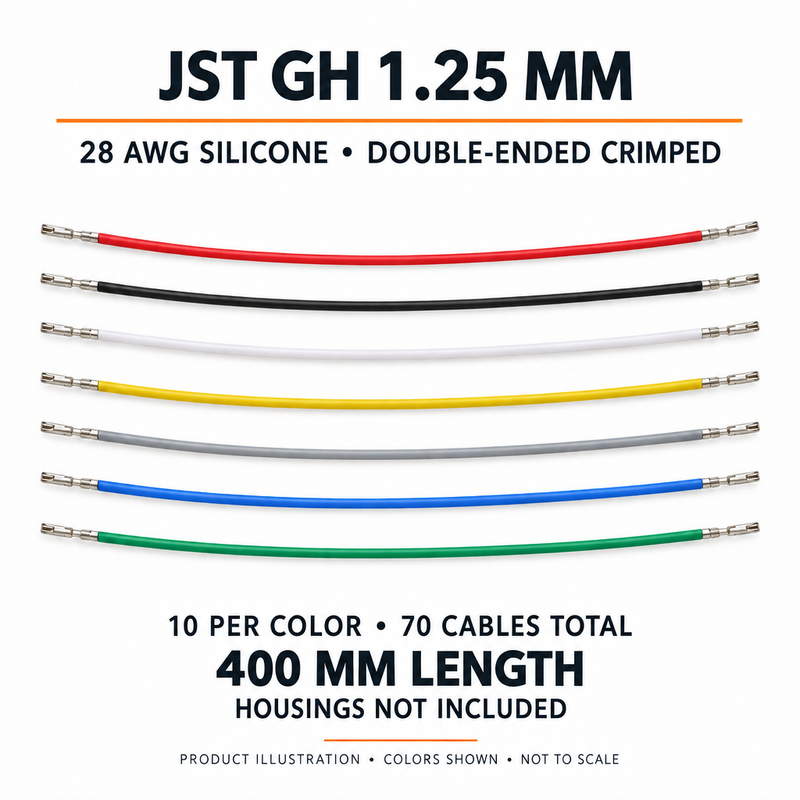

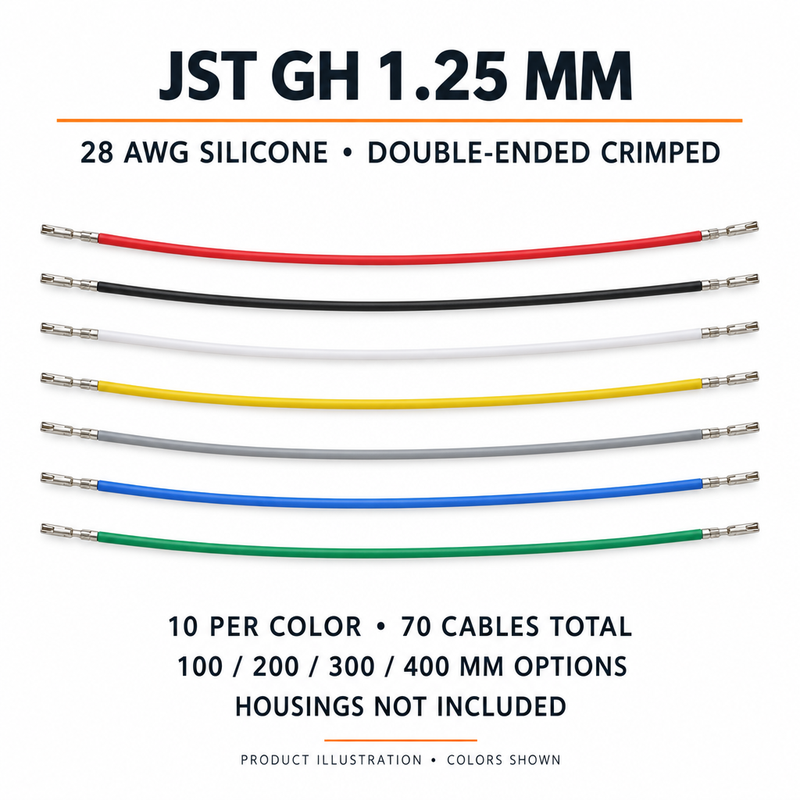

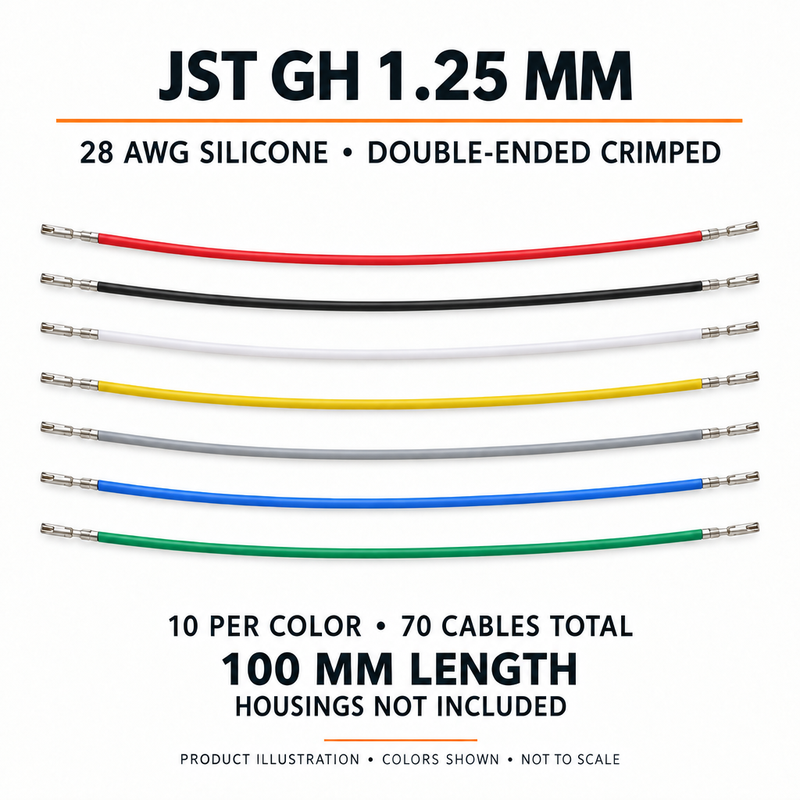

All 70 cables are supplied in the selected length. Compatible GH connector housings must be obtained separately. Product illustrations show the seven colors, are not to scale and do not depict the full pack quantity.
