JST SH 1.00MM 28AWG SILICONE DOUBLE-ENDED CRIMPED CABLES (10 PER COLOR / 70PCS)

Build custom wiring harnesses with these JST SH 1.00 mm compatible, 28 AWG silicone cables. Each individual wire is pre-crimped at both ends, ready to insert into a suitable SH connector housing. Choose 100 mm, 200 mm, 300 mm or 400 mm to suit your cable routing.

Every pack contains 70 cables in your selected length: 10 each of red, black, white, yellow, grey, blue and green. Suitable for FC-to-ESC signal harnesses, FC-to-GPS wiring and other connections that use matching JST SH 1.00 mm housings and contacts. Check the connector series, pin count, pinout and electrical requirements of your equipment before assembly. Connector housings are not included; purchase the required 6-pin or 7-pin SH housings separately.

FEATURES:

• Pre-crimped terminals at both ends simplify custom cable assembly.
• 28 AWG wire with flexible silicone insulation for compact cable routing.
• Seven colors help identify wires while assembling your chosen pinout.
• Four length options: 100 mm, 200 mm, 300 mm and 400 mm.
• 10 cables per color, with 70 individual cables in each pack.
• Unhoused contacts let you arrange wires in compatible SH housings to match your equipment.

SPECIFICATIONS:

• Connector compatibility: JST SH, 1.00 mm pitch.
• Wire gauge: 28 AWG.
• Insulation: Silicone.
• Termination: Pre-crimped at both ends; supplied without housings.
• Cable length: 100 mm / 200 mm / 300 mm / 400 mm, as selected.
• Colors: Red, black, white, yellow, grey, blue and green.
• Pack quantity: 70 cables of one selected length.

PACKAGE CONTENTS:

• 10 × Red double-ended crimped cables.
• 10 × Black double-ended crimped cables.
• 10 × White double-ended crimped cables.
• 10 × Yellow double-ended crimped cables.
• 10 × Grey double-ended crimped cables.
• 10 × Blue double-ended crimped cables.
• 10 × Green double-ended crimped cables.

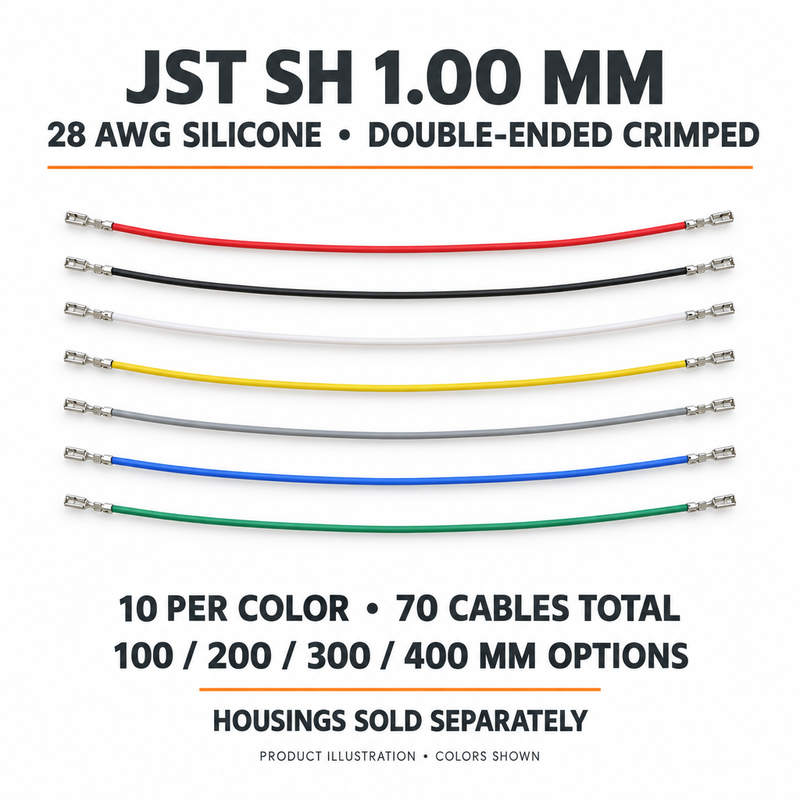

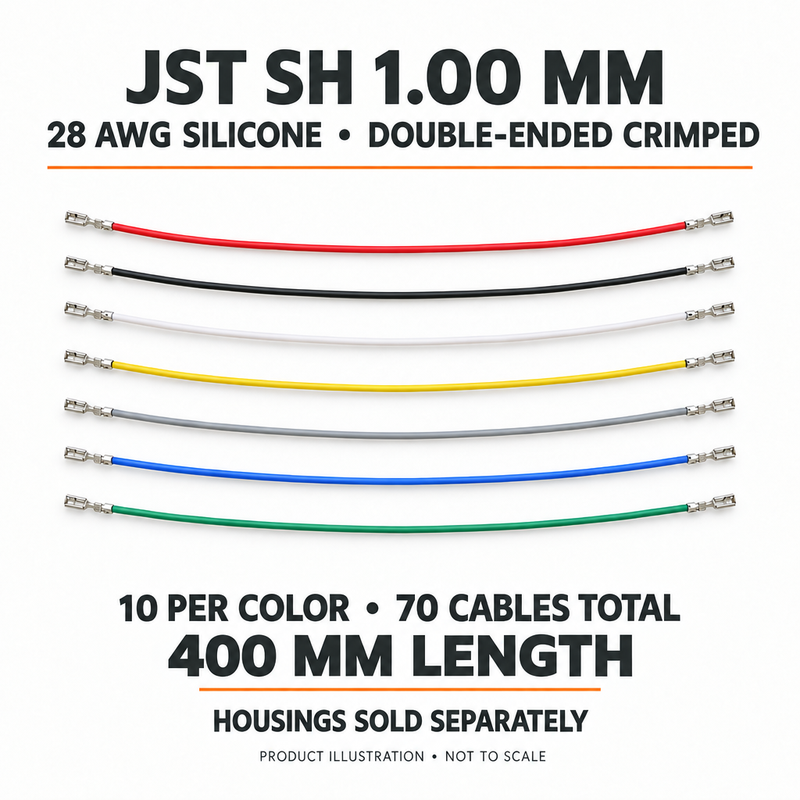

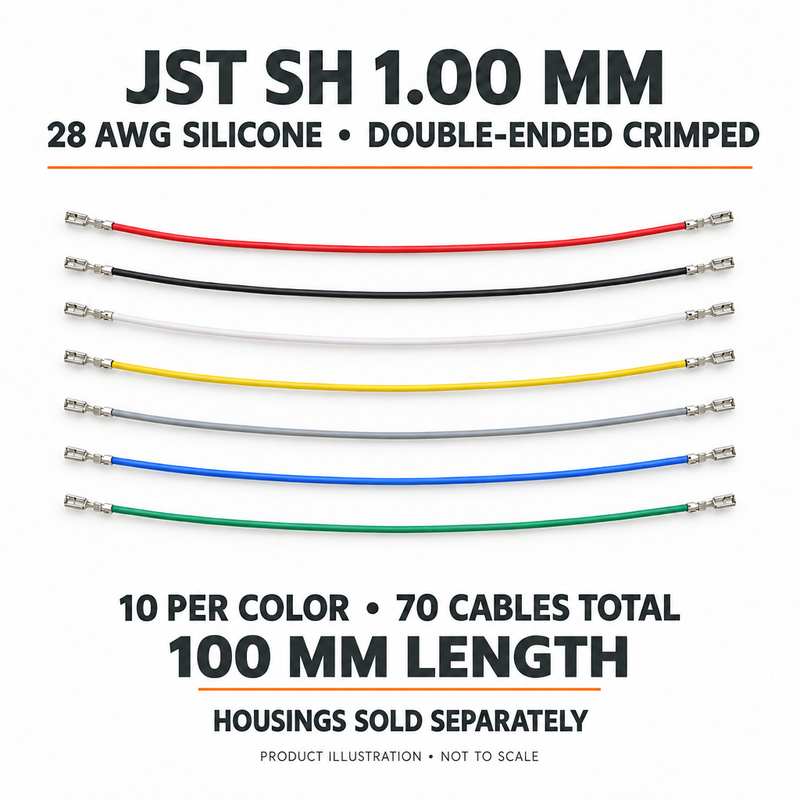

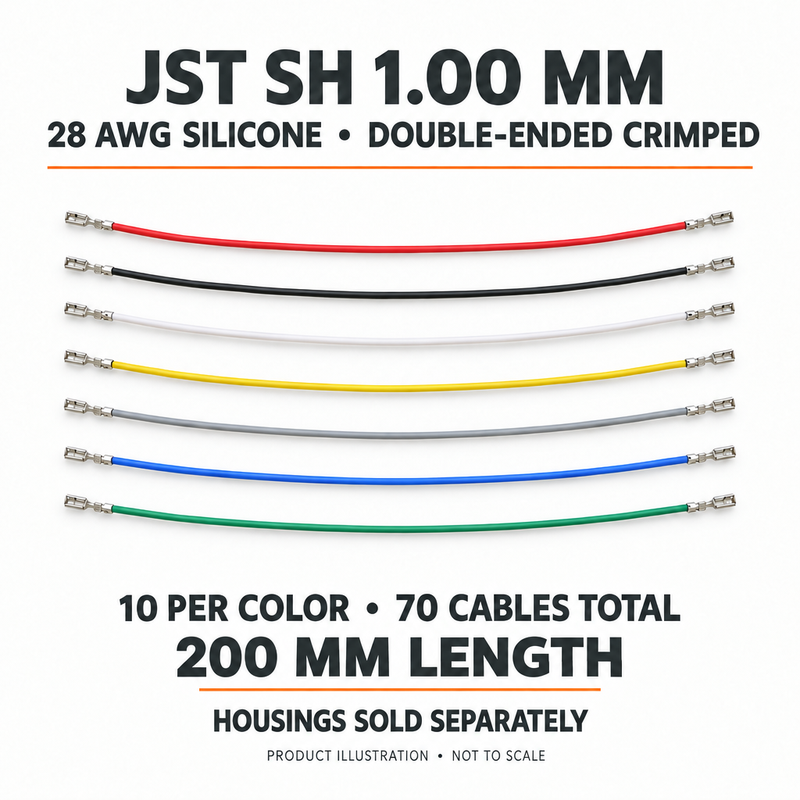

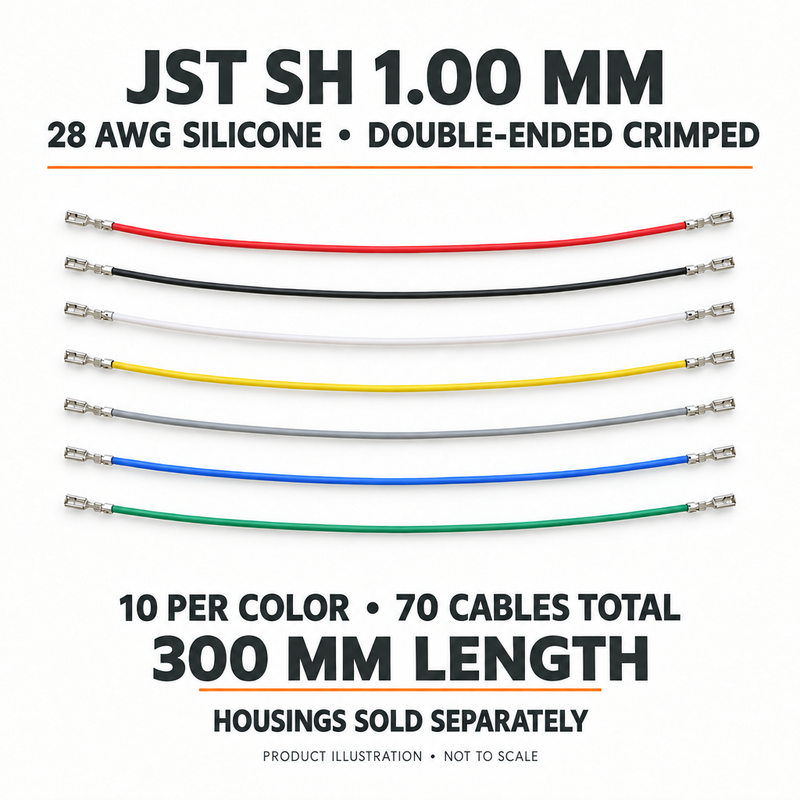

All 70 cables are supplied in the selected length. 6-pin and 7-pin connector housings are sold separately. Images are product illustrations showing the seven colors; they are not to scale and do not depict the full pack quantity.
