Description
JST SH 1.00MM HOUSING CONNECTOR (5PCS)
Build or repair compact wiring harnesses with these JST SH 1.00 mm compatible empty connector housings. Choose the 6-pin or 7-pin option to match your equipment. Each pack contains five housings of the selected pin count.
The empty positions accept matching SH crimp contacts, allowing you to arrange individual pre-crimped wires to the required pinout. Suitable for FC-to-ESC signal harnesses, GPS wiring and other compact connections where the equipment specifies the same JST SH connector series and pin count. Wires, metal crimp contacts and mating PCB headers are not included.
FEATURES:
- Compact housing for compatible JST SH 1.00 mm connections.
- Choice of 6-pin or 7-pin contact positions.
- Empty cavities for assembling a custom wire order with matching SH crimp contacts.
- Useful for replacement connectors and custom signal harnesses.
- Five identical housings in each selected-option pack.
SPECIFICATIONS:
- Product type: Empty cable-side connector housing.
- Connector family: JST SH compatible.
- Contact pitch: 1.00 mm.
- Positions: 6-pin or 7-pin, as selected.
- Contact arrangement: Single row.
- Assembly: Requires compatible SH crimp contacts or correctly terminated SH wires.
- Pack quantity: 5 housings of one selected pin count.
Match the connector series, pin count, contact fit and equipment pinout before assembly. JST SH 1.00 mm housings do not fit JST GH 1.25 mm contacts or headers. These housings do not determine the electrical rating of an assembled cable.
PACKAGE CONTENTS:

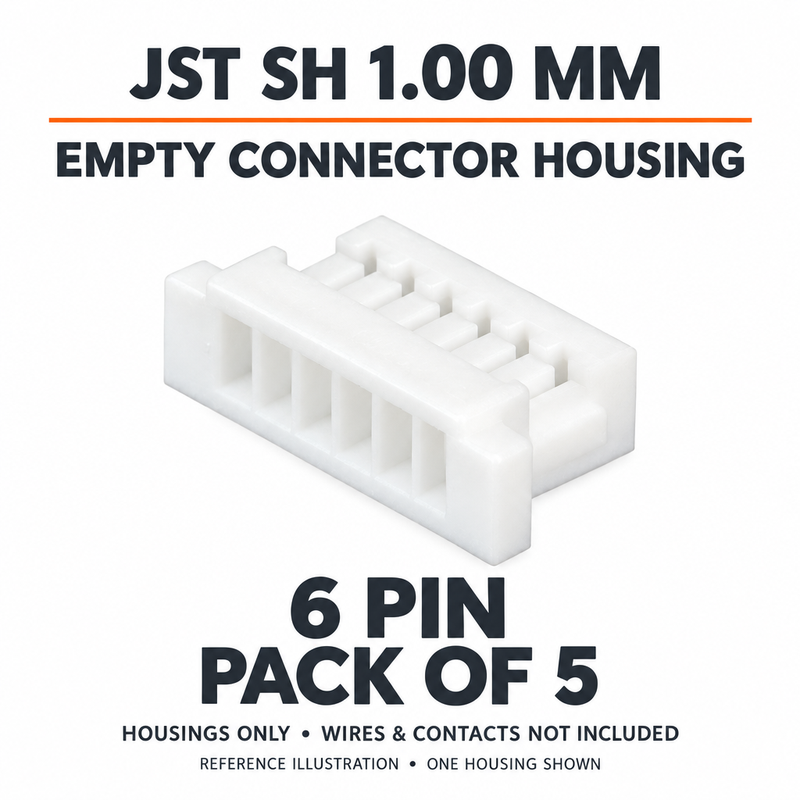

- 6-pin option: 5 × JST SH 1.00 mm compatible 6-pin empty housings.

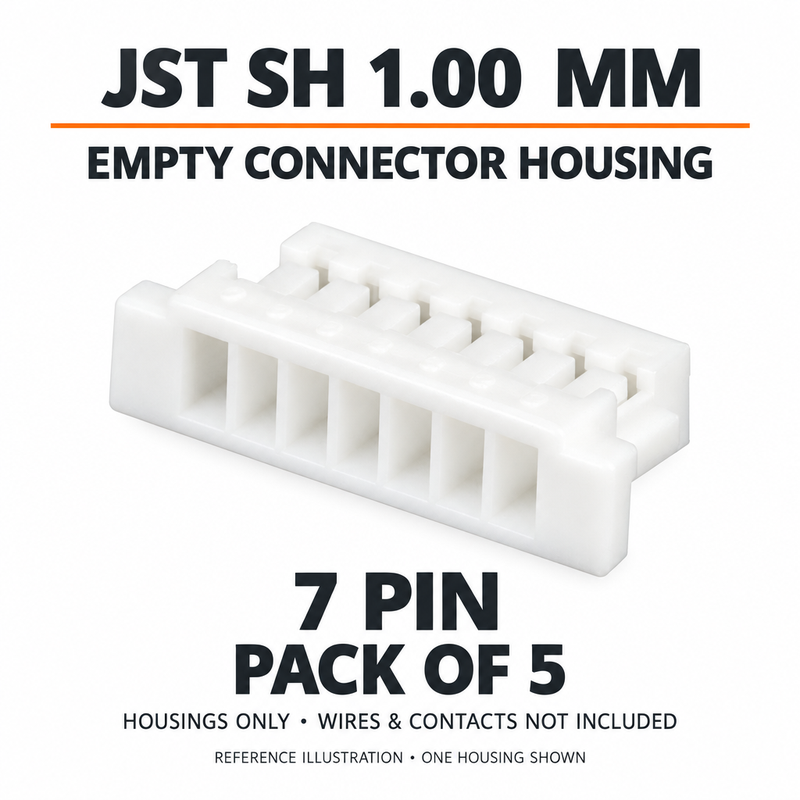

- 7-pin option: 5 × JST SH 1.00 mm compatible 7-pin empty housings.
One selected option is supplied per pack; this is not a mixed pack. Wires, contacts and mating headers are sold separately. Reference illustrations show one housing; each sale pack contains five.
