JST GH 1.25MM HOUSING CONNECTOR (5PCS)

Assemble or repair compact wiring harnesses with these JST GH 1.25 mm compatible empty connector housings. Choose the 2-pin or 4-pin option to match your equipment. Each pack contains five housings of the selected pin count.

Insert matching GH crimp contacts or correctly terminated GH wires in the order required by your device. The GH housing design includes a locking latch for mating with a compatible header. The 4-pin option can be used for custom CAN harnesses on Cube Orange carrier boards and other equipment with matching 4-pin JST GH ports. The 2-pin option is for matching 2-pin GH connections. Wires, metal crimp contacts and mating PCB headers are not included.

FEATURES:

• Compact housing for compatible JST GH 1.25 mm connections.
• Choose 2-pin or 4-pin contact positions.
• GH-style locking latch for use with matching headers.
• Empty contact cavities allow custom wire ordering.
• Useful for replacement connectors and custom peripheral harnesses.
• Five identical housings per selected-option pack.

SPECIFICATIONS:

• Product type: Empty cable-side connector housing.
• Connector family: JST GH compatible.
• Contact pitch: 1.25 mm.
• Positions: 2-pin or 4-pin, as selected.
• Contact arrangement: Single row.
• Assembly: Requires matching GH crimp contacts or correctly terminated GH wires.
• Pack quantity: 5 housings of one selected pin count.

Check the connector family, pin count, contact fit and device pinout before assembly. CAN is a communication interface and does not by itself specify a connector type. These housings fit matching GH connections; they are not interchangeable with JST SH 1.00 mm or other connector families. Cube power-module ports may use a different connector family. The housing alone does not determine the electrical rating or suitability of a completed harness.

PACKAGE CONTENTS:

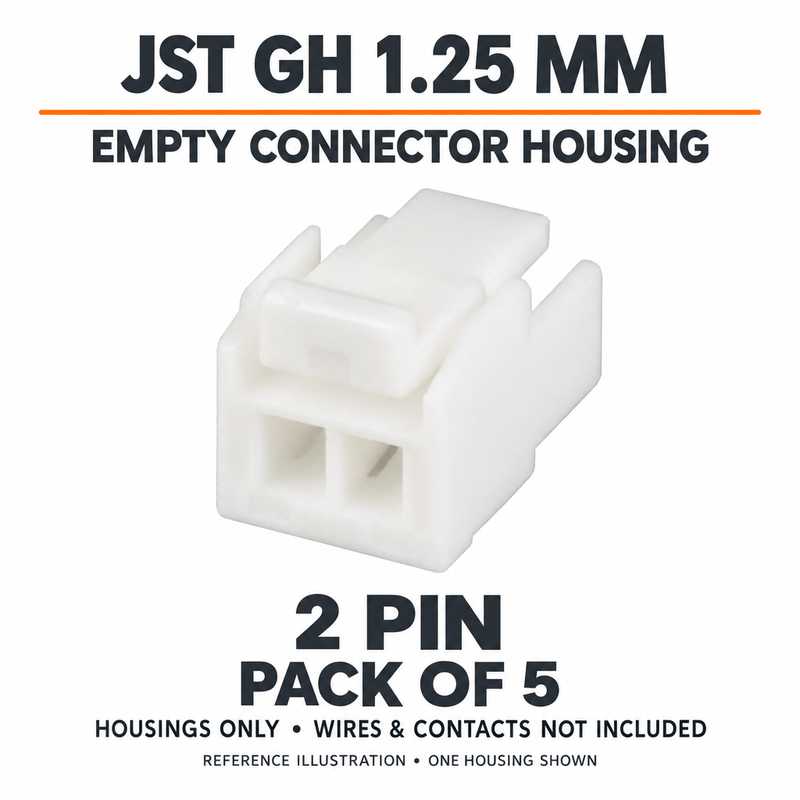

• 2-pin option: 5 × JST GH 1.25 mm compatible 2-pin empty housings.

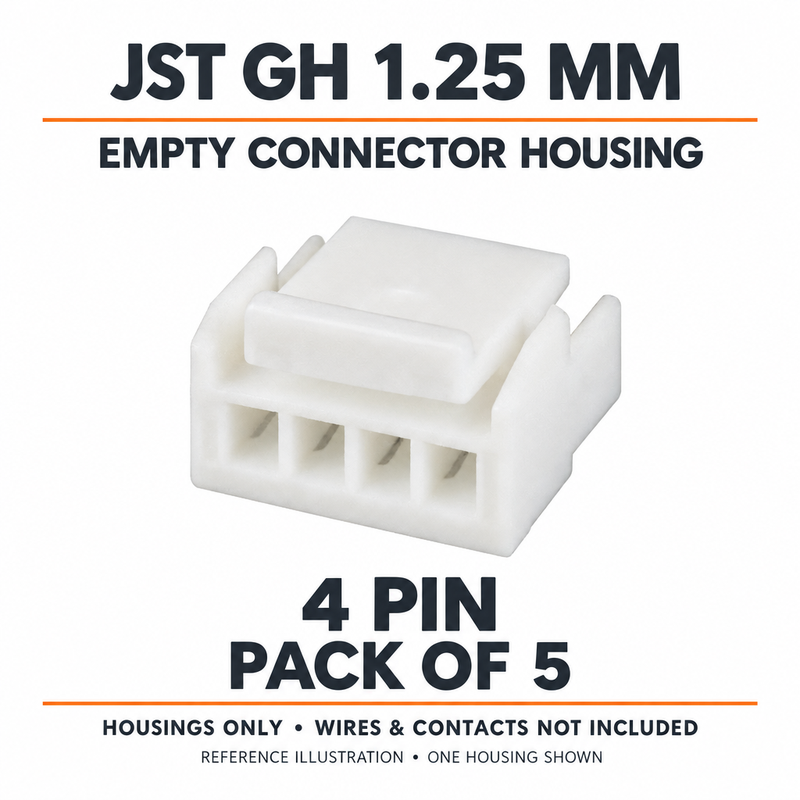

• 4-pin option: 5 × JST GH 1.25 mm compatible 4-pin empty housings.

One selected option is supplied per pack; this is not a mixed pack. Wires, contacts and mating headers are sold separately. Reference illustrations show one housing; each sale pack contains five.
