NEWBEEDRONE HUMMINGBIRD 200 RACESPEC 80A 3-6S AM32 20X20 4-IN-1 ESC

A four-channel ESC for 5-inch FPV racing builds, with AM32 firmware and motor solder pads that extend across three board surfaces.

ESC with accessories only; flight controller sold separately.

FEATURES:

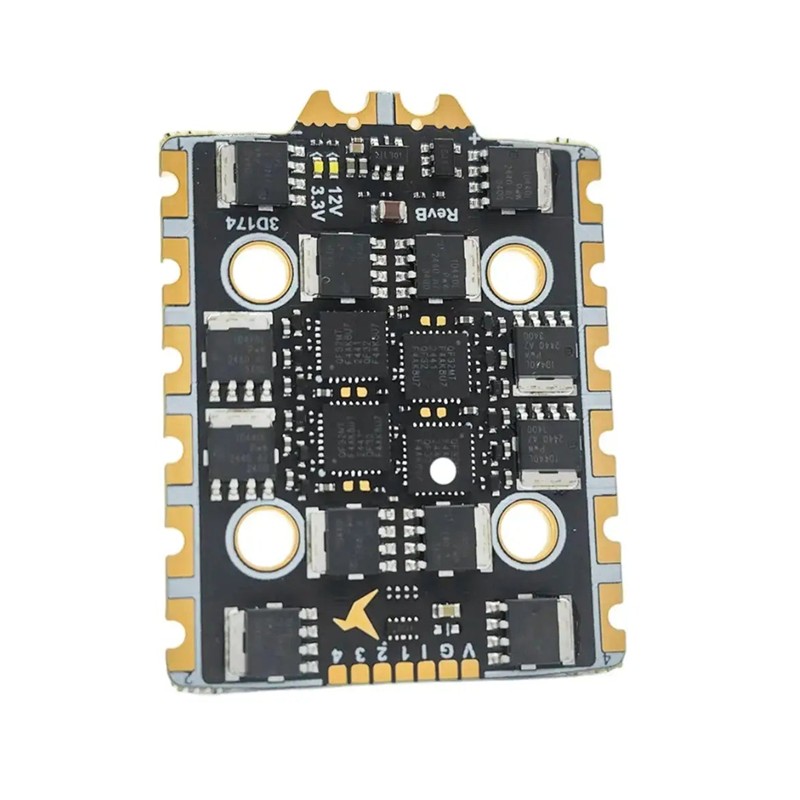

• Top, bottom and side motor soldering surfaces.
• Two onboard 400 W TVS diodes for surge suppression.
• Reinforced battery pads and nano coating.

SPECIFICATIONS:

• Input: 3–6S LiPo
• Current rating: 80 A per channel for 10 seconds
• Burst rating: 100 A for up to 3 seconds
• Firmware: AM32
• MCU: AT32F421 with integrated gate driver
• PCB: 6 layers, 3 oz copper, blind vias, gold-plated finish

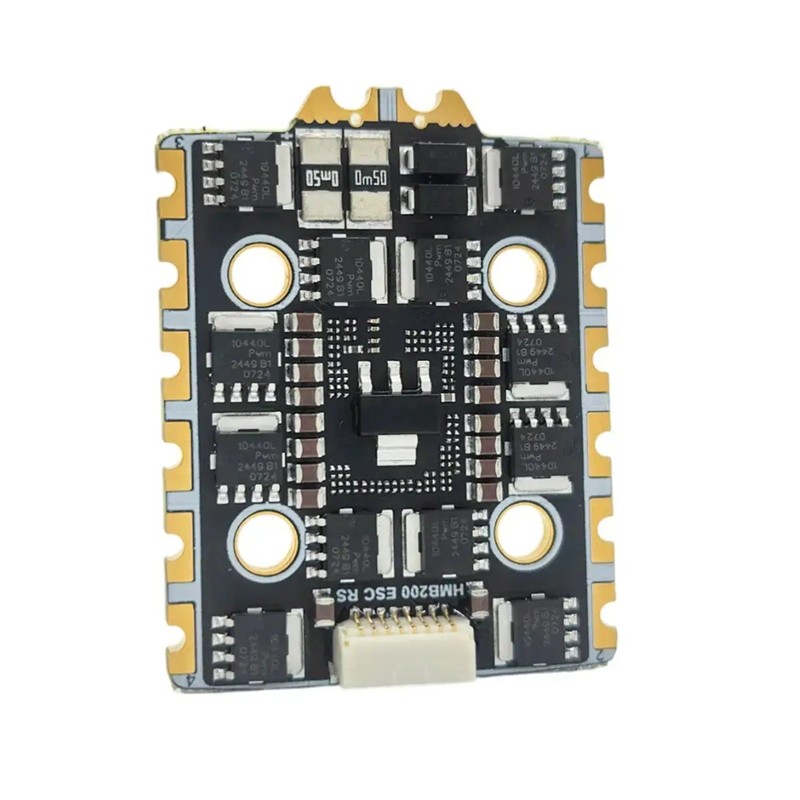

• Signal connector: 8-pin JST-SH 1.0
• Mounting: 20 × 20 mm, M3 holes
• Dimensions including pads: 35 × 45 mm
• Net weight: Approx. 13.9 g, excluding wires/capacitors
• Shipping weight: 100 g

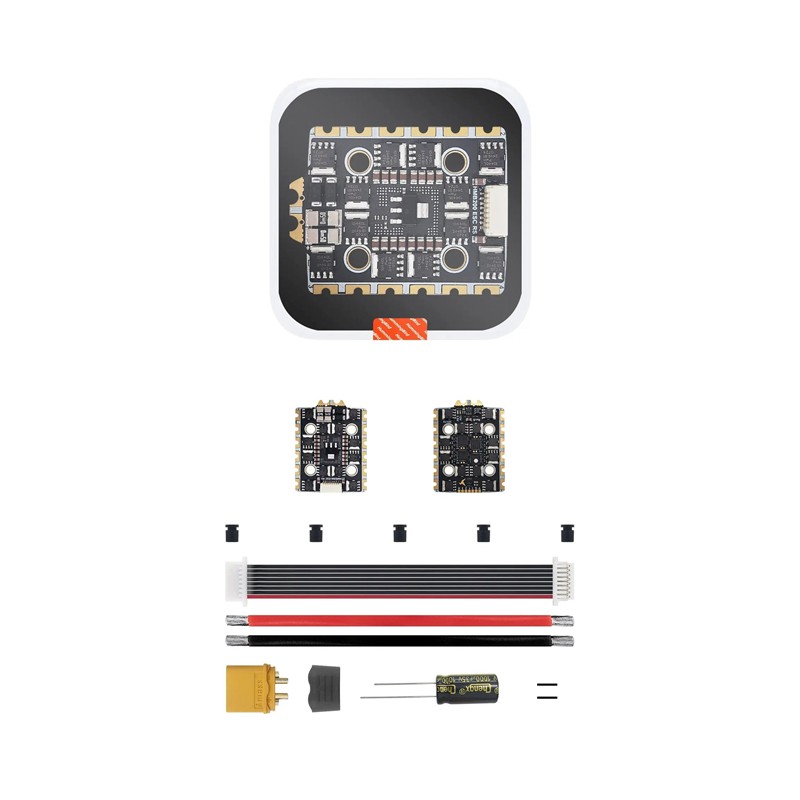

PACKAGE CONTENTS:

• 1 × Hummingbird 200 RaceSpec 4-in-1 ESC
• 5 × Grommets
• 1 × 14 AWG power cable
• 1 × XT60 plug
• 1 × 100 mm 8-pin silicone FC connection cable
• 1 × 1000 µF capacitor
• 2 × Small heat-shrink tubes for capacitor leads
