Description

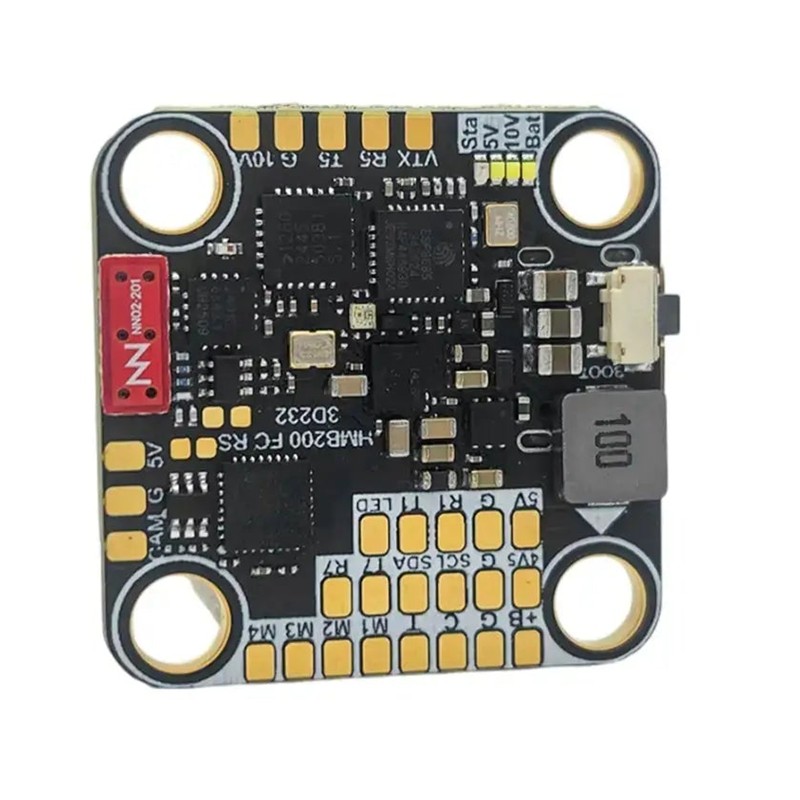

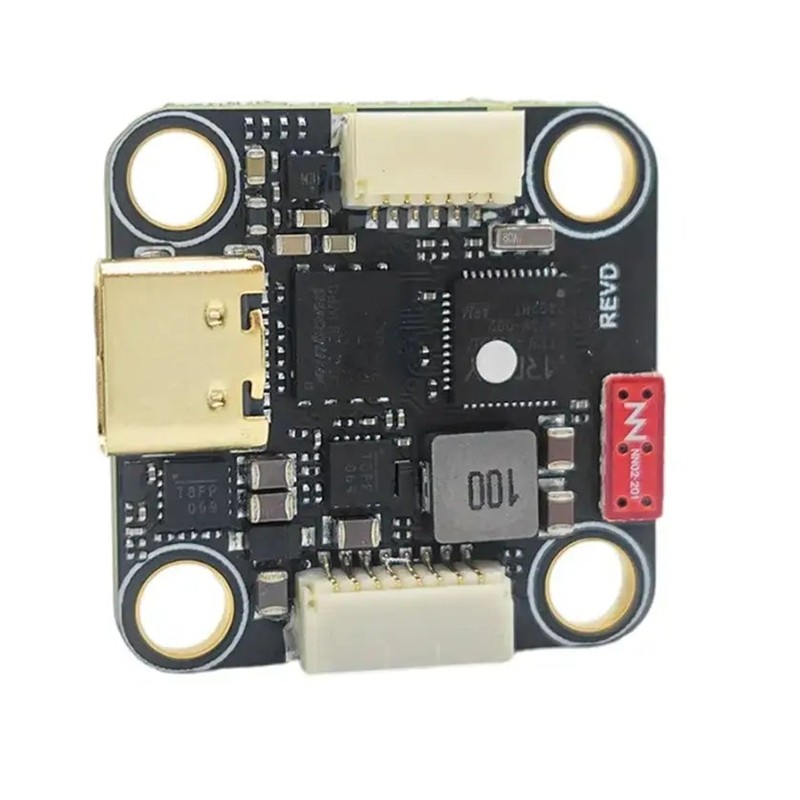

NEWBEEDRONE HUMMINGBIRD 200 RACESPEC AT32F435 20X20 FLIGHT CONTROLLER WITH ELRS 2.4GHZ

A compact flight controller for 5-inch FPV race builds, combining an AT32 processor with an onboard ExpressLRS-compatible receiver to reduce wiring.

Flight controller with accessories only; ESC sold separately.

FEATURES:

• Dual ceramic receiver antennas and TCXO oscillator.
• Dedicated gyro LDO; separate 5 V / 2 A and 10 V / 2 A BEC outputs.
• UART5 connection for DJI O3/O4 or HDZero; LED and I2C pads.
• Nano-coated board; Betaflight support.

SPECIFICATIONS:

• MCU: AT32F435, 288 MHz
• Gyro: ICM-42688
• Receiver: UART-based 2.4 GHz, ExpressLRS-compatible, NewBeeDrone custom firmware
• Internal RX: UART1; spare: UART7
• Receiver firmware target: NewBeeDrone Diversity 2.4GHz RX V2
• Input: 3–6S LiPo
• Mounting: 20 × 20 mm, M2/M3
• Board dimensions: 26 × 26 mm
• Net board weight: 4.72 g
• OSD: NBD7456 analog chip
• Buzzer: Not supported
• Shipping weight: 100 g

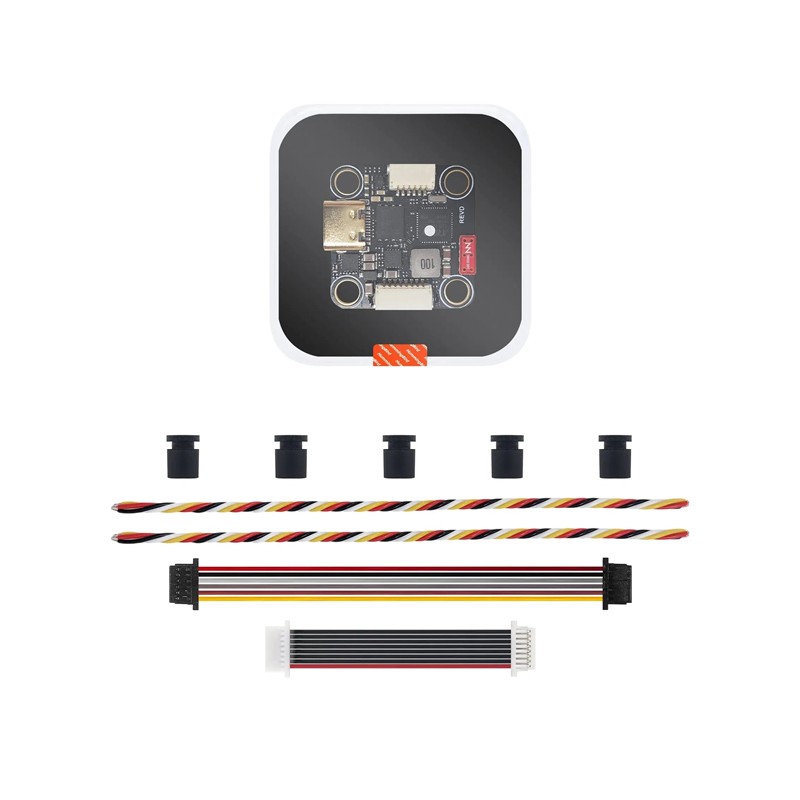

PACKAGE CONTENTS:

• 1 × Hummingbird 200 RaceSpec FC
• 5 × Grommets
• 1 × 100 mm DJI O3/O4/HDZero cable
• 1 × 36 mm SH1.0 8-pin FC-to-ESC cable
• 2 × 120 mm four-color silicone wire cables

Manufacturer user guide — use the specified receiver firmware target.
