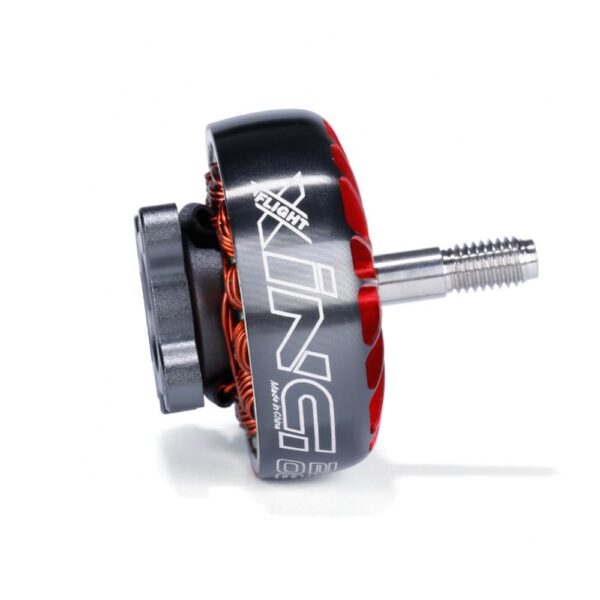

XING 2806.5-1300KV LR/CINELIFTER MOTOR
The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It’s a great motor if you’re building bigger drones like 7 inch or 8 inch.
FEATURES
- High-strength 4mm Titanium alloy shaft
- Unibell design
- 7075 aluminum Bell and Base

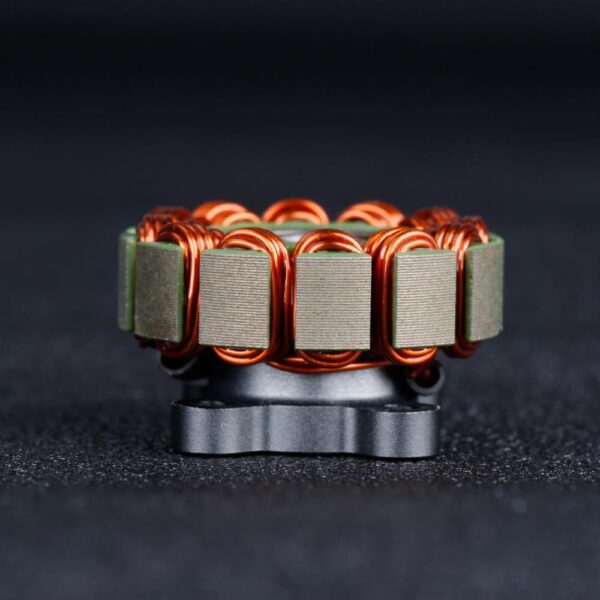

- Electromagnetically matched magnets and stator
- Japanese NSK 11*5*5 bearings
- N52H Arc curve magnets
- Motor wires protected
- Hex bolt shaft set screw
- Dynamically balanced

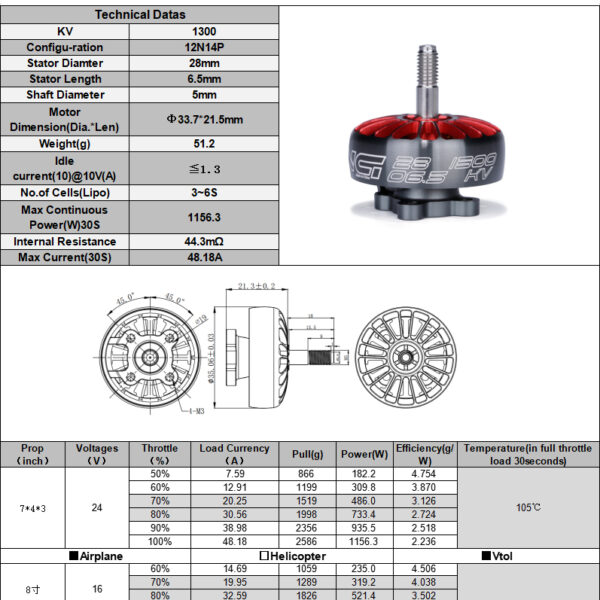

SPECIFICATIONS
- Voltage: 2-6S
- KV : 1300
- Configuration: 12N14P
- Bearing: NSK 11x5x5mm
- Stator Diameter: 28mm
- Stator Length: 6.5mm
- Shaft Diameter: M5
- No.of Cells(Lipo): 2-6S
- Motor mount hole: 19x19mm, M3
- Weight: 49.5g(with a short cable)
PACKAGE INCLUDES:
- 1x X 2806.5 Motor
- 1x M5 Nut
- 4x M3x8 Screw
Soham Patankar (verified owner) –
Perfect motors for a 7 inch LR build. And as always, service from Anubis was excellent and delivery was super fast !
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
siam.hatlang (verified owner) –
Frame snaps, ESC burns, FC dies, vtx dies but the motors are just chill. These are very very durable motors, highly recommend them. I flew a 4S 7 inch motors (1800kv) on a 6S set up. Disaster strikes but the motors survived.
Also kudos to Anubis for fast shipping.
