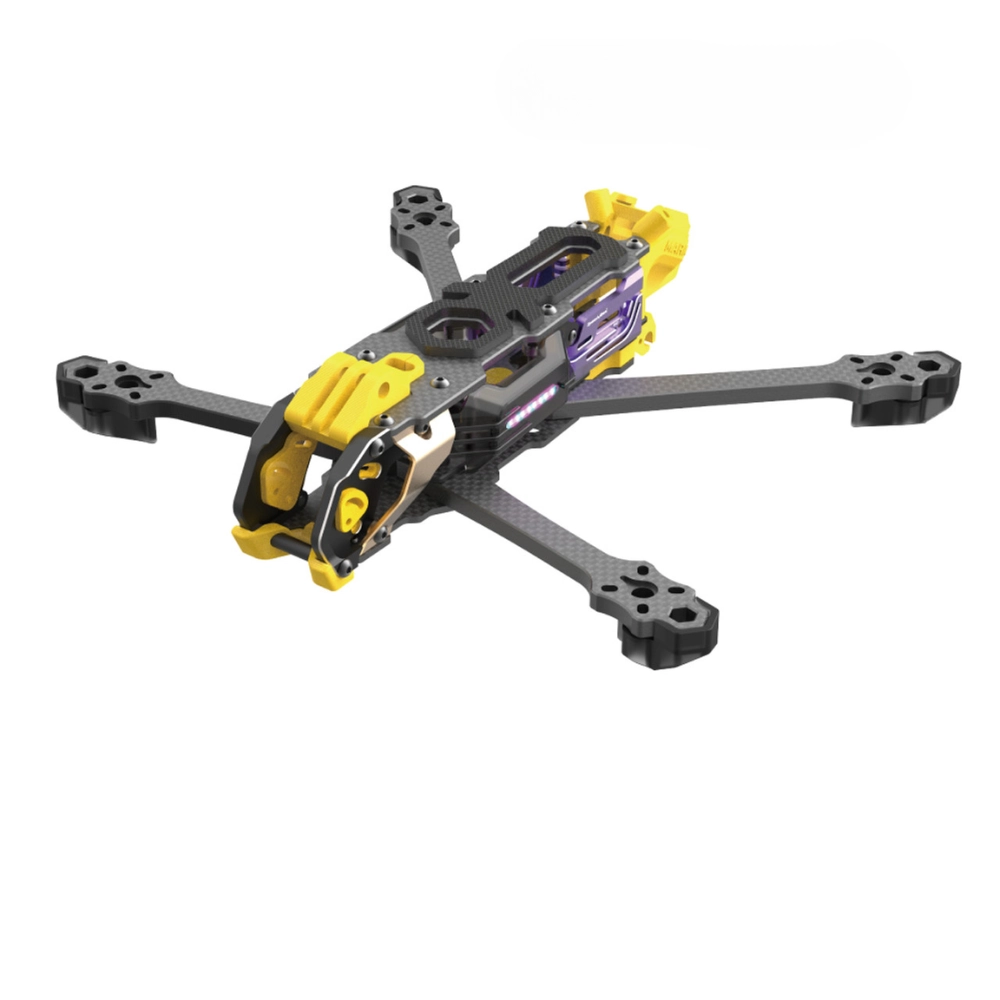

SPEEDYBEE MARIO 5 FRAME KIT-DC O4 PRO
Experience agile freestyle and smooth cinematic flight with the SpeedyBee Mario 5 DC O4 Frame Kit. Built for DJI O4, this 5-inch DC frame offers strong carbon fiber construction, clean cable routing, and pro-level compatibility—perfect for pilots who push limits.
Note: This frame kit requires assembly.
FEATURES:
- Supports DJI O4 System
- Pro-Level Compatibility
- Durable Carbon Fiber
- Smart Cable Routing
- DC Frame Structure
- 5-Inch Size
SPECIFICATIONS:
- Motor Mount: Hole Position: Φ8mm, Mounting Distance: 16–19mm
- Standoff Material: 7075 Aluminum (D5×23mm / D46×22mm)
- Weight: XH: 129 ±5g (no 3D prints), 170 ±5g (with prints)
- Camera Size Supported: 20mm
- Head Material: Aviation Aluminum Alloy
- Internal Mounting Height: 23–31mm
- Battery Pad: 3mm Silicone Anti-Slip
- GPS Mounting Size: 18 x 18 x 7mm
- Propeller Compatibility: Up to 5.1″
- Wheelbase: Mario 5 DC: 227mm
- FC Mounting: 30.5 x 30.5mm (M3)
- VTX Mounting: 20 x 20mm (M2)
- Receiver Bay: 25 x 13 x 6mm
- Capacitor Slot: Φ10 x 20mm
- Bottom Plate: 2.5mm (T300 3K)
- Middle Plate: 2.0mm (T300 3K)
- Top Plate: 2.5mm (T300 3K)
- 3D Printed Parts: Yellow TPU
- Camera Mount Screw: 7mm
- Arms: 6mm (T300 3K)
PACKAGE CONTENTS:
- 1x SpeedyBee Mario 5 Frame Kit – DC O4 Pro
- 1x Hardware Set
airclub.ajay (verified owner) –
A strong and well designed 5-inch frame with plenty of room for electronics. Assembly was straightforward and the completed build feels rigid without being unnecessarily heavy. Delivery was exceptionally fast, the frame was packed properly and support was helpful and knowledgeable throughout the purchase.
