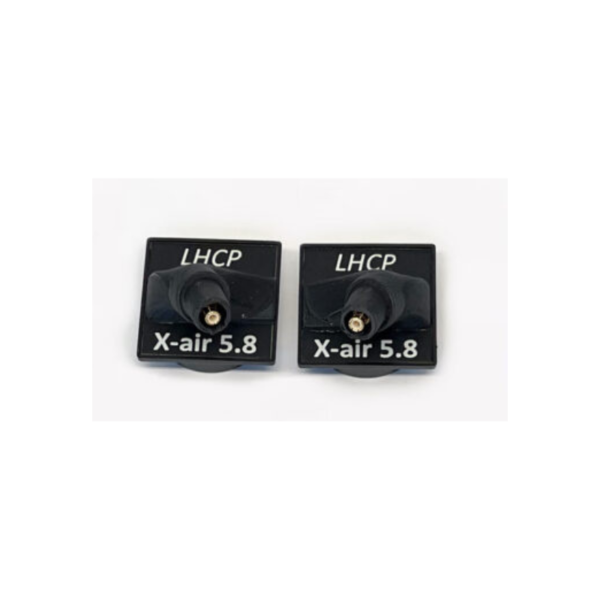

These TrueRC X-AIR 5.8GHz MK II Antennas are compatible with the DJI Goggles 2. The MCX Male connectors fit the DJI Goggles 2 perfectly. These antennas help you obtain 9.5-10.5dBic gain combined with a healthy flyable beam width of 120deg.

Note: Goggles are NOT included.

• High 9.5-10.5 dBic for long-range and signal penetration
• Compact low-profile design, easy to store and transport
• Mount direct on the DJI Goggles 2
• Super wide 120-degree beam
• LHCP or RHCP Polarized
• MCX Male Connectors

LOW PROFILE DESIGN

Most compact antennas of this gain level, allowing you to leave them connected all of the time without fear of breaking them.

MCX MALE CONNECTORS FIT THE DJI GOGGLES 2

As with all other components of X-AIR antennas, the custom MCX Male connector is made to the highest standards to fit your DJI Goggles 2 perfectly and make sure every bit of RF power is transferred from the X-AIR. Easy tightening and a quality look are exclusive to TrueRC.

• Beam-width @-3dB**: 68deg.
• Polarization: LHCP
• Bandwidth: 5.1GHz-6.7GHz
• Dimension: 34 x 34 x 24mm
• Connector: MCX Male
• Beam-width: 120deg
• Gain: 9.5-10.5 dBic
• Weight: .038kg

IMPORTANT NOTES

• *Coverage of individual antenna where reception is at least equivalent to an omni.
• **Coverage of individual antenna where at least 70% of the max range is obtained.

• 2x TrueRC X-AIR 5.8GHz MK II Antenna – DJI Goggles 2
