TRUERC X2-AIR 5.8 MK II COMBO CORE FOR HDZ GOGGLE V1/V2 – RHCP

The TrueRC X2-AIR 5.8 MK II Combo Core combines directional patch antennas with CORE omnidirectional antennas for HDZero Goggles V1/V2. This RHCP set includes two X2-AIR patches, two CORE antennas and two slide-on mounts.

FEATURES:

• 13 dBic directional gain from each X2-AIR dual-element antenna.
• Combined horizontal coverage of 165° when mounted on the goggles.
• CORE omni antennas complement the directional pair.
• Low-profile 15 mm patch housings and custom knurled SMA connectors.
• Slide-on mounts fit the HDZero goggle rails.

SPECIFICATIONS:

• Brand: TrueRC
• Model: X2-AIR 5.8 MK II Combo Core
• Polarization: RHCP (right-hand circular)
• Application: HDZero Goggles V1/V2
• X2-AIR frequency bandwidth: 5.1–7.0 GHz
• X2-AIR gain: 13 dBic
• X2-AIR horizontal / vertical coverage: 150° / 62° per antenna
• X2-AIR horizontal / vertical beam width at -3 dB: 75° / 34°
• X2-AIR connector: custom knurled SMA
• X2-AIR dimensions: 72 × 34 × 15 mm each
• X2-AIR net weight: 20 g each (patch antenna only)

Coverage figures of 150° / 62° indicate reception at least equivalent to an omni antenna. Patch specifications above do not describe the CORE omni antennas.

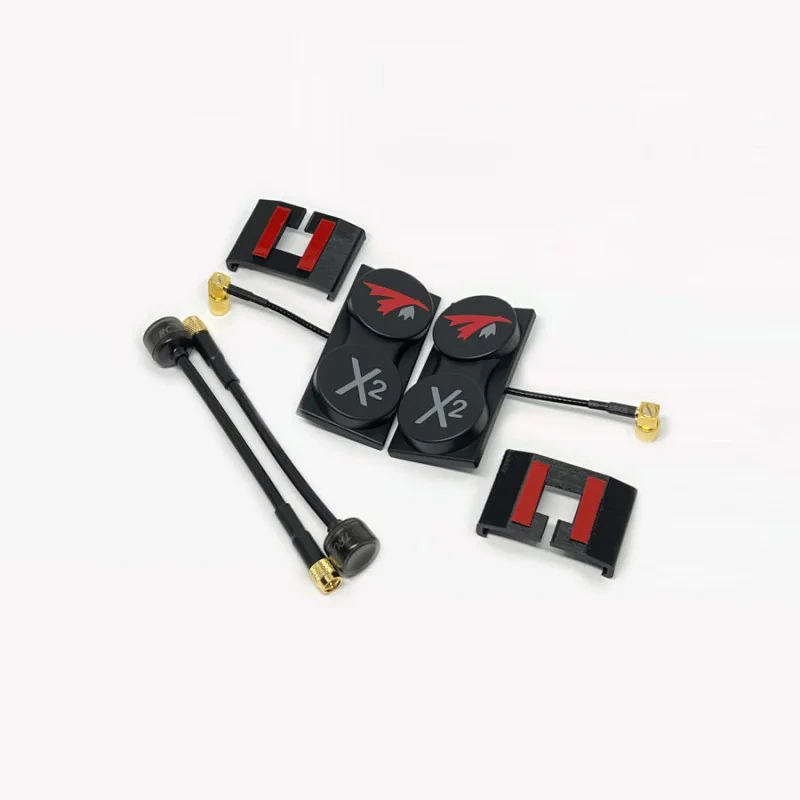

PACKAGE CONTENTS:

• 2 × TrueRC X2-AIR 5.8 MK II RHCP patch antennas.
• 2 × TrueRC CORE RHCP omnidirectional antennas.
• 2 × slide-on mounts for HDZero goggles.

HDZero goggles are not included.
