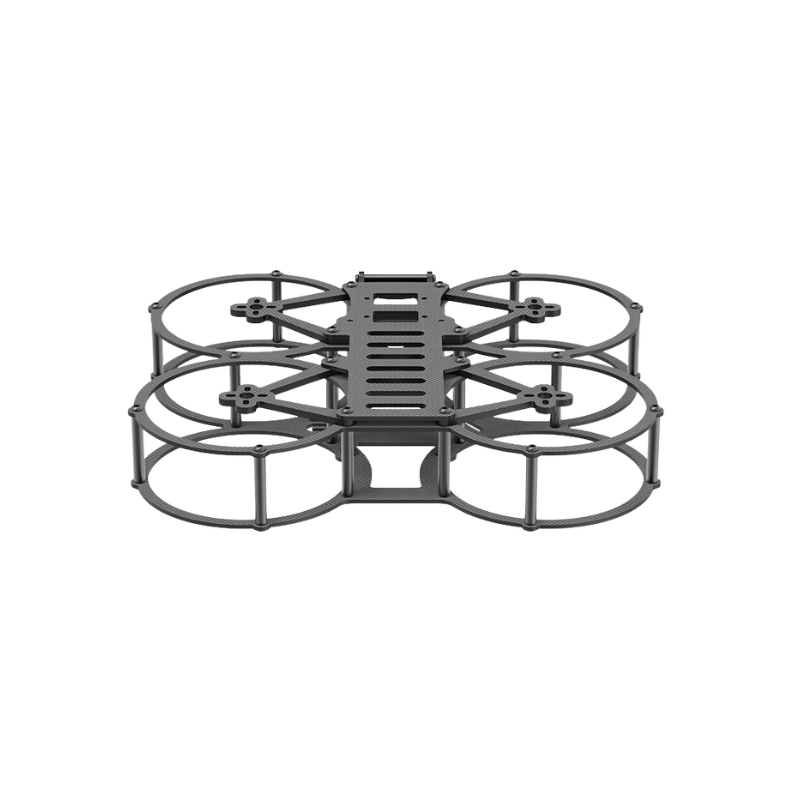

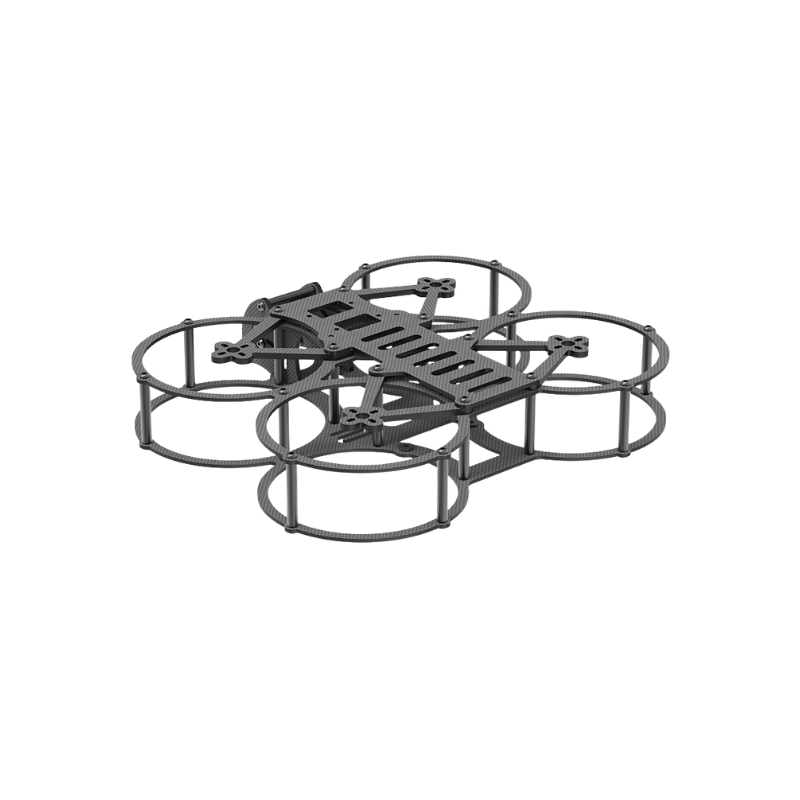

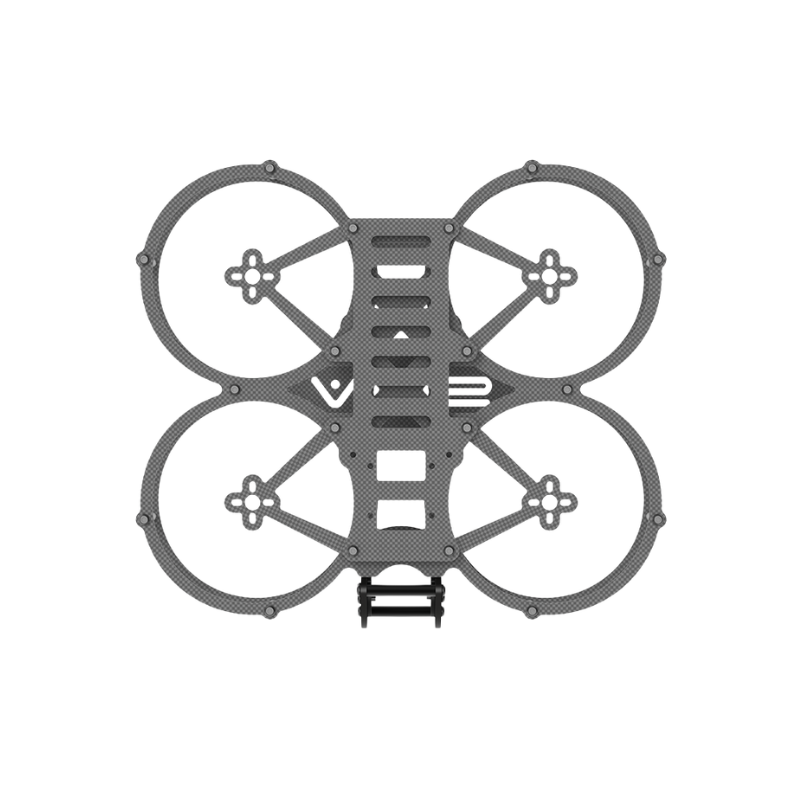

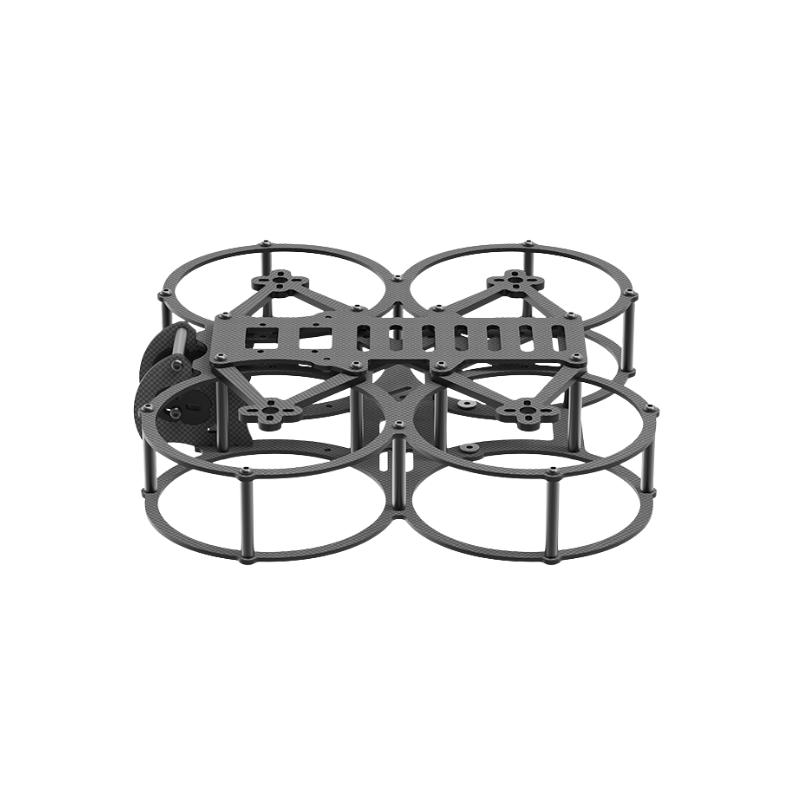

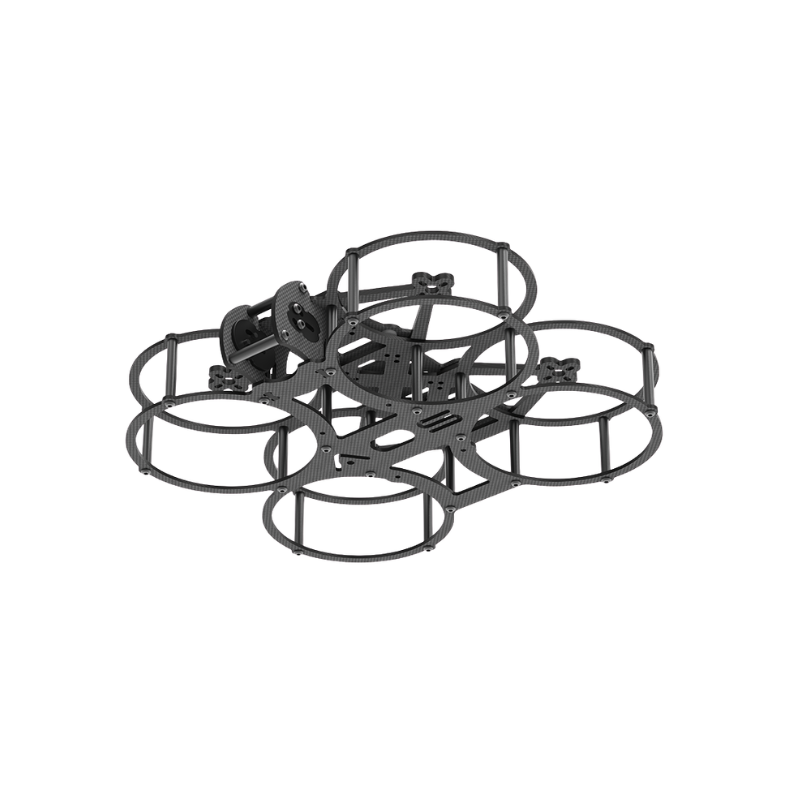

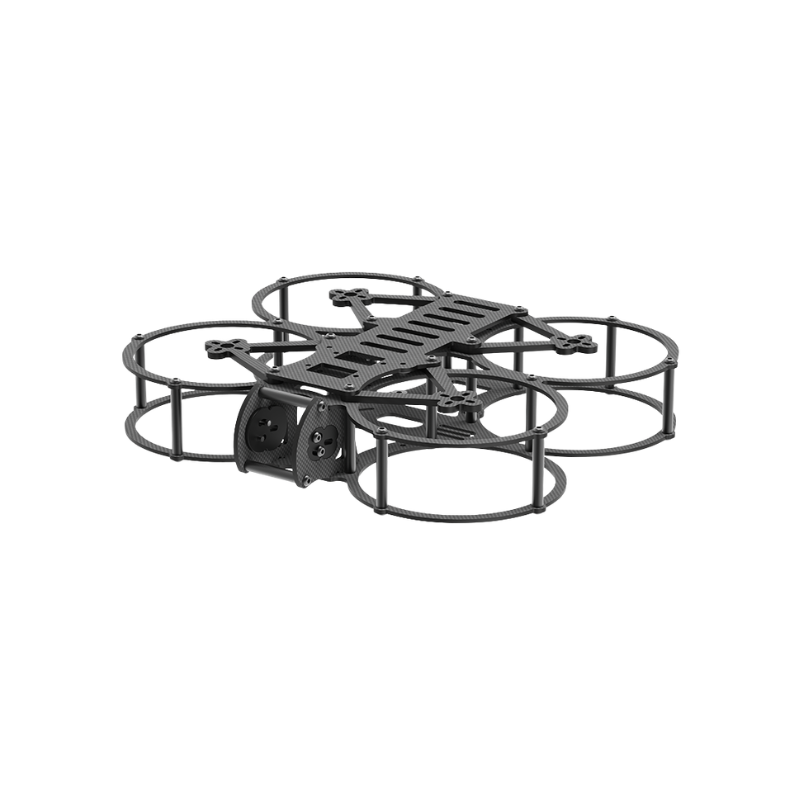

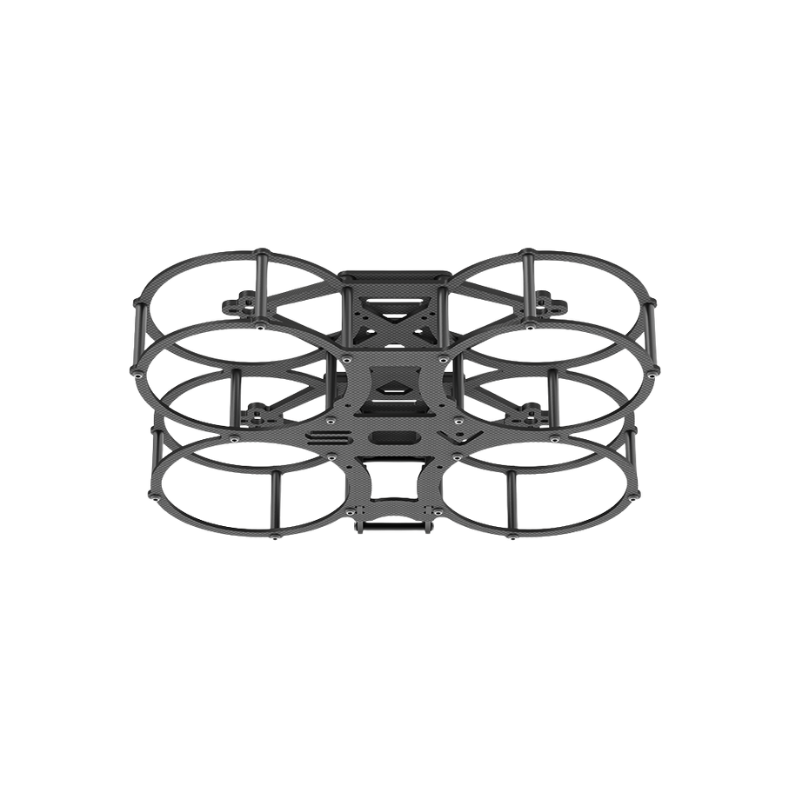

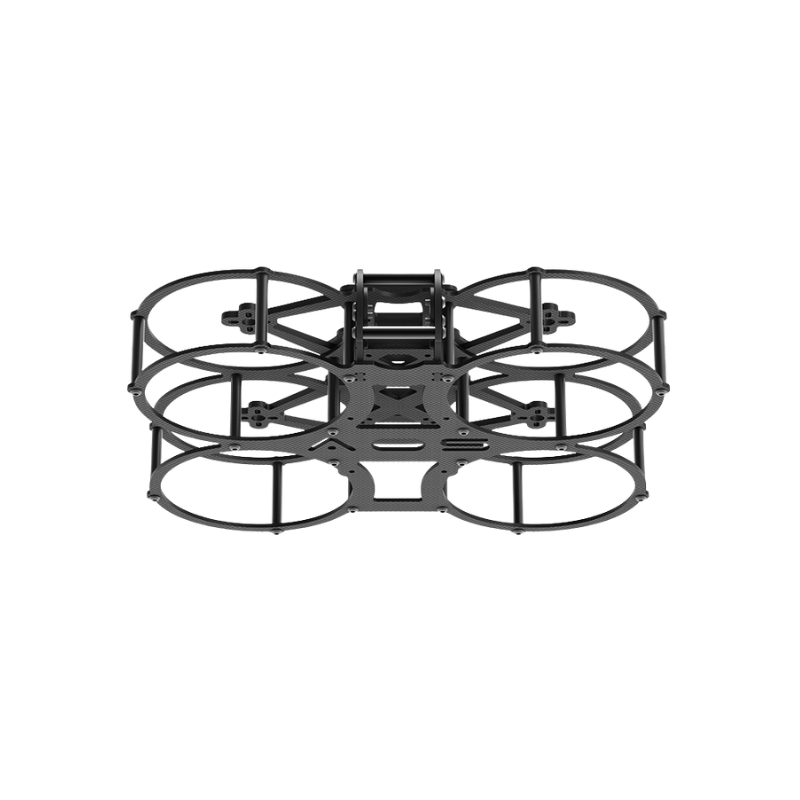

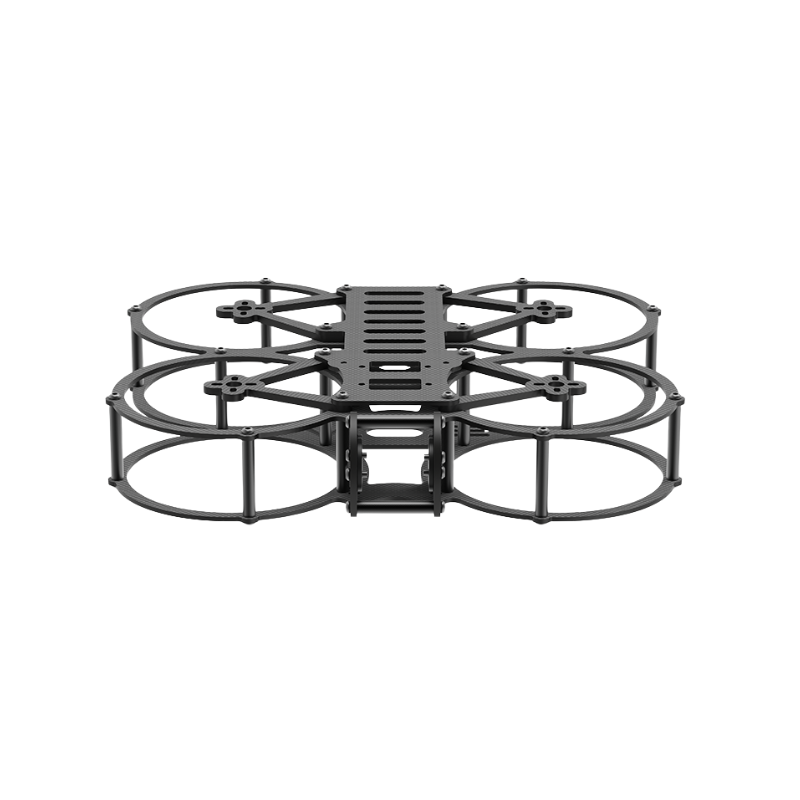

AOS CINE25 EVO V1.2 FRAME KIT

The latest version of this frame is the AOS Cine25 EVO. It has updated camera plates to support the DJI O3 Air Unit/DJI O4 as well as all other 19-20mm FPV cameras.

FEATURES:

• Designed for 2.5 inch props, no props in view.
• 2.5 mm Truss Arms
• Up to two 25.5 or 20 mm stacks (front and rear)
• One 25.5 or 20 mm stack (center)
• 32x32mm M2 GoPro mounting holes in top plate with installed press-nuts
• XT30 pass through top plate
• Captive battery strap slots for lengthwise or toilet tank mounting
• Fits 19-20mm FPV cameras including DJI O3
• Recommended motor size 1404
• 9×9 mm motor mounting
• Standoffs, carbon and hardware included

SPECIFICATIONS:

• Product Name: AOS Cine25 EVO Frame Kit
• Frame wheelbase: 125mm
• Frame Dimension: L99*W75.5*H32 mm  / L175*W151*H32 mm (with propguard)
• Arm Thickness: 2.5mm
• Top Plate Thickness: 1.5mm
• Bottom Plate Thickness: 1.5mm
• Upper Plate Thickness: 1.5mm
• Motor Mounting: 9x9mm / 12*12mm
• VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm

PACKAGE CONTENTS:

• 1 x AOS Cine25 EVO Frame Kit
• 1 x Screw Bag
• 1 x Battery Strap
