Description
Bambu Lab ABS-GF Filament – 1.75 mm, 1 kg with Spool

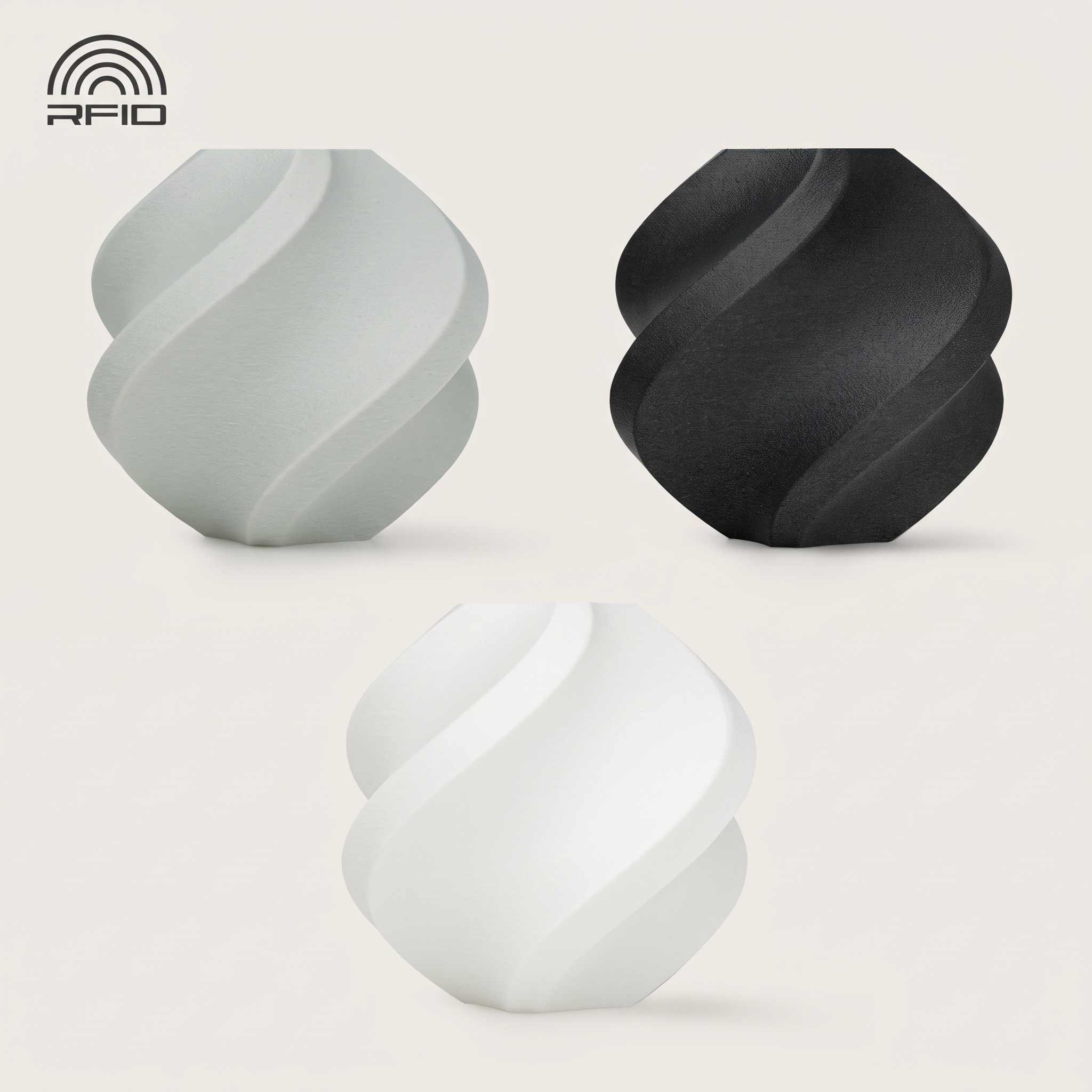

Print rigid functional parts with a refined matte finish. Bambu Lab ABS-GF combines glass-fiber-reinforced ABS with improved dimensional stability and heat resistance. Available in Gray, Black, and White.
Product description

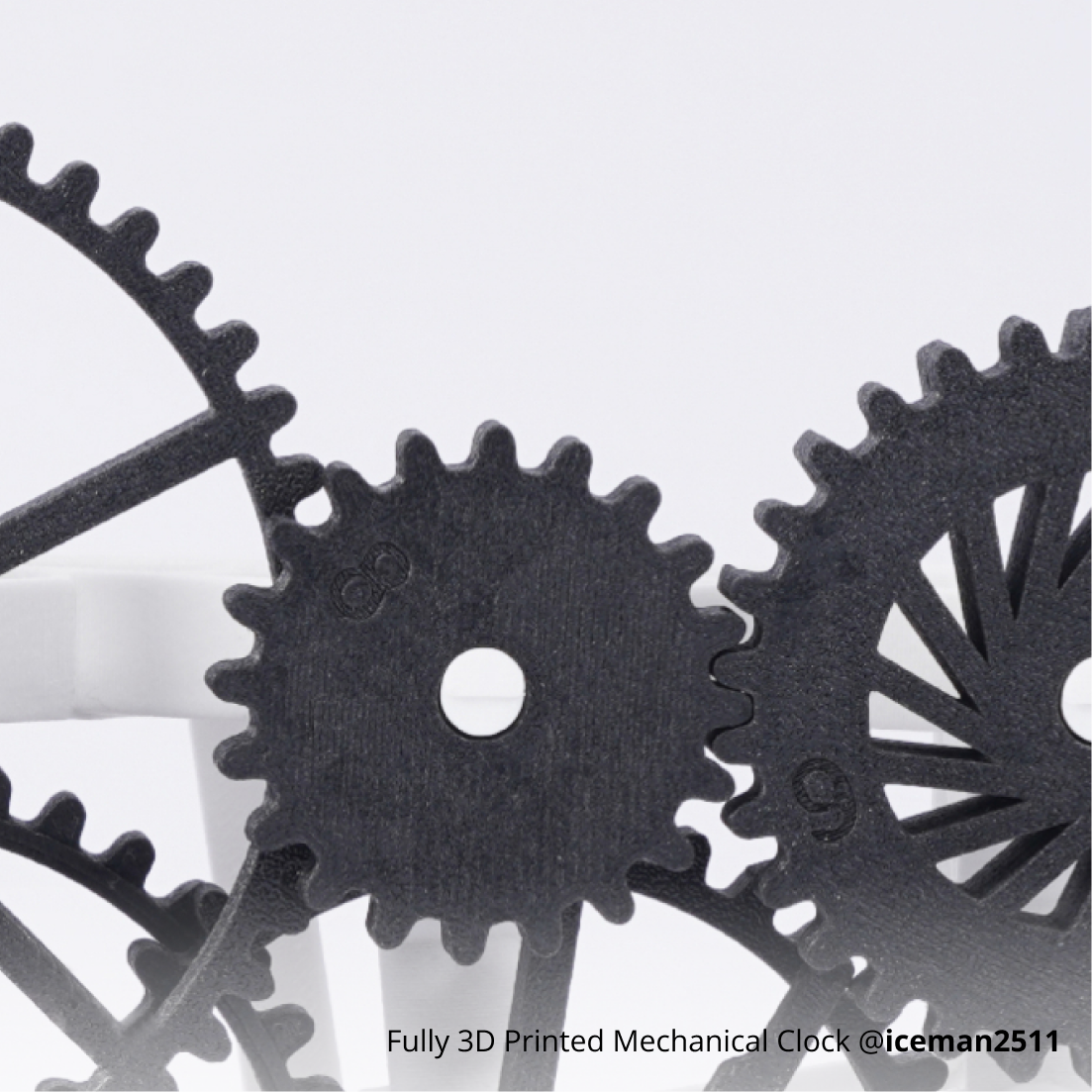

Bambu Lab ABS-GF is a glass-fiber-reinforced ABS filament for mechanical components, practical household parts, and decorative prints. The added glass fiber increases stiffness and helps reduce warping compared with standard ABS, making it a useful choice for fitted assemblies, casings, connectors, and brackets. Its fine matte surface softens the appearance of layer lines for a clean, finished look. Each unit contains 1 kg of filament on a high-temperature reusable spool, in your selected color.
Features
Strength and dimensional stability
- Glass-fiber reinforcement improves rigidity and resistance to bending compared with standard ABS.
- Bending modulus of 2,860 MPa (XY), approximately 52% higher than Bambu ABS in the manufacturer’s comparison.
- Reduced warping and deformation help mechanical assemblies retain their intended shape.
Fine matte finish
- Subtle surface texture reduces the visibility of layer lines.
- Suitable for both functional components and decorative models.

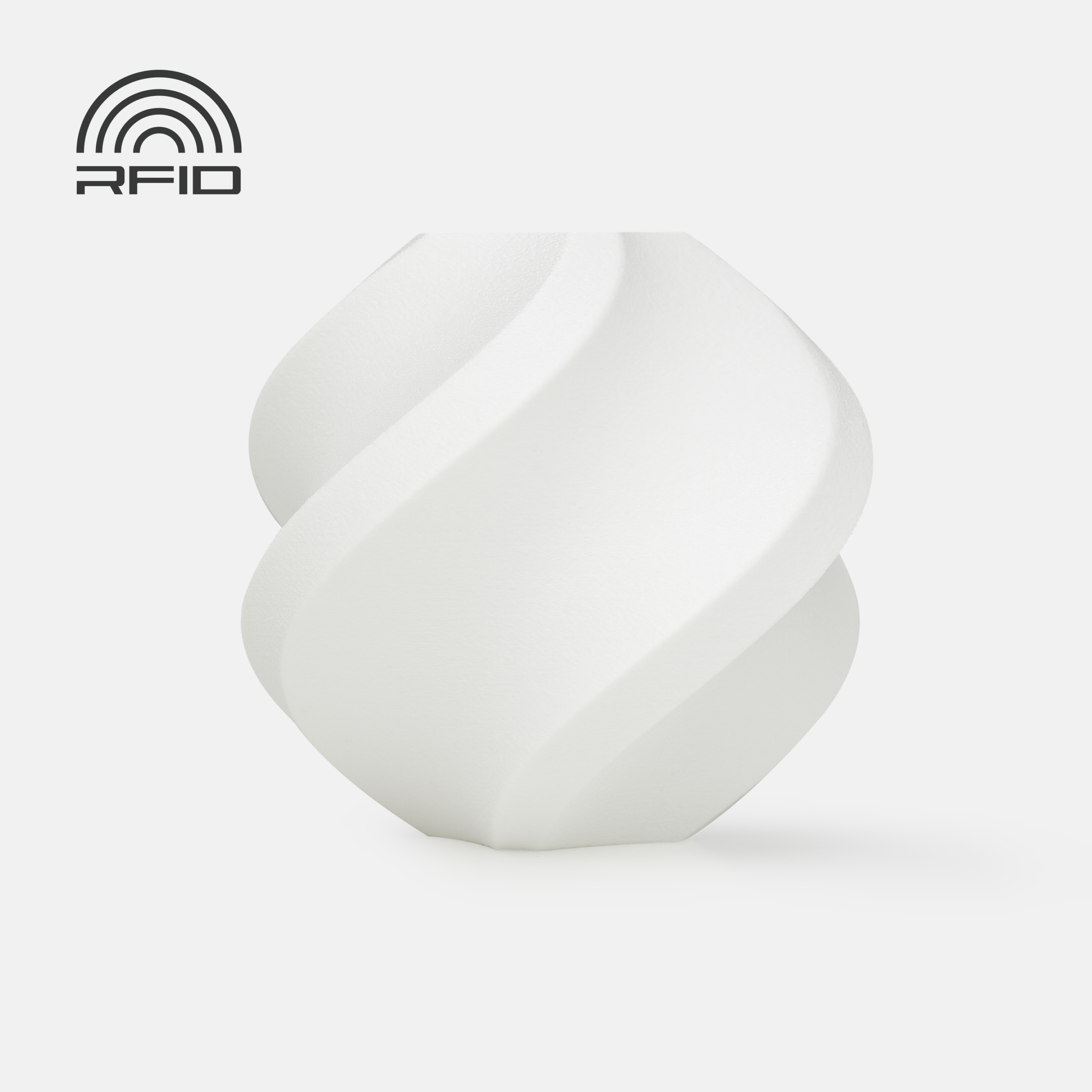

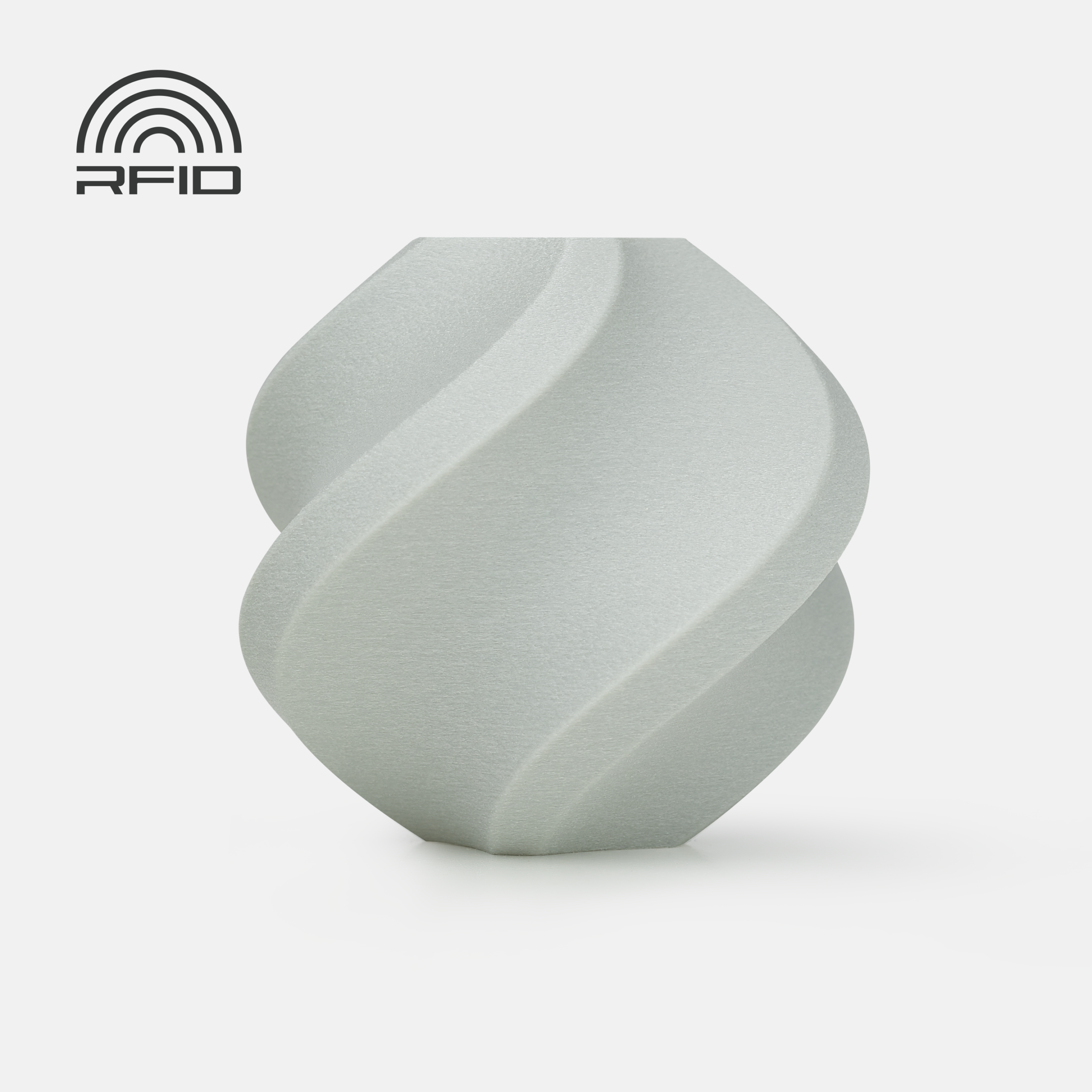

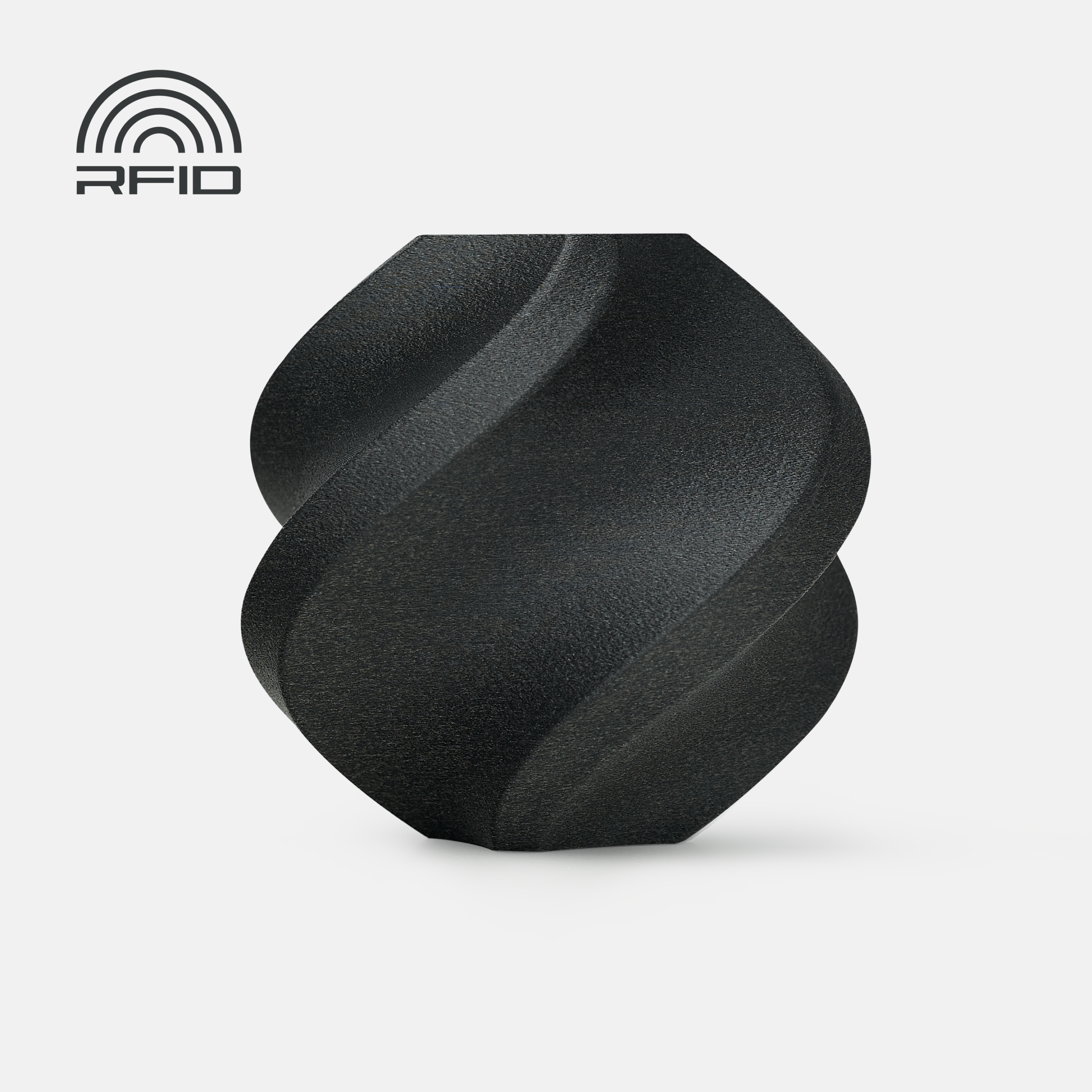

- Choose Gray (41102), Black (41101), or White (41100).
Water resistance for everyday parts

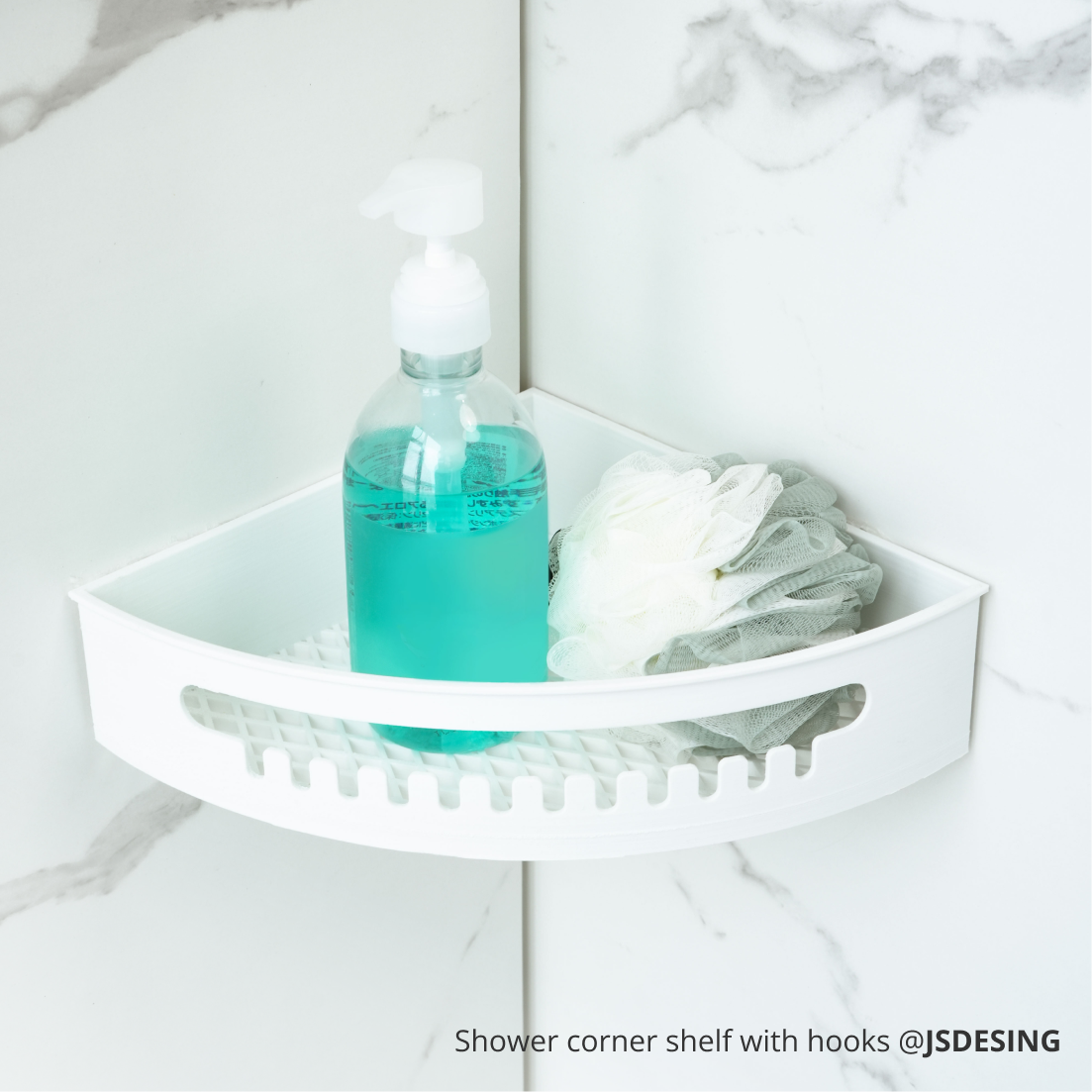

- Water resistance and durability suit practical household components.

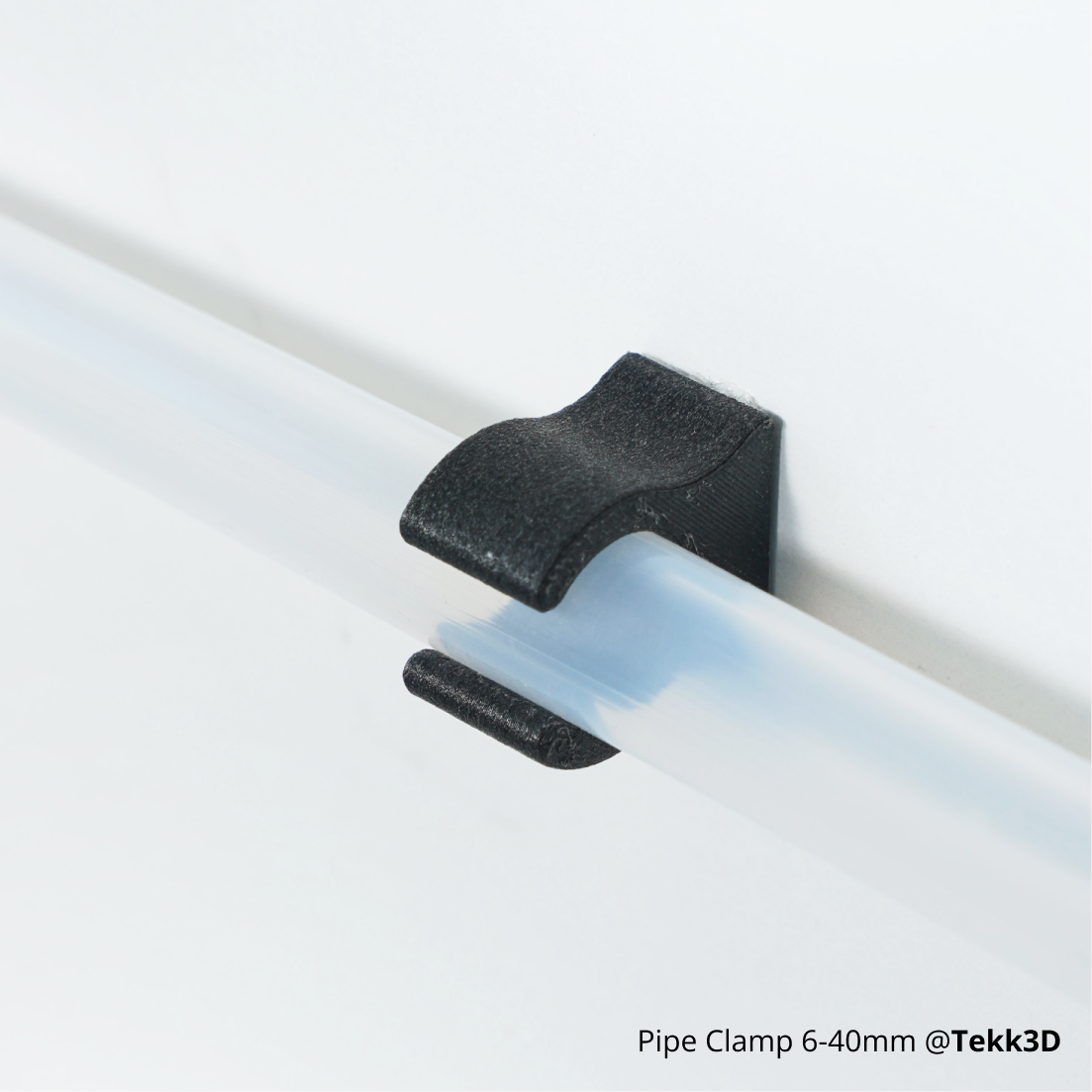

- Useful for organizers, casings, connectors, and similar printed parts.
Heat resistance and convenient material setup
- Heat deflection temperature of 99 °C at 0.45 MPa under manufacturer test conditions.

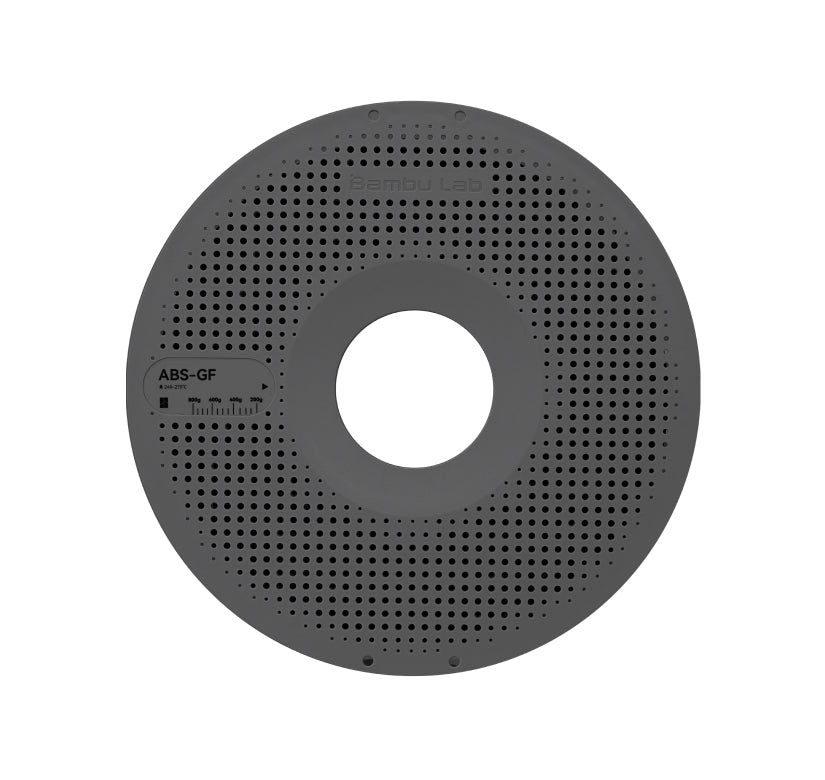

- Supplied on a high-temperature reusable spool.
- Built-in RFID enables automatic material-parameter recognition with Bambu Lab AMS.
Specifications
Product specifications
- Material: ABS (acrylonitrile butadiene styrene) reinforced with glass fiber.
- Filament diameter: 1.75 mm ± 0.03 mm.
- Net filament weight: 1 kg per spool.
- Supply format: filament with high-temperature reusable spool.
- Colors stocked: Gray (41102), Black (41101), White (41100).
- Density: 1.08 g/cm³.
Mechanical and thermal properties
- Tensile strength: 36 ± 3 MPa.
- Elongation at break: 6.3% ± 1.2%.
- Bending modulus: 2,860 ± 130 MPa.
- Bending strength: 68 ± 4 MPa.
- Impact strength: 14.5 ± 1.5 kJ/m².
- Heat deflection temperature: 99 °C (0.45 MPa).
- Vicat softening temperature: 103 °C.
Recommended printing setup
- Printer: enclosed printer required.
- Nozzle temperature: 240–270 °C.
- Bed temperature: 80–100 °C, with glue.
- Print speed: below 180 mm/s.
- Drying: 80 °C for 8 hours in a suitable blast drying oven before printing.
- Storage and printing humidity: below 20% RH; keep sealed with desiccant.
- Nozzle: hardened steel, 0.4 / 0.6 / 0.8 mm; 0.6 mm recommended.
- Not compatible with 0.2 mm nozzles; stainless-steel nozzles are not recommended.
- Build surface: Smooth PEI or Textured PEI with Bambu Liquid Glue or Glue Stick.
- Material system: AMS compatible; AMS lite not compatible.
- Use an enclosed printer in a well-ventilated area, as ABS can release strong odors.
Mechanical and thermal values are manufacturer test results; printed-part performance varies with orientation, geometry, and printing conditions. The 99 °C heat deflection value is a test measurement, not a continuous operating-temperature rating.
Package contents
- 1 × 1 kg Bambu Lab ABS-GF filament on a high-temperature reusable spool, in the selected color.
- 1 × desiccant pack.

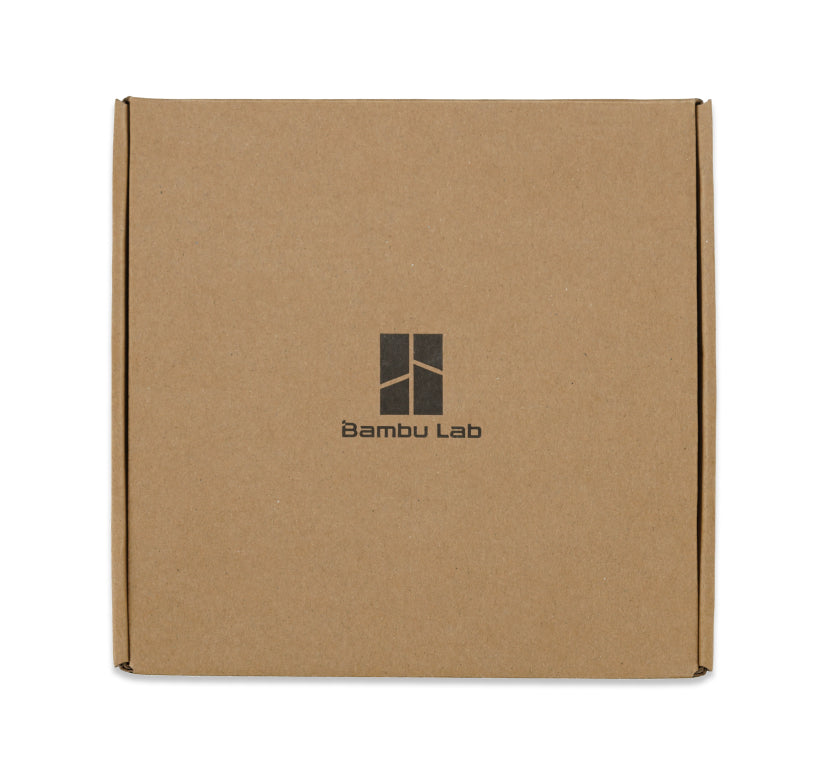

- 1 × outer packaging box.
