EV800D 5.8GHz 40CH Diversity FPV Goggles w/ DVR

₹11,999.00

The EV800D is an excellent beginner box goggle featuring an 800×480 LCD screen with vivid color and high luminance, diversity receiver, built-in DVR, and battery – all at an amazing value!

Out of stock

Description

EV800D 5.8GHz 40CH Diversity FPV Goggles w/ DVR

Name: EV800D 5.8GHz 40CH Diversity FPV Goggles w/ DVR
SKU: EV800D-8807
Availability: OutOfStock

New batches are updated to use SMA connectors instead of RP-SMA.

The EV800D is an excellent beginner box goggle featuring an 800×480 LCD screen with vivid color and high luminance, diversity receiver, built-in DVR, and battery – all at an amazing value!

FEATURES:

Bright 800×480 5″ LCD Screen specially tuned for FPV racing

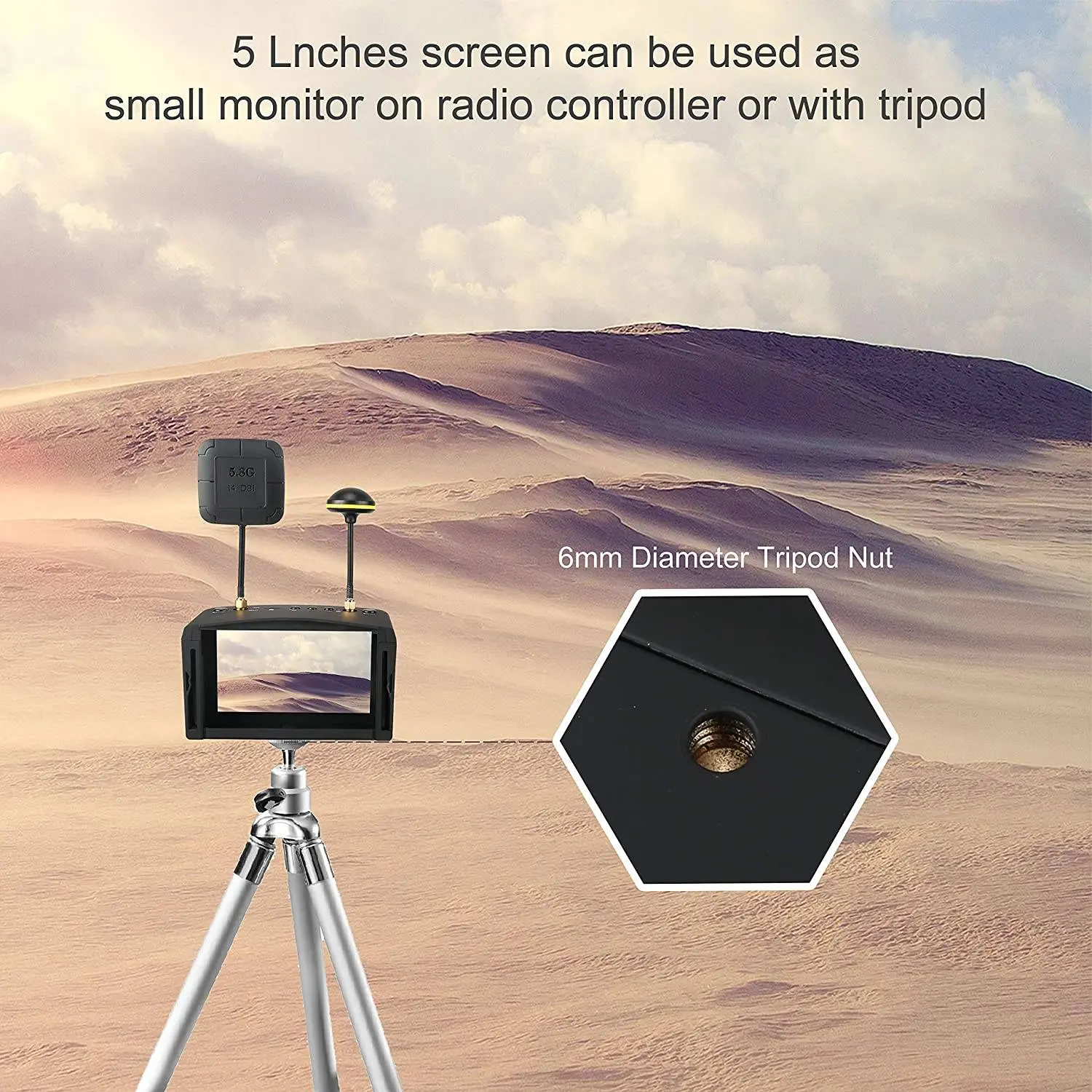

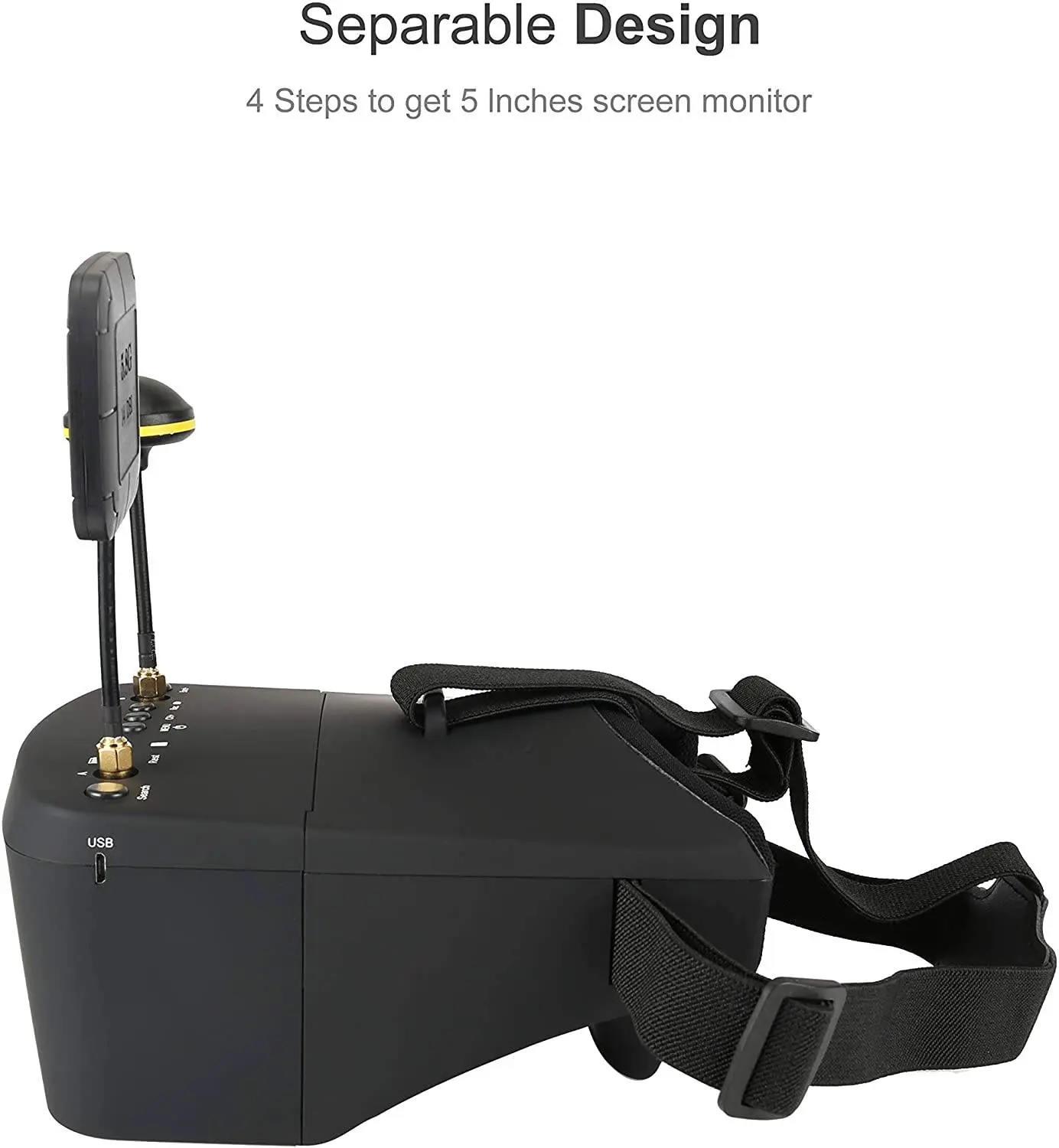

Separable design. Screen can be used as a small monitor on a radio controller or with a tripod!
92% Transparent 3x Lens boosts the video to give you that immersive view
Super-wide viewing angle up to 82

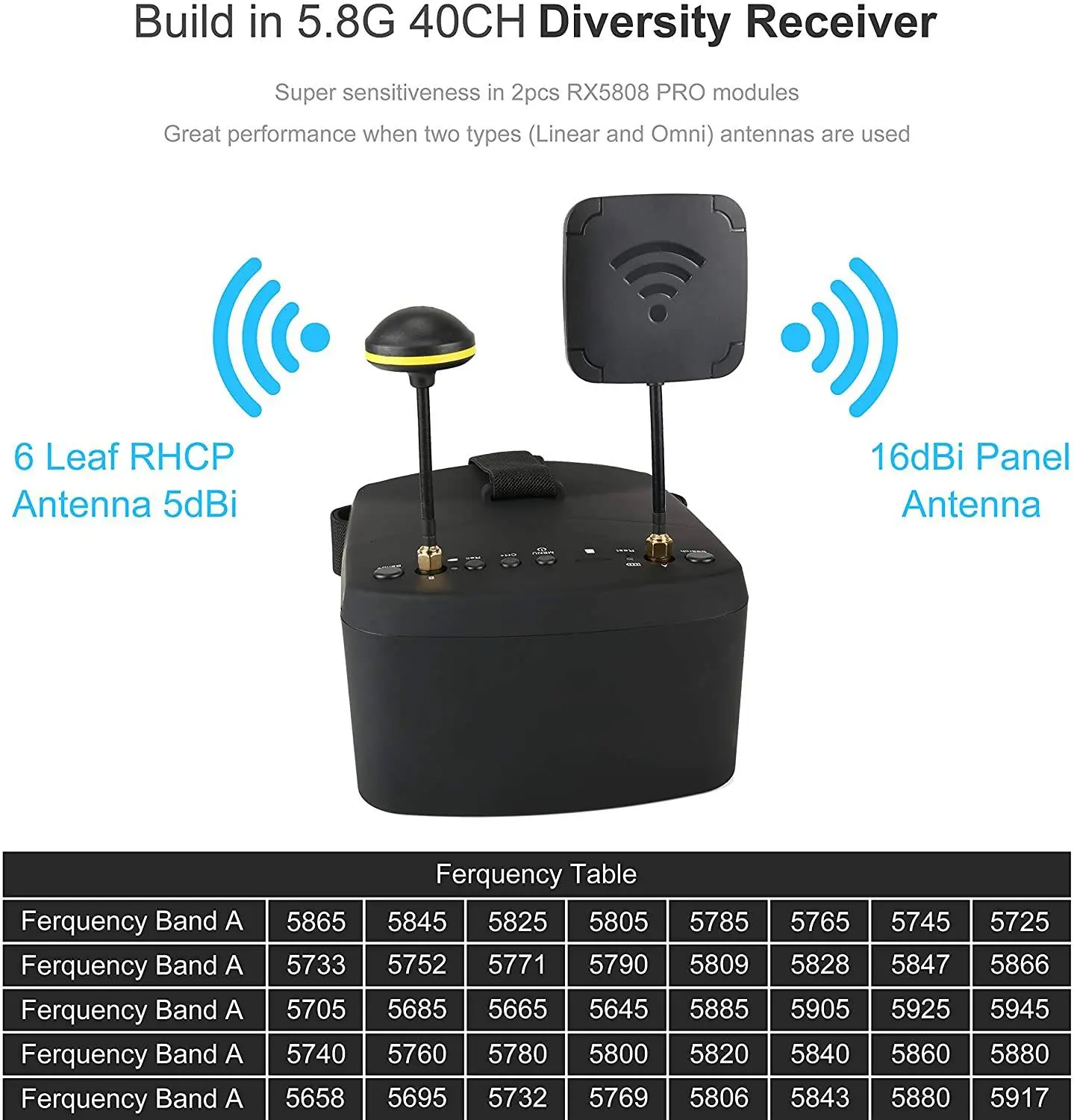

True Diversity: 2x Super Sensitive (-90dB) RX5808 PRO modules
40 Channels with Race Band (See Frequency Chart Below)
Advanced auto-search function and the working frequency show on screen
Great performance when two types (Linear and Omni) of antenna are used
Built-in DVR records up to 720×576 full frame rate video with no frame loss (Class 10 card required)
Two systems (Display/Record duo core separated chipsets) ensure no delay in displaying and no frame lost in recording (please use C10 super speed card to ensure the full-frame recording)
Replay your videos in the Goggle Menu
Friendly unintrusive OSD. No blocking of important flying OSD information.
Three-way Adjustable Head Strap

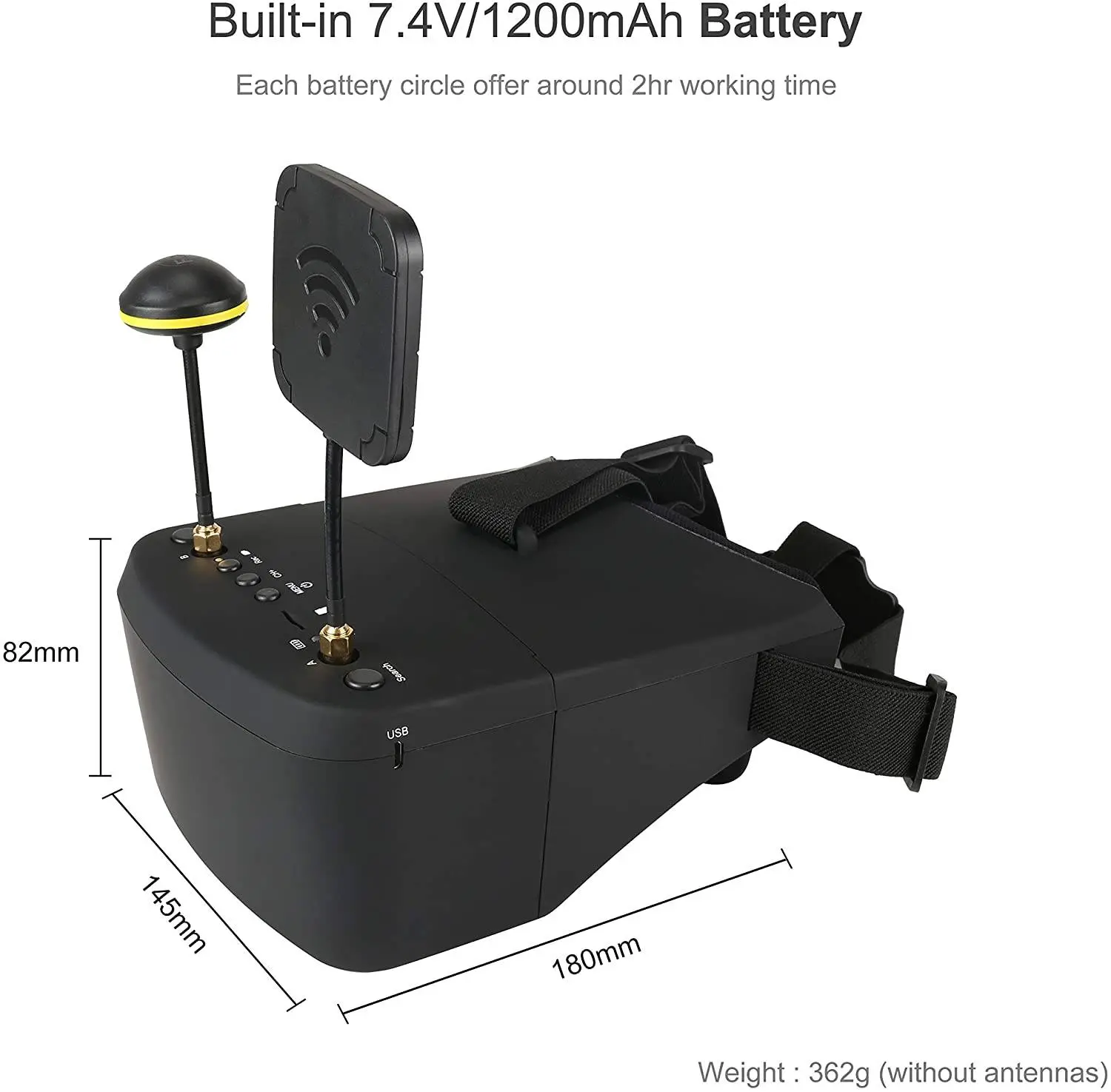

Built-in 7.4V 1200mAh battery, each full charge offers 2 hours working time
Wide range re-charge voltage 11-20V
Accept 2S or 3S batteries as backup power sources, to prolong the working time

SPECIFICATIONS:

Screen Size: 5″
Screen Resolution: 800×480 (No blur after enlarge by the lens)
Screen Brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
Ratio: 16:9, 4:3
View Angle: 140/120 degree(Horizontal/Vertical)
RF Modules: 2x (-90dB) RX5808 PRO modules
Battery: Built-in 7.4V 1200mAh Battery
Input Voltage: 10-22V typical recharging voltage is 12V, 2S or 3S (7.4V-11.1V) LiPo can be used as backup power to have a long working time.
Charger : 12V,2A, DC 2.5mm
Dimension: 180*145*82mm
Weight: 362g without antenna
