Description

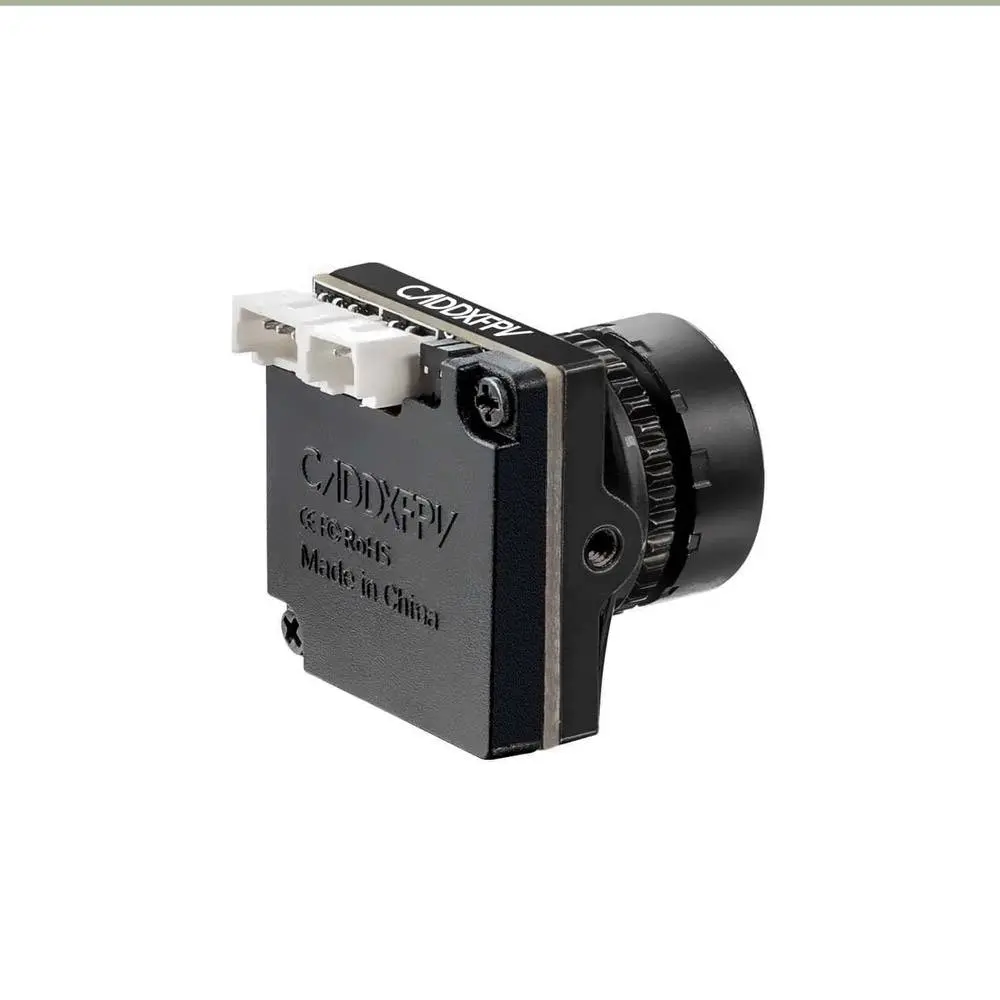

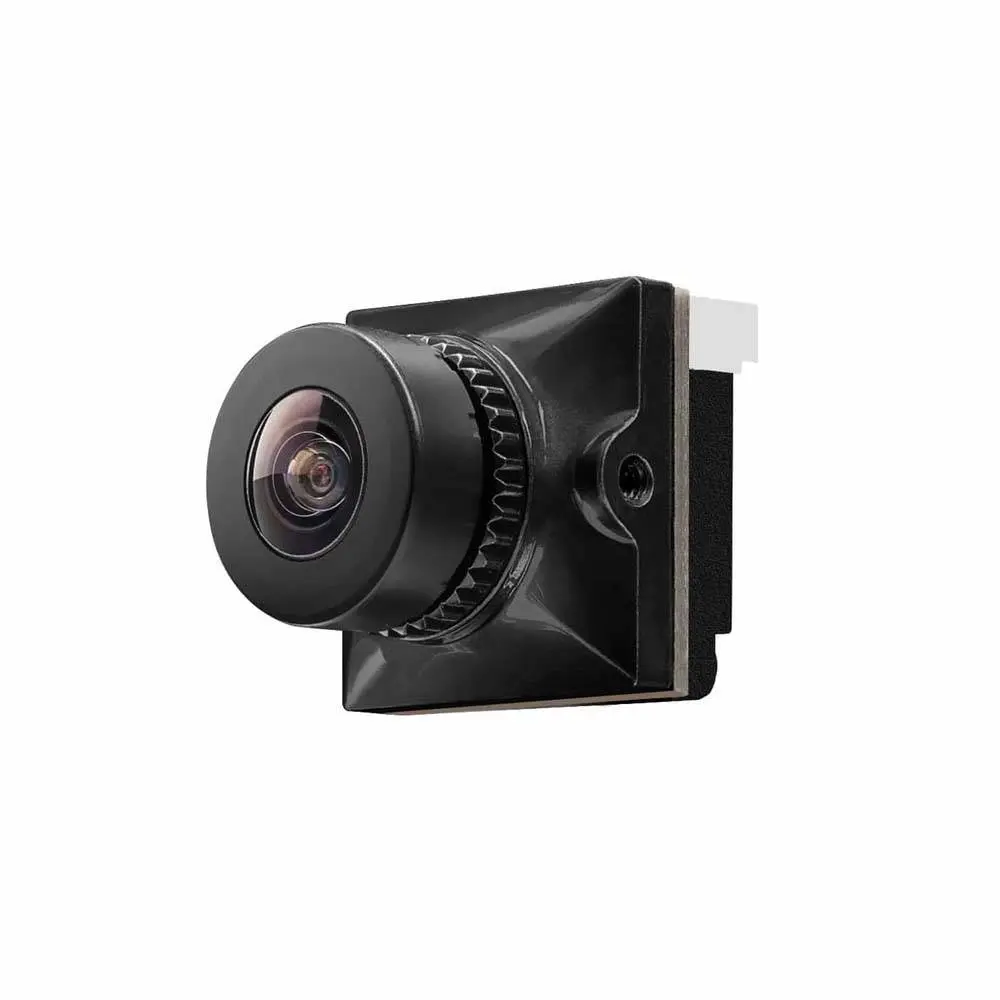

CADDX RATEL2 ANALOG CAMERA

The Caddx Ratel 2 HDR Starlight 1200TVL FPV Camera features superb night vision, clear and sharper images. The Ratel 2 is equipped with high quality 1/1.8″ inch starlight, a Super WDR sensor, providing up to 0.0001 sensitivity of lux, 8ms low latency, 4:3/16:9, and PAL/NTSC switchable, and a separate OSD menu.

FEATURES:

• High quality 1/1.8″ Inch starlight HDR sensor
• OSD menu
• Switch between PAL and NTSC video standards or between 4:3 and 16:9 video formats
• Ultra-low latency of 8ms

SPECIFICATIONS:

Name: Caddx Ratel V2

• Model Name: Ratel
• Lens: 2.1mm
• Image Sensor: 1/1.8″ Inch starlight HDR sensor
• Horizontal Resolution: 1200TVL
• FOV: 165 Degree
• Min. Latency: 8ms
• TV System: NTSC & PAL (changeable)
• Image: 16:9 & 4:3 (changeable)
• WDR: Super WDR (HDR)
• Min. Illumination: Starlight
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio: >60dB (AGC OFF)
• Video Output: CVBS
• DNR: 3-DNR
• Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
• Day/Night: Auto/Color/B&W/EXT
• Dimensions: 19mm*19mm*20mm
• Wide Power Input: DC 5-40V
• Work Temperature: -20~+60°C
• Weight: 5.9g

HOW TO:

• Focusing your FPV Camera.
• All About Multirotor Drone FPV Cameras
• Getting the Right FPV Drone Camera Settings.

PACKAGE CONTENTS:

• 1 x Caddx Ratel 2 HDR FPV Camera
• 1 x 5D-OSD Menu Board
• 1x 2Pin Silicon Cable
• 1x 3Pin Silicon Cable
• 1 x 1.5mm Allen Wrench
• 1 x Warranty Card
