Description

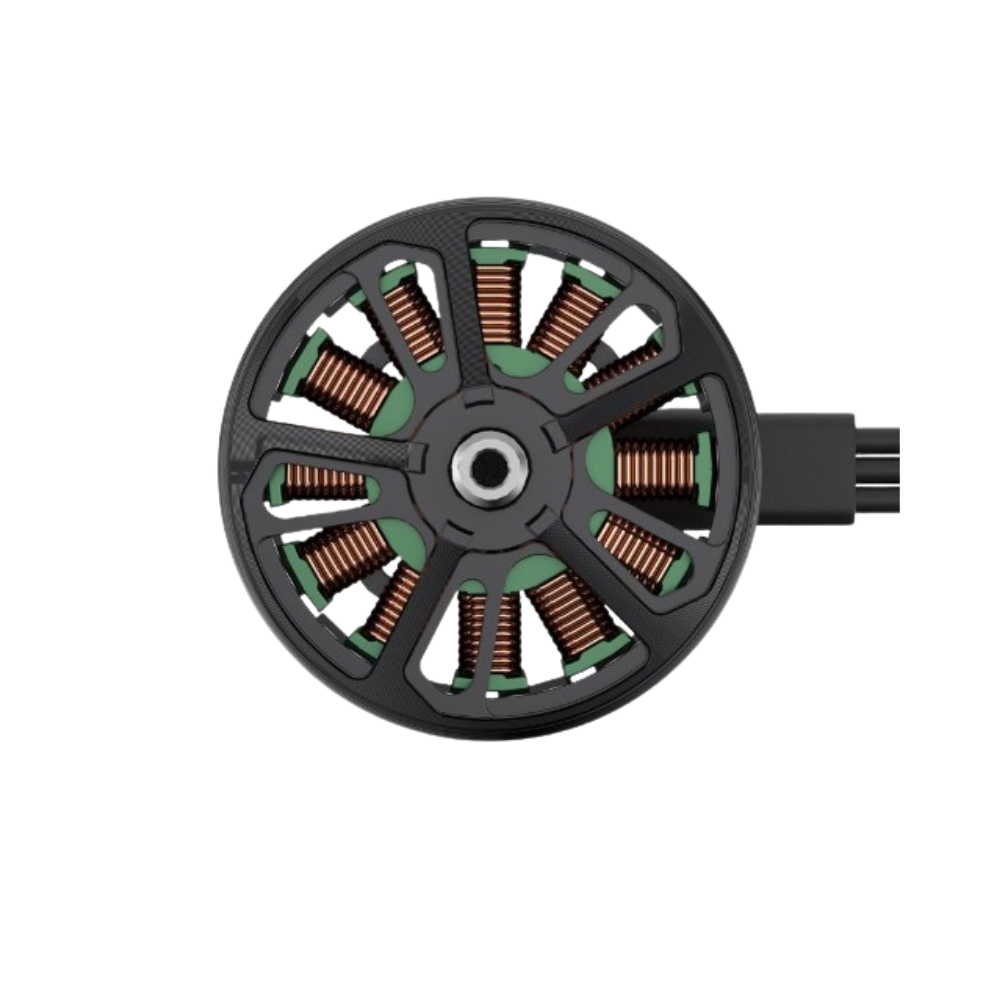

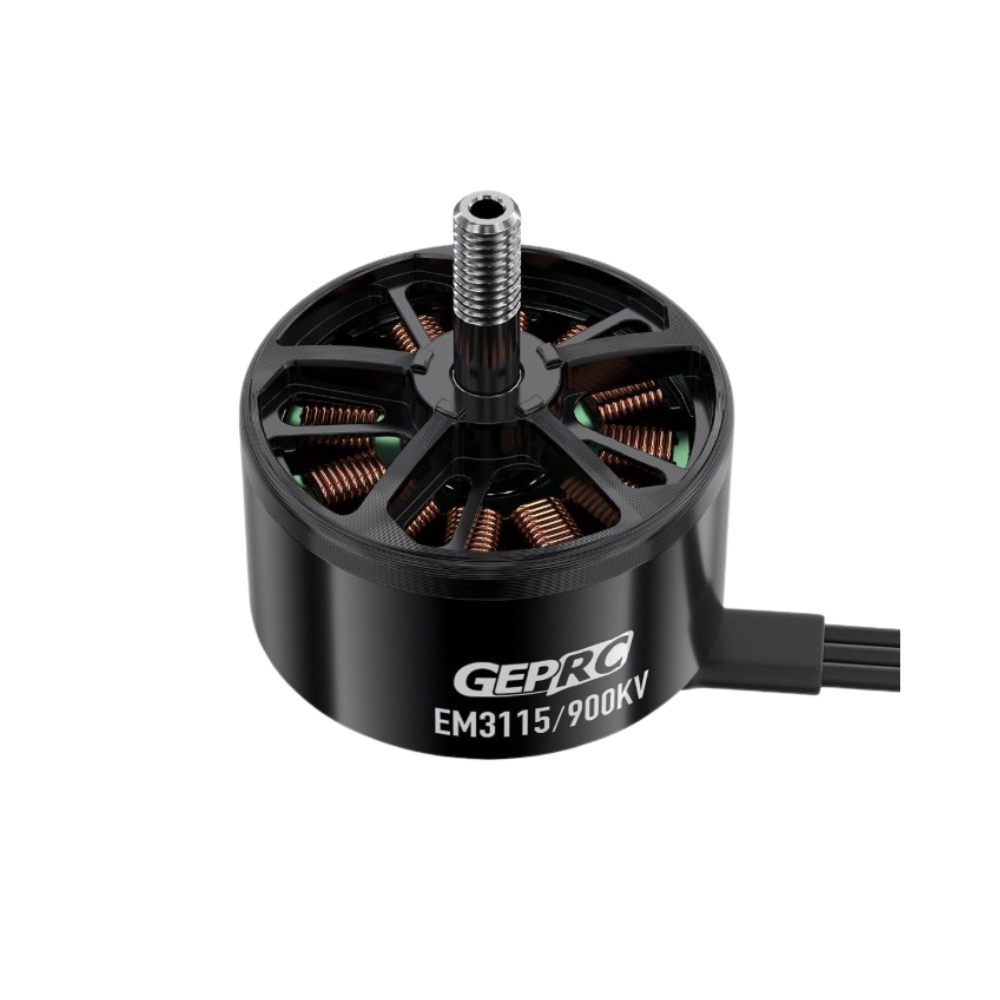

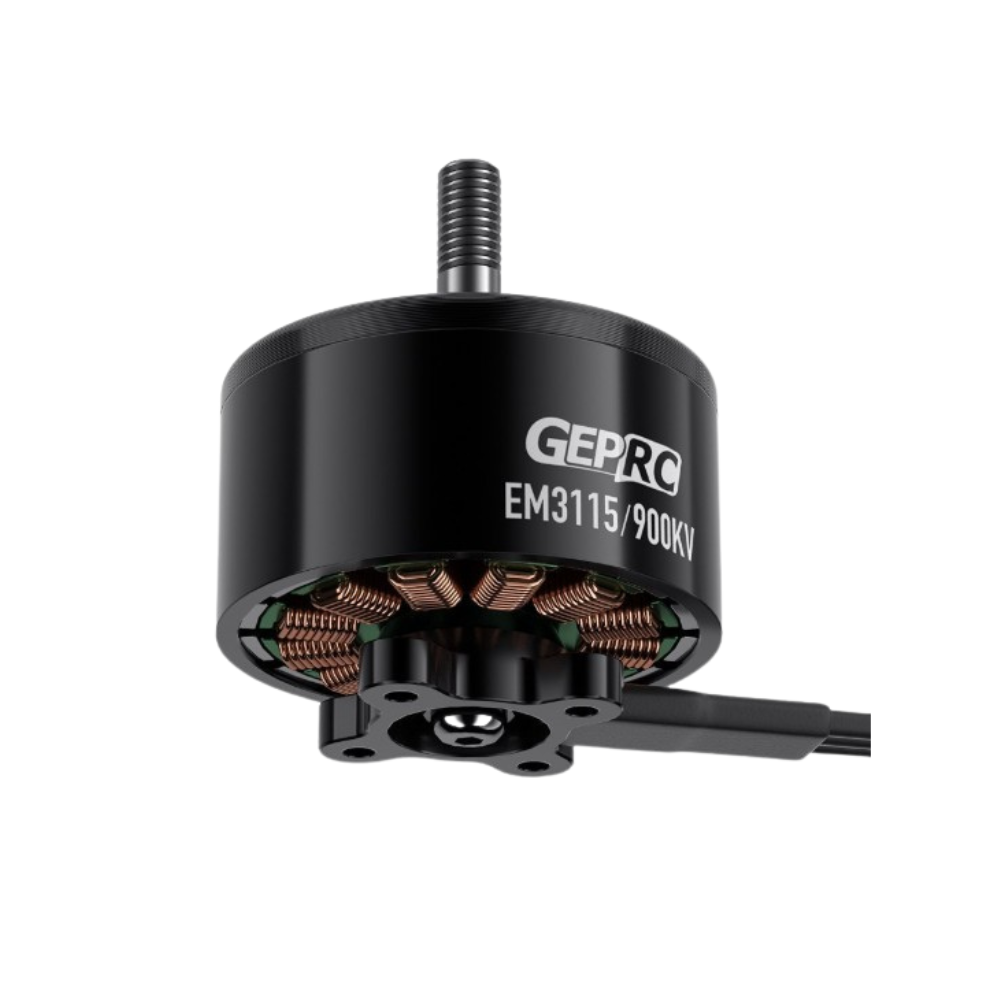

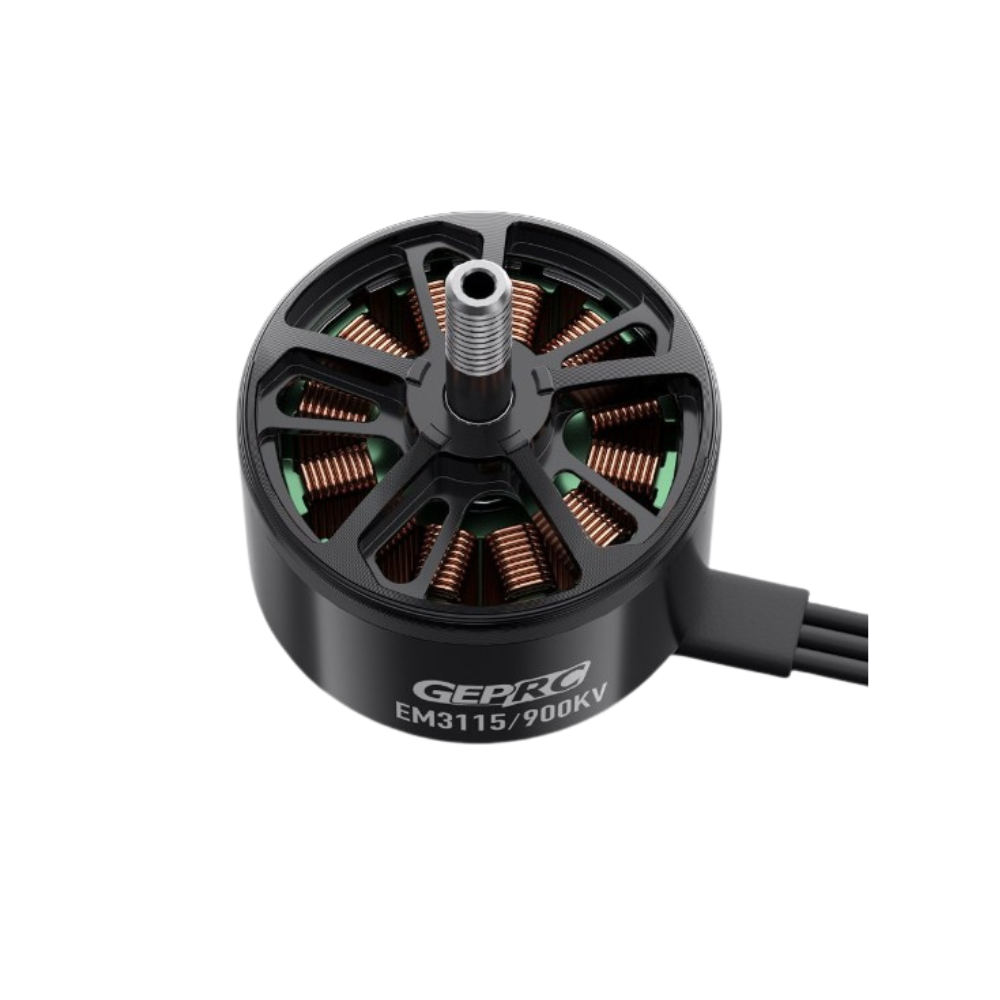

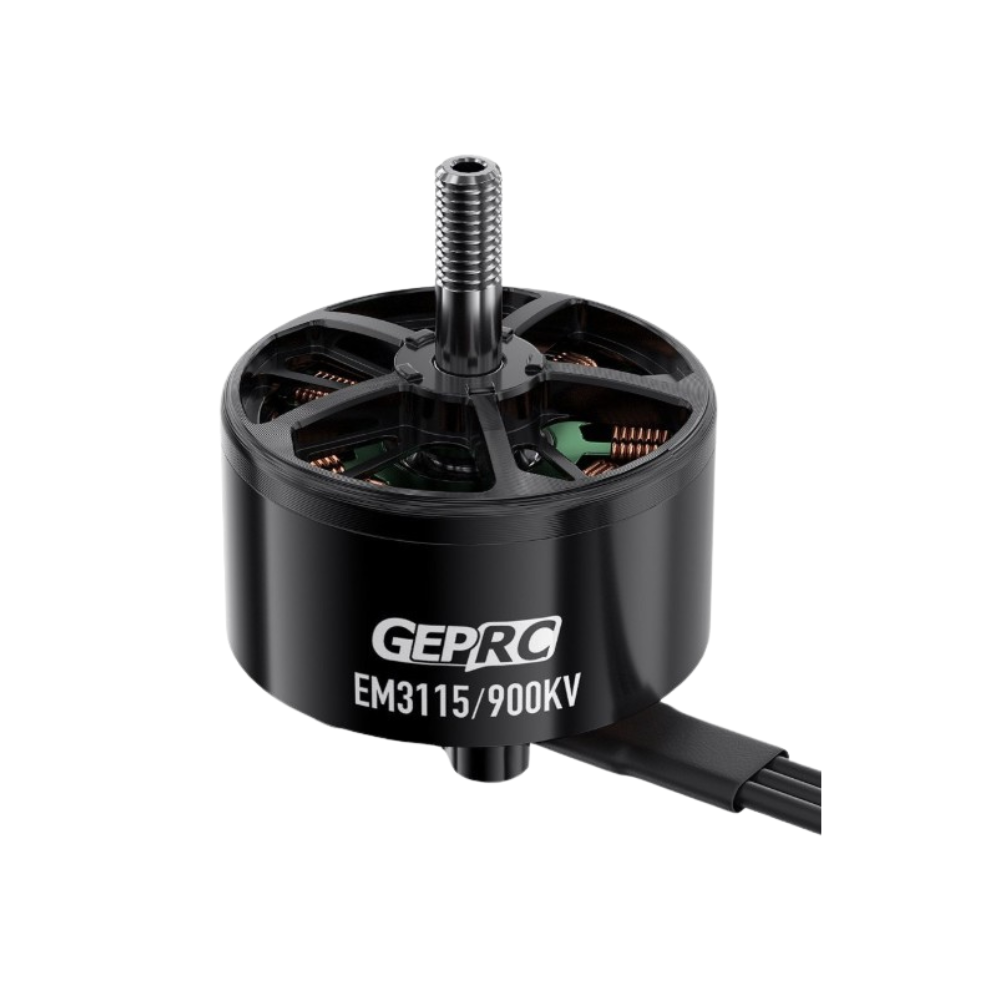

GEPRC EM3115-900KV MOTOR

Introducing the GEPRC EM3115 Motor – 900KV, meticulously crafted for the demands of long-range FPV enthusiasts. With a robust M5 steel shaft, this motor ensures unwavering durability. Its high torque magnetic circuit design guarantees efficient power delivery, while the compact 19mm x 19mm base allows for versatile mounting options. Elevate your FPV experience with the reliability and performance of the GEPRC EM3115 Motor – 900KV.

FEATURES:

• High torque magnetic circuit design
• High-strength M5 steel shaft
• Efficient power output
• New EM series motors
• Durable and reliable

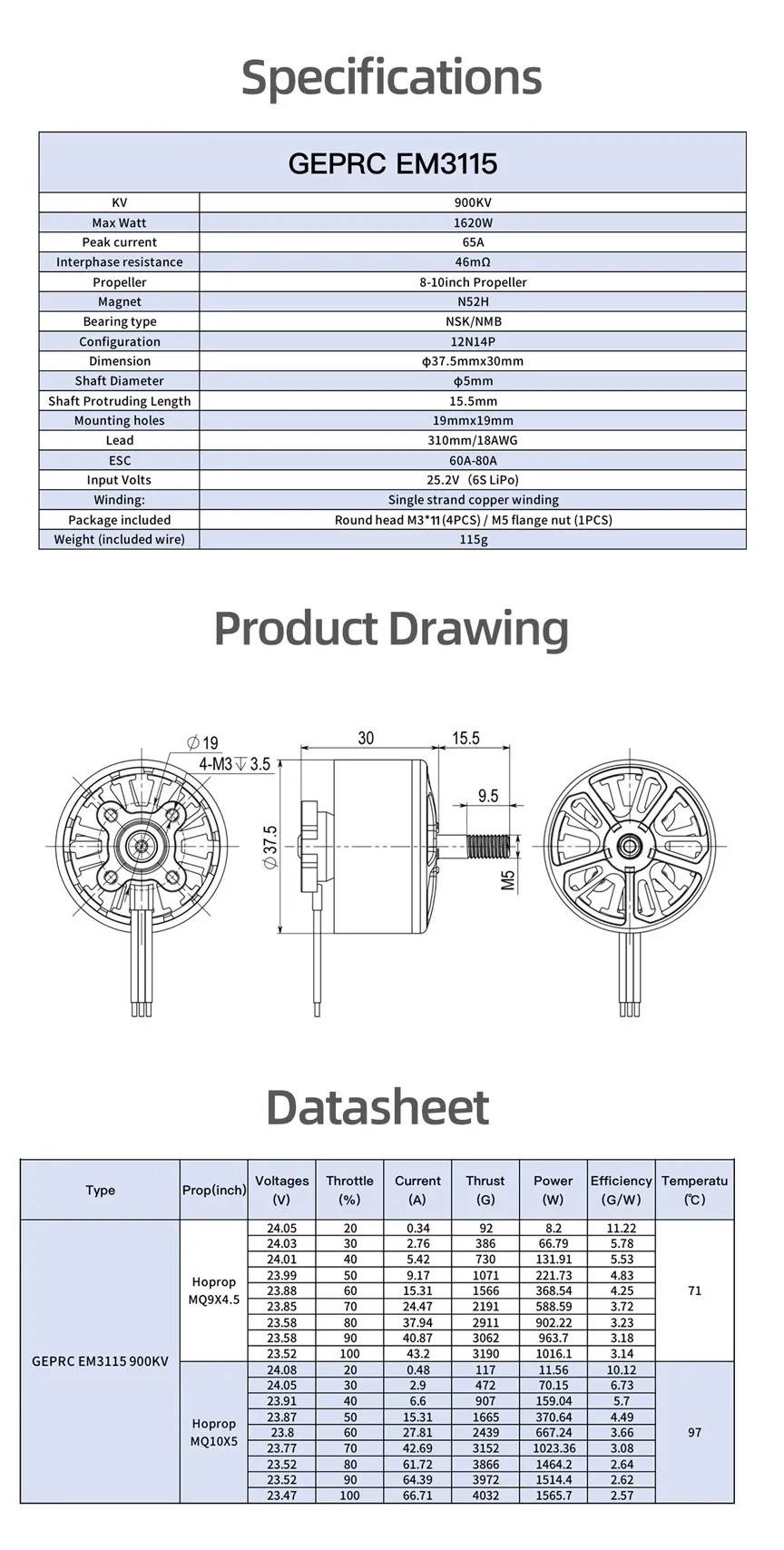

SPECIFICATIONS:

• Suitable for: 8-10 inch long-range FPV
• Winding: Single-strand copper winding
• Mounting holes: 19mm x 19mm
• Shaft Protruding Length: 16mm
• Model: EM3115 900KV Motor
• Dimension: φ37.5mm x 30mm
• Propeller: 8-10 inch Propeller
• Interphase resistance: 46mΩ
• Weight: 115g (included wire)
• Input Volts: 25.2V (6S LiPo)
• Bearing type: NSK/NMB
• Shaft Diameter: φ5mm
• Configuration: 12N14P
• Lead: 310mm/18AWG
• Max Watt: 1620W
• Peak current: 65A
• Magnet: N52H
• ESC: 60A-80A

PACKAGE CONTENTS:

• 1x GEPRC EM3115 Motor – 900KV
• 1x Hardware Set
