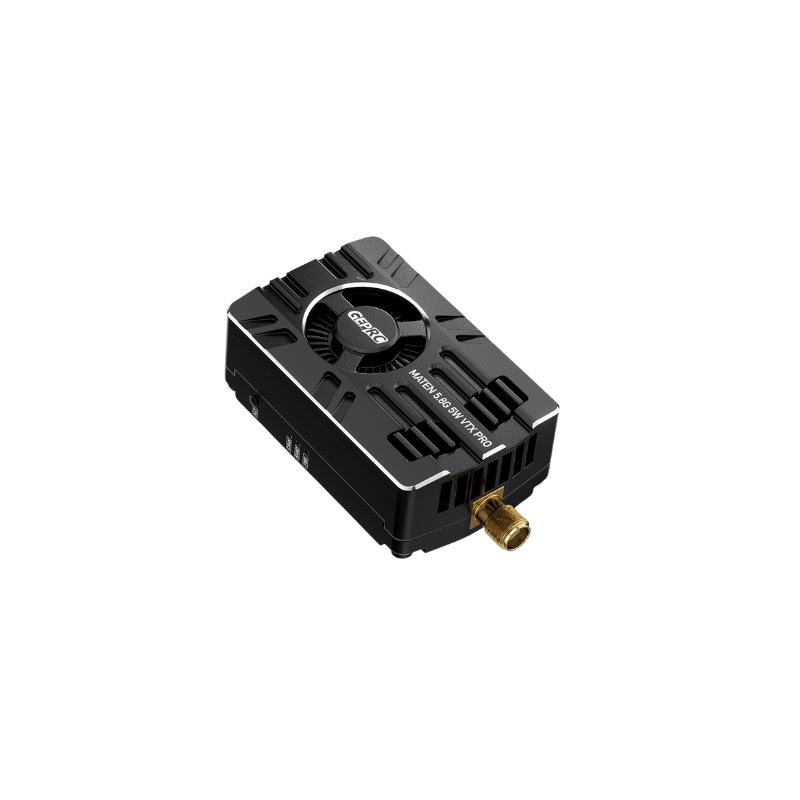

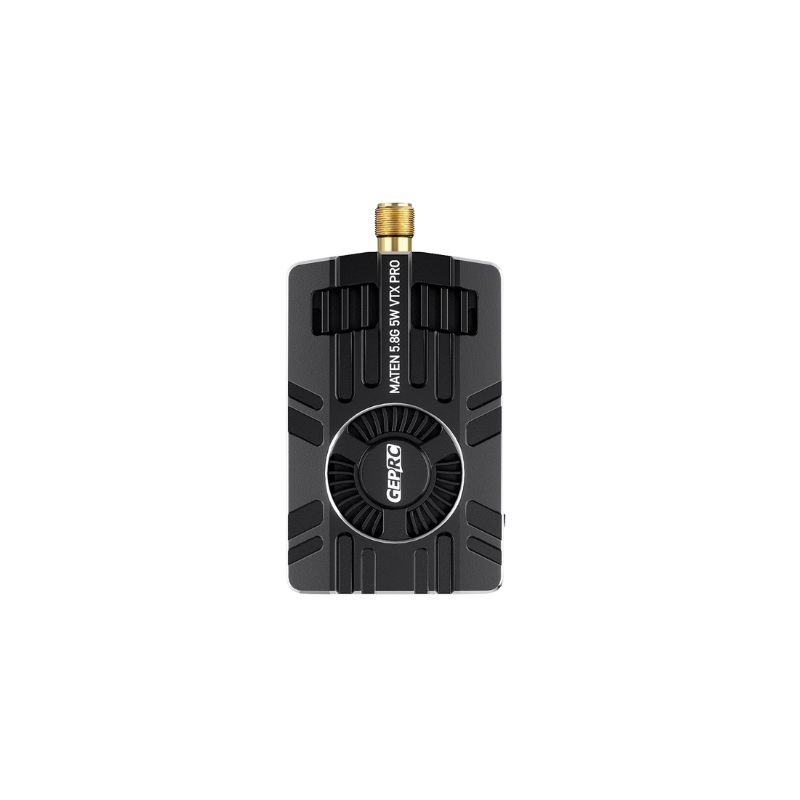

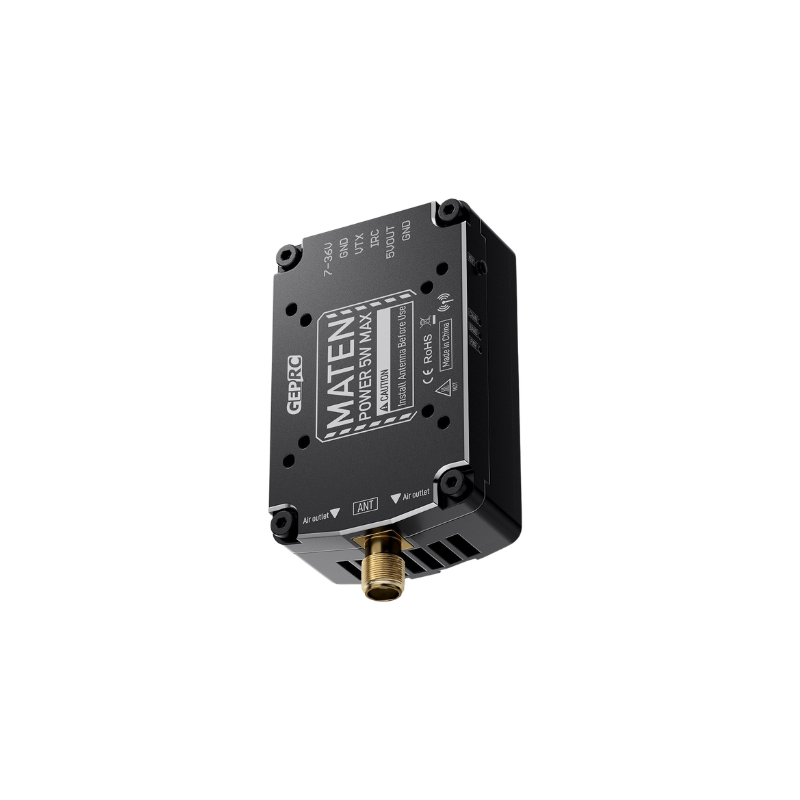

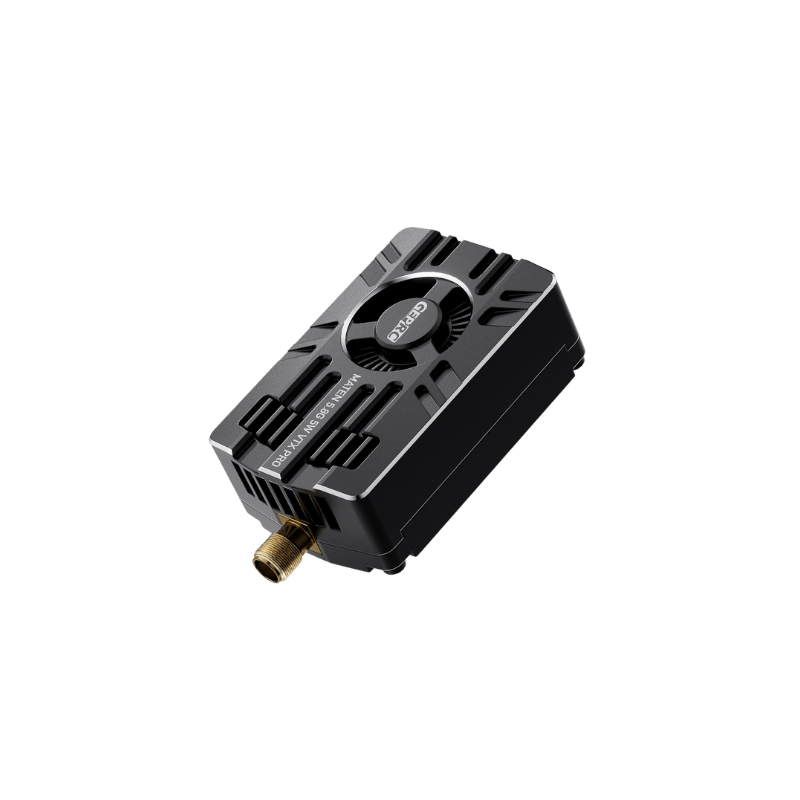

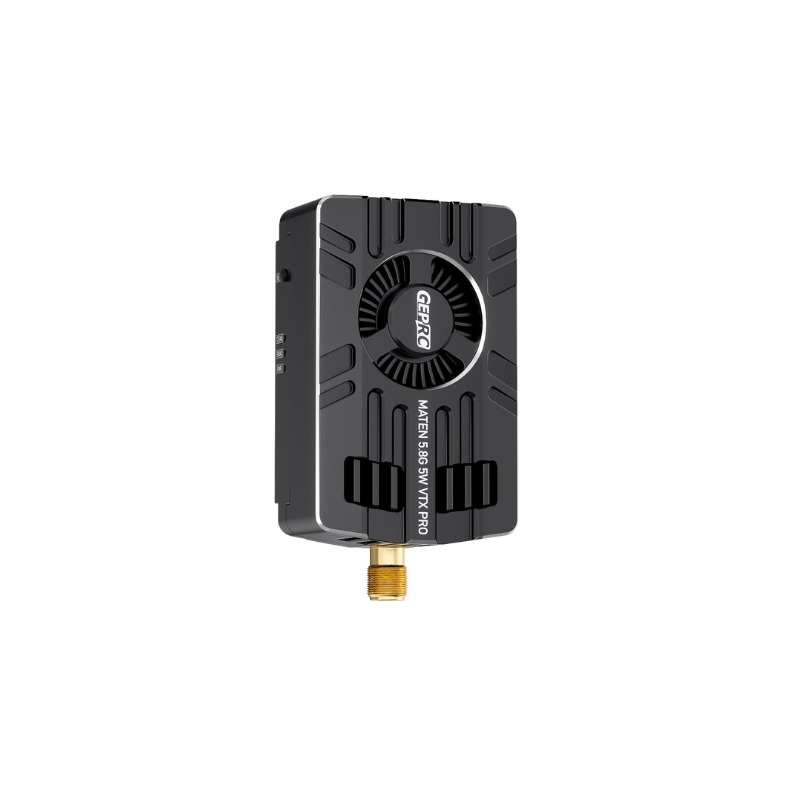

GEPRC MATEN 5.8G 5W VTX PRO

The MATEN 5.8G 5W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With five adjustable power options, it delivers up to 5000mW of power, ensuring stable signal transmission and excellent penetration.

Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 5W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance, while the built-in microphone transmits real-time audio from the FPV drone.

Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.  It operates within a voltage range of 7-36V and includes temperature protection to prevent overheating and damage. With 80 transmission channels and two mounting options, 20x20mm (M2) and 25.5×25.5mm (M2), it’s the perfect VTX for any build.

FEATURES:

• Five adjustable power levels, up to 5000mW, ideal for long-range flights.
•  The high-strength CNC aluminum alloy shell aids in heat dissipation.
•  The built-in micro turbofan actively dissipates heat.
•  Wide voltage input range, supporting 7V-36V.
•  One function adjustment button and three indicator lights for easy operation.
•  Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.
•  Temperature protection function prevents overheating.
•  Built-in microphone for real-time audio transmission.
•  Supports 80 transmission channels.
•  Compatible with 20x20mm (M2) and 25.5×25.5mm (M2) mounting hole sizes.

SPECIFICATIONS:

• Model: GEPRC MATEN 5.8G 5W VTX PRO
• Dimension: 60×33.2×19.1mm
• Mounting Hole Size：20x20mm(M2),25.5×25.5mm(M2)
• Output Power: 300mW/600mW/1600mW/3000mW/5000mW/Pit mode
• Frequency：4.9-5.8GHz
• Channels: 80CH
• Input Voltage: DC7-36V（2-8S Battery）
• Output Voltage: 5V@600mA
• Protocol: IRC Tramp
• Antenna Connector: SMA
• Cable Connector: sh1.25 6pin
• Microphone: Built-in microphone
• Weight: 49.5g（VTX only

Notes

• Installing antenna before use.
•  Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
•  The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

PACKAGE CONTENTS:

• 1 x MATEN 5.8G 5W VTX PRO VTX
• 1 x SMA(Internal needle) to SMA (Internal hole) connector
• 1 x sh1.25 6P connection cable
• 6 x M2*5 screw
• 6 x M2*6 screw
• 1 x Manual
