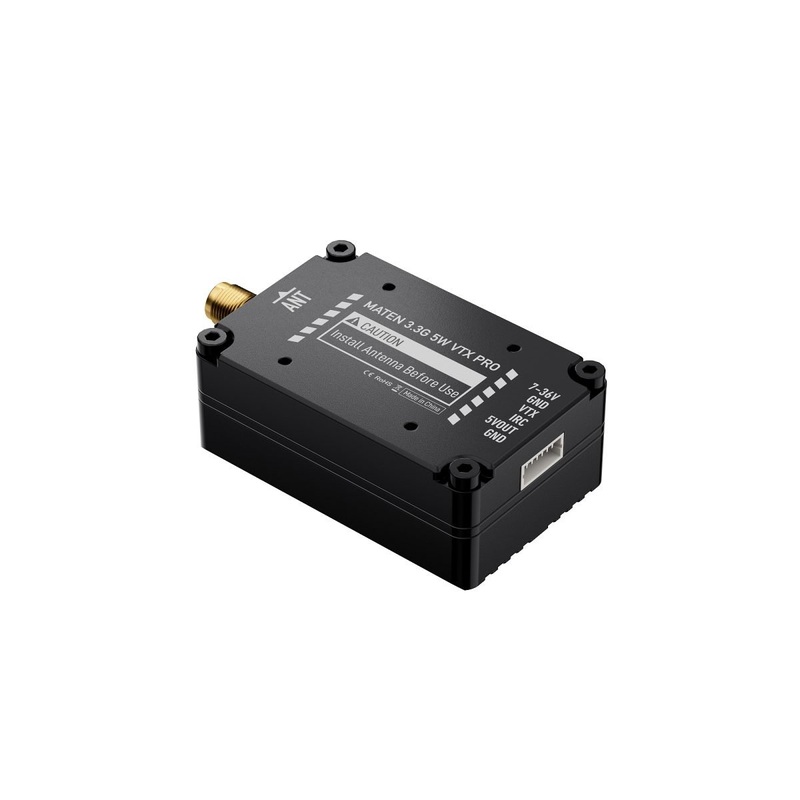

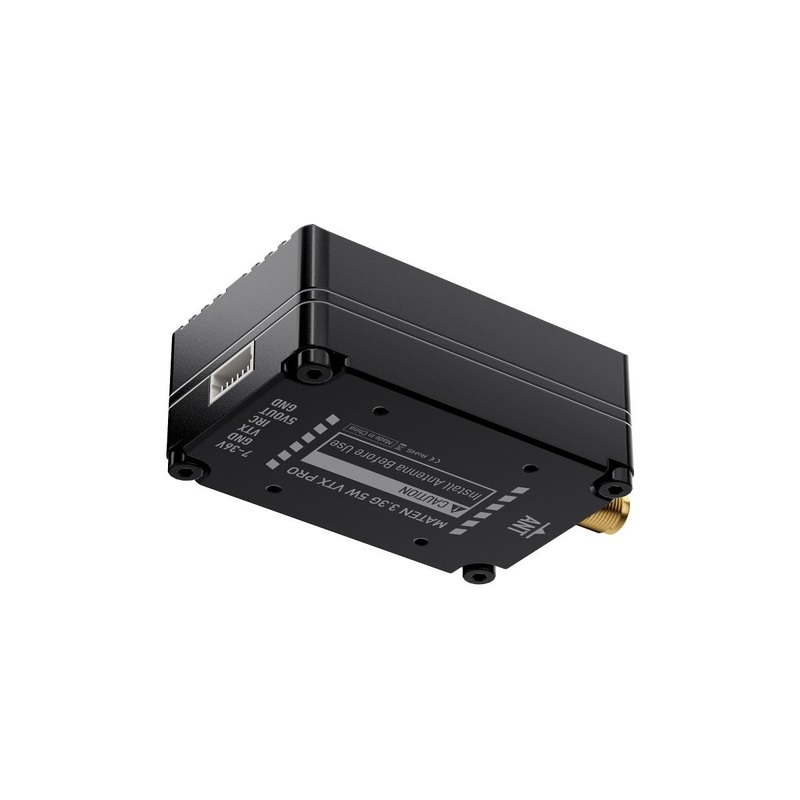

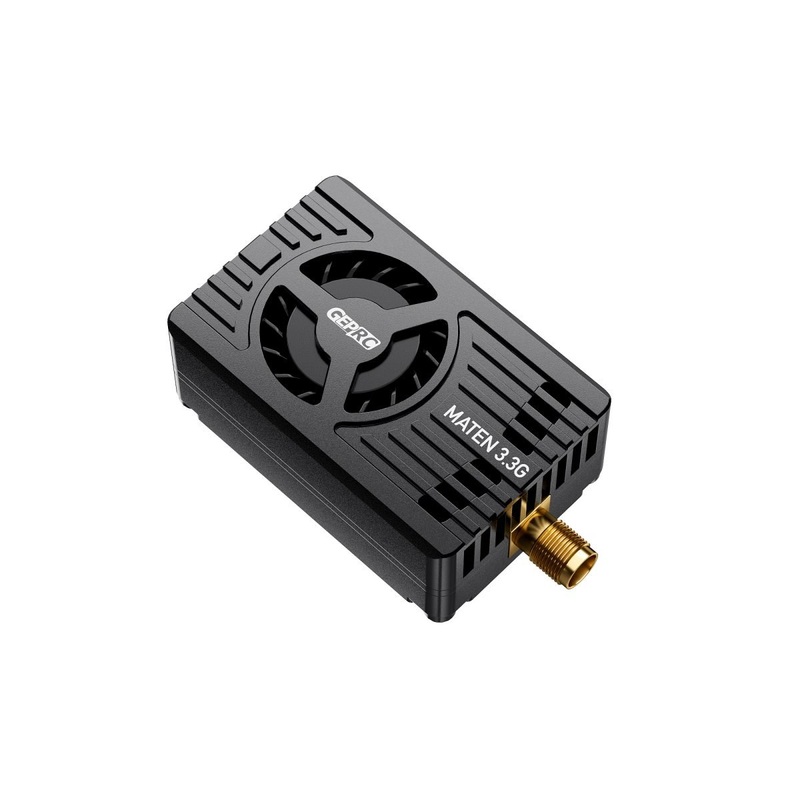

GEPRC MATEN 3.3G 5W VTX PRO

The MATEN 3.3G 5W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With four adjustable power options, it delivers up to 5000mW of power.The frequency range is 3083-3495MHz, and it supports direct frequency input by the configurator, ensuring stable signal transmission and excellent penetration.

Built with a high-strength CNC aluminum alloy shell, the MATEN 3.3G 5W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance. Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.

With a 7–36V wide-range input, the VTX is equipped with thermal protection to prevent damage from overheating. It supports 48 channels and a 20x20mm (M2) mounting pattern.

FEATURES

• Four adjustable power levels, up to 5W, ideal for long-range flights
• High-strength CNC aluminum alloy housing for enhanced heat dissipation

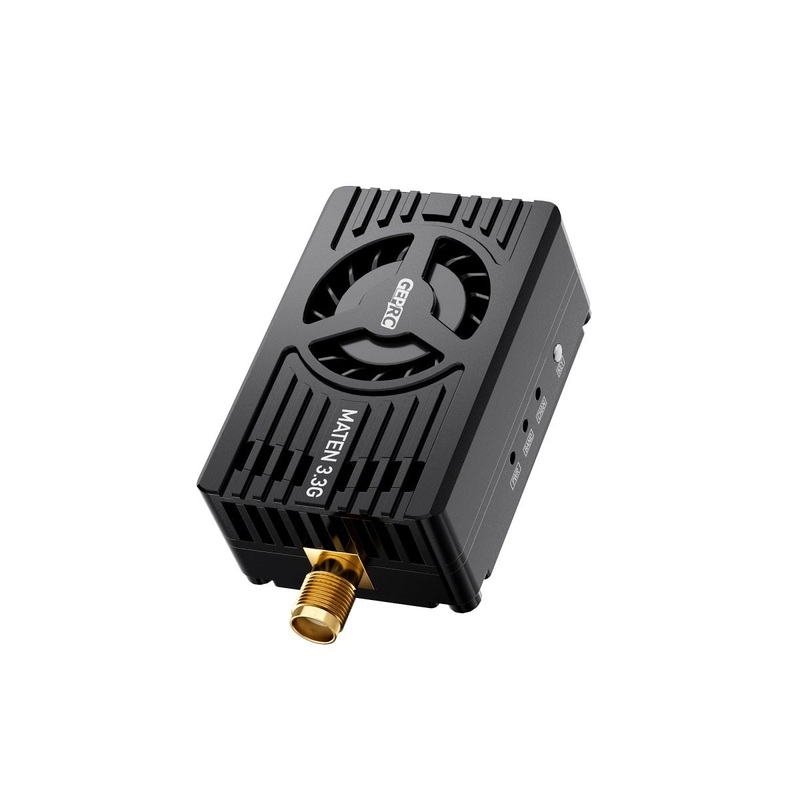

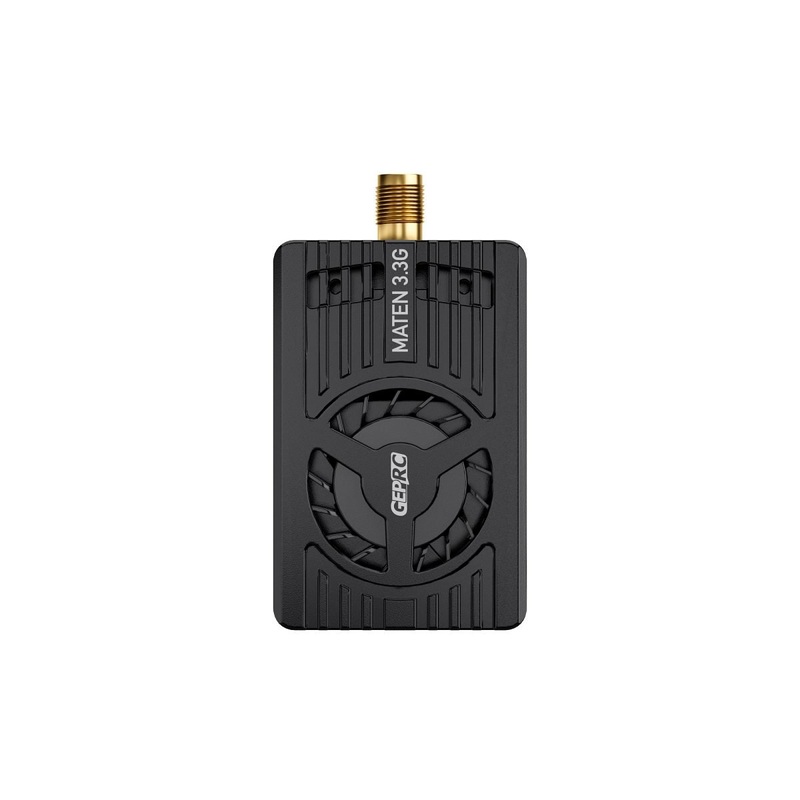

• Built-in micro turbine fan for active cooling
• Wide voltage input, supports 7–36V

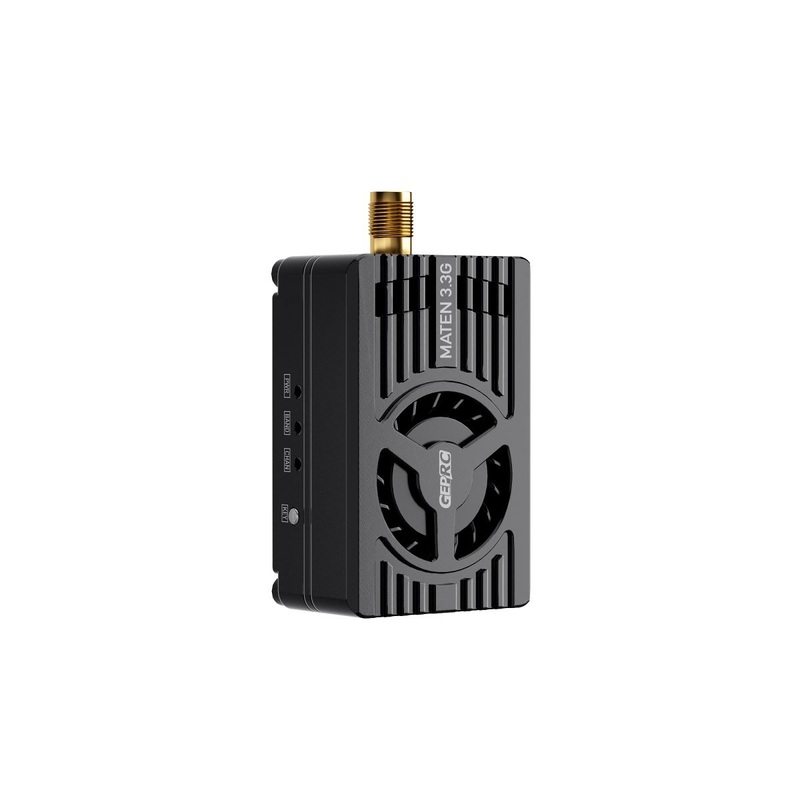

• One function button + three indicator LEDs for quick and easy operation
• IRC Tramp protocol, supports OSD configuration
• Thermal protection to prevent damage from excessive heat
• Supports 48 channels
• Supports direct frequency input from ground stations
• Supports 20x20mm (M2) mounting holes

SPECIFICATIONS

• Model: GEPRC MATEN 3.3G 5W VTX PRO
• Dimension: 53x30x16.7mm
• Mounting Pattern: 20x20mm(M2)
• Output Power: 25mW/200mW/1600mW/5000mW/Pit mode
• Frequency Range: 3083-3495MHz
• Channels: 48CH
• Direct Frequency Input: Supported
• Input Voltage: DC7-36V（2-8S Battery）
• Output Voltage: 5V@600mA
• Protocol: IRC Tramp
• Antenna Connector: SMA
• Wiring Connector: sh1.0 6pin
• Weight: 28.4g (VTX only)

PACKAGE CONTENTS

• 1 × MATEN 3.3G 5W VTX PRO
• 1 × SH1.0 6-pin cable, 150 mm
• 1 × User manual

FREQUENCY BANDS

A:3083，3114，3145，3176，3207，3238，3269，3300
B:3215，3235，3255，3275，3295，3315，3335，3355
C:3170，3190，3210，3230，3250，3270，3290，3310
D:3320，3345，3370，3395，3420，3445，3470，3495
E:3310，3330，3355，3380，3405，3430，3455，3480
F:3330，3350，3370，3390，3410，3430，3450，3470

NOTES:

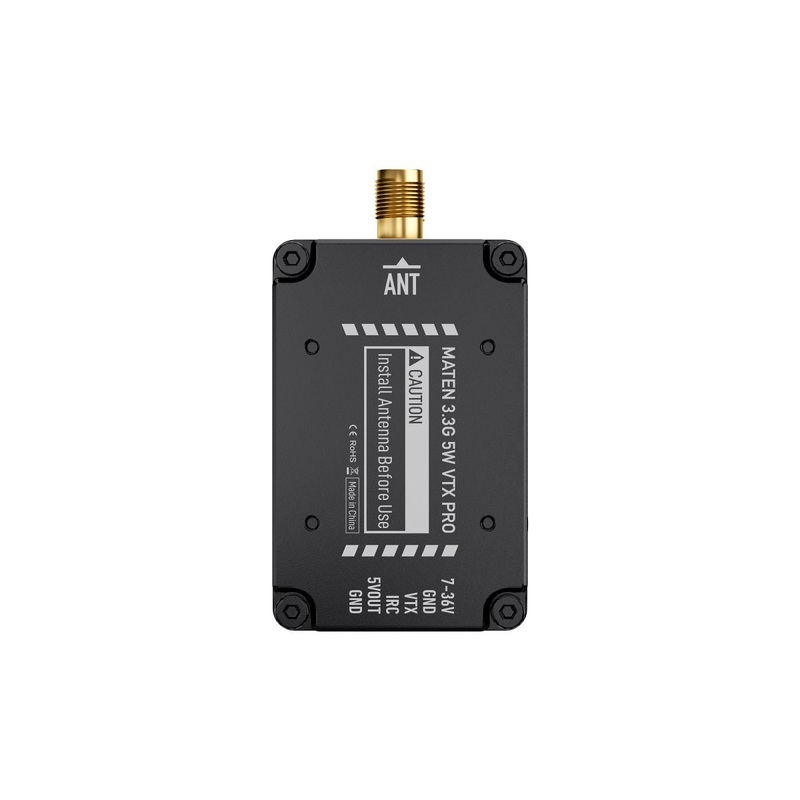

• Install the antenna before powering on.
• The VTX will activate thermal protection and automatically reduce output power if overheated. Ensure good airflow and cooling during use. If airflow is limited, consider adding an additional cooling fan.
• The 5V output is for the camera only. Do NOT connect the main power input to the 5V output port, or the VTX will be damaged.
