SUMMARY:

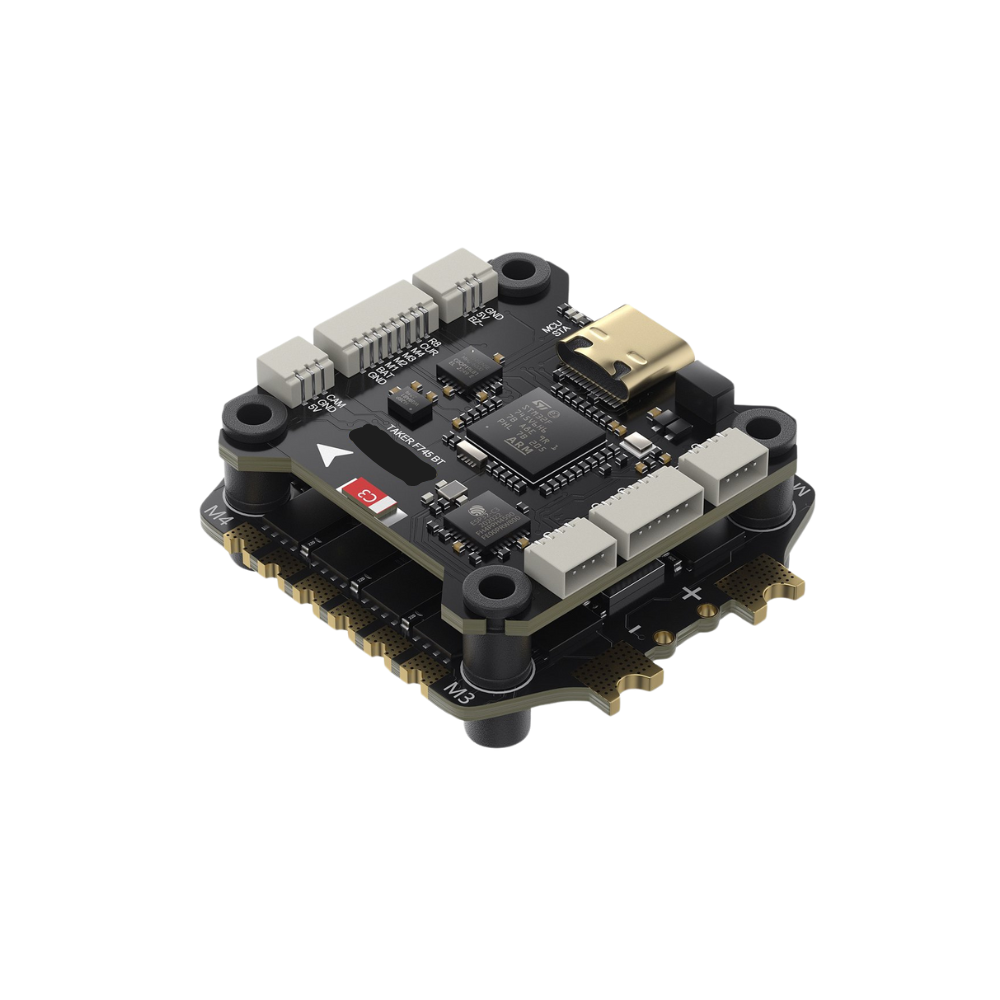

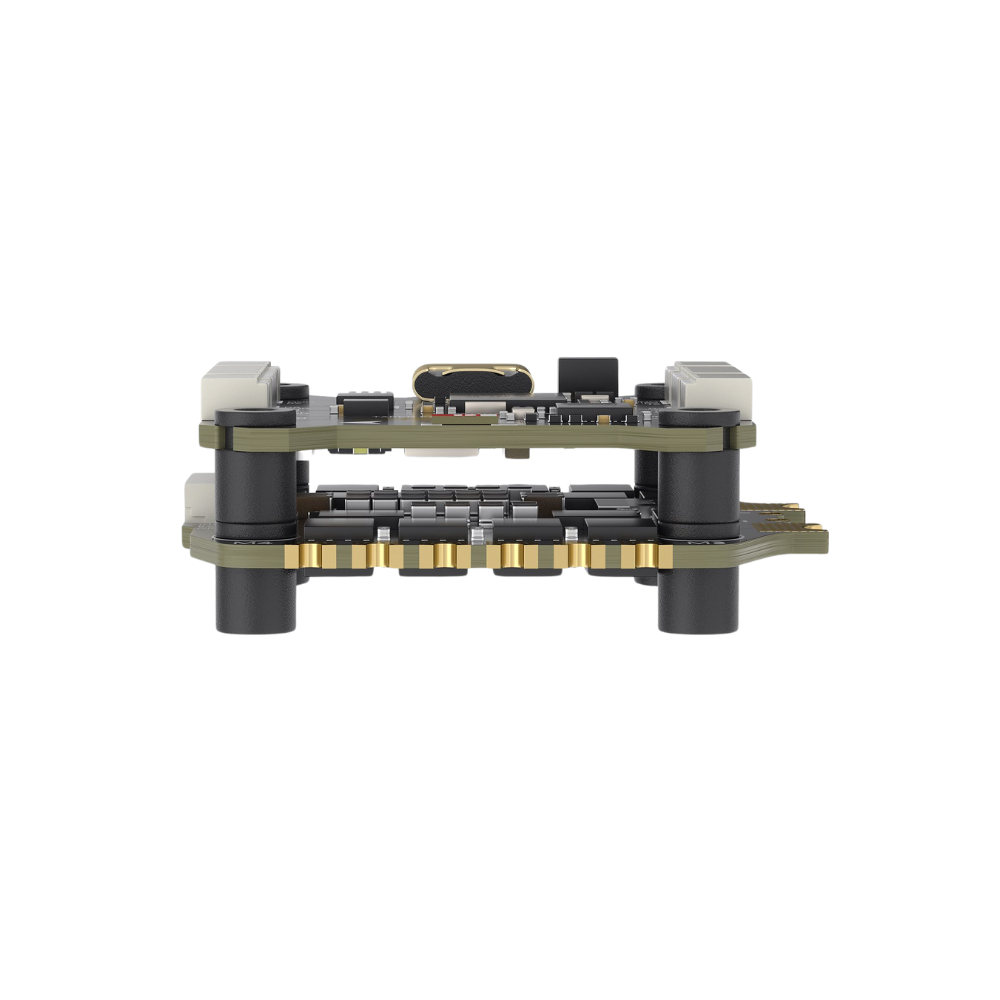

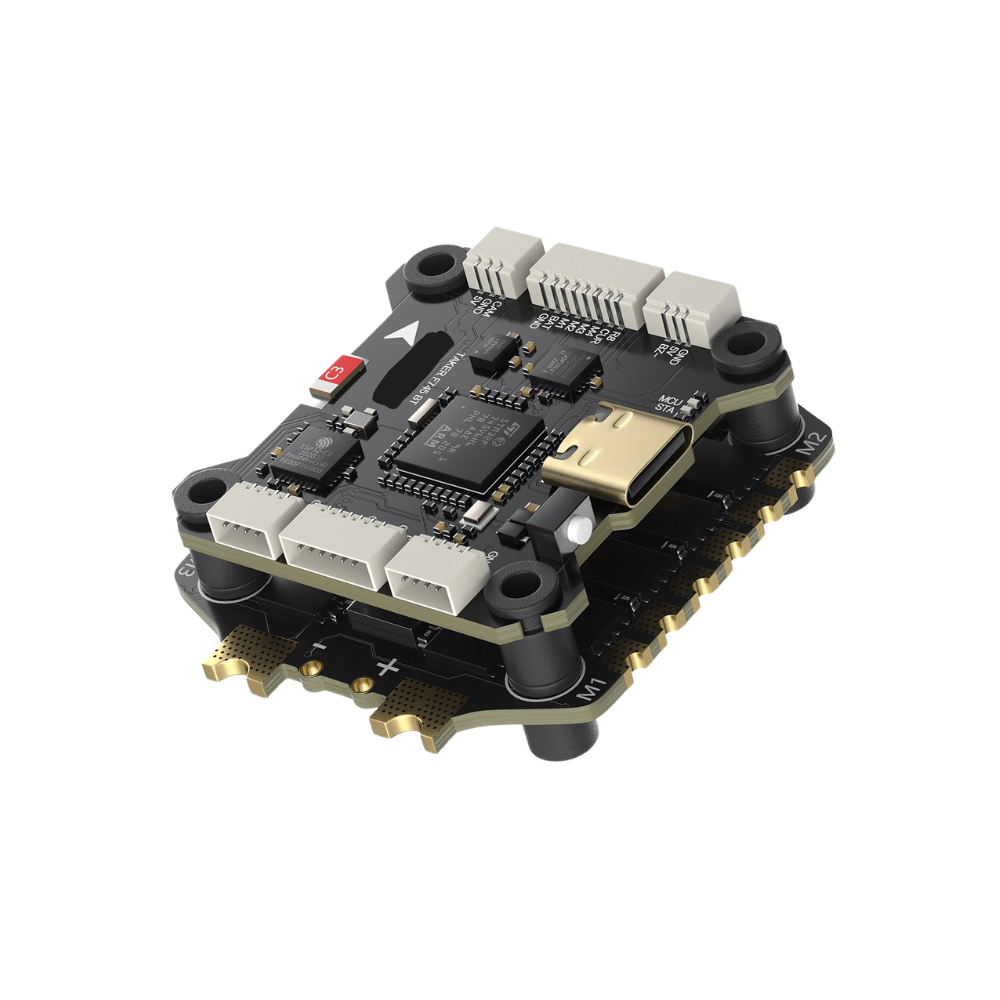

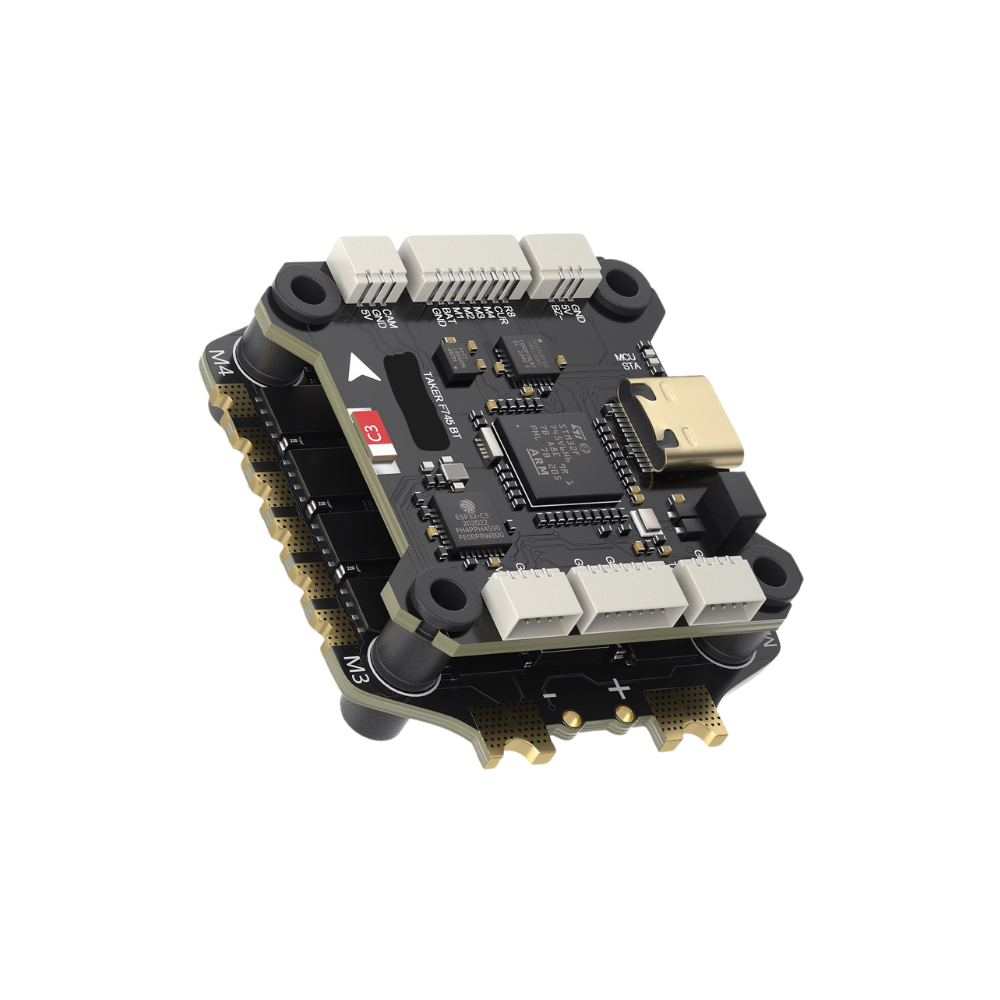

The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.

FEATURES:

• Adopts the high-performance STM32F745 as the main controller
•  Equipped with MPU6000 and 42688-P dual gyroscopes
•  512MB high-capacity black box storage
•  Bluetooth parameter tuning
•  Upgraded Type-C USB interface
•  Plug-and-play, no soldering required.
•  Integrated barometer
•  Features 7 UART ports
•  Independent BEC with 12V@2.5A and 5V@3A outputs
•  Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.

SPECIFICATIONS:

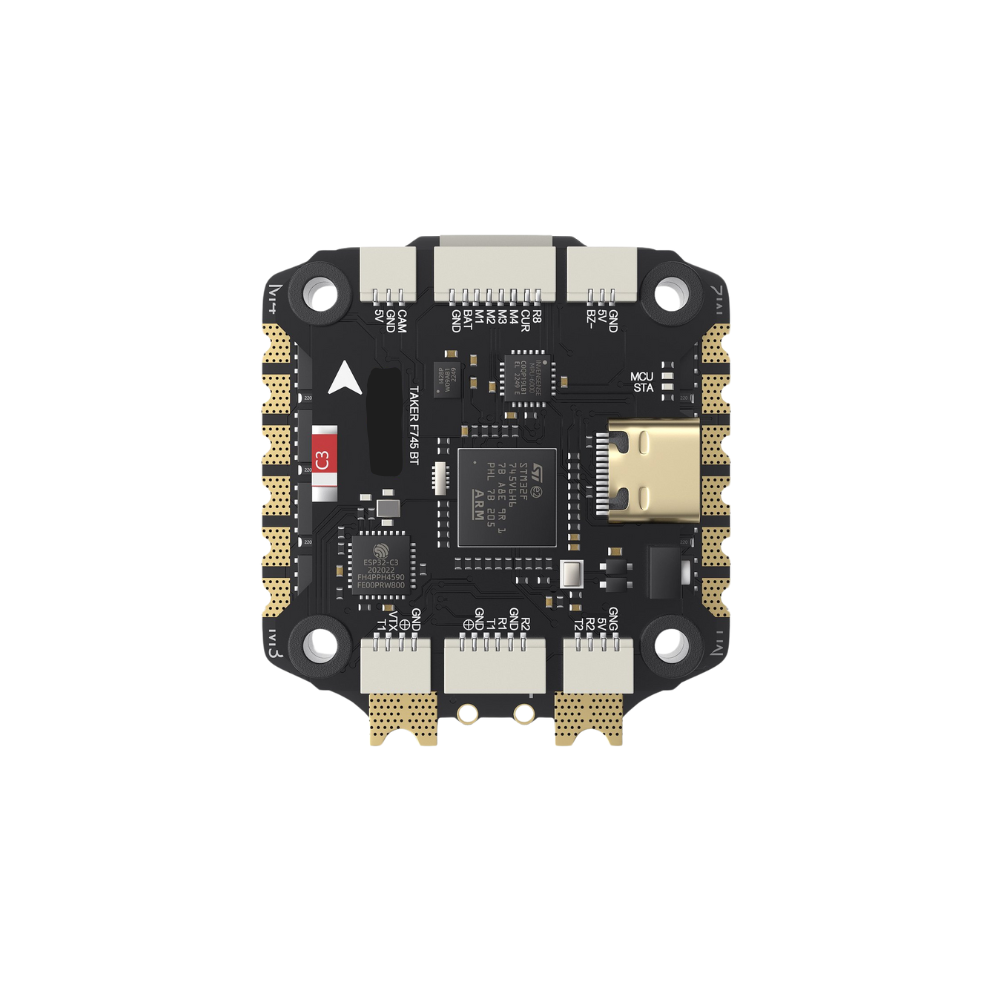

TAKER F745 BT Flight Controller

• FC model: TAKER F745 BT Flight Controller
• Firmware Supported: Betaflight/iNav/ArduPilot
• MCU: STM32F745
• IMU: MPU6000 + ICM42688-P(dual gyro)
• Air Unit Connection: direct plug for DJI Air Unit
• Black Box：512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC Output: 5V@3A,12V@2.5A dual BEC
• Target: GEPRCF745_BT_HD
• Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
• Input Voltage: 3-6S LiPo
• UART Ports: 7 groups (UART3 fixed for Bluetooth)
• Power Filtering: Integrated LC filter
• Weight: 8.4g

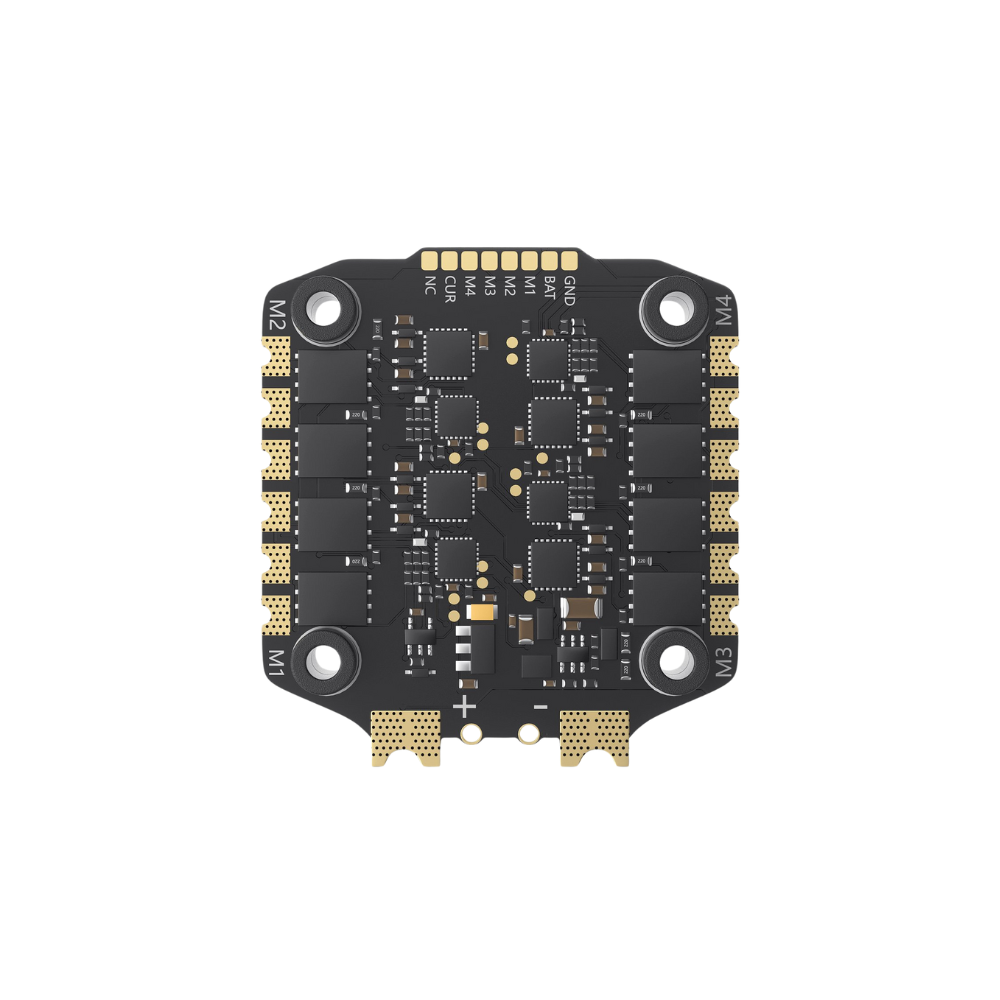

TAKER H60_BLS 60A 4IN1 ESC

• ESC Model: TAKER H60_BLS 60A 4IN1 ESC
• Input Voltage: 3-6S Lipo
• Continuous Current: 60A
• Peak Current: 65A（5 seconds）
• Supported Protocol: Dshot 150/300/600
• Dimension：42×45.7mm, mounting hole size 30.5×30.5mm
• Weight: 14.9g
• Target: B_X_30

NOTE: Due to current ongoing situation default packing of the stack has been changed to simple transparent box packing.The main FC BOARD manufacturer name: GEPRC is covered with silicon adhesive.Rest assured customers can query with GEPRC for authencity of the board also  in betaflight it will autodetect the board as what the actual product is.
