Description

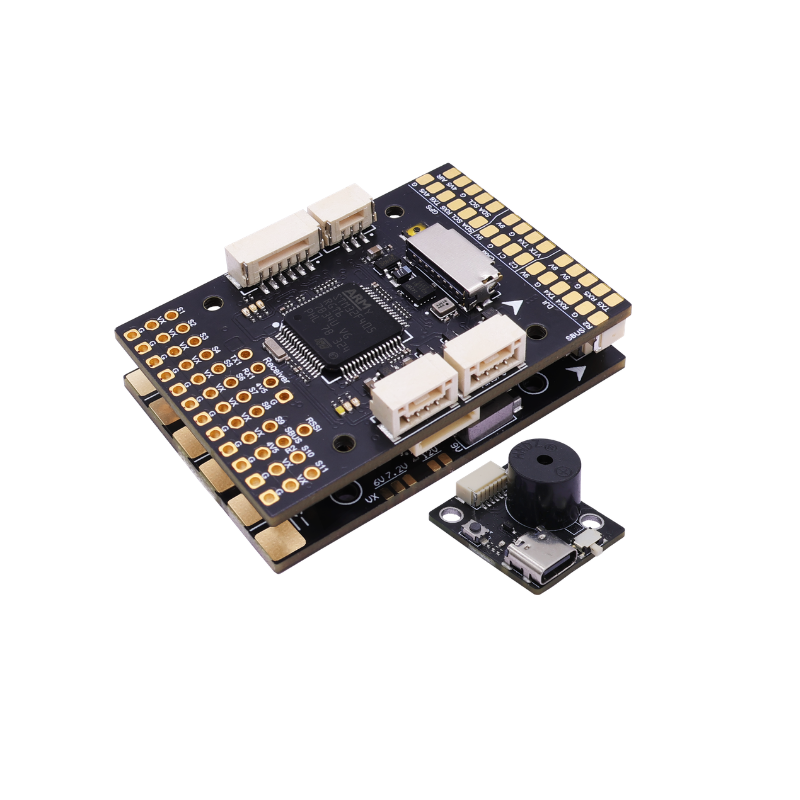

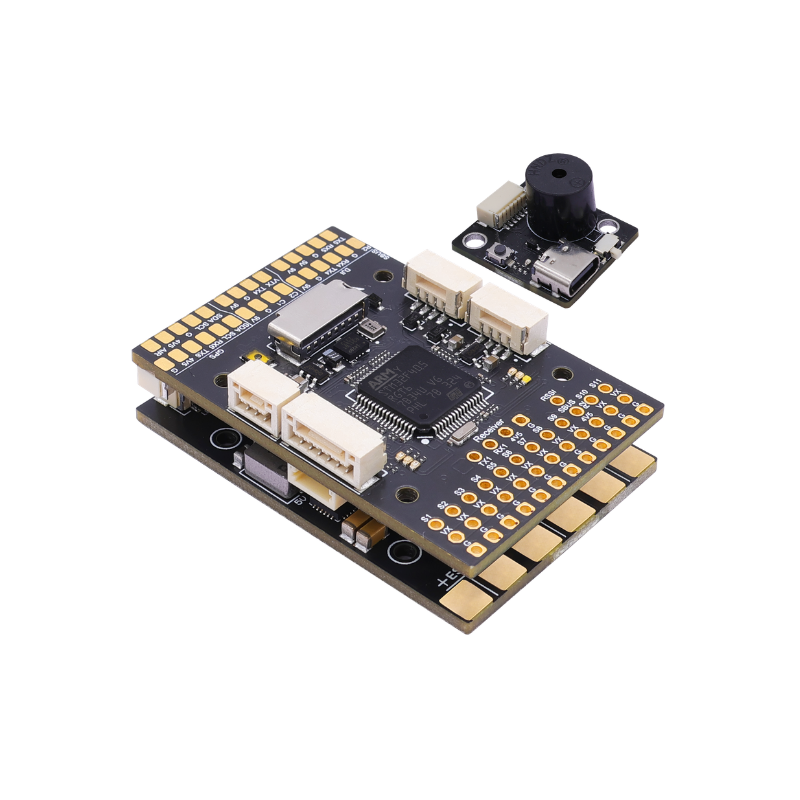

HAKRC F405 WING FC

FEATURES:

The PCB is made of high-end 6-layer 1oZ copper skin, and the high-end resin plugged PCB production process is applied, which has strong anti-interference ability.
Adopt industrial-grade LDO, high temperature resistance.
Adopt high-quality Japanese Murata capacitors, with strong filtering performance.
Support DJI HD video transmission direct plug-in and analog camera video transmission direct plug-in, which is more convenient to install.
INSERT AN EXTERNAL MICRO SD CARD
Support analog, digital airspeed meter and RSSI
Analog, digital airspeed meter, data transmission, receiver socket with anti-falling design, to avoid the equipment due to high-speed flight drop-off
Support common receiver types such as SBUS, DBUS, WBUS, iBUS, CRSF (Black Sheep or ELRS).
Support two-axis, three-axis, multi-axis, vehicle, helicopter, fixed-wing and vertical fixed-wing and other equipment types

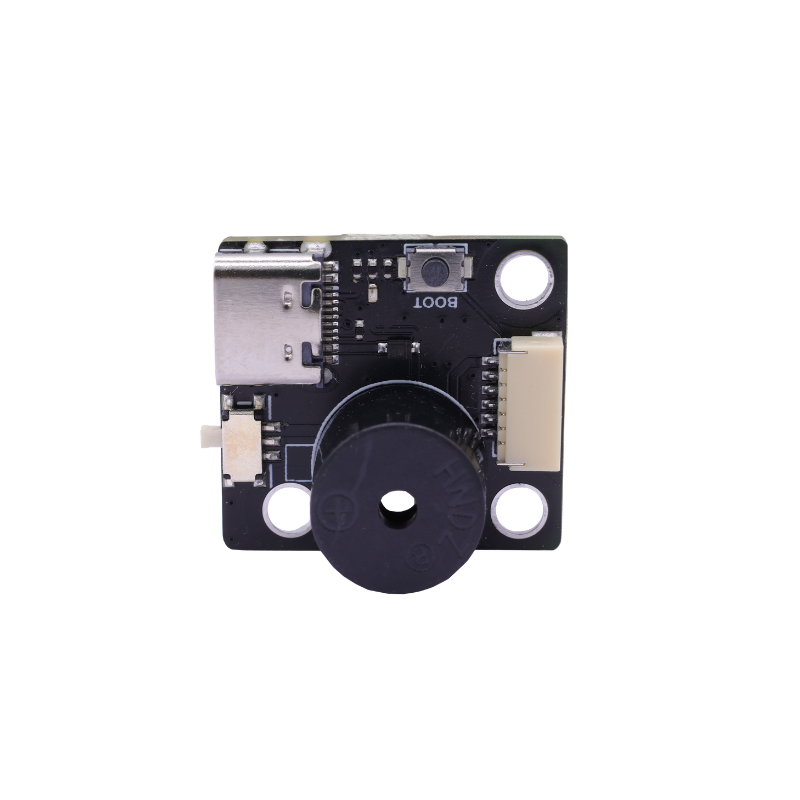

USB assistant board with high buzzer, can be switched on and off
C1, C2 dual camera input, support to switch dual cameras through the USER switch, bring a variety of viewing angles
Provide four-way light strip interface, which can switch the built-in LED preset and BF software control through the BOOT button
Provide the seat and pad to avoid the seat being damaged and unusable, and the player can choose freely
Up to 6 serial ports, a total of 11 PWM outputs: 1-8 channels support motor PWM or digital protocol, 9-11 channels only support PWM
Independent buzzer pad, external micro buzzer, if you need to find a machine more convenient

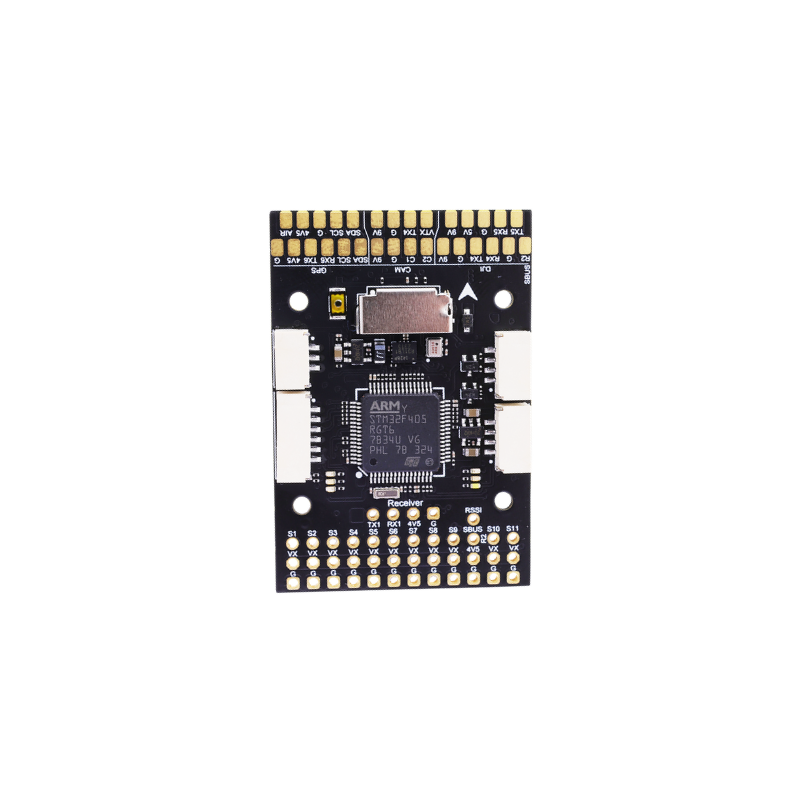

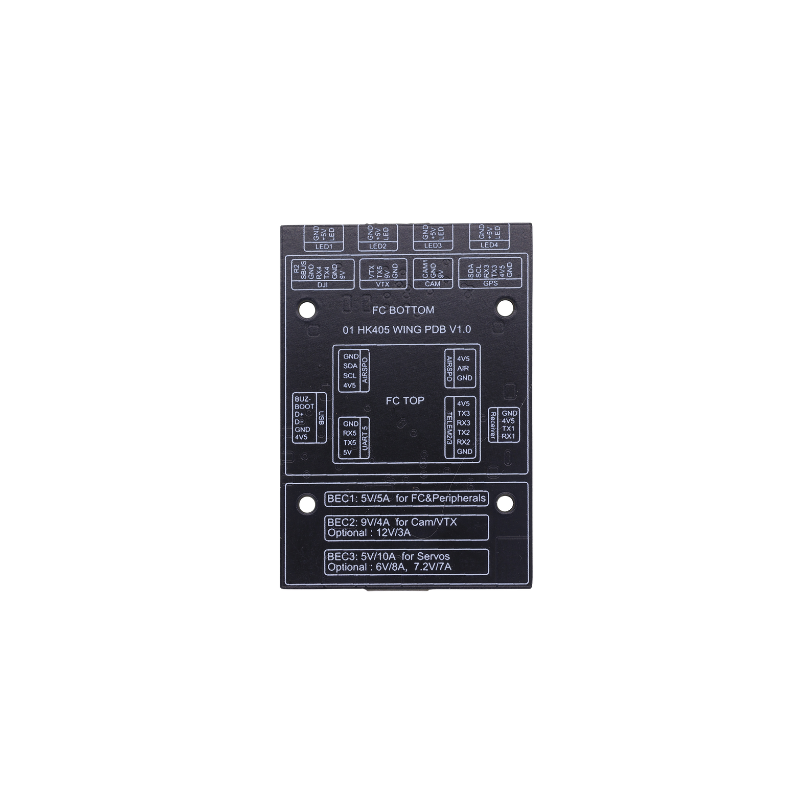

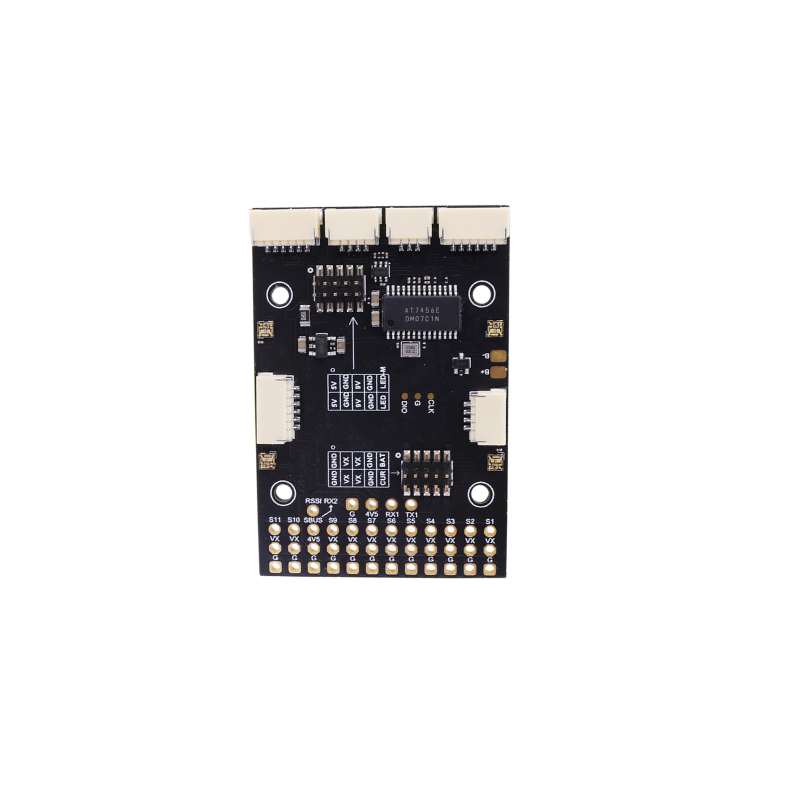

The layout is neat and clear, and the silk screen is clear, which is convenient for players to install various models
