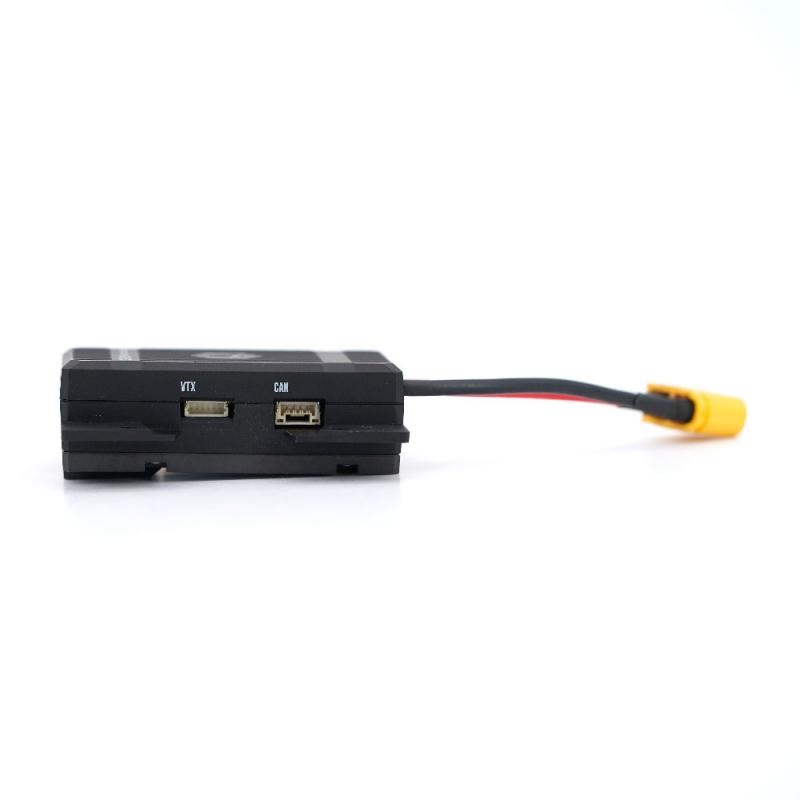

TBS LUCID WING AIO 2-6S 50A FLIGHT CONTROLLER

The TBS Lucid Wing AIO combines an H7 flight controller and a 50A AM32 ESC for compact fixed-wing builds. Its integrated sensors, servo connections and CAN interface simplify aircraft wiring.

FEATURES:

• Integrated 50A ESC running custom AM32 firmware.
• Dual gyroscopes, barometer and analog OSD.
• MicroSD blackbox logging and USB-C connectivity.
• ArduPilot and INAV firmware support.

SPECIFICATIONS:

• Processor: STM32H743
• Gyroscopes: dual ICM42688
• Barometer: DPS310
• OSD: AT7456E
• Input: 6–26 V, 2–6S LiPo
• PWM: 6 external outputs plus internal ESC
• Interfaces: CAN, UART and I2C
• Voltage and current sensing
• ArduPilot target: TBS_LUCID_H7_Wing
• INAV target: TBS_LUCID_H7_WING_MINI

Manufacturer note: TBS states that the DJI switch currently outputs battery voltage (VBAT). Check your video system voltage requirements and contact TBS support for the correction instructions.

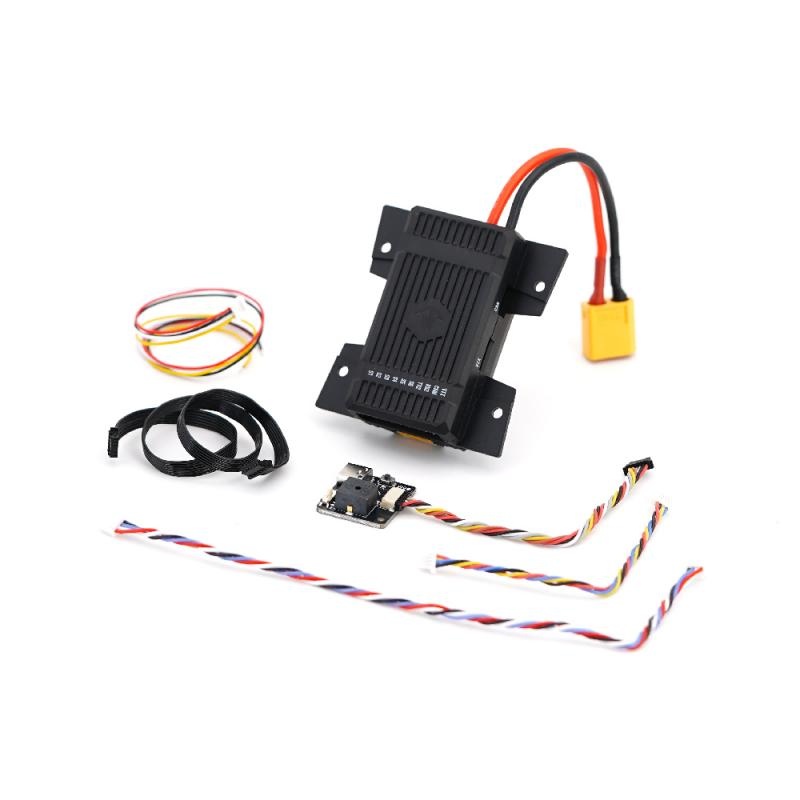

PACKAGE CONTENTS:

• 1 × TBS Lucid Wing AIO flight controller with integrated ESC
• FC-to-USB board and cable
• FC-to-VTX cable
• DroneCAN cable
• DJI O3 cable

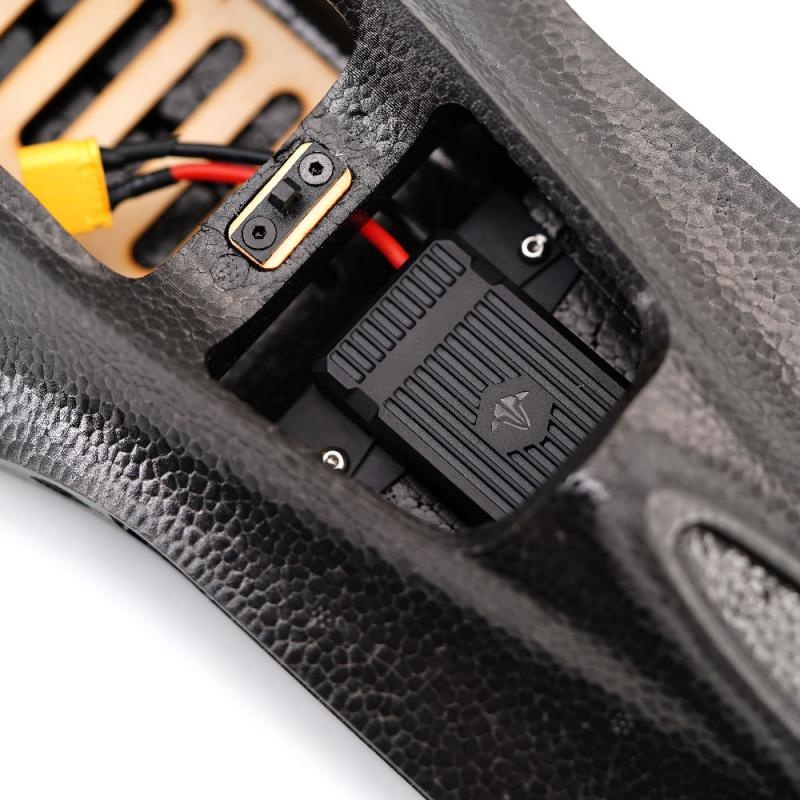

Airframe shown in the installation gallery image is not included.
