Description

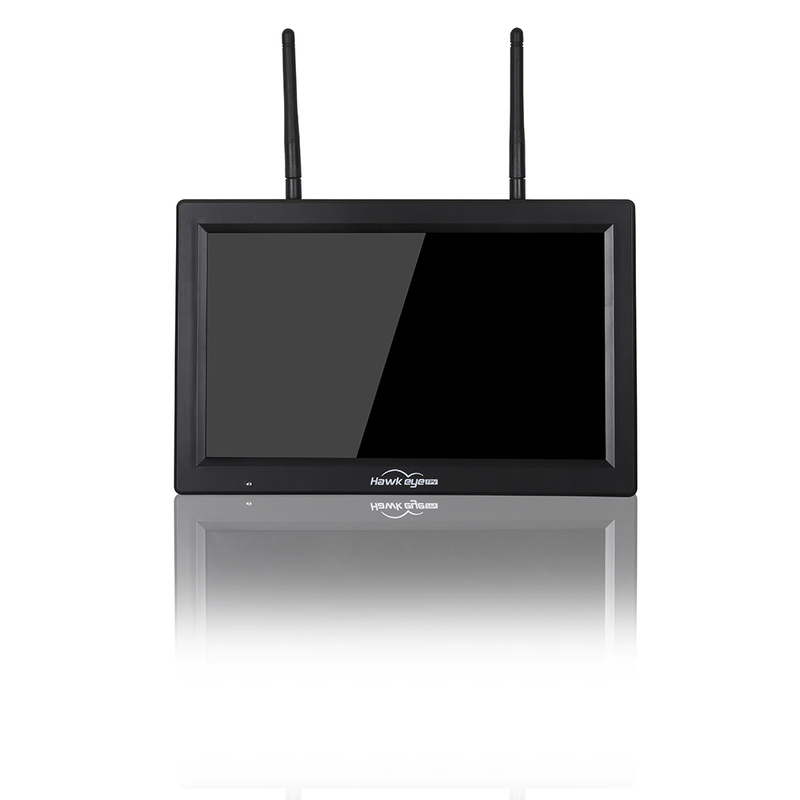

HAWKEYE CAPTAIN X 10.2″ FPV MONITOR

The Hawkeye Captain X FPV monitor gives pilots and spectators a large 10.2-inch screen for viewing an analog video feed. Dual receivers cover 4.9, 5.8 and 6 GHz, while HDMI and AV inputs allow connection to compatible external video sources. Built-in DVR lets you save footage to a TF card.

FEATURES:

• Large 16:9 display with 1024 × 600 native resolution.
• Dual analog receivers with 96 preset channels, eight programmable channels and tracking mode.

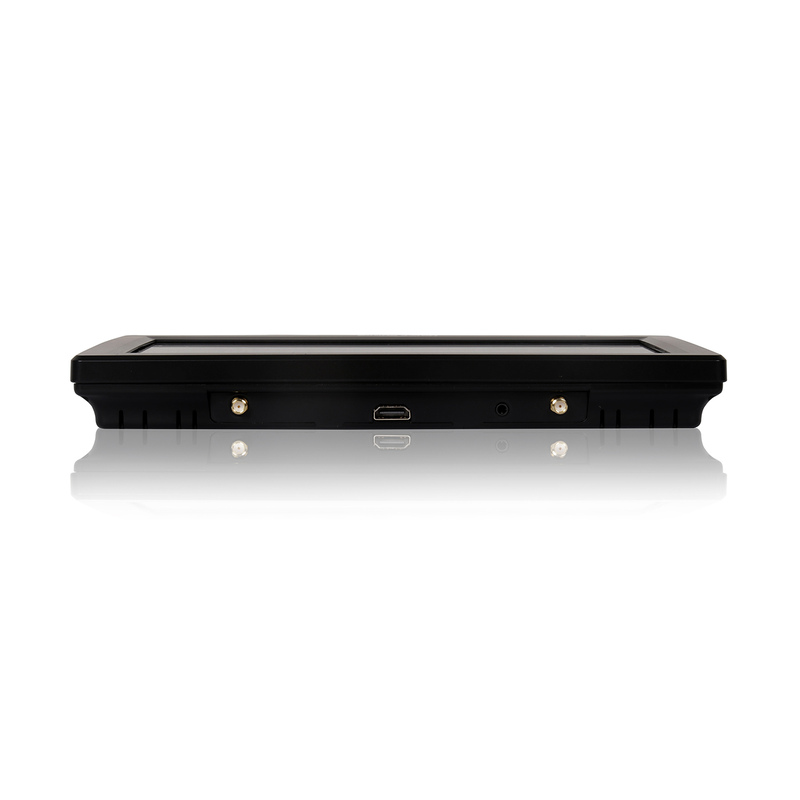

• HDMI input, AV input and AV output for flexible video connections.
• Integrated DVR with selectable recording resolutions.
• External 3S–6S battery power and an included mounting bracket.

SPECIFICATIONS:

• Brand / model: Hawkeye Captain X
• Screen: 10.2 inches; LED backlight; 16:9 aspect ratio
• Native display resolution: 1024 × 600 pixels
• Brightness: 1000 Lux (manufacturer specification)
• Response time: 10 ms
• Receiver bands: 4.9 / 5.8 / 6 GHz
• Antenna connector: SMA
• Analog video systems: PAL / NTSC
• Power input: 3S–6S battery; current draw: 1 A at 3S
• DVR modes: D1 / VGA / QVGA
• Storage: TF card up to 64 GB
• Monitor dimensions: 265 × 170 × 31 mm
• Package dimensions: 300 × 200 × 60 mm
• Manufacturer-listed gross weight: 1.13 kg

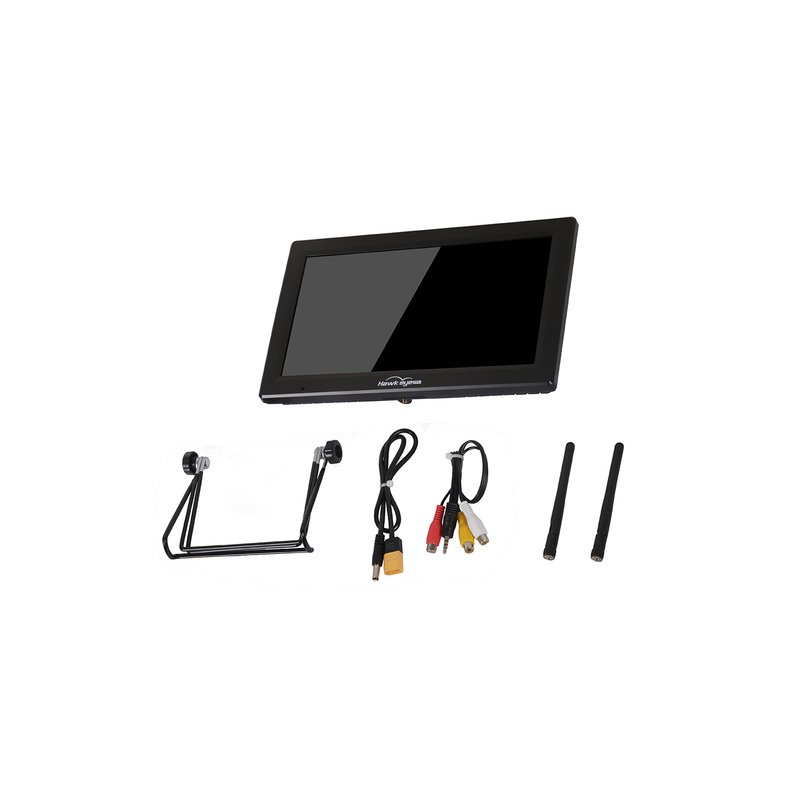

PACKAGE CONTENTS:

• 1 × Hawkeye Captain X 10.2-inch FPV monitor
• 2 × 5.8 GHz antennas
• 1 × Female XT60 to male DC power cable
• 1 × 3.5 mm connector cable
• 1 × Bracket

Required separately: Compatible external battery and TF memory card. The built-in receivers accept analog video; digital FPV systems require a compatible external receiver with HDMI output.
