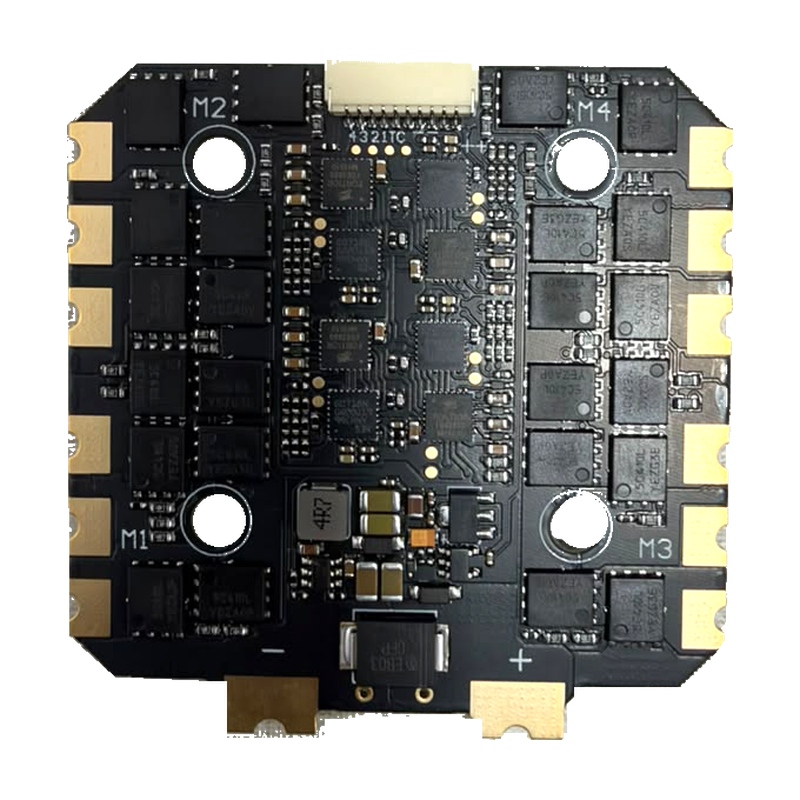

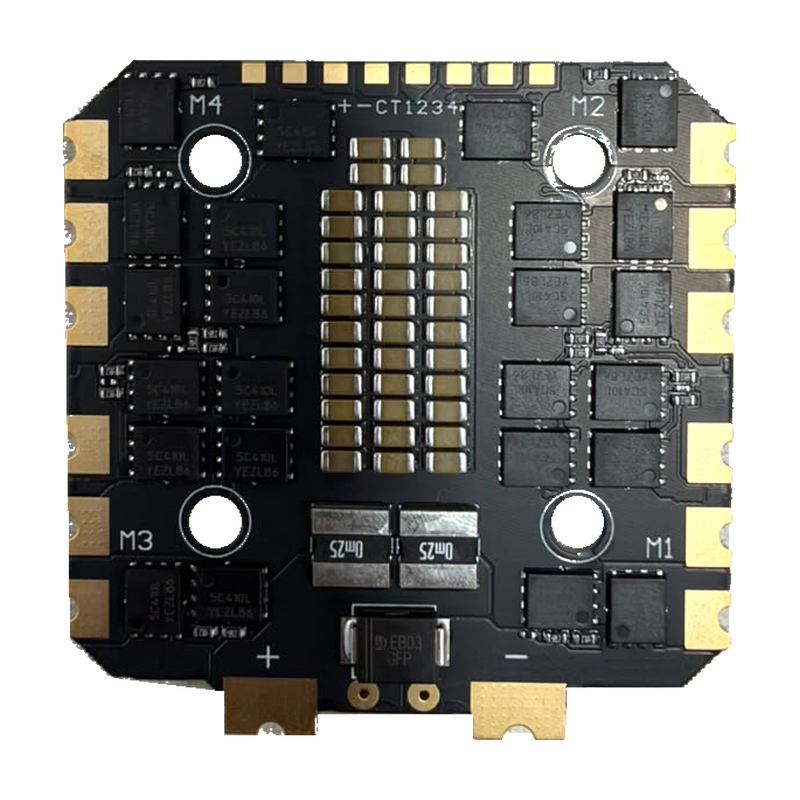

SPEDIX BLS 100A AM32 30X30 4-IN-1 ESC

The SPEDIX BLS 100A AM32 4-in-1 ESC combines four brushless motor controllers on one board for compatible multirotor builds. It supports 3–8S LiPo batteries and is rated for 100A continuous current per channel. An STM32G071 MCU, DShot300/600 support and ESC telemetry provide the core control and monitoring functions.

This version is supplied with AM32 firmware. The 30X30 mounting class uses a precise 30.5 × 30.5 mm hole pattern with 4 mm mounting holes. The board measures 57 × 56 × 7 mm and weighs 28 g.

FEATURES:

• Four motor-control channels integrated into a single ESC board
• AM32 firmware
• 100A continuous current rating per channel
• Supports 3–8S LiPo battery input
• STM32G071 MCU and high-performance MOSFETs
• DShot300 and DShot600 control protocols
• ESC telemetry support
• 30.5 × 30.5 mm mounting pattern

SPECIFICATIONS:

• Brand: SPEDIX
• Model: BLS 100A AM32 4-in-1 ESC
• Firmware: AM32
• MCU: STM32G071
• Input: 3–8S LiPo
• Continuous Current: 100A × 4
• Burst Current: 110A for 10 seconds
• MOSFETs: High-performance MOSFETs
• ESC Protocols: DShot300 / DShot600
• ESC Telemetry: Supported
• Current Sensor Scale: 200
• Mounting Pattern: 30.5 × 30.5 mm
• Mounting Hole Diameter: 4 mm

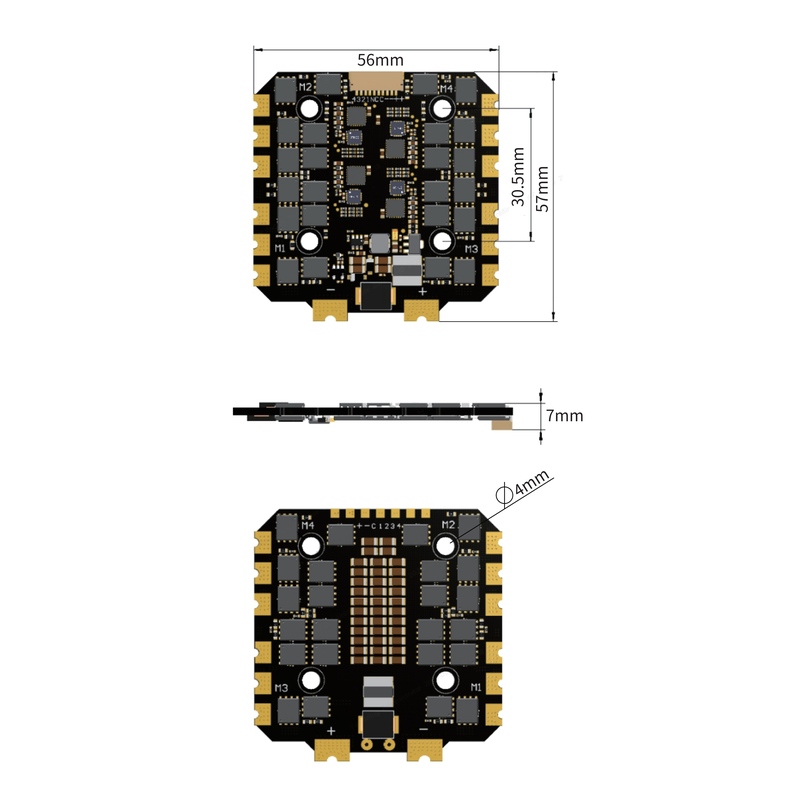

• Dimensions: 57 × 56 × 7 mm
• Board Weight: 28 g

PACKAGE CONTENTS:

• 1 × SPEDIX BLS 100A AM32 30X30 4-IN-1 ESC (including capacitors, main power lead and supplied accessories)
