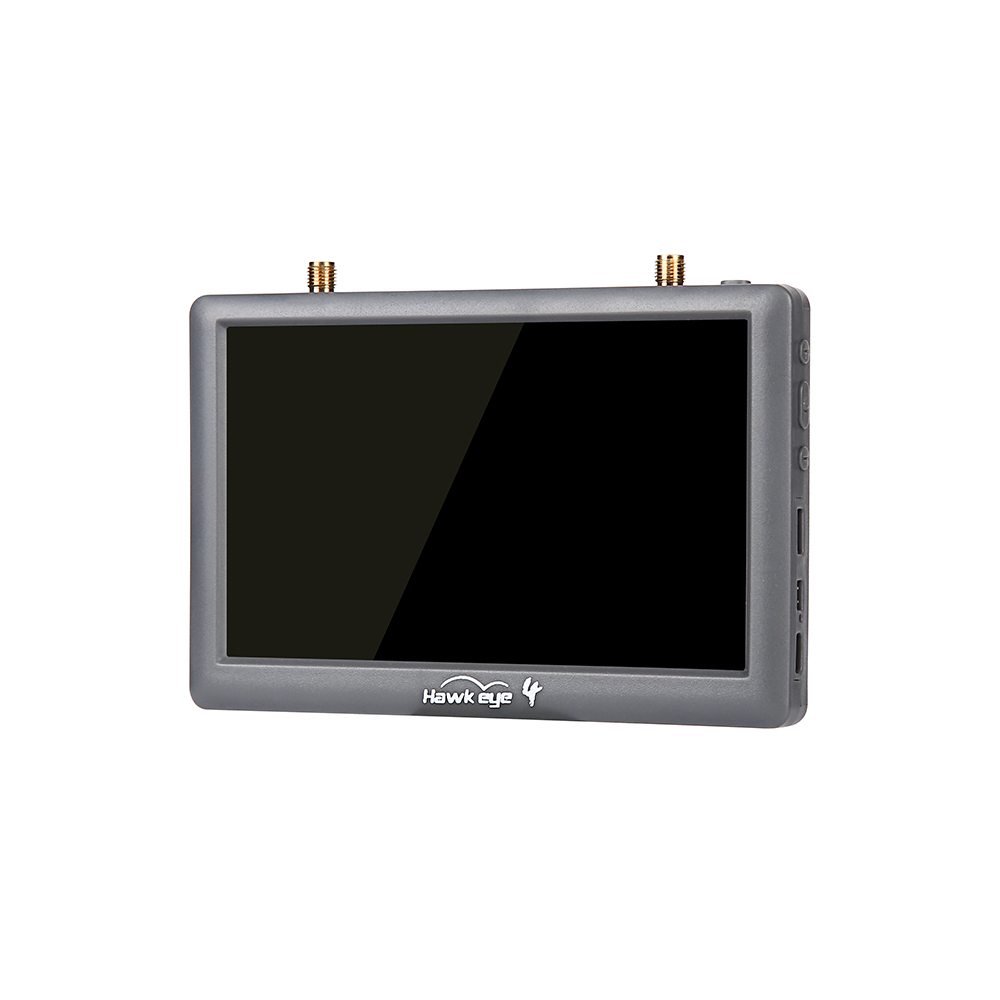

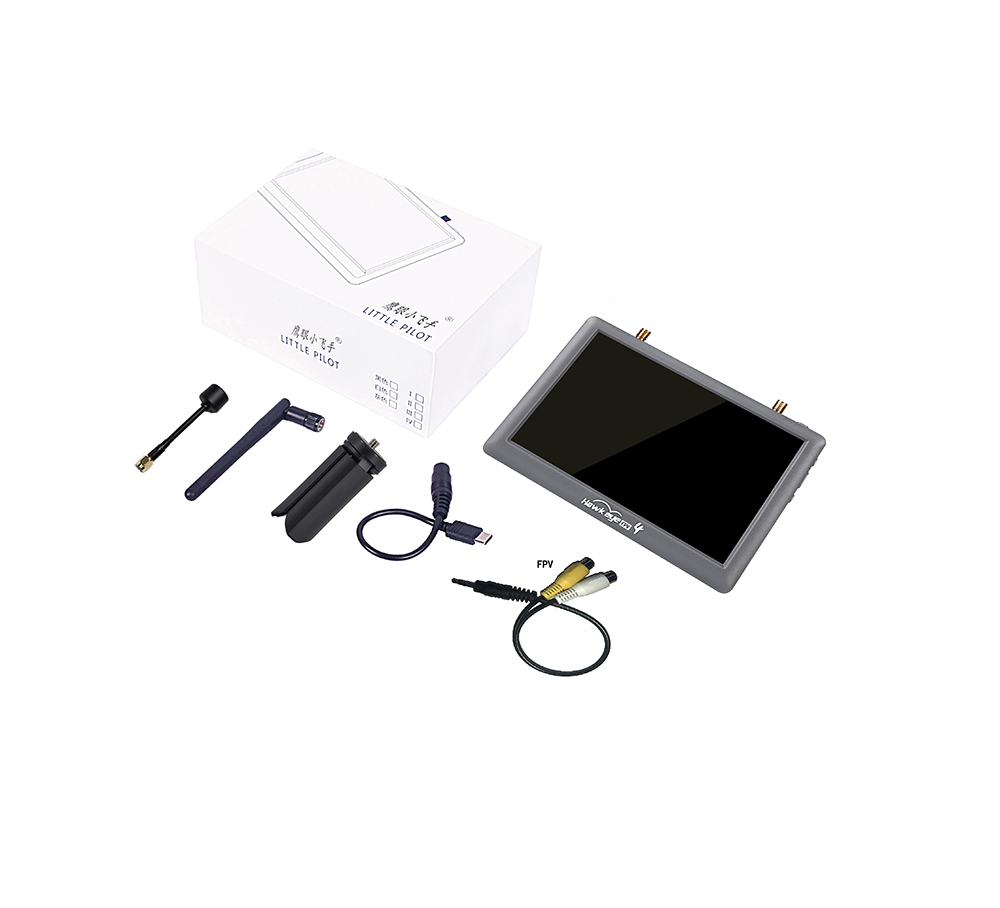

HAWKEYE LITTLE PILOT 4.5 INCH  4.9G-6G WIDE BAND FPV MONITOR WITH 108CH +DVR & TRACKING MODULE

Hawkeye Little Pilot 4 , 5 inch FPV Monitor 4.9G 5.8G 6G with DVRHawkeye Little Pilit 4 .pdf1. 1000lux high brightness outdoor display.2. 4.9G, 5.8G, 6G wide range frequency, -99db high sensitivity.3. Fast power on.4. Low latency of video.5. DVR recording and playback.6. No black/blue screen in weak signal.7. AV input / output.

FEATURES:

• Specially designed for aerial photography system, Little pilot all-in-one monitor has the following features:
• Video buffer. Can record and playback on the monitor.
• Built in battery for 2.5 hours.
• Dual receivers.
• High brightness: 700 Lux.
• No delay/blue /black screen.
• Auto/manual channel scan: no need for DIP switch. Reminder:
• For better display/record quality, please set the camera to NTSC format.

Note：this monitor only compatible with analog devices, not compatible with HD digital devices.

SPECIFICATIONS:

• Display resolution : 800×480
• Backlight : LED
• Brightness : 700 Lux
• Aspect ratio : 16:9 / 4:3
• Response time : <10ms
• Color system : PAL/NTSC
• Battery life :About 2.5 hours
• Signal : Video(PAL/NTSC)
• Monitor size : 128.5mm×83.5mm×16.8mm
• Gross weight : 220g
• 5.8G Sensitivity : -94dB
• Matching antenna : RP-SMA
• DVR Resolutions :
• PAL: 720*288
• NTSC: 720*240
• SD Card : Support 8-32G C10 (not included)

Frequency Group Selection:
You can select the desired frequency from 6 groups: A,B,C,D,E and F:
A B C D E F
1 5.645G 5.740G 5.725G 5.733G 5.658G 5.362G
2 5.665G 5.760G 5.745G 5.752G 5.695G 5.399G
3 5.865G 5.780G 5.765G 5.771G 5.732G 5.436G
4 5.705G 5.800G 5.785G 5.790G 5.769G 5.473G
5 5.885G 5.820G 5.805G 5.809G 5.806G 5.510G
6 5.905G 5.840G 5.825G 5.828G 5.843G 5.547G
7 5.925G 5.860G 5.845G 5.847G 5.880G 5.584G
8 5.945G 5.880G 5.865G 5.866G 5.917G 5.621G

Please use Potplayer to playback on PC/android:

https://potplayer.en.softonic.com/download

Manual download:
