Description

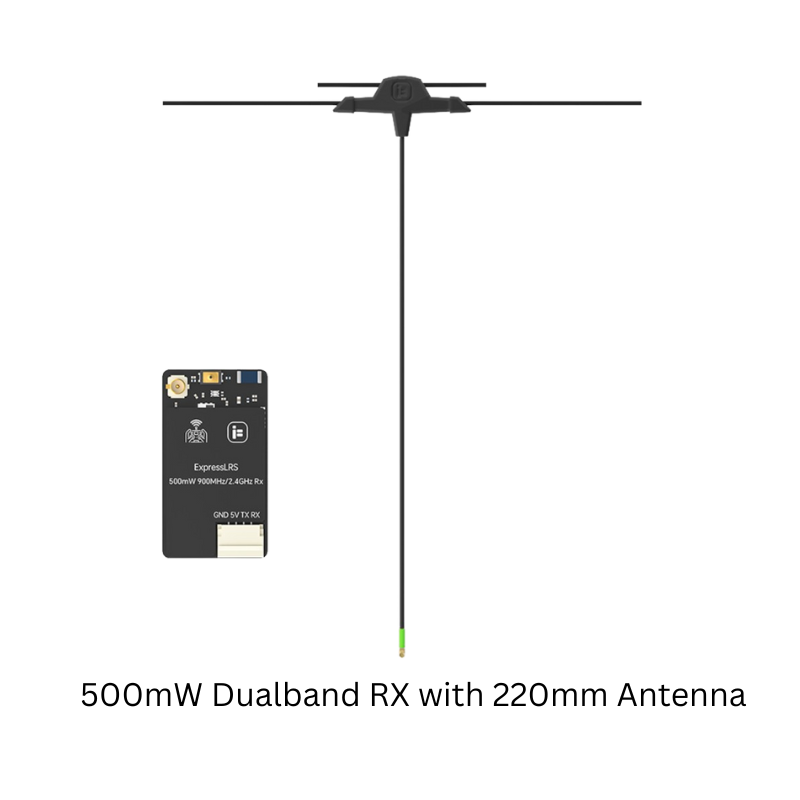

iFLIGHT ELRS 500mw DUALBAND RX

The iFlight ELRS Receiver redefines reliability with its dualband technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Featuring a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in any environment. Choose between single or dual-antenna configurations for enhanced compatibility and signal strength. Perfect for long-range flights, aerial photography, and FPV freestyle, this receiver delivers unmatched precision and reliability for all your flying needs. Elevate your experience with iFlight.

FEATURES:

• CXO Technology: Minimizes frequency deviation for precise and stable performance.
• Multi-Frequency Support: Compatible with 2.4GHz, 868MHz, and 900MHz for versatile use.
• Compact Design: Space-saving and lightweight for easy integration.
• Single-Sided Components: Optimizes space efficiency.
• Aluminum Heat Sink: Protects electronics and enhances interference resistance.
• SH1.0 Connector: Easy installation with robust connectivity.
• High-Power Telemetry: Supports 500mW telemetry return for stronger signals and reduced telemetry loss.

PERFORMANCE & COMPABILITY:

• Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
• Flash the latest firmware and follow the ELRS Community for updates, tutorials or contributions.

SPECIFICATIONS:

• MCU: ESP32 C3
• RF: LR1121
• Frequency Bands: 2.4GHz、868MHz、900MHz
• Receiver Type: Single antenna
• Telemetry power: 100-500mW (20-27dBm)
• LNA: YES
• Dimension:14*25*4.3mm(±0.5）
• Weight: 1.9g(±0.5g)
• Lua Script: iF DB 500mW RX
• TCXO: Yes
• Firmware Version: ELRS 3.5.3

PACKAGE CONTENTS:

• 1 x ExpressLRS Dualband Receiver
• 1 x DualBand Antenna

PLZ NOTE: This is a dual band ELRS RX which can either be binded to a 2,4Ghz ELRS Tx Module/Radio or 915Mhz Tx Module/Radio.Its not a Gem X /Gemini Receiver.

NOT COMPATIBLE WITH NOMAD in X150 Mode
