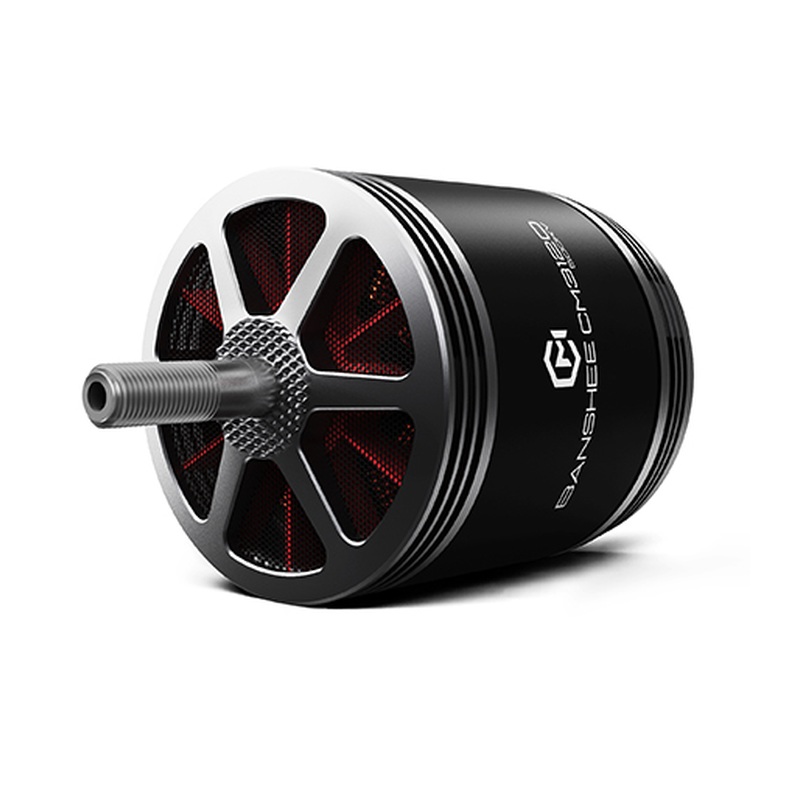

MAD CM 3120-500KV-12S BANSHEE FPV DRONE MOTOR
The MAD BANSHEE CM3120 500KV is a brushless FPV drone motor for 12S LiPo power systems. Designed for long-range FPV and cinelifter builds, it combines an anticorrosive stator with internal stainless-steel dust filters and a rotor exhaust-blade design to support cooling.
This listing is for one 500KV-12S motor. Match the motor with a suitable 12S-rated ESC, propeller and airframe before installation.
FEATURES:
- 500KV winding for 12S LiPo FPV power systems.
- Two ultra-thin stainless-steel dust filters inside the stator.
- Internal rotor exhaust-blade design for heat dissipation.
- Anticorrosive stator and 220°C-rated winding insulation.

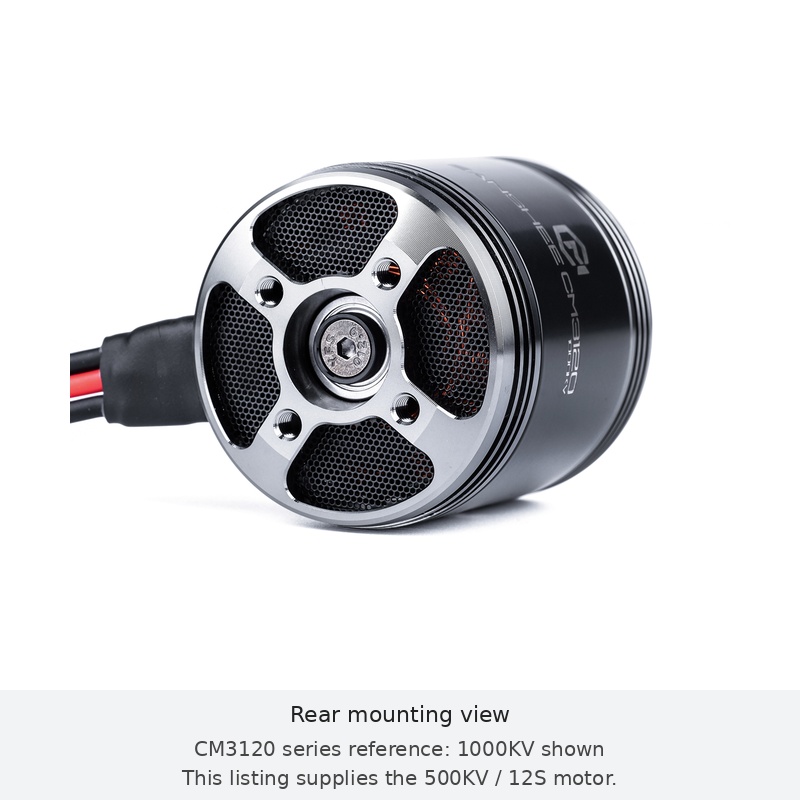

- 19 mm mounting pattern with four M3 mounting holes.

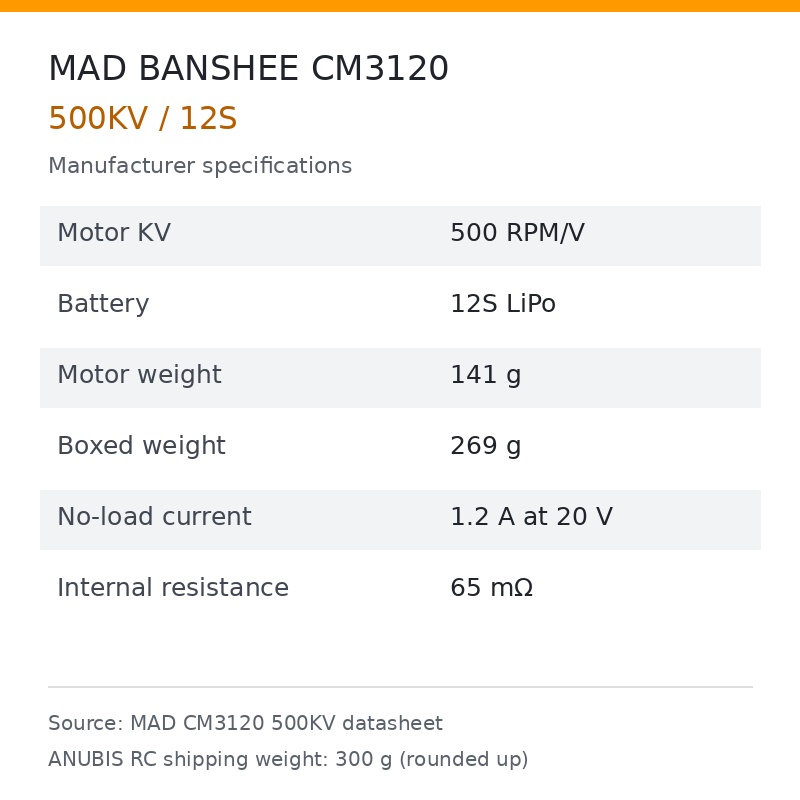

SPECIFICATIONS:
- Manufacturer: MAD Components
- Model: BANSHEE CM3120 V1.0
- Motor type: Brushless
- KV rating: 500KV
- Battery specification: 12S LiPo
- Motor dimensions: 37.1 mm diameter × 59 mm
- Pole pairs: 7
- Mounting pattern: 19 mm, 4 × M3
- No-load current: 1.2 A at 20 V
- Internal resistance: 65 mΩ
- Manufacturer-listed maximum current: 54.1 A
- Manufacturer-listed maximum input power: 2706 W
- Manufacturer-listed maximum thrust: 6.1 kgf
- Manufacturer-listed maximum torque: 1.0 N·m
- Motor weight: 141 g
- Manufacturer boxed weight: 269 g
- Shipping weight: 300 g
Maximum performance figures are from MAD’s 500KV test data using a 10 × 5 × 3 propeller. Actual performance depends on the battery, propeller, cooling and operating conditions; maximum figures are not continuous operating ratings.
PACKAGE CONTENTS:
- 1 × MAD BANSHEE CM3120 500KV-12S Brushless FPV Drone Motor
ESC, propeller and battery are not included.
MOTOR THRUST DATA:
Manufacturer test data for the MAD BANSHEE CM3120 500KV / 12S motor with a 10 × 5 × 3 propeller. The table below reproduces MAD’s published test table, which reports 50.00 V at every throttle point.
| Throttle (%) | Voltage (V) | Current (A) | Input power (W) | Output power (W) | Torque (N·m) | RPM | Thrust (gf) | Efficiency (gf/W) |
|---|---|---|---|---|---|---|---|---|
| 30 | 50.00 | 2.67 | 133.5 | 93.2 | 0.141 | 6320 | 802 | 6.0 |
| 35 | 50.00 | 3.98 | 199.0 | 147.7 | 0.192 | 7349 | 1118 | 5.6 |
| 40 | 50.00 | 6.14 | 307.0 | 234.9 | 0.264 | 8496 | 1539 | 5.0 |
| 45 | 50.00 | 8.07 | 403.5 | 311.9 | 0.322 | 9255 | 1860 | 4.6 |
| 50 | 50.00 | 10.52 | 526.0 | 407.1 | 0.375 | 10367 | 2431 | 4.6 |
| 55 | 50.00 | 12.64 | 632.0 | 484.7 | 0.423 | 10936 | 2663 | 4.2 |
| 60 | 50.00 | 16.39 | 819.5 | 619.5 | 0.503 | 11769 | 3105 | 3.8 |
| 65 | 50.00 | 20.03 | 1001.5 | 751.1 | 0.572 | 12541 | 3535 | 3.5 |
| 70 | 50.00 | 23 | 1150.0 | 852.2 | 0.621 | 13096 | 3854 | 3.4 |
| 75 | 50.00 | 25.25 | 1262.5 | 927.9 | 0.654 | 13559 | 4214 | 3.3 |
| 80 | 50.00 | 34.02 | 1701.0 | 1233.2 | 0.788 | 14951 | 4851 | 2.9 |
| 85 | 50.00 | 39.21 | 1960.5 | 1386.1 | 0.860 | 15400 | 5231 | 2.7 |
| 90 | 50.00 | 45.1 | 2255.0 | 1522.1 | 0.921 | 15786 | 5532 | 2.5 |
| 95 | 50.00 | 49.3 | 2465.0 | 1604.7 | 0.953 | 16087 | 5808 | 2.4 |
| 100 | 50.00 | 54.12 | 2706.0 | 1680.4 | 0.989 | 16233 | 6105 | 2.3 |
At 100% throttle, the published result is 6105 gf (6.105 kgf) of thrust at 54.12 A and 2706 W input power. These are test results, not continuous operating ratings; actual performance depends on the battery, propeller, cooling and operating conditions.
Source: MAD CM3120 500KV manufacturer datasheet. The datasheet’s separate analytical graph states 48 V; the tabulated values above retain the original table’s stated 50 V.
