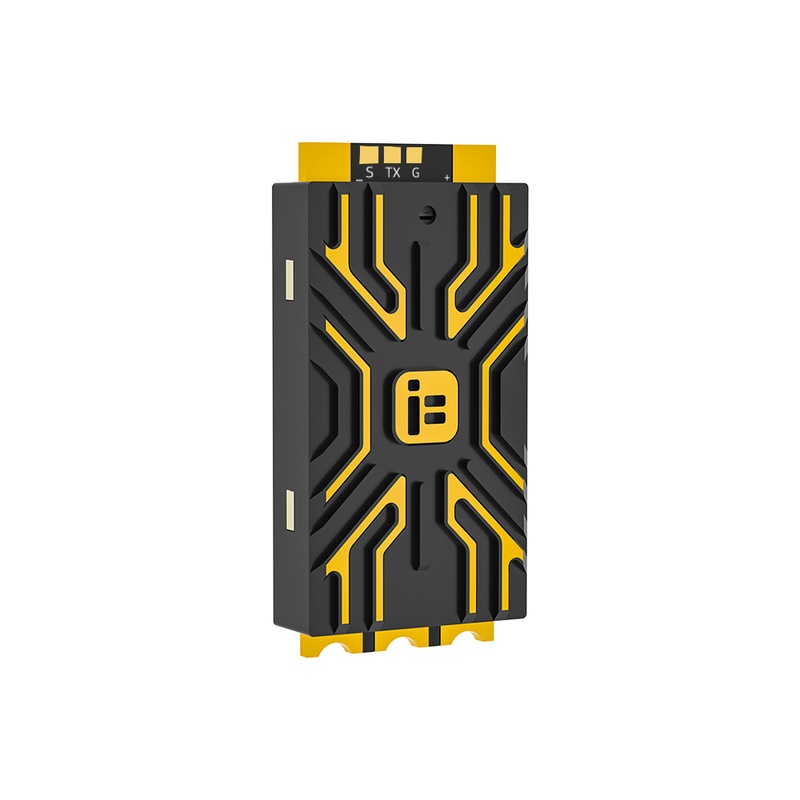

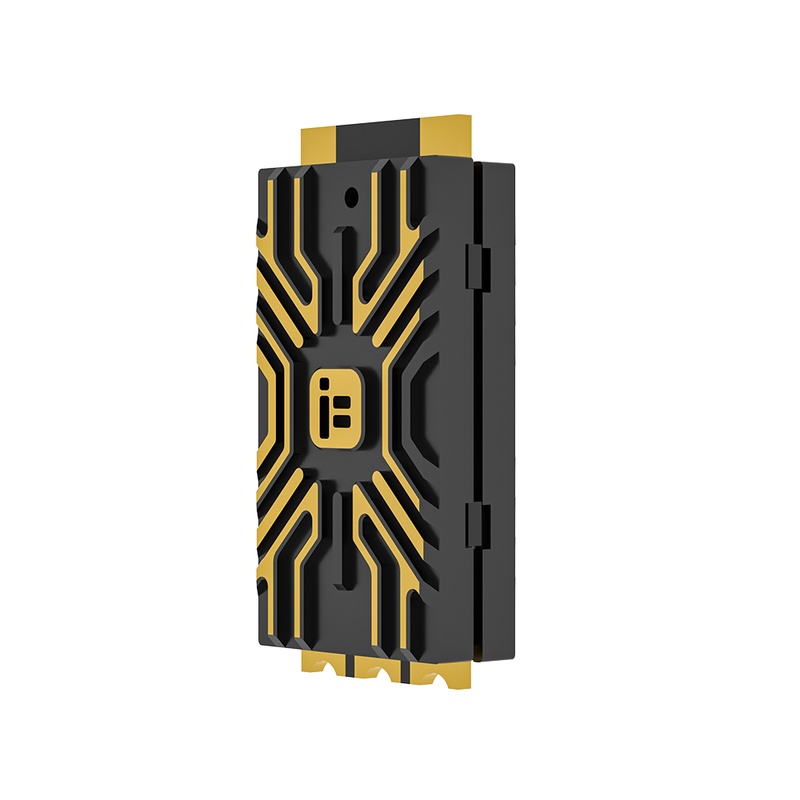

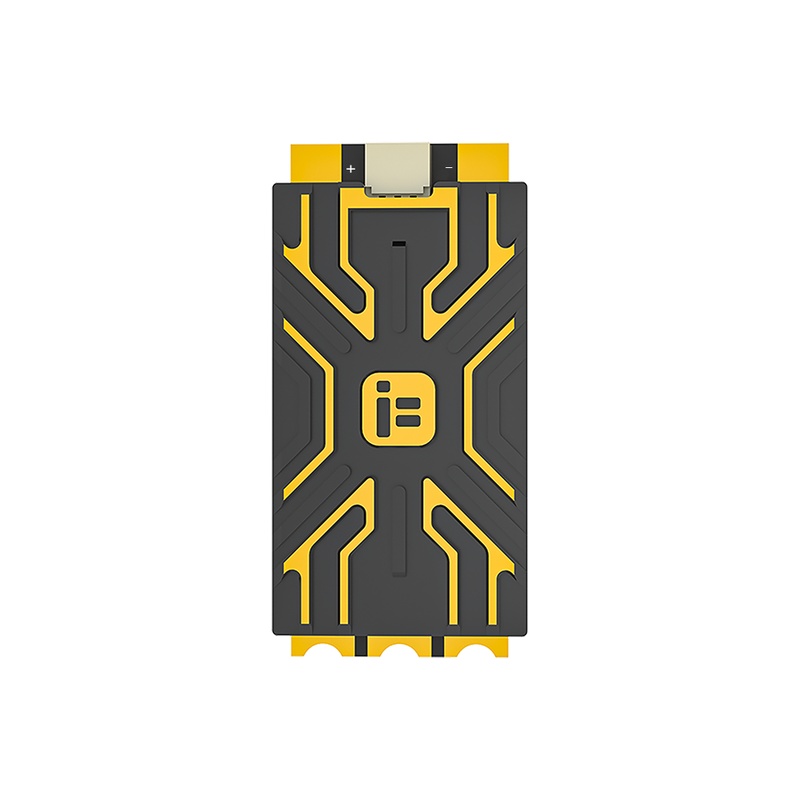

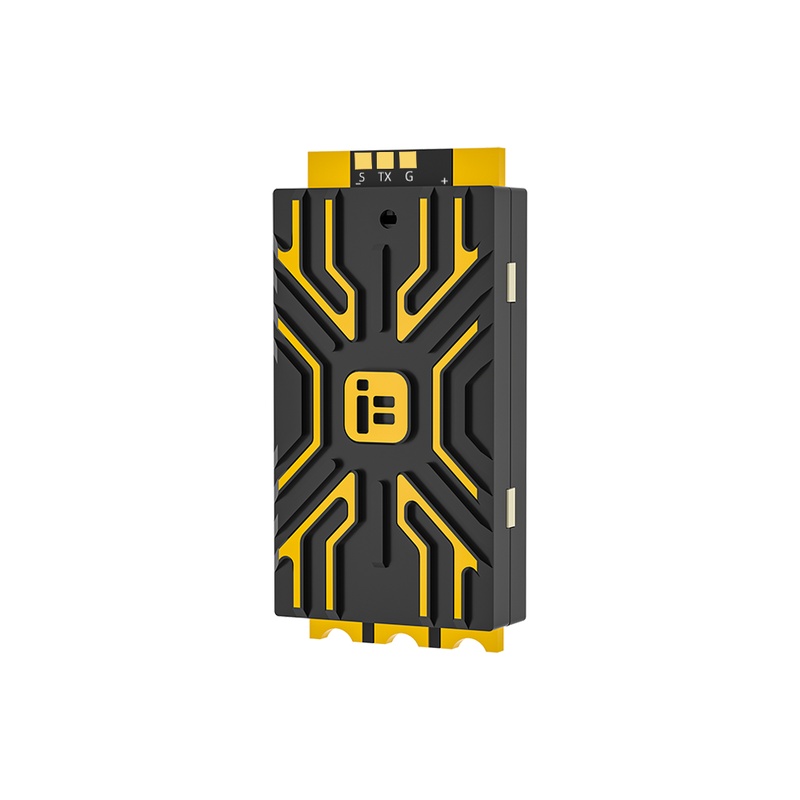

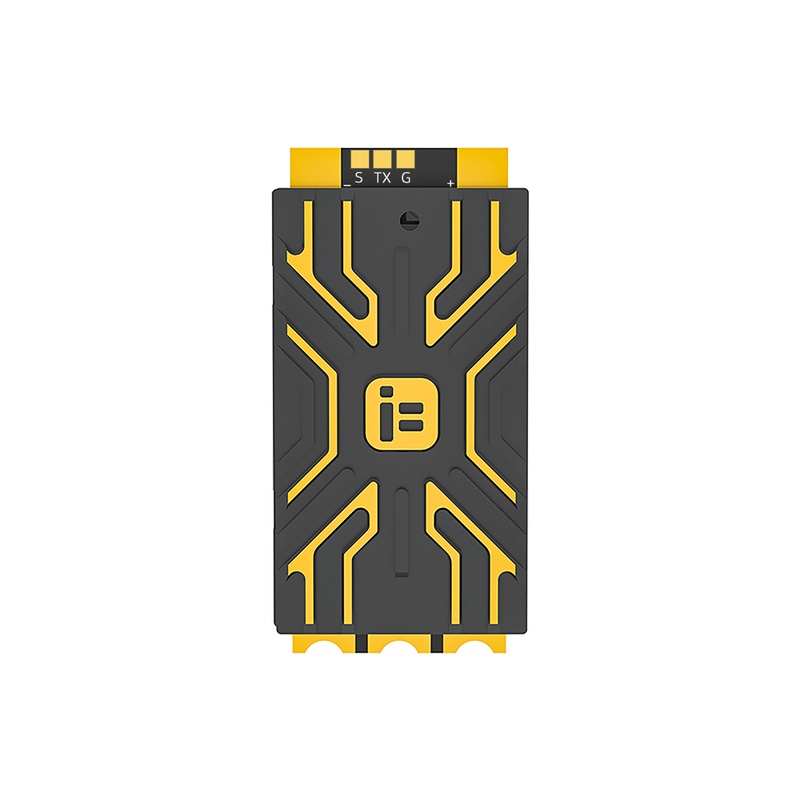

iFlight BLITZ E80 80A 2–8S BLHeli32 Single ESC

The iFlight BLITZ E80 Single ESC controls one brushless motor with 80A continuous output, 2–8S input and telemetry support. Its compact layout suits builds that use individual electronic speed controllers.

FEATURES:

• STM32G071 processor and BLHeli32 firmware.
• Current sensing and telemetry output.
• DShot150/300/600, MultiShot and OneShot support.
• Large solder pads and a power indicator LED.
• TDK low-ESR ceramic capacitors.

SPECIFICATIONS:

• Manufacturer: iFlight
• Model: BLITZ E80 Single ESC
• Input: 2–8S
• Maximum continuous current: 80A
• Maximum burst current: 100A
• BEC: None
• Dimensions: 43.5 × 20 × 8.5 mm
• Net weight: 14.5 g ±2 g
• Shipping weight: 100 g

PACKAGE CONTENTS:

• 1 × iFlight BLITZ E80 Single ESC
• 1 × 50V 1000µF capacitor
• 1 × Power cable and ESC signal wire set
