Description

HAKRC 4255 120A 12S SINGLE ESC

The main control chip runs at a frequency of up to 64MHz. IC driver SLM21867CA-DG driver, imported high-quality Murata capacitors, the application of high-end resin plugged PCB production process, double pad design is made of metallized edging, so that you can avoid the pad falling off when in use; 4 ounces of copper thick, 8 layers of board, greatly reduce heat generation, higher efficiency.

FEATURES:

• The PCB adopts high-end 8-layer 4oZ thickened copper skin, the application of high-end resin plugged hole PCB production process, double pad design, stronger overcurrent capacity and good heat dissipation.

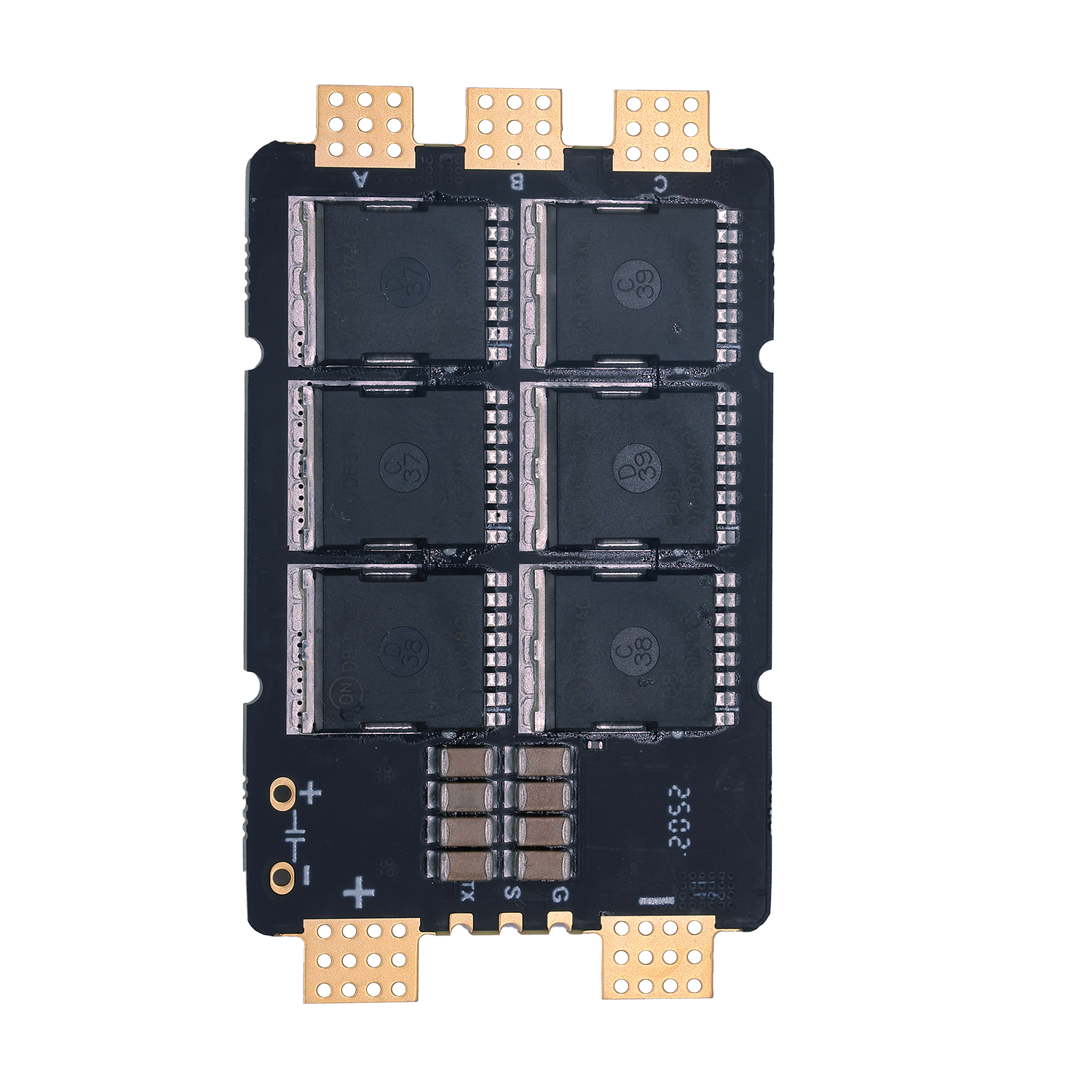

• The MOS adopts imported 80V high current resistant mos, which has a long life and strong load capacity.
• Adopt industrial-grade LDO, high temperature resistance.
• Adopt high-quality Japanese Murata capacitors, with strong filtering performance

ESC SPECIFICATIONS:

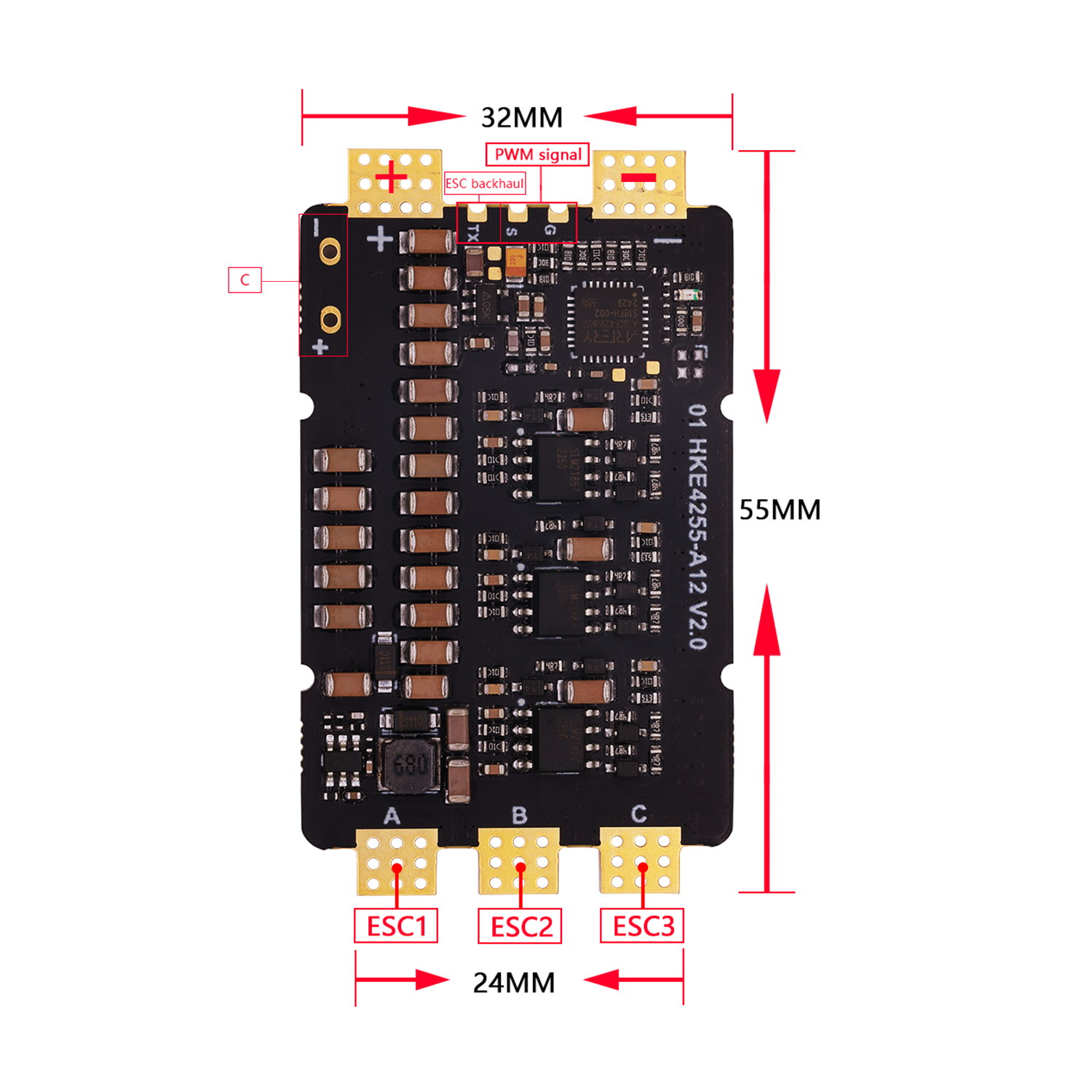

• Size: 55 * 28mm
• Net weight of product: 21g
• ESC firmware: HAKRC-AT4G-Rev.32.9.Hex

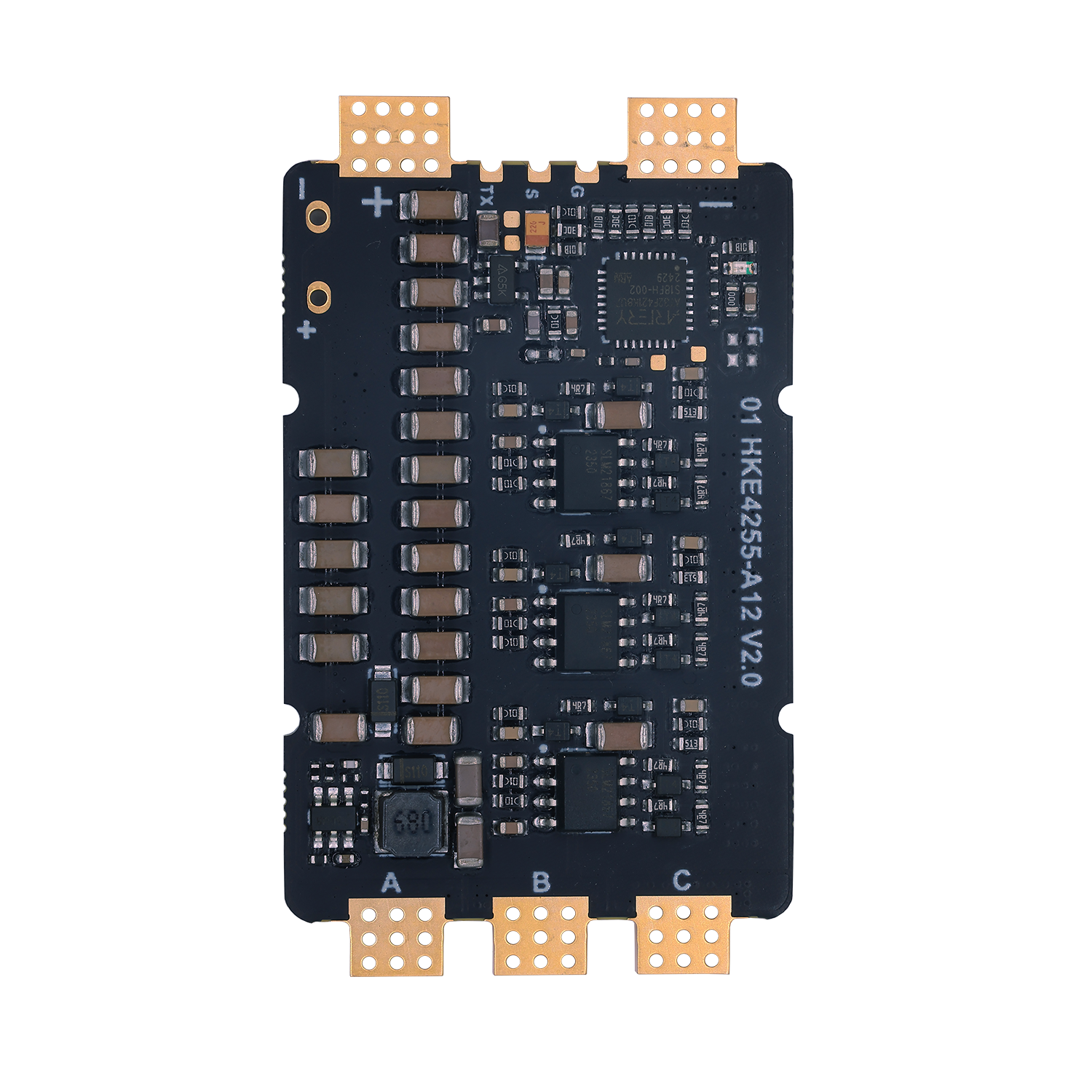

• Hardware: SLM21867CA-DG AT32F421K8 FDBL0150N80
• Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 6S-12S Lipo
• Continuous current: 120A
• Peak current: 140A

PACKAGE CONTENTS:

• 1 * HAKRC 4255 120A 12S SINGLE ESC
• 1 * THERMAL PADS SET (2 PCS)

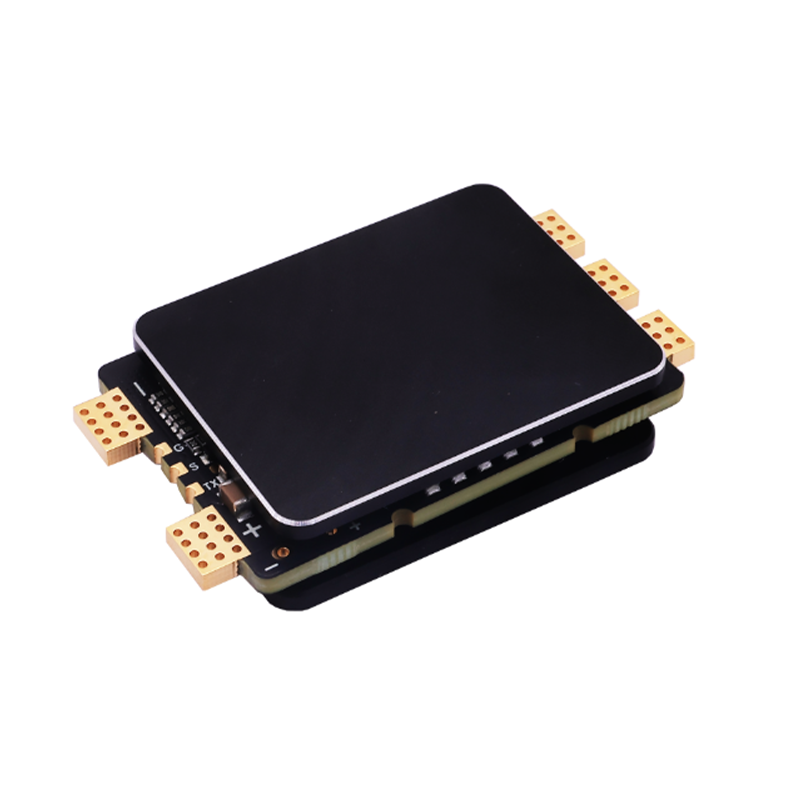

• 1 * HEAT SINK SET (2 PCS)
• 1 * SIGNAL+GROUND SERVO LEAD(SILICON)
• 1 * 12cms 10 AWG RED+BLACK MAIN POWER LEAD
