Description

MAD AMPX 120A (5-14S) Drone BLDC ESC V2.0-DRONE CAN

The MAD AMPX 120A V2.0 DroneCAN ESC controls brushless drone motors on 5–14S LiPo power systems. It combines PWM throttle input with DroneCAN communication, upgradeable firmware and a finned cooling enclosure for demanding multirotor builds.

This listing is for the V2.0 DroneCAN version. Use a compatible flight controller and configure its CAN interface for this protocol.

FEATURES:

• 120 A continuous current rating when adequate heat dissipation is provided.
• DroneCAN communication for flight-controller integration and real-time operating data.
• PWM throttle input with throttle-range calibration.
• Firmware updates supported.
• Built-in 5 V / 200 mA BEC output.

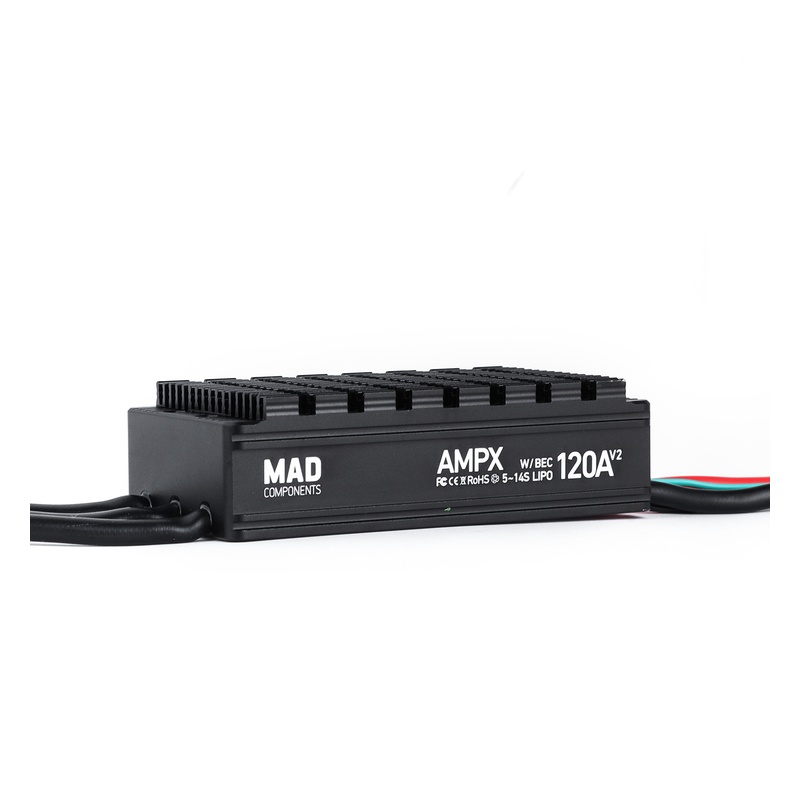

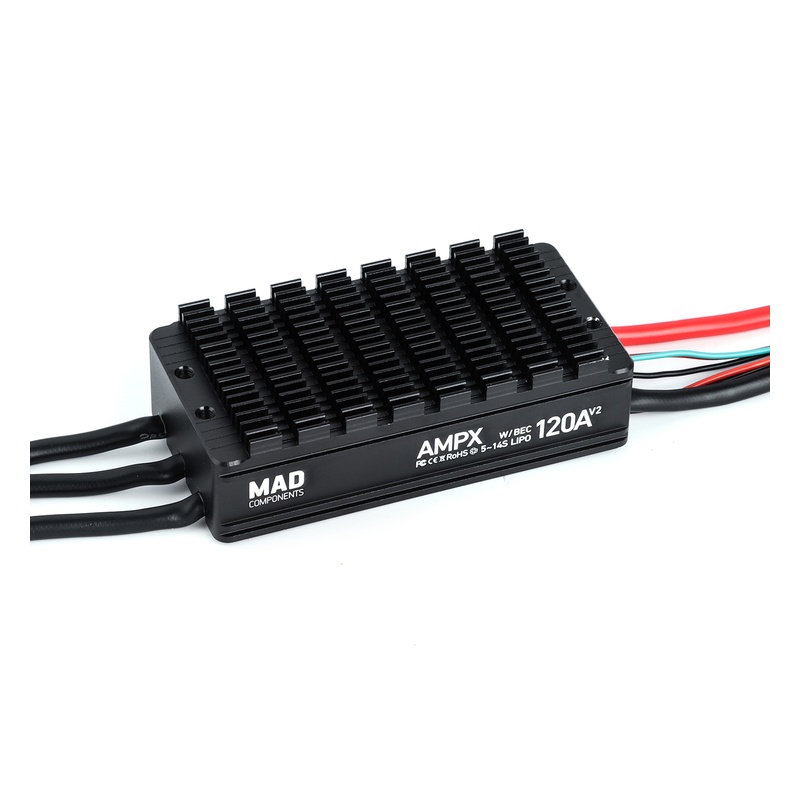

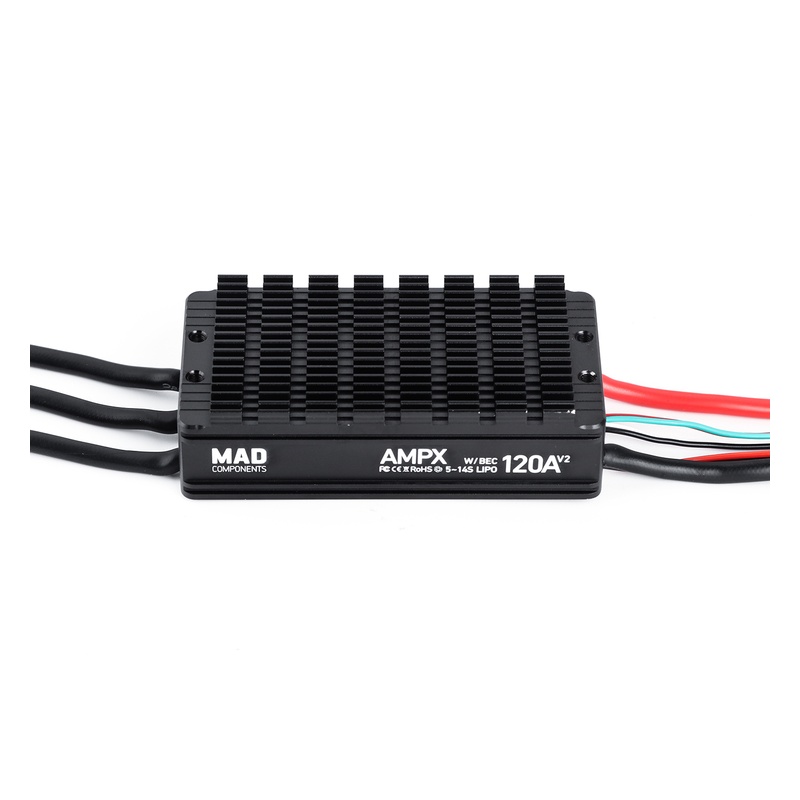

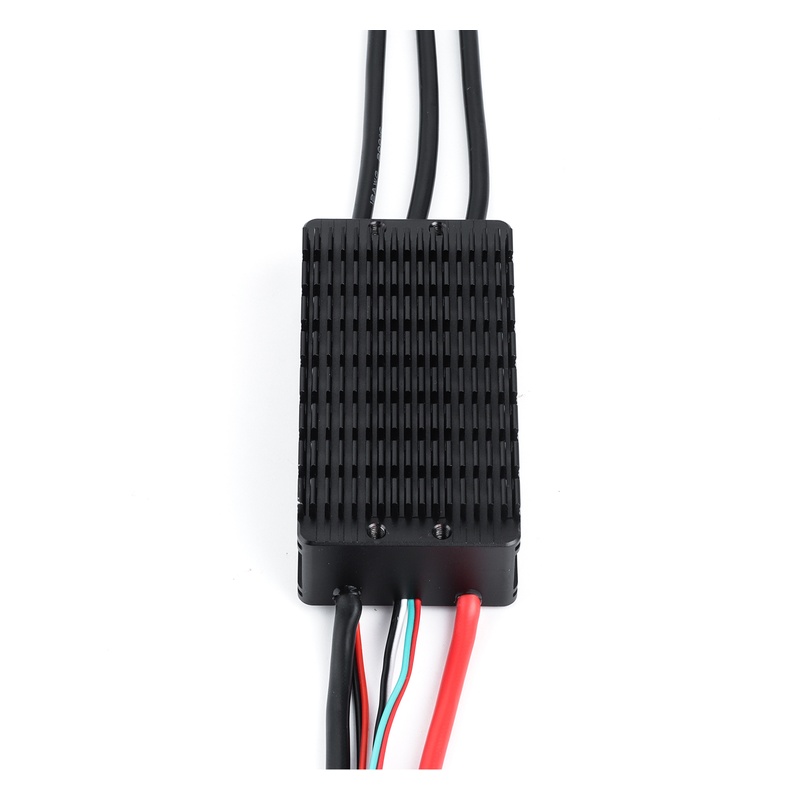

• Manufacturer-rated IP67 enclosure with cooling fins and mounting holes.
• Protection against phase short circuit, motor stall, overtemperature, throttle-signal loss and abnormal startup voltage.

SPECIFICATIONS:

• Manufacturer: MAD Components
• Model: AMPX 120A, V2.0
• ESC type: Brushless DC motor controller
• CAN protocol: DroneCAN
• Battery support: 5–14S LiPo
• Manufacturer-stated input voltage range: 16–64 V
• Continuous current: 120 A, with adequate cooling
• Current limit: 120 A
• BEC output: 5 V / 200 mA
• PWM input signal voltage: 3.3 V / 5 V compatible
• Default throttle pulse width: 1050–1940 μs; calibration supported

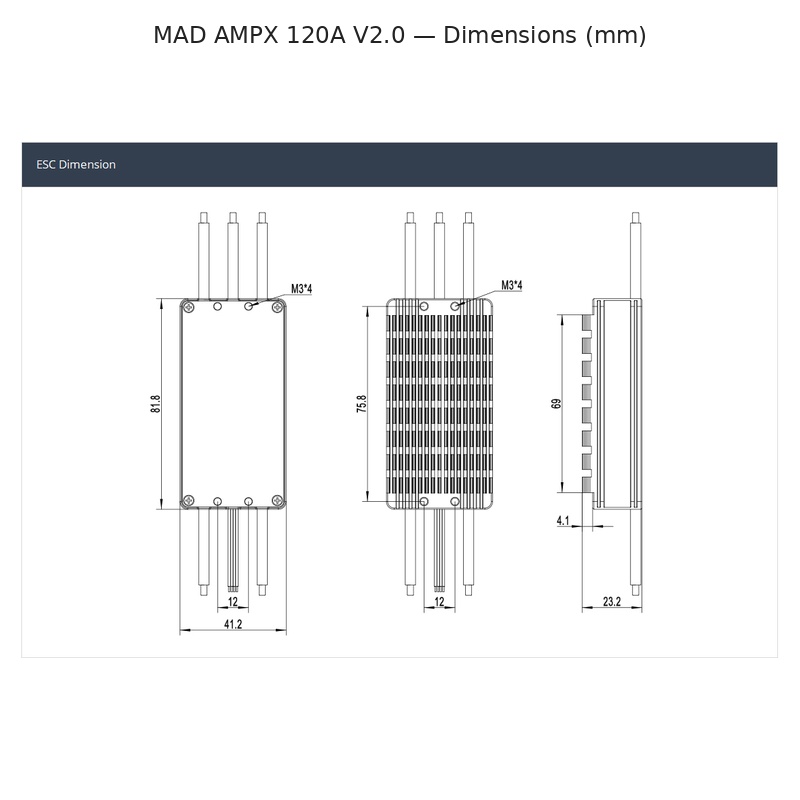

• Dimensions (L × W × H): 81.8 × 41.2 × 23.2 mm
• Protection rating: IP67, as specified by the manufacturer
• Operating ambient temperature: −20°C to +65°C
• Weight excluding wires: approximately 140 g
• Power leads: 12 AWG, 800 mm
• Motor leads: 12 AWG, 150 mm
• Signal lead length: 1000 mm
• Country of origin: China
• Shipping weight: 200 g

Provide sufficient airflow and heat dissipation for the intended load. The 120 A rating depends on cooling conditions; the BEC output is limited to 200 mA.

PACKAGE CONTENTS:

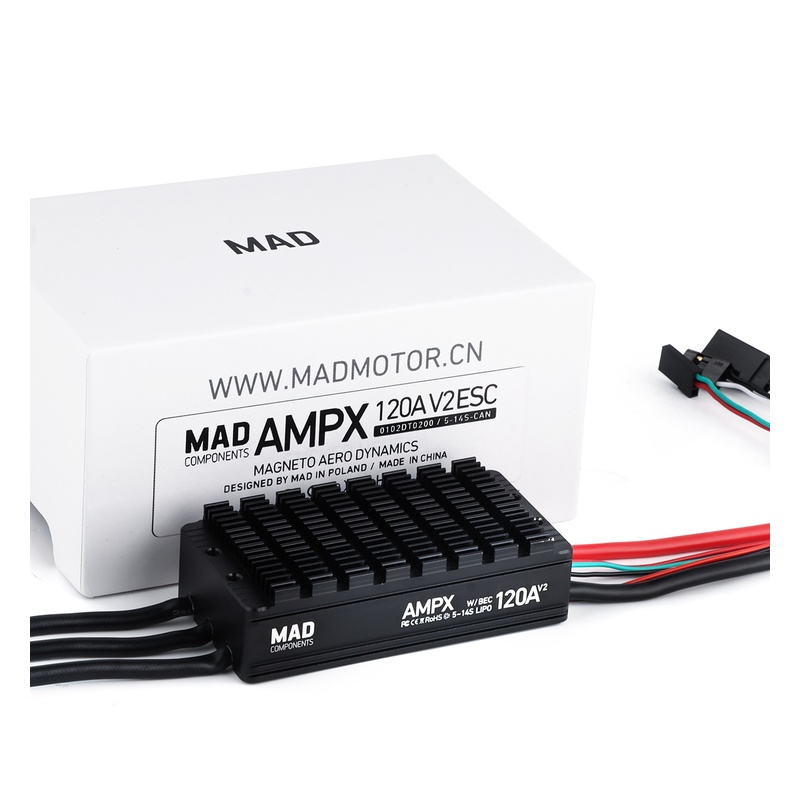

• 1 × MAD AMPX 120A (5–14S) V2.0 DroneCAN BLDC ESC with attached leads

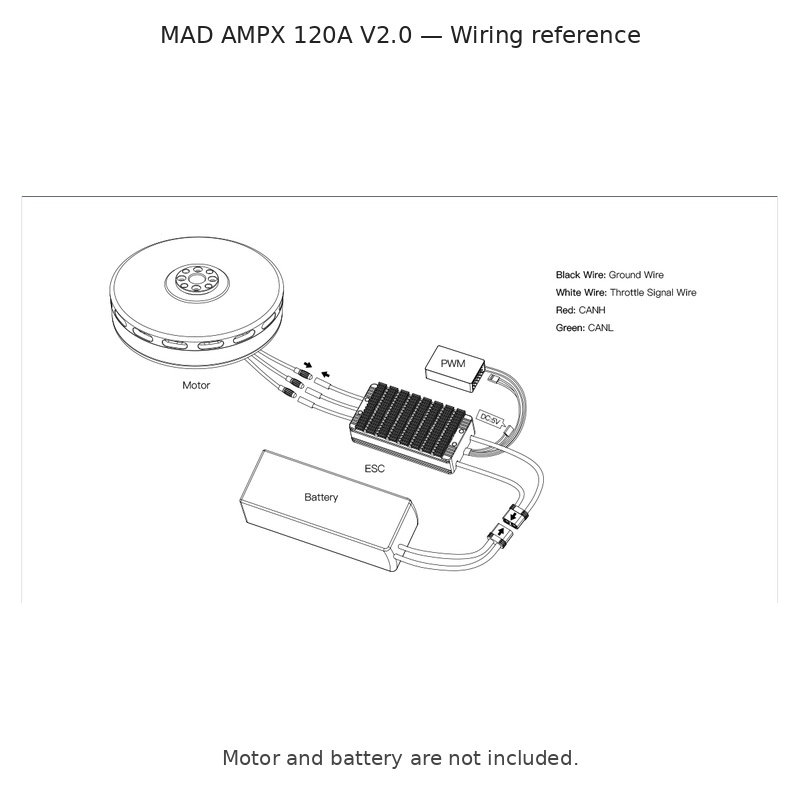

Motor, battery and flight controller are not included.
