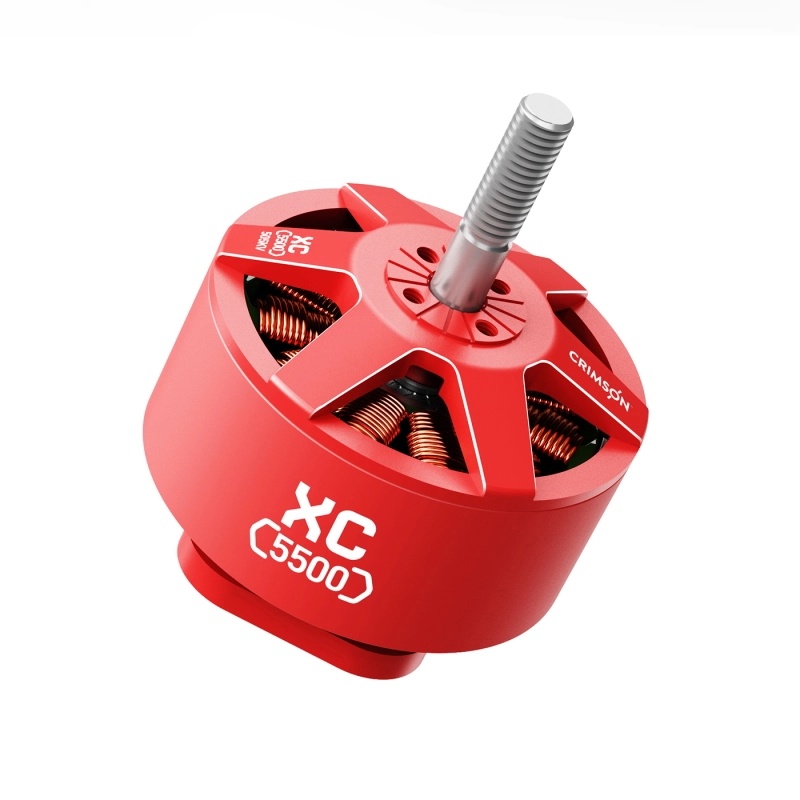

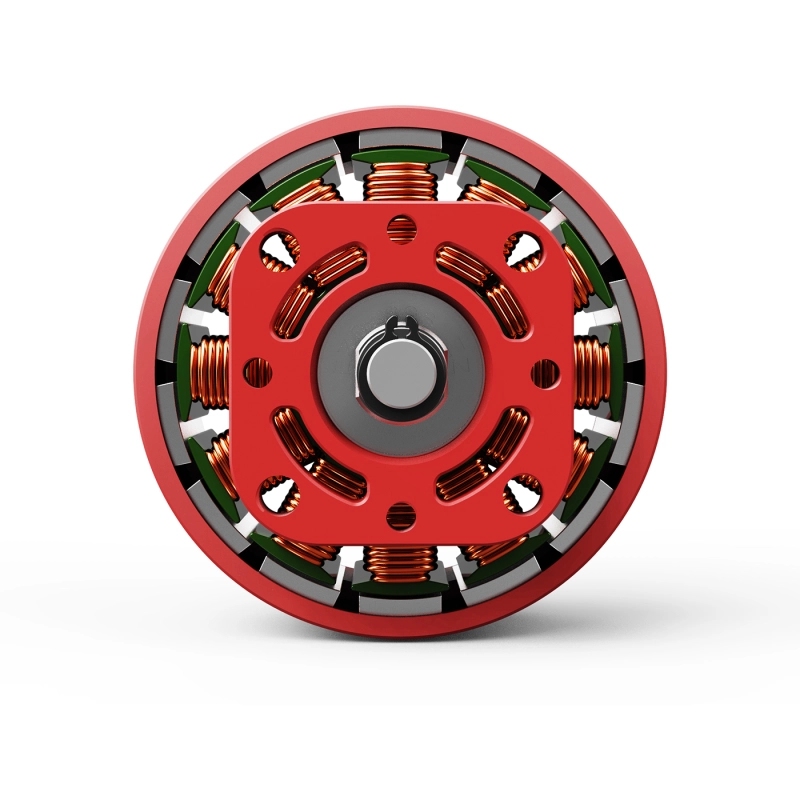

MADCOMPONENTS XC5500-635KV CRIMSON BRUSHLESS MOTOR
XC5500 and XC5000 motors are designed for the fastest high-end X-class drones, i.e.: 800-1200mm multi-rotor aircraft, VTOL aircraft and agricultural copters (2-3kg load per rotor).
SPECIFICATIONS:
- Weighs 324g with 3pcs durable bearings.
- Maximum thrust 6.1kg.
PACKAGE CONTENTS:
- 1 * MADCOMPONENTS XC5500-635KV CRIMSON BRUSHLESS MOTOR
Motor Data |
|||
| Motor Model | MAD Crimson XC5500 V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:50 × 67.9 mm | Motor Balance | 150°C |
| Degree of Protection | Rain protection | Cable Length | 750 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 / M6 Nut | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4, D:30 M4×4 |
| Bearing | 686ZZ *2 / 696ZZ | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________
Drawing and mount holes
