MATEKSYS 12S Pro BEC – 9-55V To 5V/8V/12V-5A

(2 customer reviews)

1,999.00

The MATEKSYS 12S Pro BEC features a wide 9-55V Operating Input Range, 3x Output Voltage Options 5V/8V/12V , and Supports continuous output current of up to 5A and peak current of 9A.

  • Manufacturer :: MATEKSYS
  • CoO  :: CHINA
  • Shipping Weight :: 100gms

In stock

Description

Description

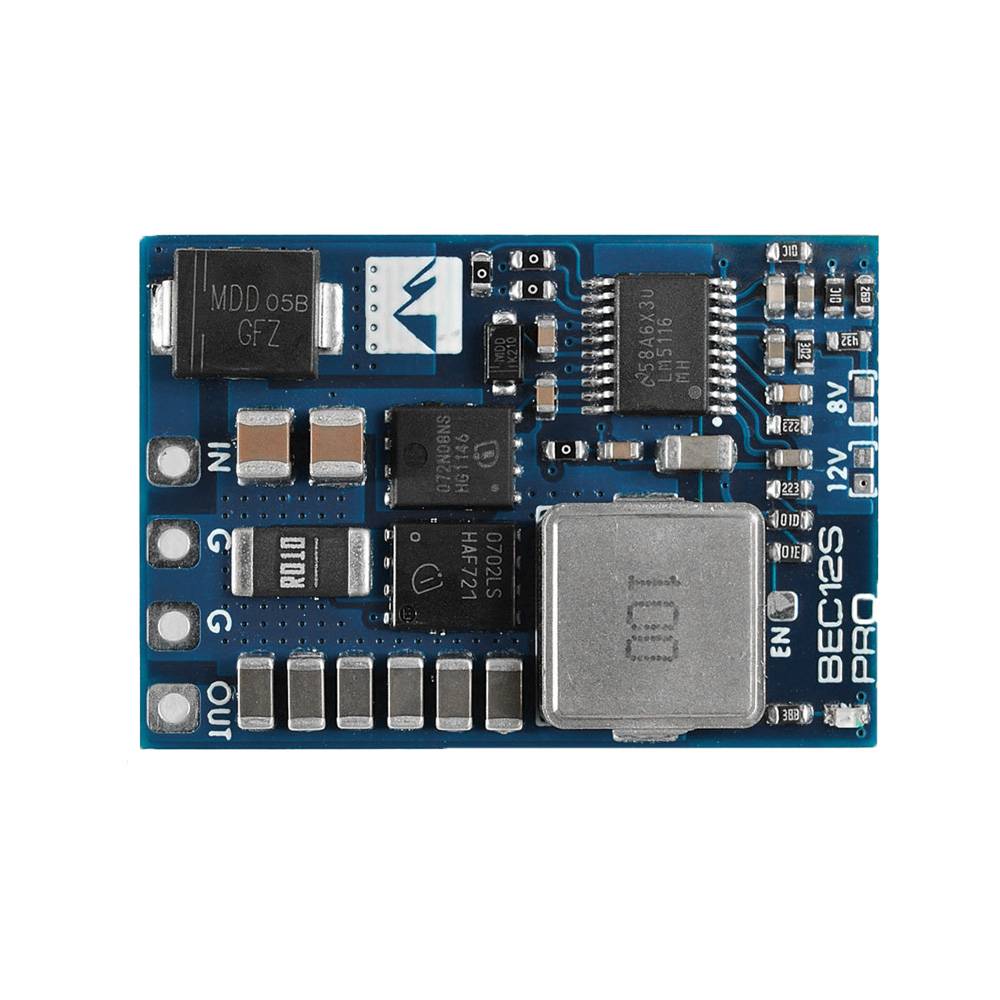

MATEKSYS 12S Pro BEC – 9-55V To 5V/8V/12V – 5A

The MATEKSYS 12S Pro BEC features a wide 9-55V Operating Input Range, 3x Output Voltage Options 5V/8V/12V and Supports continuous output current of up to 5A, peak current of 9A. This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection & self-recovery and much more!

FEATURES:

  • Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
  • Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
  • Dropout voltage: 2V (Input>=14V is required for stable 12V output)
  • Supports continuous output current of up to 5A, peak current of 9A
  • Wide 9V to 55V Operating Input Range with TVS protection

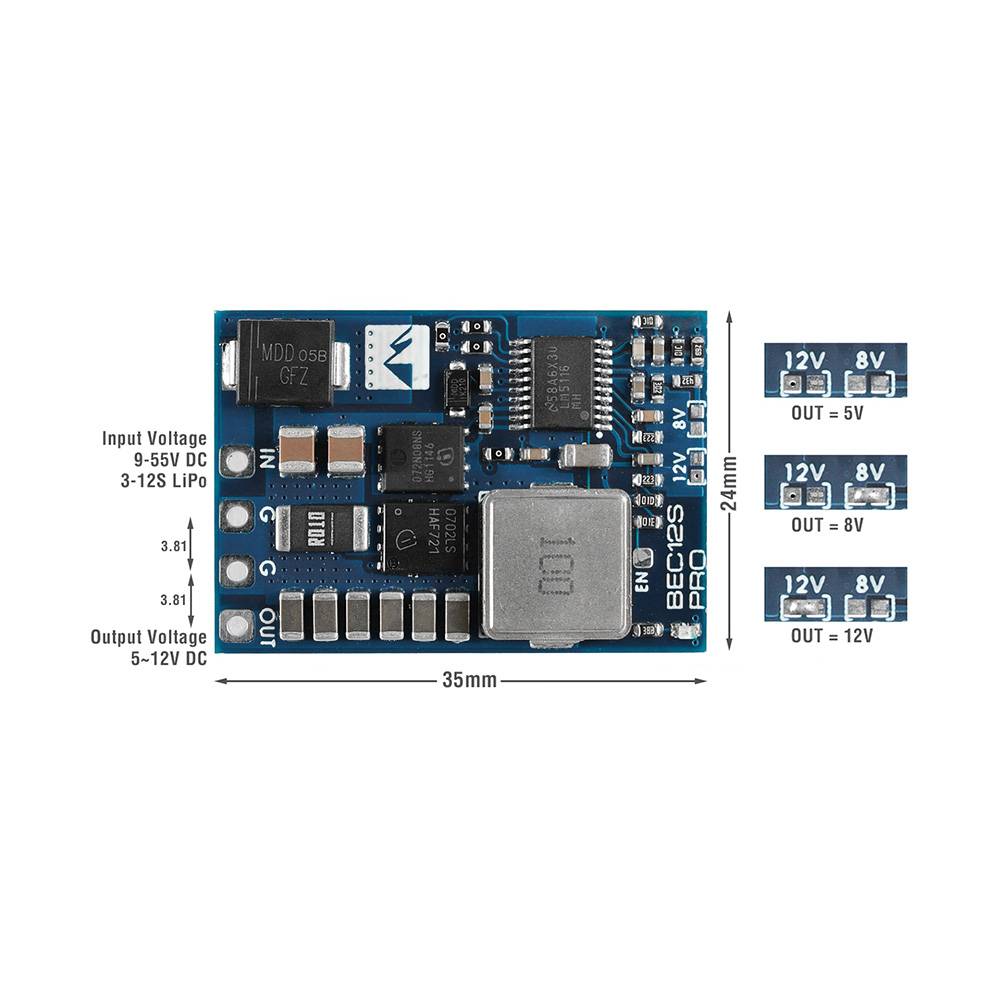

  • 3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V
  • Output Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery
  • Size & Weight: 35 x 24 x 5.5mm, 5g
  • No reverse-input voltage protection
  • Standby current: 5~10mA
  • Pins distance: 3.81mm
  • Packing: 1pc/package
  • Thermal Shutdown

SPECIFICATIONS:

  • Output ripple: 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
  • Dropout voltage: 2V (Input>=14V is required for stable 12V output)
  • Operating Input Range: 9V to 55V with TVS protection
  • Output voltage options: 5.2V, 8V or 12V. Default 5.2V
  • Buck regulator efficiency: 88% to 96%
  • Standby current: 5~10mA
  • Size: 35 x 24 x 5.5mm
  • Pins distance: 3.81mm
  • Packing: 1pc/package
  • Weight: 5g

PACKAGE CONTENTS:

  • 1x MATEKSYS 12S Pro BEC – 9-55V To 5V/8V/12V – 5A
