A RELIC PRODUCT considering current time scenario,but this product can provide the following items CURRENT SENSOR,OSD,5V,12V which some modern flight controllers dont have those onboard

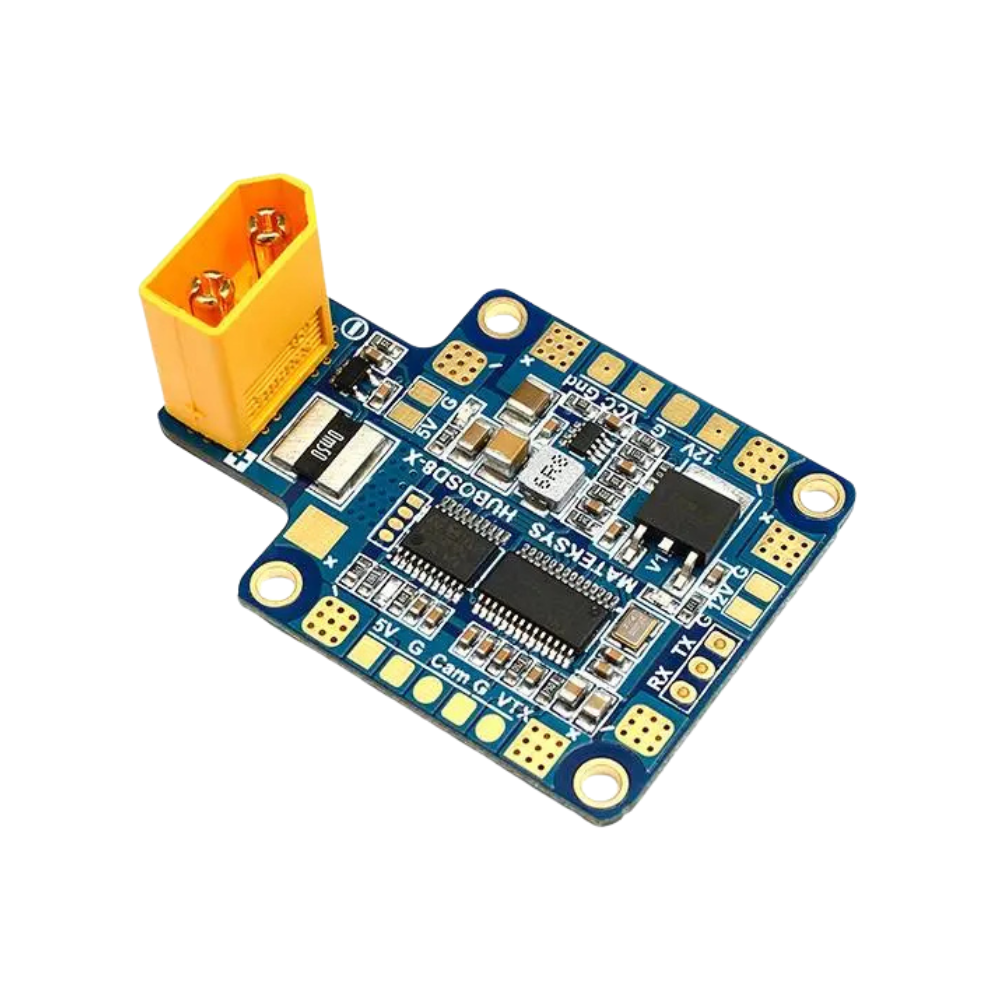

HUBOSD has been engineered to provide the highest possible performance and reliability in a 46*36mm & 4 layers PCB. It is a multifunctional HUB with PDB, BEC 5V/2A &12V/500mA, Current sensor 140A, STOSD. It is specially made for the mini FPV Quad. The BEC 12V is linear regulator, no LC Filter needed. Built-in STOSD8 can support Plug & Play, no complicated settings needed.

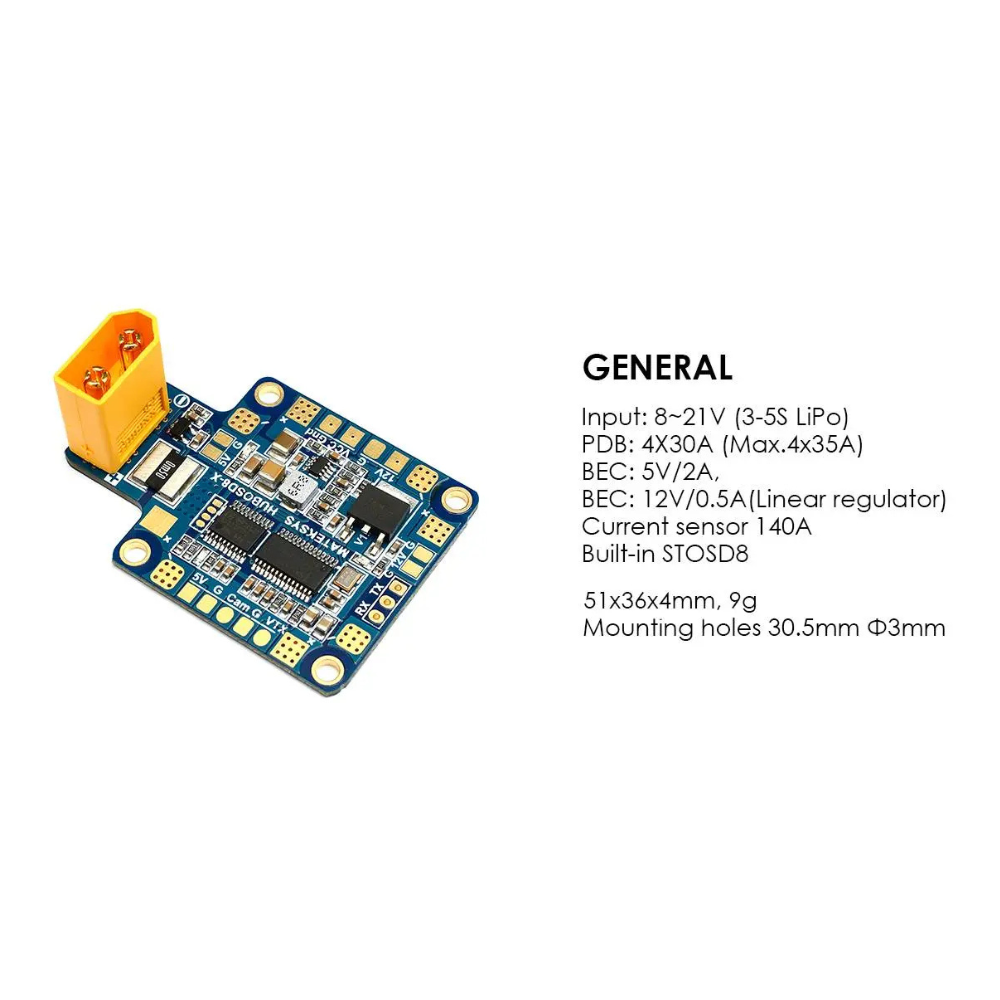

SPECIFICATIONS:

• Input: 8~21V (3-5S LiPo)
• -4X30A (Max.4x35A)
• 2A,
• 0.5A(Linear regulator)

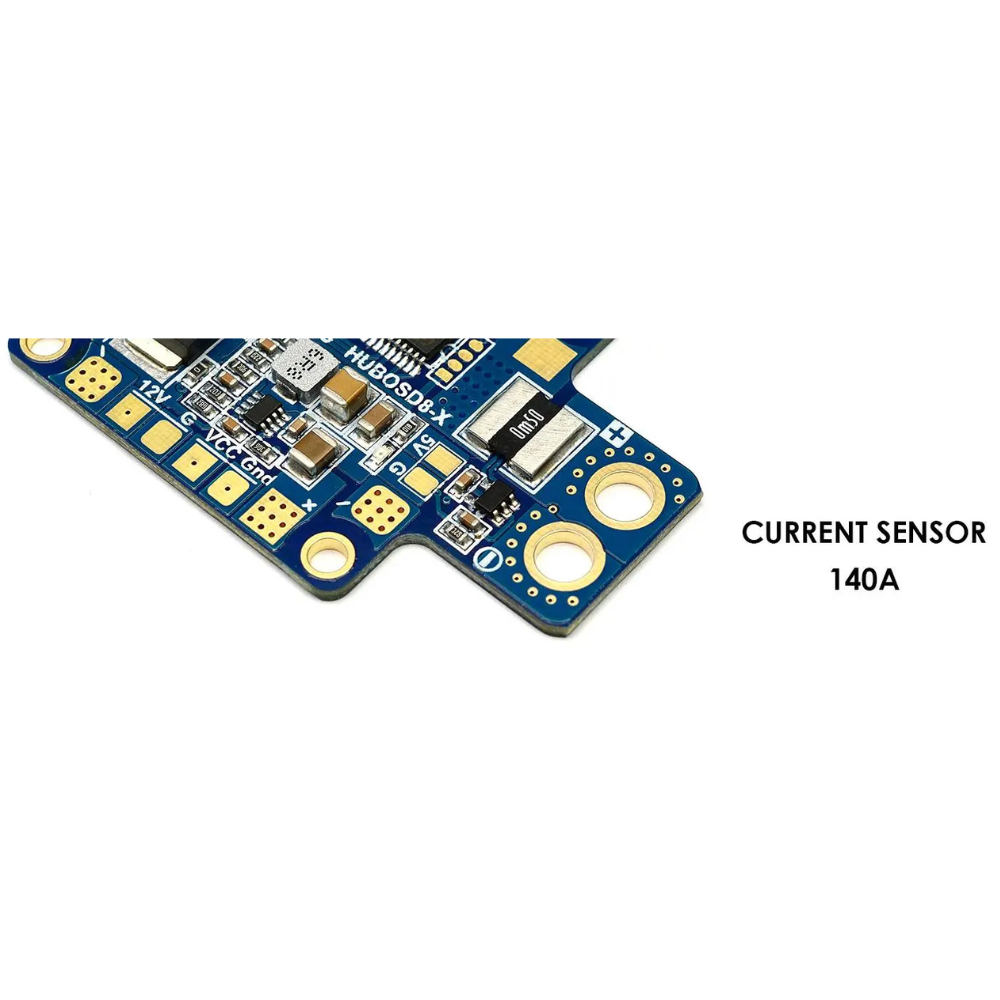

• Current sensor 140A
• Built-in STOSD8
• 51x36x4mm, 9g
• Mounting holes 30.5mm Ø3mm

BEC 5V

• 5.0 +/-0.1v DC
• 2A Cont.(Max.2.5A)

BEC 12V

• Linear regulator
• 12V +/-0.3V DC
• 500mA Cont. @4S IN

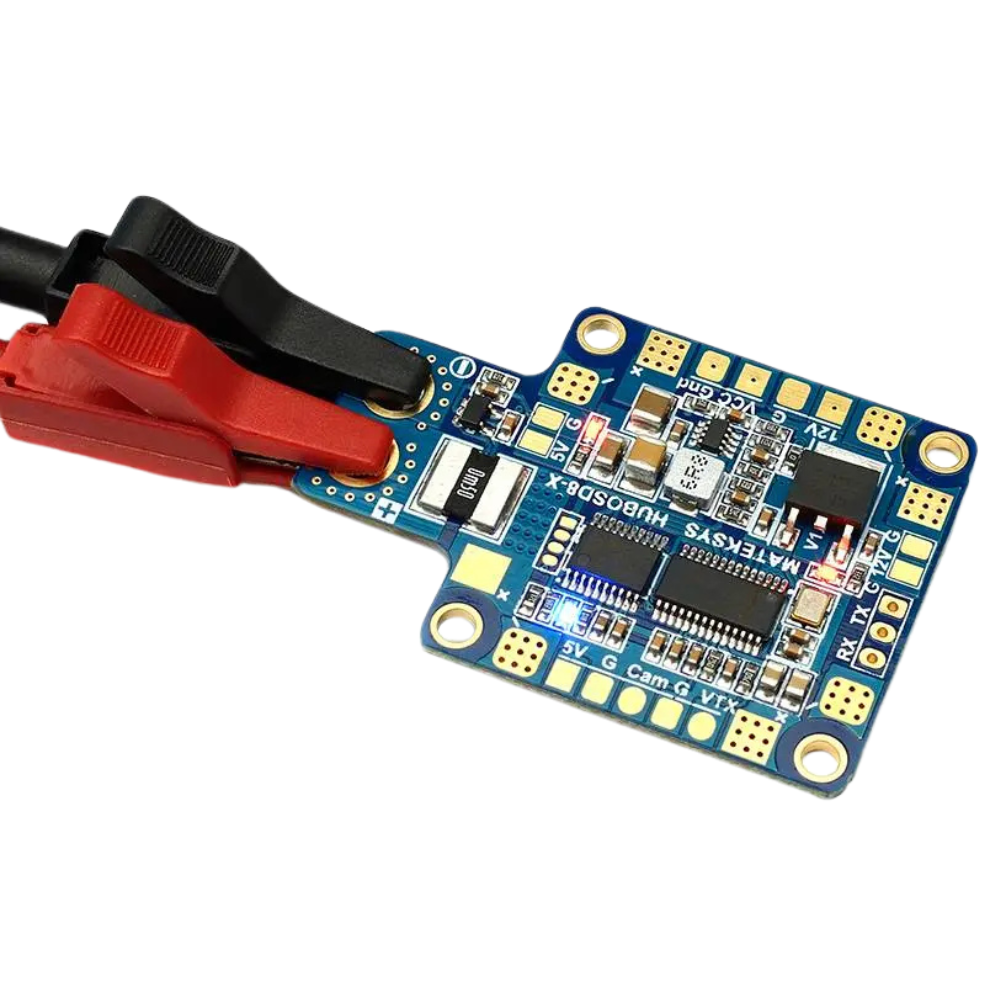

• BEC power indicators
• STOPSD indicator(Blue)

BEC 5V OUTPUTS

• Designed for RC Receivers, Flight controllers, OSD, and Servos.
• DC/DC synchronous buck regulator.
• Voltage: 5.0 +/- 0.1VDC
• Continuous current: 2 Amps (Max.2.5A 10s/minute)
• Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
• Short-circuit tolerant (5 seconds/minute)

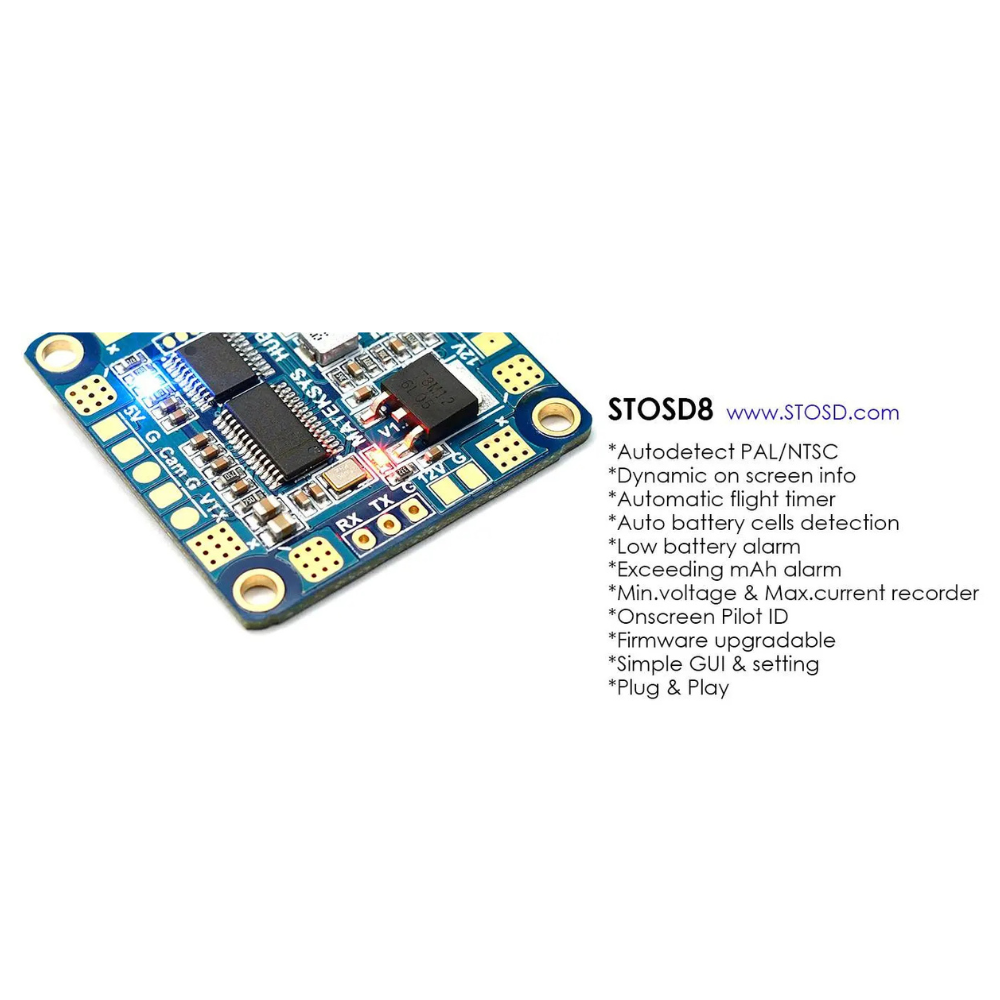

STOSD8 www.stosd.com

• Autodetect PAL/NTSC
• Dynamic on screen info
• Automatic flight timer
• Low battery alarm
• Exceeding mAh alarm
• Min.voltage & Max.current recorder
• Onscreen Pilot ID
• Firmware upgradable
• Simple GUI & setting
• Plug & Play
