Description

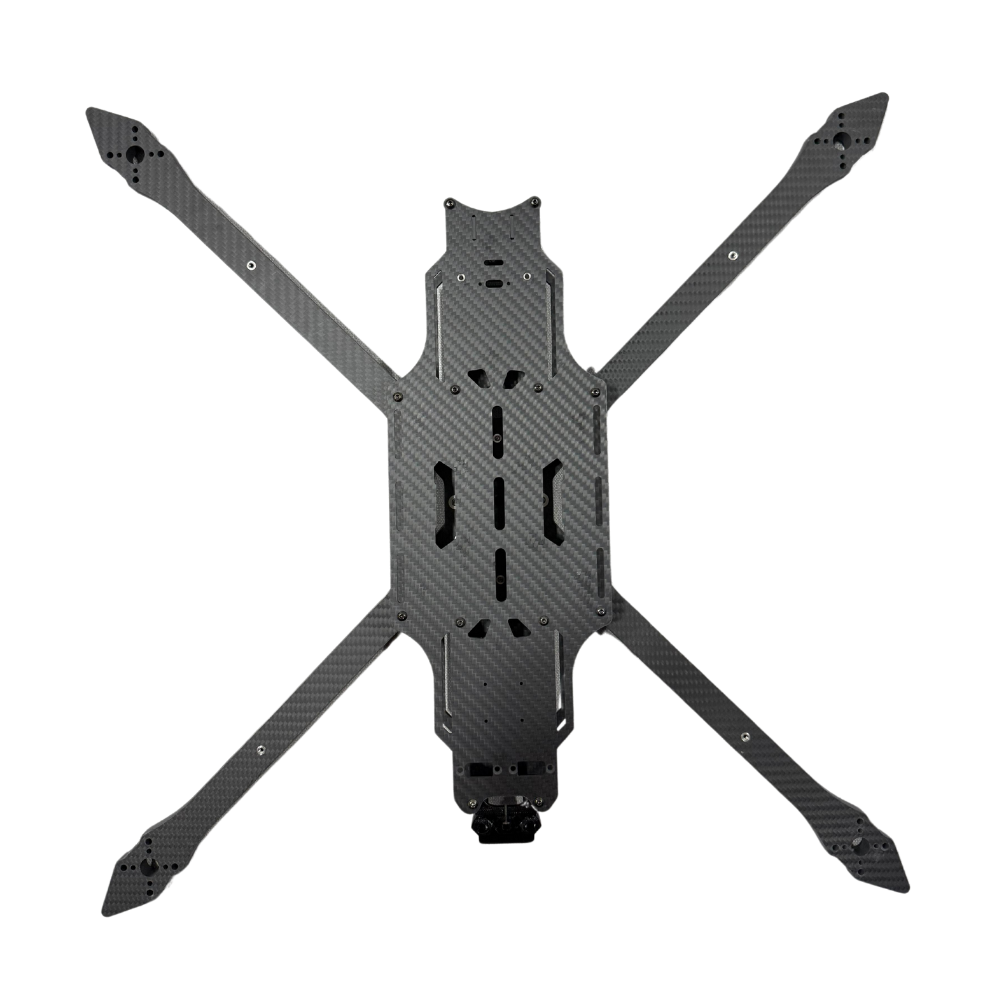

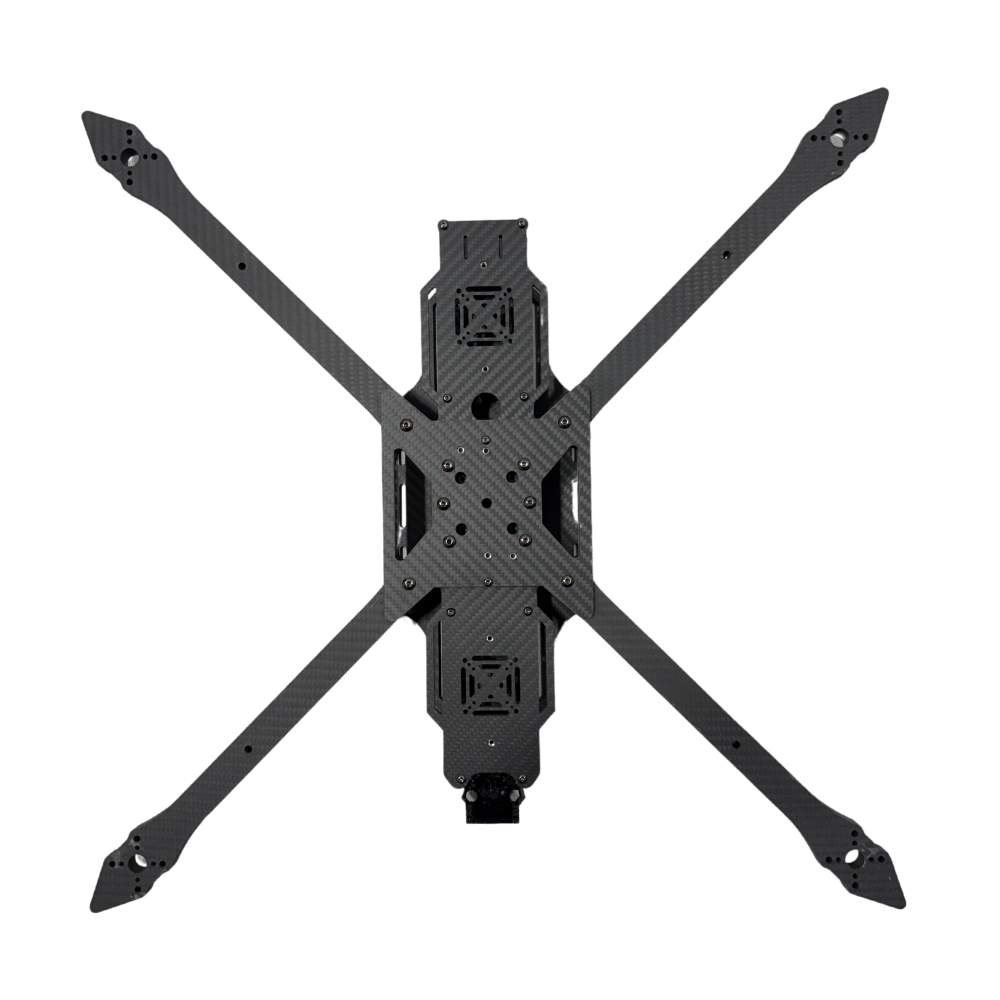

SHADOW X 13INCH FRAME KIT-TRUE X GEOMETRY

SPECIFICATION:

• FRAME NAME: SHADOW X
• STRUCTURE: TRUE X TYPE
• BOTTOM PLATE THICKNESS: 3MM
• TOP PLATE THICKNESS: 3MM
• CARBON QUALITY: T700 TORAY
• STACK HEIGHT: 20MM
• ARM SIZE: 20MM*20MM*294.3
• CAMERA SPACING: 20MM
• STACK MOUNTING HOLES: M3*30.55MM
• VTX MOUNTING HOLE: M2*20/25.5MM,M3*30.5MM
• PROPELLOR SIZE: MAX 13 INCH
• MOTOR MOUNTING HOLE: M4x30MM
• FRAME WEIGHT: 800grams

PACKAGE CONTENTS:

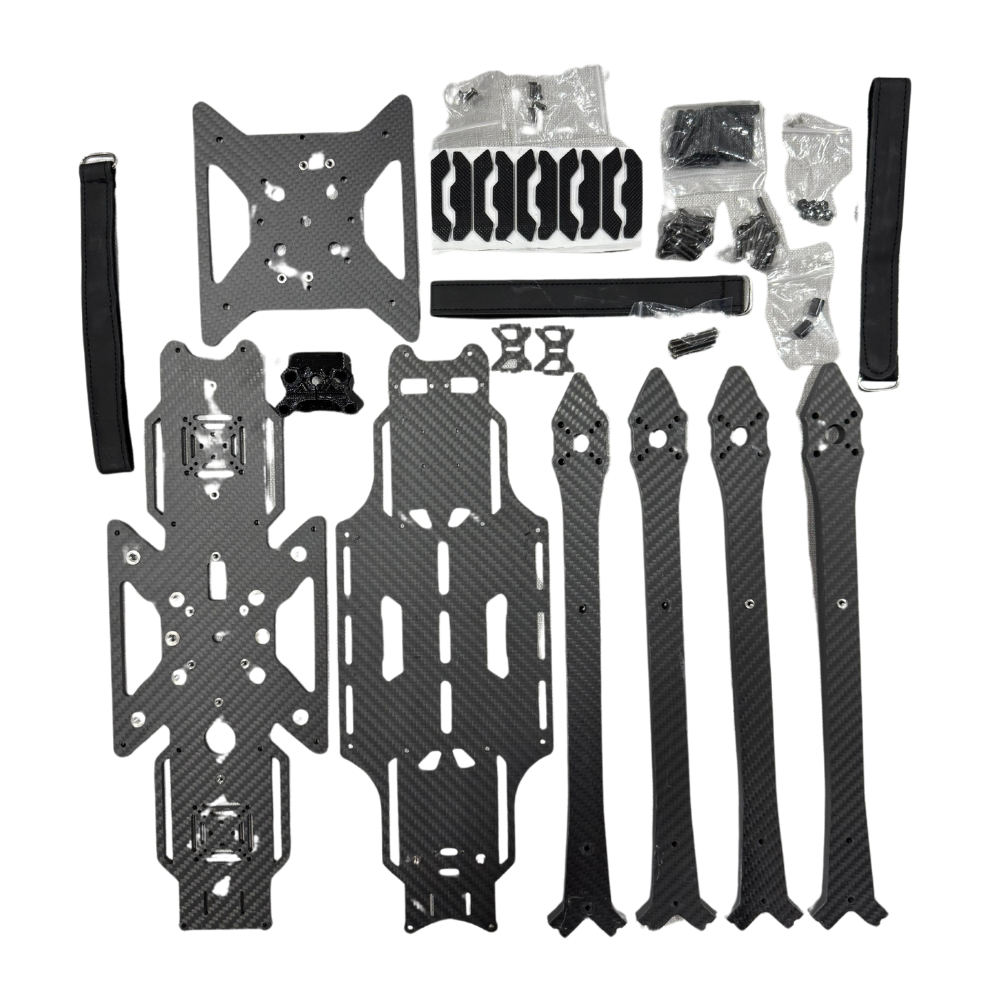

• 1 * SHADOW X 13INCH FRAME KIT W/ HARDWARE
