XUWING ALBABIRD 1100MM V2 KIT

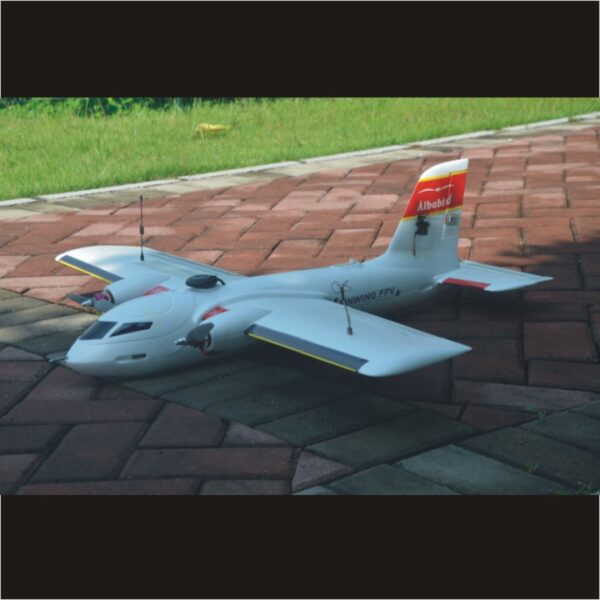

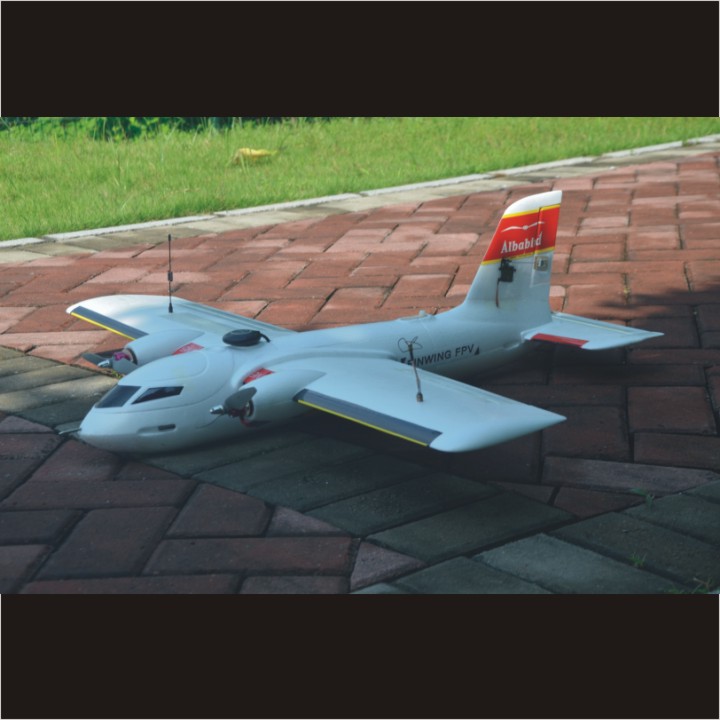

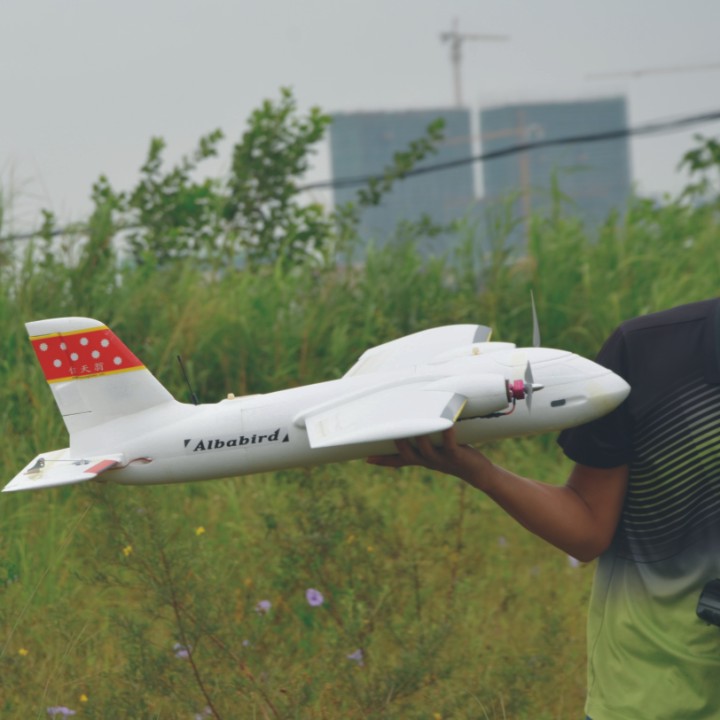

The AlbaBird 1100MM V2 by Finwing is a highly efficient, twin-engine FPV platform designed to replace the classic Traveller. Built from durable EPO foam, it offers exceptional slow-speed handling with no tip-stalls, making it incredibly stable for long-range missions. With an 1100mm wingspan, it’s large enough to carry heavy 18650/21700 battery packs for up to two hours of flight time, yet its quick-detach wings make it easily backpackable.

FEATURES:

• Massive Endurance: Highly efficient aerodynamic design allows for flight times of 60 to 120+ minutes when paired with Li-Ion battery packs (like 18650 or 21700 setups).

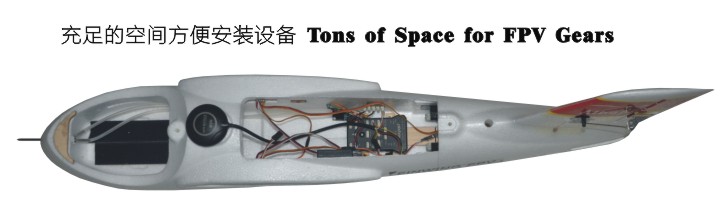

• Cavernous Fuselage: Tons of interior room makes it incredibly comfortable to install flight controllers, HD cameras, GPS modules, and large-capacity batteries.

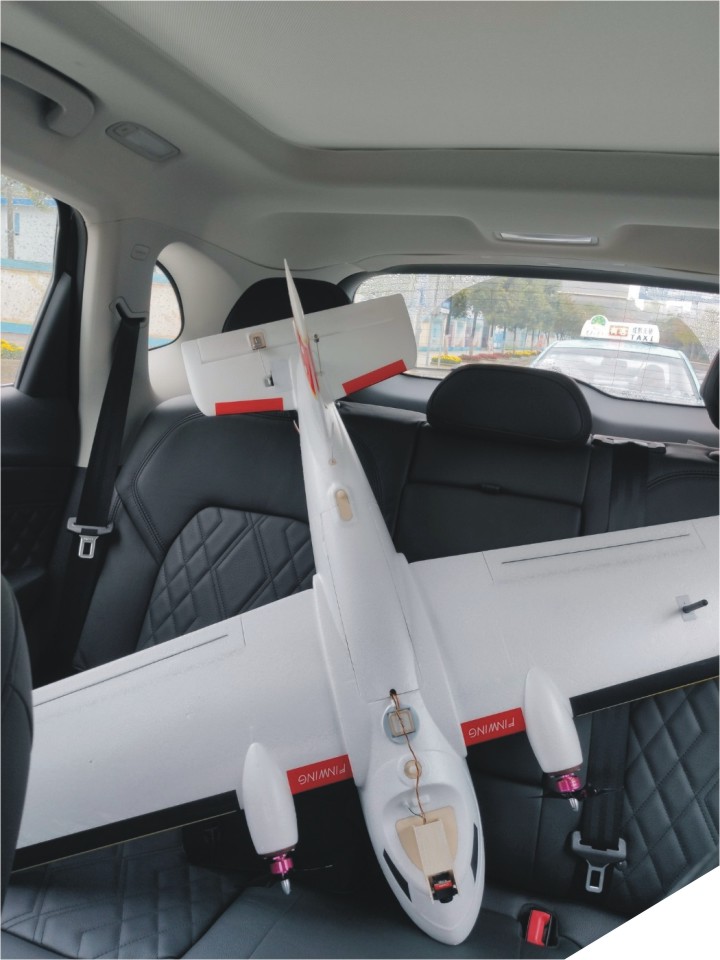

• Travel-Ready Design: Features a quick-connection system between the wings and the fuselage for fast field deployment and easy breakdown into a backpack.

• Exceptional Flight Characteristics: Engineered with a high lift-to-drag ratio airfoil. It provides a very mild stall characteristic, zero tip-stall tendencies, and extremely easy hand-launching.

• Efficient Cruising: Optimized for a comfortable cruising airspeed of 40 km/h to 45 km/h.

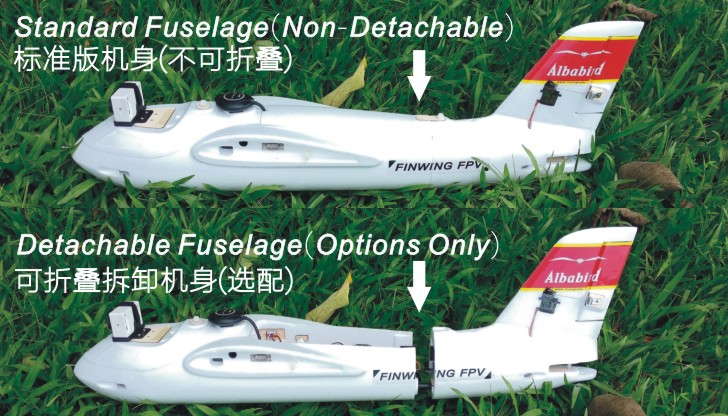

• Customized Detachable Fuselage
• Customized 9+2 Main Wing Plug & Fly Connectors

SPECIFICATIONS:

• Wingspan: 1100 mm (43.3 inches)

• Length: Fuselage only: 800 mm | Fully assembled: 870 mm

• Wing Area: 20 sq. dm

• Material: Durable, high-quality white EPO foam

• Bare Kit Weight: Approximately 460 g

• Recommended All-Up Weight (AUW): 1.3 kg – 1.5 kg (Comfortably tested at 1.7 kg, with absolute maximum capabilities between 2.0 kg – 2.2 kg)

Recommended Setup (Not Included)

This product is an unassembled kit. To complete your build, you will need the following electronics and accessories:

• Motors: 2x 2207 KV1300 brushless motors (e.g., Sunnysky)

• ESCs: 2x 30A ESCs

• Servos: 4x 12g digital metal gear servos (e.g., DM09)

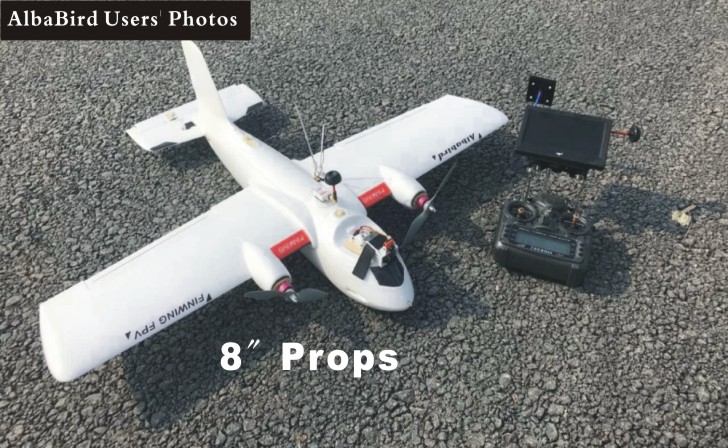

• Propellers: 6045, 7050, or 8045 (Maximum allowed size is 8″. 6″ is recommended for pavement landings, 8″ for grass).

• Battery Options:

  • LiPo: 4S 5000mAh – 8000mAh

  • Li-Ion: 18650 4S2P / 4S3P / 4S4P or 21700 4S2P

PACKAGE CONTENTS:

• 1 * XUWING ALBABIRD 1100MM V2 KIT (Customized Detachable Fuselage&  9+2 Main Wing Plug & Fly Connectors)

This product is an unassembled kit. To complete your build, you will need the following electronics and accessories:

AlbaBird User Manual Download Cllick here

3D print landing gear running on pavement?

Download Here:    3D Print landing gear for Albabird

introductions:  https://youtu.be/–Oakb3h-mI

—————————————————————————————————————-



3D print Tail site (tail veiw camera mount)

Download Here: 3D Print Tail camera Mount

introductions: https://youtu.be/VH5NIEMQvRI

—————————————————————————————————————-

3D Print Belly Skid to protect airplane belly and Props (7’Props won’t touch ground)

Downlaod Here:  AlbaBird 3D Print Belly Skid

What Distinguished Albabird from other plane or similiar sized plane?



*Very good efficient, be capable to fly upto 100 minutes, 2 hours

*Better slow speed characteristics, very mild stall characteristic and no tip-stall

*Quick connection between wings and fuselage, portable friendly design

*Tons of fuselage space much more than similar sized planes

   very comfortable to install devices, battery



Albabird Flight Recorder: 197.7km, Time: 3 hours 25 Minutes
